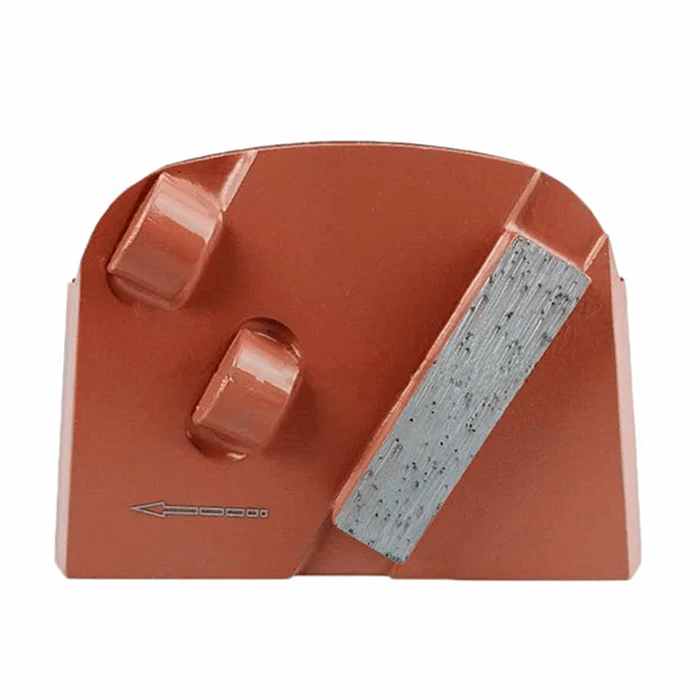

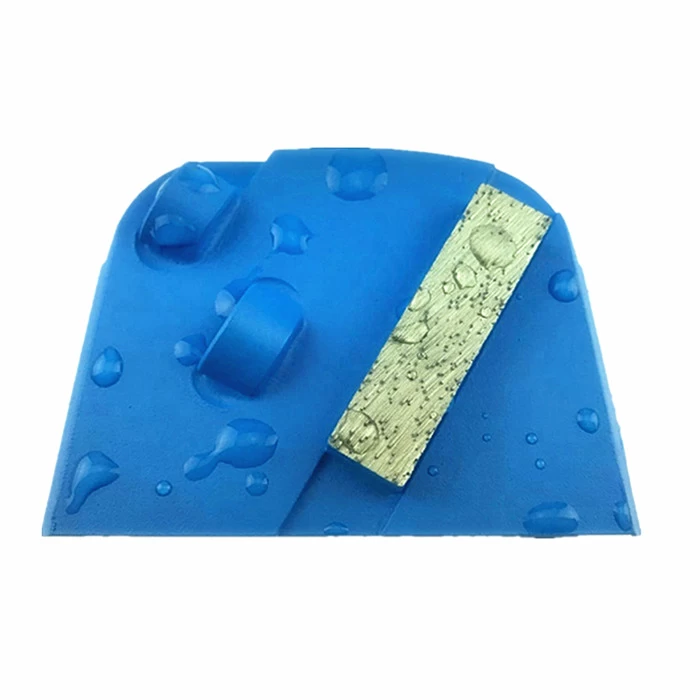

Lavina PCD grinding shoes for epoxy coating

ChinShine makes a series of diamond and PCD grinding shoes for Lavina, this 1/2 PCD is easy to remove epoxy coating, paints, glue and similar floor surface, it is faster and longer lifespan than diamond grinding shoes.


  • Welding MethodSilver Welding/Brazing
  • AdvantageLong life span, Fast Grinding, Best Price
  • Related NameDiamond Grinding Disc, PCD grinding segment
  • OEM Custom Made ServiceYes

Lavina PCD grinding shoes for epoxy coating

PCD grinding shoe can also called PCD grinding disc and PCD Grinding segment, they are quite popular in America and Europe.


This 2 half round PCD grinding shoe is an excellent choice when removing medium and heavy painting, epoxy, glue and similar floor surface. The design and positioning of the PCD with an aggressive diamond segment acting as a stabilizer and depth guide scrapes the thickest of coatings aggressively and follows with a conventional grind all in one step. PCD grinding shoe is directional specific and come in clockwise and counterclockwise orientation.

IMPORTANT:If you run a rotary machine with counter rotating heads, be sure to get 1/2 clockwise and 1/2 counter clockwise PCDs when you order.


The weight of the machine is partially supported by the large surface area of the diamond segment - this segment limits the PCD's penetration into the concrete. The diamond segment lightly dresses and helps remove the severe marks left by the PCD grinding tips. This configuration will yield a higher total square foot life span while providing an aggressive rate of coating and concrete removal. Use this PCD diamond grinding shoe/disc to remove heavy coatings, overcoats, glues, mastics, thin set and paint.


Diamond PCD (polycrystalline diamond) grinding shoe/disc is the result of sophisticated high-pressure, high-temperature technology in which carefully selected synthetic diamond particles are sintered together in a cobalt matrix.


Welcome to buy this NEW lavina diamond PCD grinding shoe/disc for your heavy coatings, free technical consult, 24 hours service.
