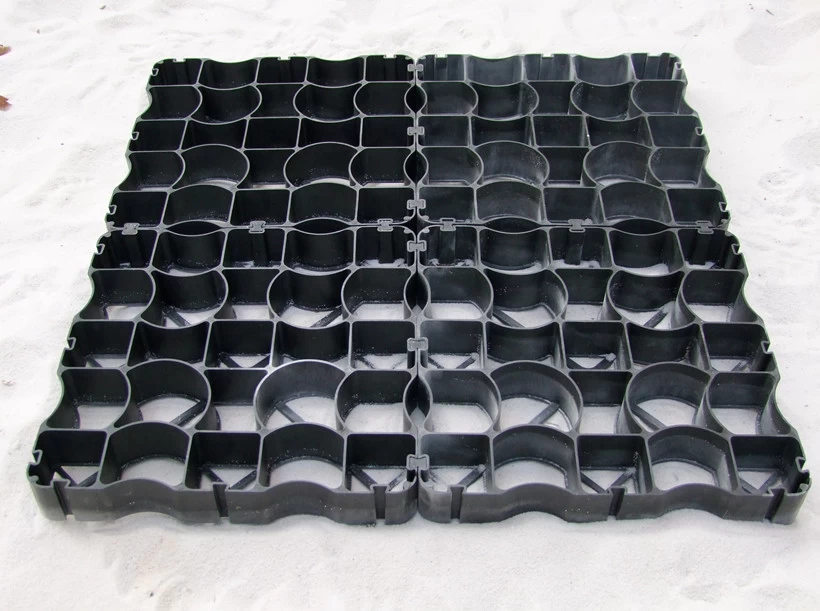

LAWN PROTECTION COW HORSE GROUND REINFORCEMENT GRID
Ground reinforcement grid is a new type of high-strength geosynthetics, which is popular in domestic and abroad. It is a kind of three-dimensional network structure shaped by high-strength HDPE sheets through ultrasonic welding of high strength.Now it is widely used in cow and horse mud management.
THE ULTIMATE IN PADDOCK AND EQUESTRIAN SPORTS AREA
LY950 TECHNICAL DATA
Recommended Apply Place: Indoor and outdoor riding arenas, Paddocks and open stables, Horse walkers, Lunging arena, Equestrian sports area, Tethering and mounting areas, Feeding spots, Tolt tracks, Racetracts, Gravel road, Round pens, Washing areas.
Loading Bearing capacity: More than 250tons/m2 after filled
Material: HDPE (100% Recycled High Density Polyethylene)
Color: Black; Dark Green
Cell Wall Thickness: 2mm
Weight: 0.65kg/pc; 5.85kg/m²
Size: 336*336*50mm
Open Cell Percentage: 92% top; 75% base
Anti HCL: According to GB4218-1984, 30%x24h, no visible change
Anti NaOH: According to GB4218-1984, 30%x24h, no visible change
Thermal Aging: According to GB/T 7141-1999, 70ICx24h, no visible change
UV resistance: According to GB/T18830, UPE＞30T(UVA)AV＜5%, Qualified
Toxicity: Non Toxic
Durability: durability of at least 10 years in neutral ground of 4＜pH＜9
Packing: Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go.
Loading Quantity: 570m2/20'GP; 1150m2/40'GP; 1310m2/40'HC
ACCESSORIES FOR GROUND REINFORCEMENT GRID
We creat a unique & firm connected accessories and fix edging system that offers a guide to ensure continuous levels across surfaces as well as the ability to cut patterns and curves to surfaces.
FEATURE
Light weight
Non-slip
Elastic and robust
Easy Install
Crack-proof
Weatherproof
Environmentally friendly, 100% recyclable
High load capacity
Ammonia resistant
Withstands frost and UV light
Does not rot
ADVANTAGES
No mud
Equal load on all joints
The tread layer remains separate from the substructure
Minimal maintenance
High degree of elasticity
Load capacity of up to 250tons/m2
Outstanding drainage
More than 200 elastic elements per m2
Quick and easy to install
Environmentally friendly
Minimal hoof impact marks
Patented safety locking system
Permanent drainage
Robust surface with good grip
All-weather areas, the ideal surface all year round
Open stables keep free from mud and puddles.
Recruit Global Distributors of Ground Reinforcement Grid
