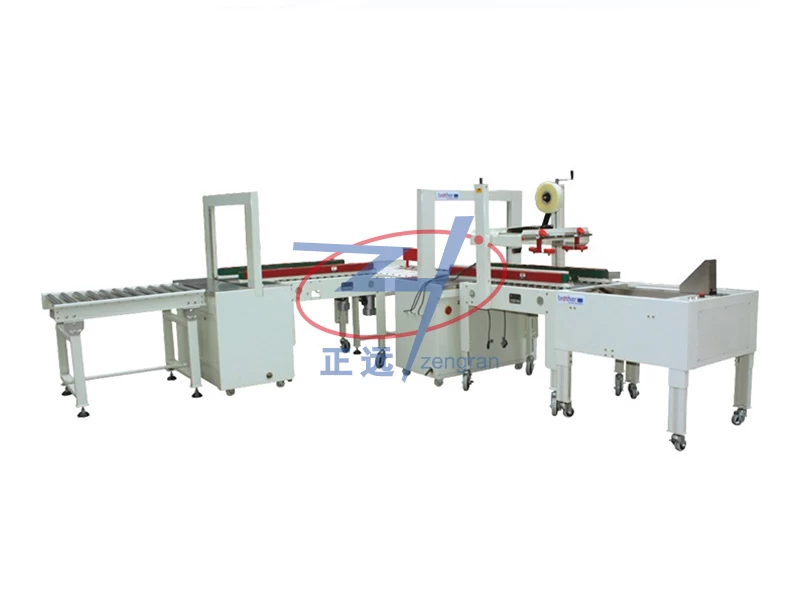

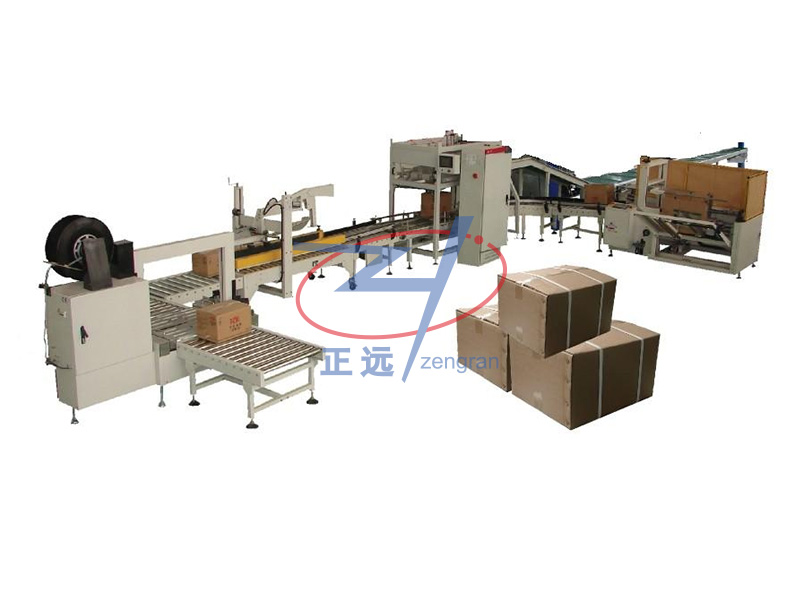

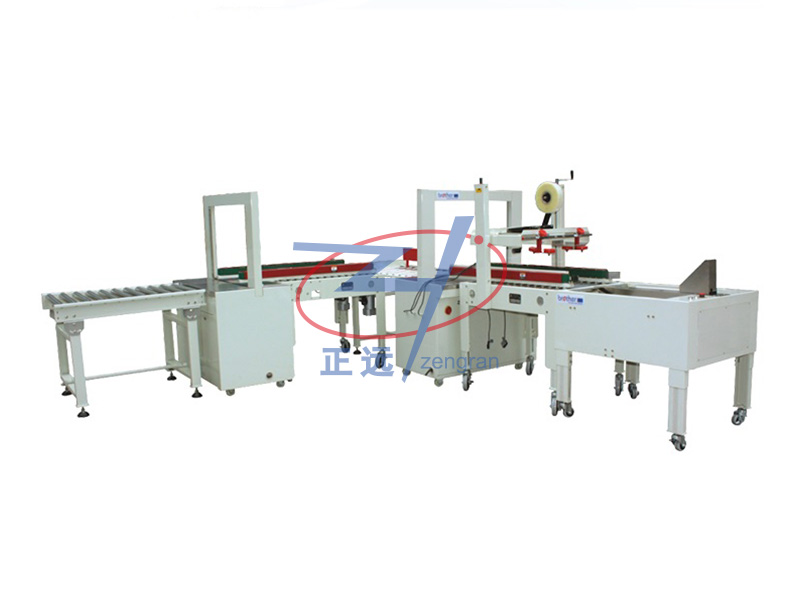

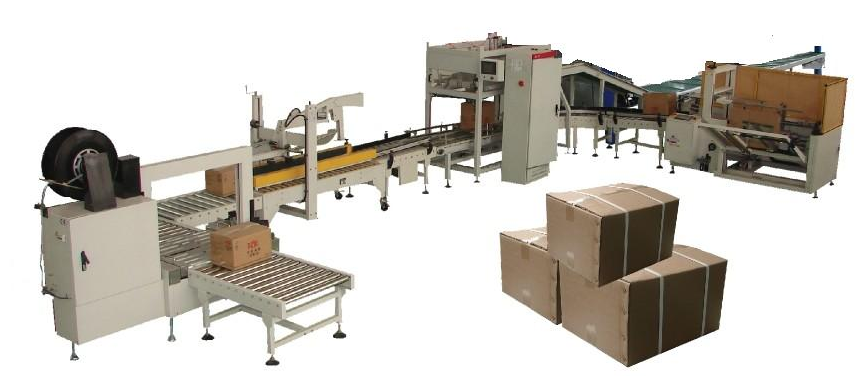

LB450-2 Case packer for pouch and bag

This packing unit includes one set of horizontal connecting belt conveyor, one set of weight checker, one set of climbing conveyor, one set of carton opening machine, one set of carton filling machine, one set of carton sealing machine, one set of no-power taking off conveyor, etc.



LB450-2 Case packer for pouch and bag cartoning with weight checker

LB450-2 Case packer for pouch and bag


Technical features:

This Case packer includes one set of horizontal connecting belt conveyor, one set of weight checker, one set of climbing conveyor, one set of carton opening machine, one set of carton filling machine, one set of carton sealing machine, one set of no-power taking off conveyor, etc.


Application:

Liquid: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc. Thick liquid: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.

Solid: candy, peanut, green bean, pistachio, brown sugar, cake, daily commodities, cooked food, pickles, puffed food etc.

Granule: grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.

Powder: milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.



Working Progress:

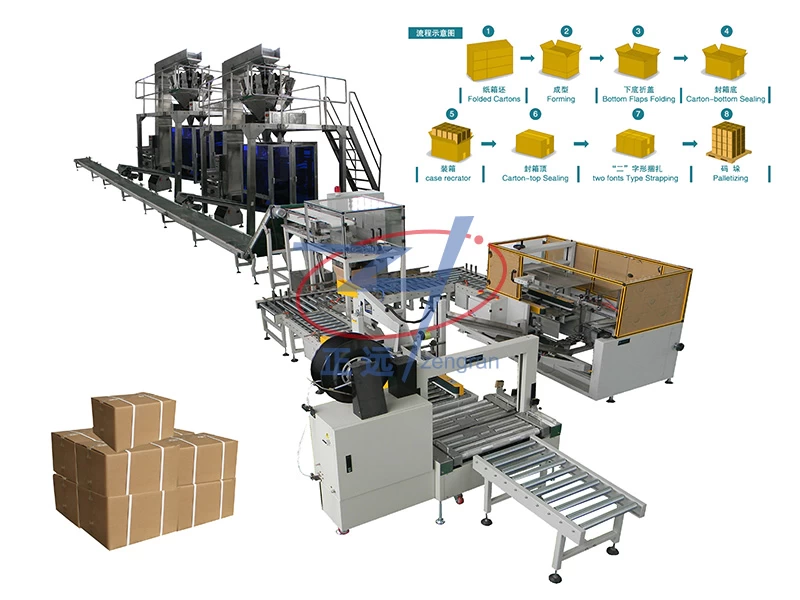

Connecting conveyor will conveying bags from front primary packing machine together on one belt conveyor →bags will be send to automatic carton filling machine by climbing conveyor → Automatic carton opening→ automatic carton filling →Automatic carton sealing→Finished carton taking off


Specification:

No.

Item

Parameter


Filling material

Plastic bag with material

1

Packaging weight

According to customer’s requirement

2

Max.Speed

90 times/min

3

Filling order

According to customer’s requirement

4

Power supply

380V±10% 50Hz 15KW

5

Machine weight

2000kg

6

Machine size

6000*2000*4900mm

7

Air supply source

0.6MPa, 0.5m3/min
