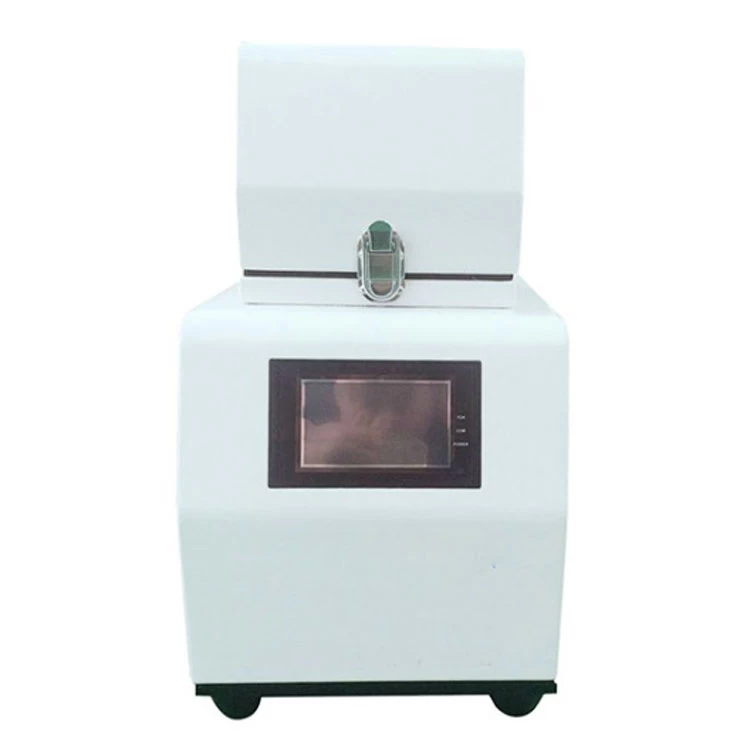

Tissuelyser tissue grinder is a special, fast, high efficiency and multi test tubes consistent system. It is able to extract and purify the original DNA, RNA and proteins from any source (including soil, plant and animal tissues / organs, bacteria, yeast, fungi, spores, paleontology specimens, etc.).
1 plant tissue: roots, stems, leaves, flowers, fruits, seeds, etc.
2 animal tissues: brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph nodes, muscles, bones, etc.
3 fungal bacteria: yeast, E. coli, etc.
4 food and drug: all kinds of food, pills, etc.
5 volatile samples: coal, oil shale, wax products, etc.
6 plastics, polymers: PE, PS, textiles, resins, etc.
-

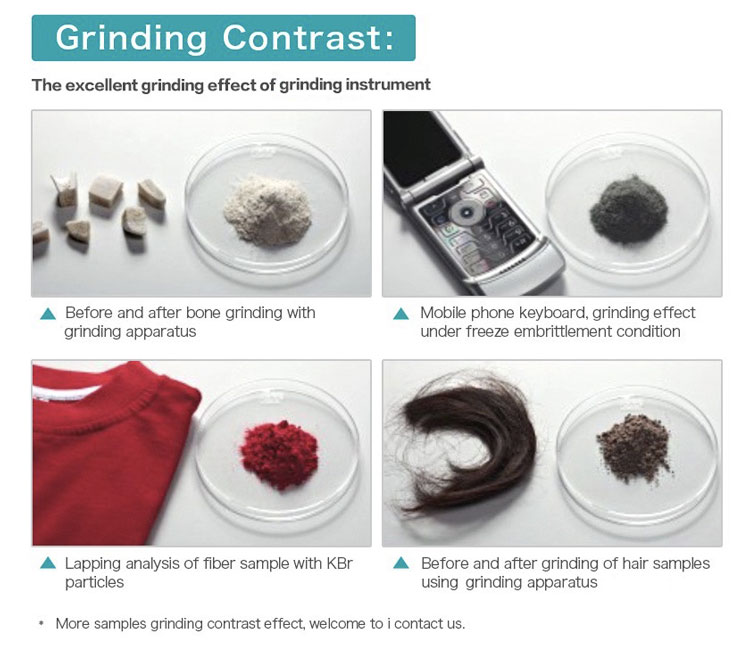

The nucleic acids and proteins of various types of samples can be efficiently, rapidly and stably cleaved and purified.
-
Operation much, effection also very well：2 x 24, 2 X 48, 4 x 96 samples can be completed in 1 minutes. Save time and effort, small batch differences.
-
No cross contamination
-
Easy Operation：humanized operation interface.
-
Good stability：during the operation of the instrument, the noise is less than 55dB, it will not interfere with other experiments or instruments.
-
Easy to operate at low temperature:When the need for low temperature grinding environment, the adapter can be placed in the liquid nitrogen to cool the sample for 1-2 minutes, then removed to the host quickly fixed to start grinding, no need to re freeze treatment, saving liquid nitrogen.
-
Applications: plant tissues, animal tissues, microorganism,the soil in the environmental samples and ect samples are homogeneous, grinding, cell disruption, homogenization, Material dispersion ,preparation, oscillation.
-
This tissue grinder can meanwhile grind 96 pieces samples in 15 seconds, including 12 and 24 can be applied to the liquid nitrogen refrigeration adapter.
-
Dimension: 400*520*660mm
-
Noise: <55db
-
Diameter of samples after preparation: ~5µm
-
Shaking Speed: 0—70 HZ
-
Diameter of grinding beads: 0.1-30mm
-
Materials of grinding beads: alloy steel, chromium, zirconium oxide, tungsten carbide, quartz sand；
-
LCD Display, can be upgraded to touch screen display operation
-
Compatible with 96*(0.2-0.5ML) /96*2ML /48*5ML /24*(7-15)ML/4*25ML /2*50ML /1*100ML;
-
Customized volume of adaptors are available;
-
Time: 0-99mins
-
Quakeproof principle: Schleifen-1 quakeproof technique
-
Grind type: A free choice in dry grinding, wet grinding and cryogenic grinding
-
Speed up period: reach the setting speed within 2s after pressing START
-
Stop period: stop shaking within 2s after pressing STO
-
Grind type: A free choice in dry grinding, wet grinding and cryogenic grinding
-
Has the ability to upgrade to the low temperature liquid nitrogen refrigeration or air refrigerator refrigeration
-
Grind suite material: Hard steel, PTFE(Teflon), zirconium oxide
-
Adaptor material: Teflon or alloy steel
-
Weight: 60kg

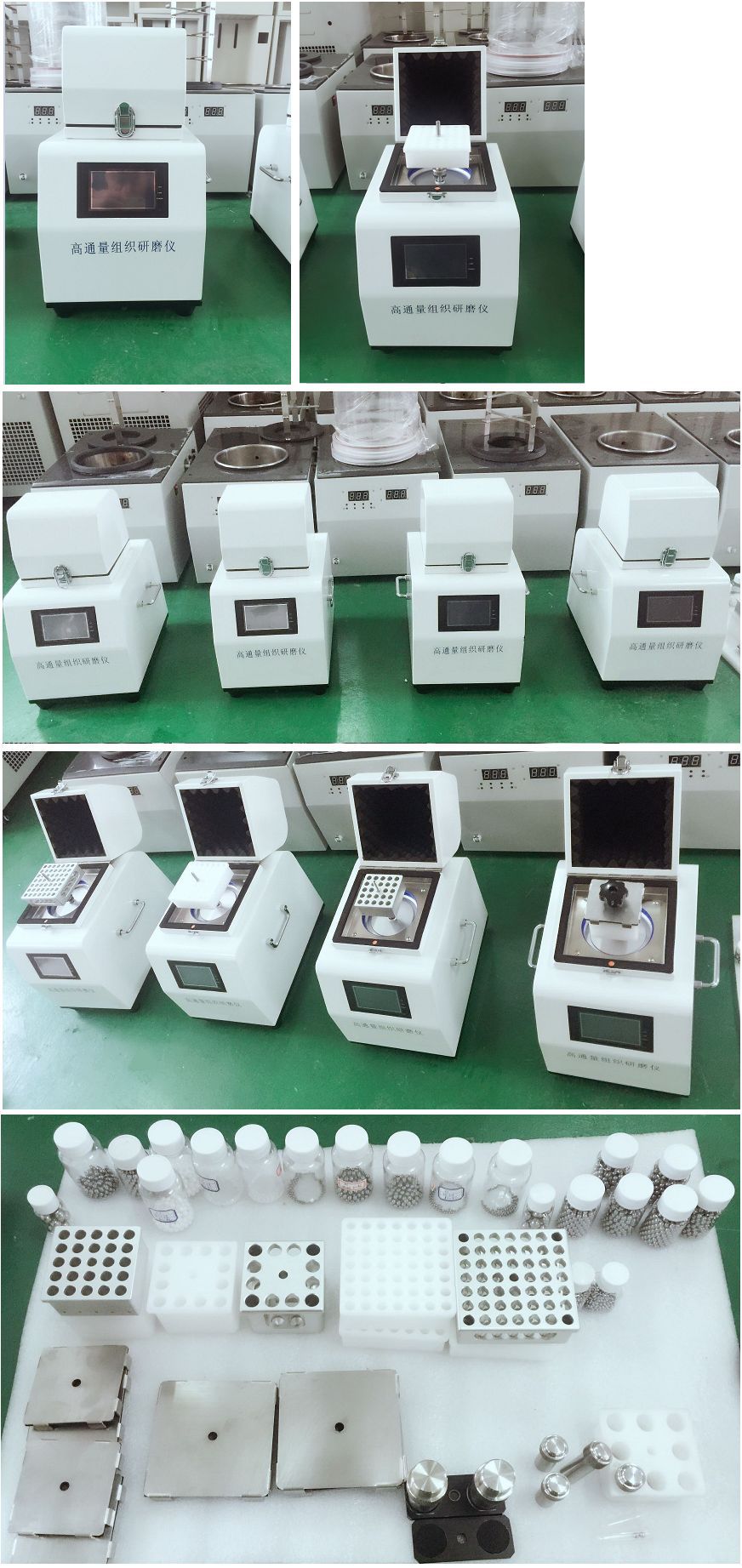

Basic configuration:
△ One Tissuelyser
△ One set of 2ml adapter, one set of 2ml semiconductor adapter (optional)
△ 1000*5MM grinding beads;1000*5MM ceramic grinding beads
△ One set of dedicated beads pipette (optional)
Remarks:
★ 1HZ=30 rpm/sec 1HZ=100RPM
★ Conventional adapters can be placed in the refrigerator to provide a cold environment for the work. The other with liquid nitrogen refrigeration adapter, can soak over thirty minutes.
★ For the work of environmental noise emission values, depending on the type of sample and grinding instrument settings.
★ Small amounts samples for DNA and RNA separation can be prepared in disposable microcentrifuge tube. Can use the adapter which is made of PTFE material,and accommodate 5 or 10 disposable centrifuge tube to be cell disruption.
★ In the tissue grinders, cell tissue can be quikly and efficiently broken in a very short time. Therefore, there is no need for additional cryogenic refrigeration.
