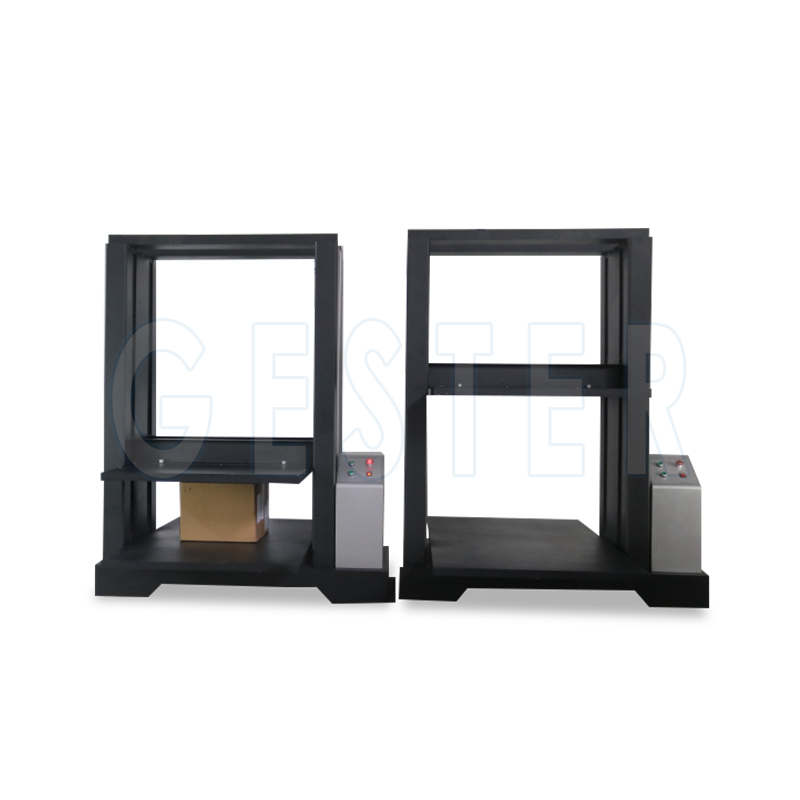

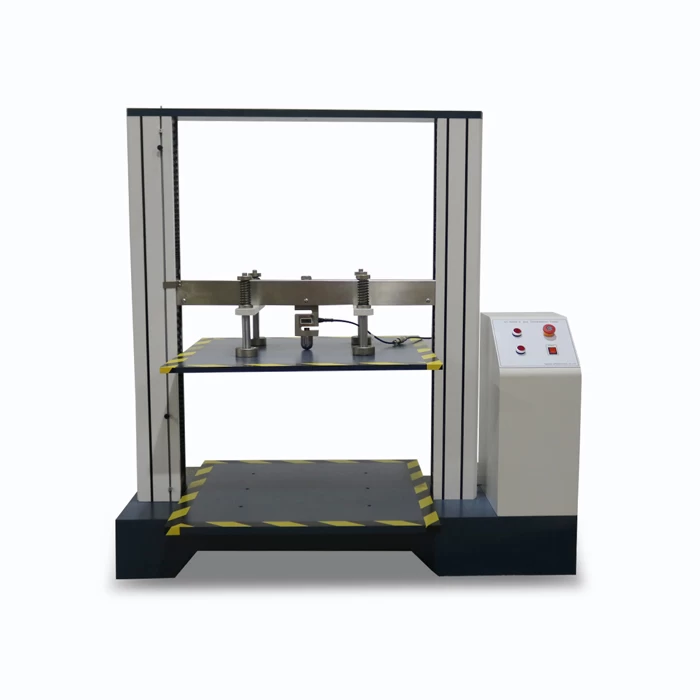

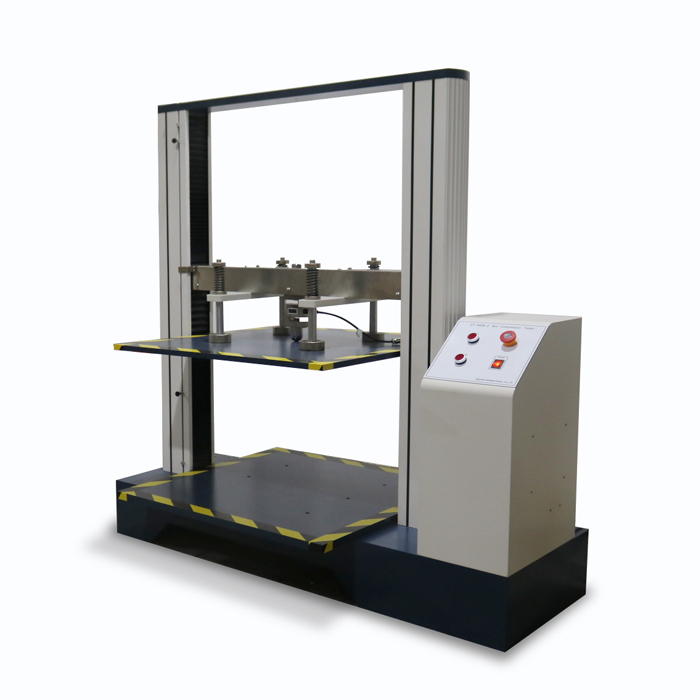

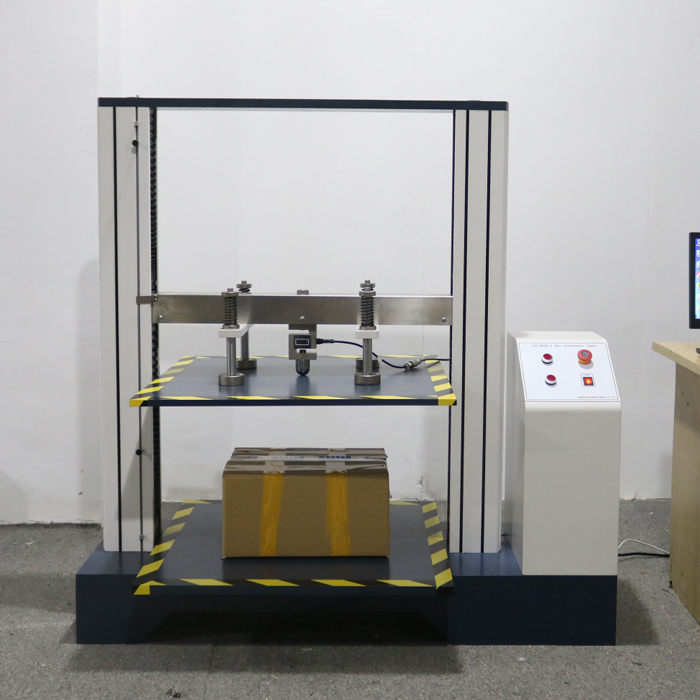

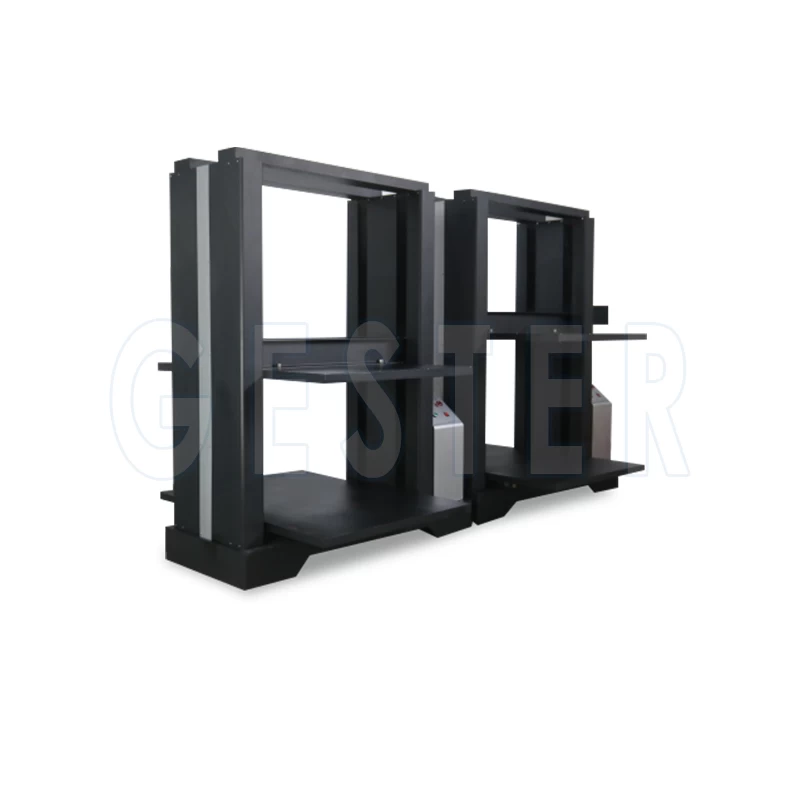

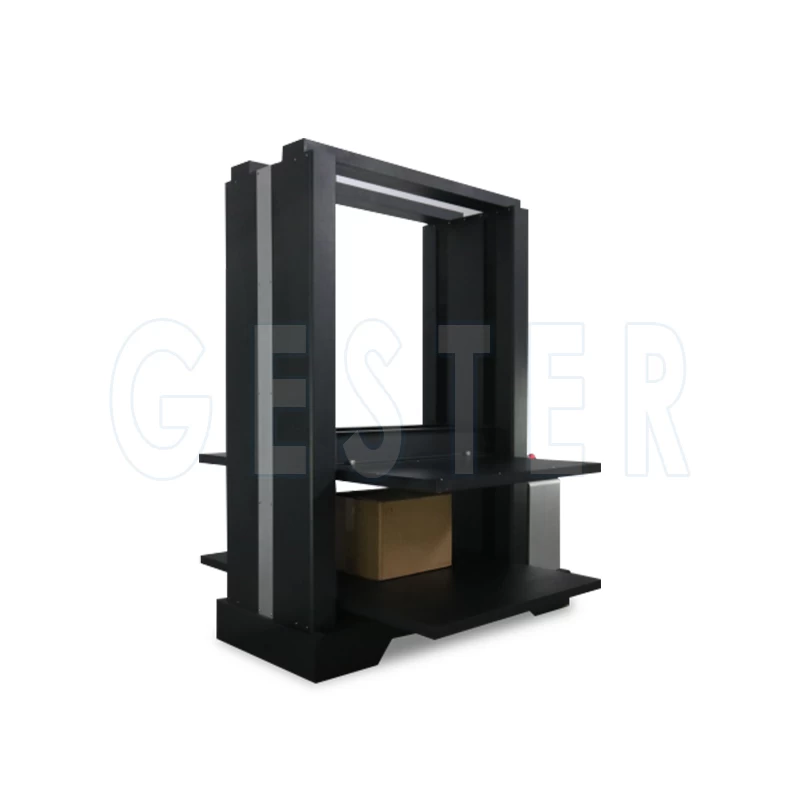

LCD Model Box Compression Strength Tester GT-N02A

Box Compression Tester with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 30kN.



LCD Model Box Compression Strength Tester GT-N02A


Product Introduction

Application:

GT-N02A Type box compression tester with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 30kN. With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: good parallelism, reliable measure precision and high return speed(250mm/min.)

Box compression tester is capable of various functions for all parameters in standards, Such as parametric test, display, memory, statistics and print function; data processing function to gain the statistical result of all parameters directly; and automatic reset and fault diagnosis function and easy operation.


Standards:

ISO2872, ISO2874, ASTM D642


Feature

Strength test

  • Strength test which belongs to a destructive test is mainly used to measure the deformation when the sample is loaded with maximum pressure or crushing strength.


Constant Value Test

  • There are two parameters which are to be set in the constant value test: load force value and deformation value. The user can set one or both of them according to the practical requirement. the measure is complete when any parameter reaches the set value.


Stacking Test

  • Stacking Test is used to check up that whether the sample can endure a constant pressure in a given time period. Set up two parameters: compressive strength and testing time (hour).
  • when the test starts, the system will check the current pressure at any moment to ensure the set value; the measure is complete when the test time is expired or the deformation value exceeds the set one within testing time.


The overall system is in good parallelism, stationarity and high return speed.



Key Specifications



Model

GT-N02A

Plate Size

500 mm x 500 mm or 600 mm x 600 mm

800 mm x 800 mm or 1000 mm x 1000 mm

MAX stroke

500mm or 600 mm

800mm or 1000 mm

Measuring range

0-10KN, 20KN, 30KN

Indication error

+/-1%

Pressing Speed

10 mm/min

Return velocity

150 mm/min(maximum)

Display

LCD

Printer

Direct thermal printer, high speed while noiseless.

Power

220V,  50HZ, 60HZ

110V,  50HZ,60HZ  (Option)

Standards

ISO2872, ISO2874, ASTM D642



 carton box compression strength tester GT-N02A
