| Bus Specification |
Overall Length(mm) |
10500 |
| Overall Width(mm) |
2480 |
| Overall Height(mm) |
3360 |
| Body Inside Height(mm) |
1900 |
| Wheel Base(mm) |
5100 |
| Front/Rear Overhang(mm) |
2200/3200 |
| Approach/Departure(°) |
2022/12/9 |
| First Step Height(mm) |
430 |
| Max G.V.W.(kg) |
14500 |
| Seats Capacity(person) |
32+1 |
| Max. Speed(km/h) |
100 |
| Steering Wheel Position |
RHD |
| Engine |
Engine Model |
C230 20 |
| Manufacturer |
DCEC |
| Engine Position |
Front/Diesel |
| Engine Type |
6 Cylinders in Line, water cooling,turbocharged,inter-cooling, direct-injecting |
| Max Power(kw) |
170 |
| Max Torque(N.m) |
830 |
| Displacement(ml) |
8300 |
| Bore/Stroke (mm) |
114×135 |
| Emission Standard |
Euro Ⅱ |
| Equipment |
Gearbox |
Fast 6DS95T |
| Clutch |
Monolithic, dry, diaphragm spring |
| Front Axle |
DONGFENG DANA AXLE, 6.5 Ton |
| Rear Axle |
DONGFENG DANA AXLE,9 ton single-stage deceleration |
| Suspension |
multiple leaf spring 9/11 |
| Steering |
integral power steering gear |
| Brake |
Dual circuit air braking, drum brake |
| Fuel Tank |
200LX2 |
| Tyre |
295/80R22.5 Double Coin, 2 spare tires |
| Battery/Dynamo |
6-QA-165/150A |
| Others |
Clutch booster, air dryer, WABCO ABS, retarder |
| Body Specification |
Body Construction |
Semi-load-bearing, flat floor, SHITENG style |
| Interior Trim |
Formed soft interior trim, double luggage rack, reading lamps |
| Door & Door Pump |
Front outside-swing pneumatic passenger door, aluminium-alloy driver door, assisted step |
| Side Window |
The last piece of glass on the right has a push-pull switch on the upper part, the lower part is fixed, and the rest of the glasses has a push-pull switch on the lower part, all of which are black windows with emergency exit signs |
| Windscreen |
Front rubber-laminated windscreen, full-closed rear windscreen |
| Rear Mirror System |
Manual motion |
| A/C System |
ZHONGTONG Tongsun A/C, fans for drivers |
| Heating System |
Natural wind defroster |
| Audiovisual System |
MP3 player |
| Lamps |
New type combination headlight front and rear, rear brake light |
| Wipers |
Opposed electric wiper |
| Door |
Aluminum luggage door with lateral movement |

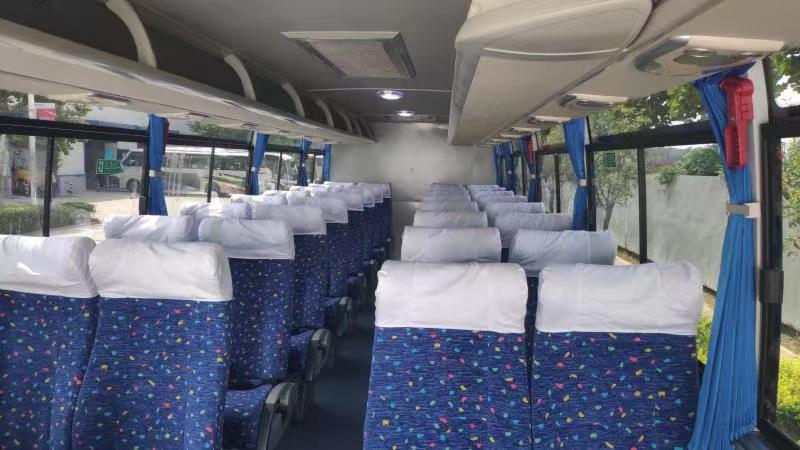

| Seat |
2+2 type, 32+1, ZHOGNTONG ZTZY3210 adjustable passenger seats with pillowcase; safety belt for each seat; ZTZY1050 damper seats for drivers; The last row of seats is converted into a luggage compartment, the rear skylight is at the top of the luggage compartment, and a lamp is installed in the luggage compartment (the same as the order number 10049319). The original last row of seats is not installed, so it will leave with the car. |
| Paint |
Plain lacquer (Made in China) |
| Others |
Checked floor leather, passenger barrier, electronic clock, blue cloth side curtain, driver's side curtain, front double sunshade, a 4kg fire extinguisher, car armrest on instrument panel, escape valve inside and outside the car, skylight, water chute, USB seat charger interface of the whole car, refrigerator, microphone |
