LDR High Precision Electromagnetic Heat Meter

LDR electromagnetic heat meter is designed for the special application of intelligent building distributed energy and heat exchange station, which can directly measure flow and cold and heat. It does not need additional flow totalizer and Pt1000. It is easy to install with low cost. The electromagnetic flow sensor is used as an electromagnetic heat meter for detecting the flow rate of the heat transfer fluid, and has the features of high precision, wide application range, and convenient and simple online calibration.



Features

â– Measurement of cold and heat: the converter has the function of measuring cold and heat directly, and equiped with 2 standard Pt1000. It does not need to be equipped with a cold and heat flow totalizer to facilitate installation and reduce the cost of purchasing and installation.

â– High reliability: After rigorous tests such as EMC, safety, high and low temperature, which are higher than national standards GB/T17616, G B/2423, GB/T16499.

â–  Fast response: Use 32BitMCU, 24BitADC and optimized filtering algorithm, fast response, accurate and stable measurement data, suitable for measurement and control when equipment is matched.

â–  Grounding electrode: NONCON patented technology, which forms measurement balance in measuring section and eliminates measurement error caused by poor grounding to ensure long-term measurement accuracy. It does not need to be equipped with a grounding ring to reduce material and installation costs.

â–  Separate IP68 technology: use specially detailed IP68 design technology, use special imported IP68 sealant, special IP68 cable and multiple IP68 seal design to prevent the condensation of the separate IP68 sensor.

â– High signal-to-noise ratio: the sensor uses high signal-to-noise ratio technology. The converter uses low-noise and high-precision parts and design technology to facilitate measurement of minimum flow.

â–  Low-power design; optimized excitation circuit design, power consumption is reduced by more than 3 times compared with conventional electromagnetic flowmeters, and it can achieve energy saving in a large number of applications.

â– Chinese display: use Chinese display LCD screen for easy understanding and operation

â–  Optimized power supply technology: use optimized power supply design, mature and reliable technology, high conversion efficiency, and reliable long-term use.

â– Quick wiring:use the international best brand terminal block, which is fast, convenient and reliable, to ensure stable and reliable long-term measurement.

â–  Output signal: epuiped with standard RS-485, (4-20) mA, frequency / pulse, fast output response, and the port is provided with protection measures such as lightning protection.


Product Classification

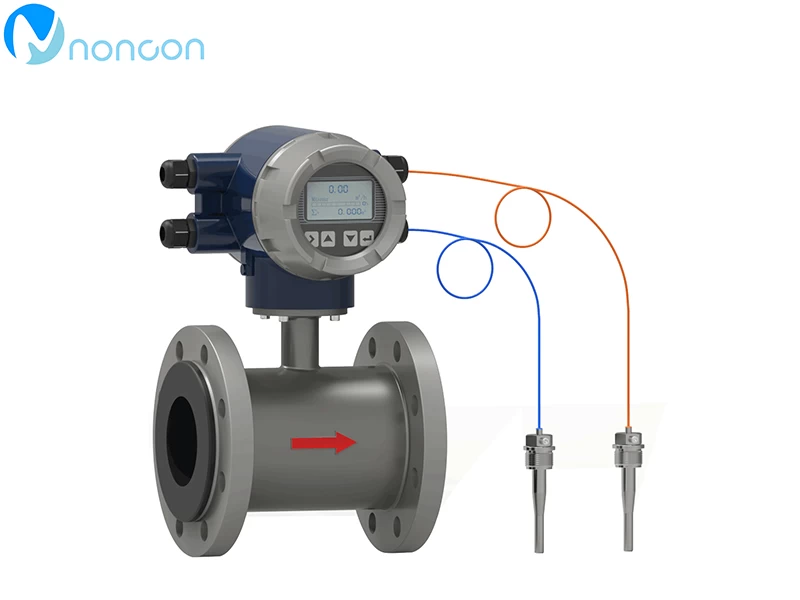

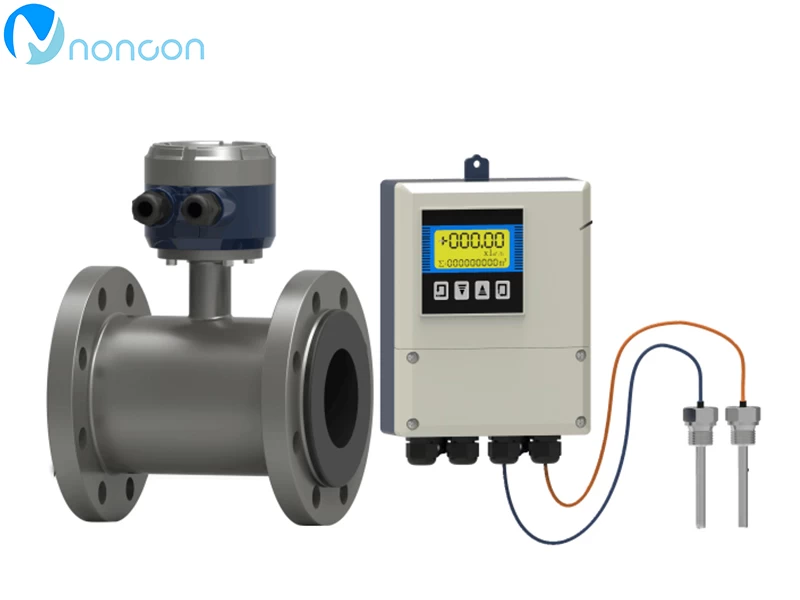

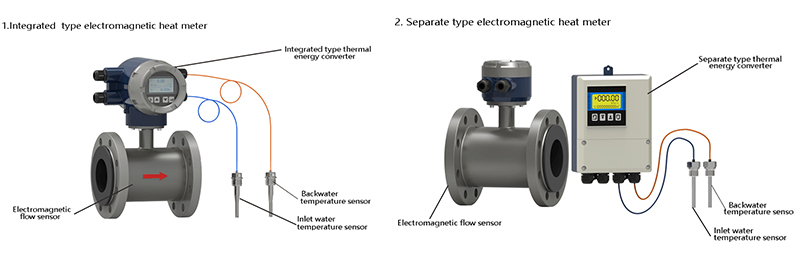

Integrated and separated electromagnetic heat meters

Instrument Selection

(1) Selection code                                                                                                         Table 1

Mode

Description

LDR-

â–¡

â–¡

â–¡

â–¡

â–¡

â–¡

â–¡

â–¡

â–¡

Nominal diameter

10·600mm

Assembly

S

Integrated type

L

Electrode material

Electrode material

M

Stainless steel

Output mode

0

No output

1

4-20mA/1-5KHz

2

4-20mA

Lining material

X

Rubber

F

PTFE

J

Polyurethane rubber

Local display

0

Without local display

1

Local display

Communication mode

0

No communication

1

RS485

2

RS232

3

Modbus

4

Hart

Grounding ring

0

Without grounding ring

1

With ground ring

2

With Grounded electrode

Upper limit flow

(n)

Upper limit flow (range)m3/h


Product Dimensional Drawing

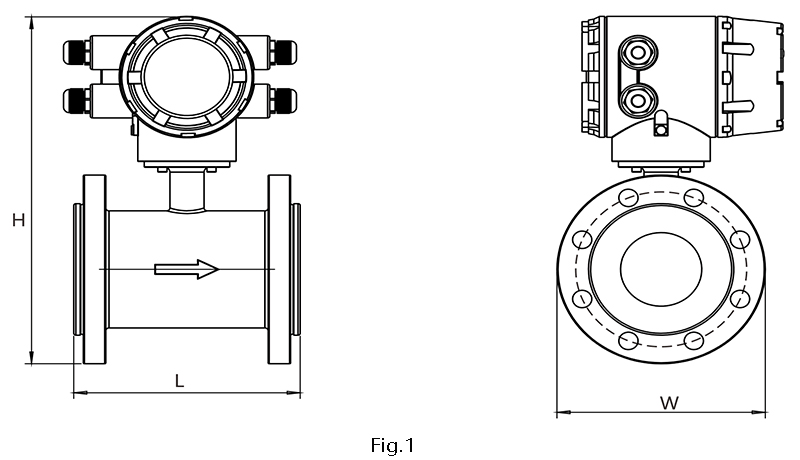

1.Integrated type dimensional drawing: (Fig. 1) (Table 2)

Integrated type dimensional drawing

Integrated type dimensions is shown: (Table 2)

Caliber (mm)

Dimensions

Weight(kg)

L

W

H

10

200

90

290

6

15

200

9S

315

6

20

200

105

315

6.5

25

200

115

345

6.8

32

200

150

315

7.1

40

200

150

315

7.6

50

200

165

320

9.9

65

200

185

350

10.6

80

200

200

365

12.3

100

250

220

380

14.7

125

250

250

410

17.9

150

300

285

440

24.6

200

353

404

495

2.7

250

450

395

560

43.5

300

500

445

600

58

350

550

505

670

78

400

600

565

720

97

450

450

615

765

110

500

500

670

820

22

600

600

780

930

161

700

700

860

1010

241

800

800

975

1110

420

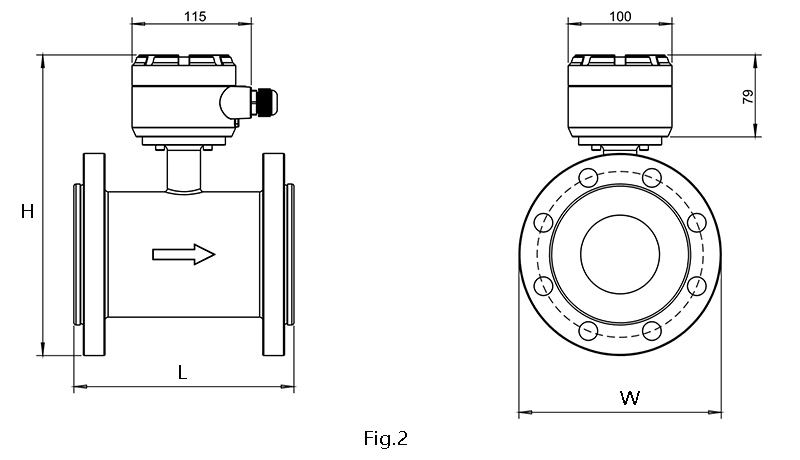

2.Separate type dimensions is shown (Fig.2)  (Table 3)

Separate type dimensions is shown

Separate type dimensions is shown: (Table 3)

Caliber(mm)

Dimensions

Weight(kg)

L

W

H

10

200

90

195

5.5

15

200

95

220

5.5

20

200

105

220

6

25

200

115

220

6.3

32

200

150

220

6.6

40

200

150

220

7.1

50

200

165

225

9.4

65

200

185

255

10.1

80

200

200

275

11.8

100

250

220

285

14.2

125

250

250

315

17.4

150

300

285

346

24.1

200

353

404

400

32.2

250

450

395

465

43

300

500

445

505

58

350

550

505

575

78

400

600

565

625

97

450

450

615

670

112

500

500

670

725

122

600

600

780

835

161

700

700

860

915

241

800

800

975

1015

420


Installation Requirements

1. The pipe must be cleaned before the heat meter installation.

2. The heat meter is a precision meter, it must be careful when installing, and it is forbidden to lift the meter head and sensor wire; it is forbidden to squeeze the temperature sensor to prevent damage to the meter;

3. The direction indicated by the arrow of the heat meter sensor body indicates the direction of water flow, and theoretically, it is not allowed to reverse;

4. The front end of the heat meter pipe must be equipped with a filter of the corresponding diameter;

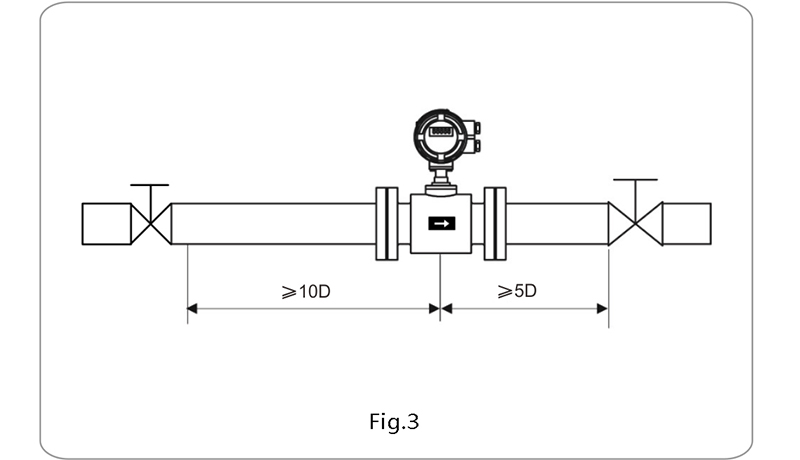

5. When installing the heat meter flow sensor, it shall ensure that there is at least 10 pipe diameter straight pipe sections upstream of the heat flow direction of the heat meter pipe, and at least 5 pipe diameter straight pipe sections downstream of the heat meter pipe;

6. The two ends of the heat meter must be equipped with the corresponding diameter valve, which can be separated from the heat meter for the cleaning and maintenance of the heat meter during use;

Diagram of heat meter installation

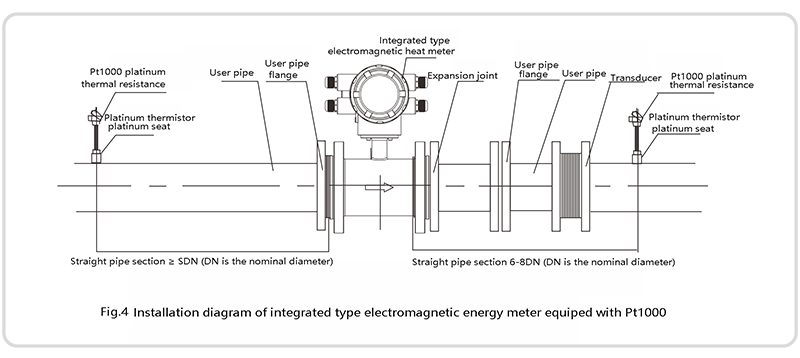

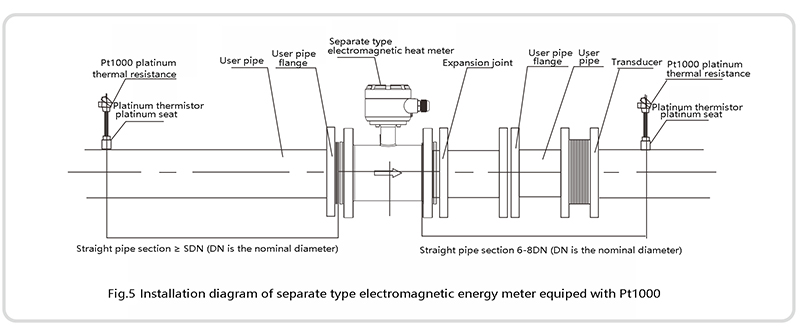

Installation diagram: (Fig.4),(Fig.5)

Schematic diagram of integrated electromagnetic energy scale

Schematic diagram of the separate electromagnetic energy scale
