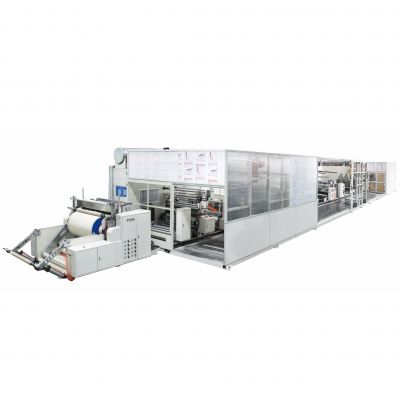

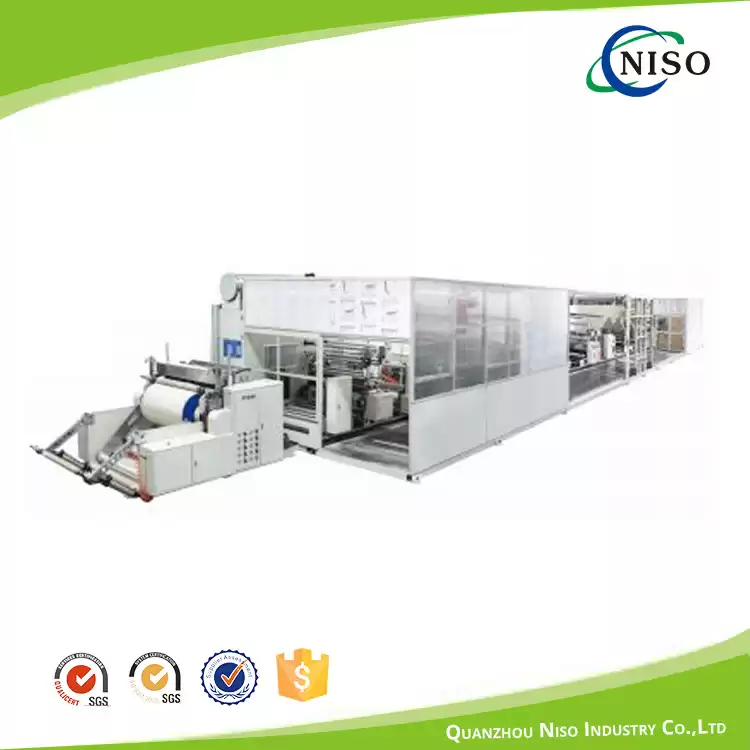

LE-120-CCM Full Automatic Diaper Core Compound Machine
Basic technology
1. Applicable materials: dust-free paper, non-woven cloth, high polymer
2. Dust-free paper + polymer + hot melt adhesive + hot air non-woven cloth + hot melt adhesive + polymer + dust-free paper/non-woven cloth
-- -- composites
--- stain detection, metal detection (customer selection)
--- cut and roll
Main technical parameters
1. Maximum design speed: 120m/min
2. Normal speed: 20-100m/min
3. Effective composite width: 1200mm
4. High polymer discharge width: 950mm-1250mm width adjustable with locking function
5. Application amount of single-layer polymer: 50g-180g/m2
6. Control of accuracy deviation of polymer powders: + / - 3%
6. Diameter of uncoiling (dust-free paper) : 1200mm
7. Coil diameter (composite material) : 1200mm
8. Finished quantitative: 200 ~ 500 g / ㎡
9. Electric control scheme: the main transmission adopts closed-loop frequency control and the high polymer shaft adopts servo drive
10. Appearance size: about 22500*4000*2500 (length * width * height)
11. Equipment flow direction: facing the operating surface, from right to left
11. Installed capacity: about 90KW
About NISO
NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS.
NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
NISO will be your consultancy and partner to reach win-win career together.
Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.
