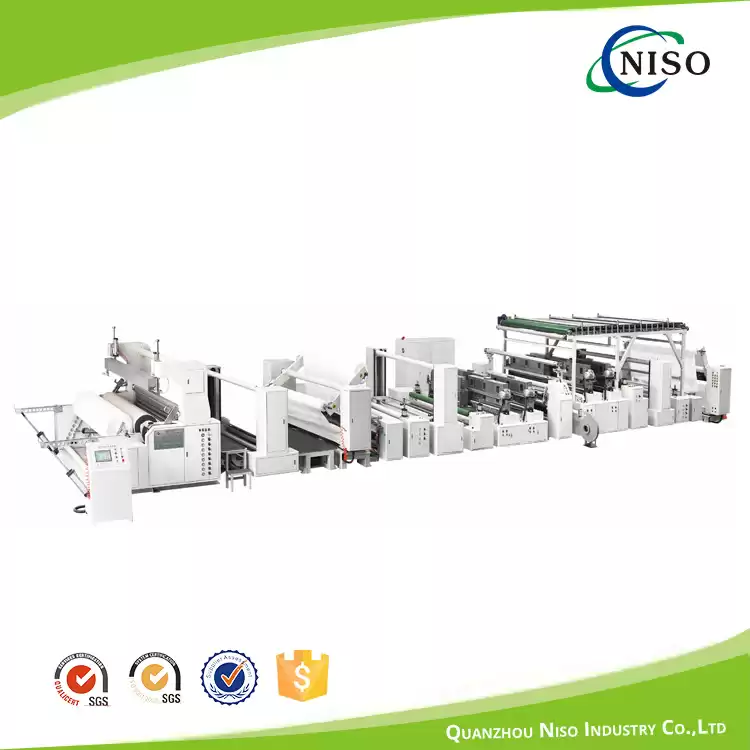

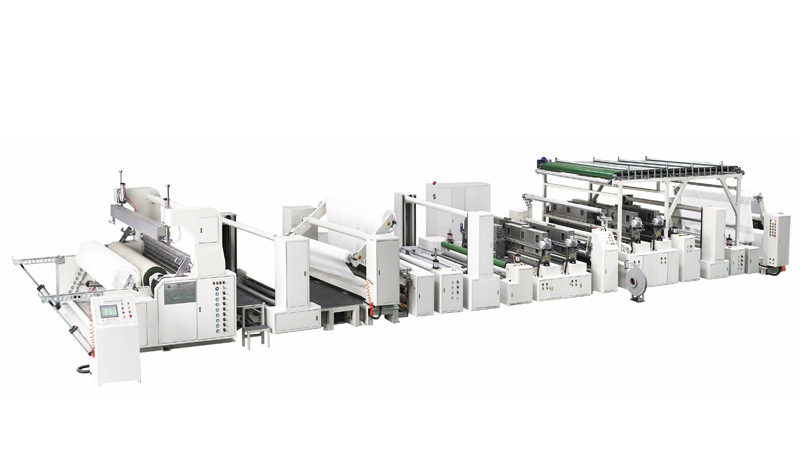

LE-230-CCM Diaper Full Automatic Core Compound Machine
Basic technology
1. Applicable materials: dust-free paper, non-woven cloth, high polymer
2. Dust-free paper/non-woven fabric + polymer + hot melt adhesive + hot melt adhesive + polymer + dust-free paper/non-woven fabric
-- composite
-- defect detection, metal detection (customer self-matching, reserved electrical interface)
-- cut and roll
Main technical parameters
Maximum design speed: 70m/min
Normal speed: 30-60m/min
Effective composite width: 2300mm
Roll surface width: 2500mm
Polymer feed width: 2500mm, adjustable, with locking function
Application amount of single-layer polymer: 50g-100g/m2
Control of accuracy deviation of polymer powders: + 2.5%
Diameter of uncoiling (dust-free paper) : 1200mm
Coil diameter (composite material) : 1200mm
Quantity of finished products: 200~450 g/m2 depending on the customer's raw materials
Electrical control scheme: the main drive is driven by Siemens motor and the high polymer shaft is driven by mitsubishi servo motor.
Device direction: from the operating surface, from left to right;
Appearance size: about 24500*4500*3500 (length * width * height)
Installed capacity: about 200KW
About NISO
NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS.
NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
NISO will be your consultancy and partner to reach win-win career together.
Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.
