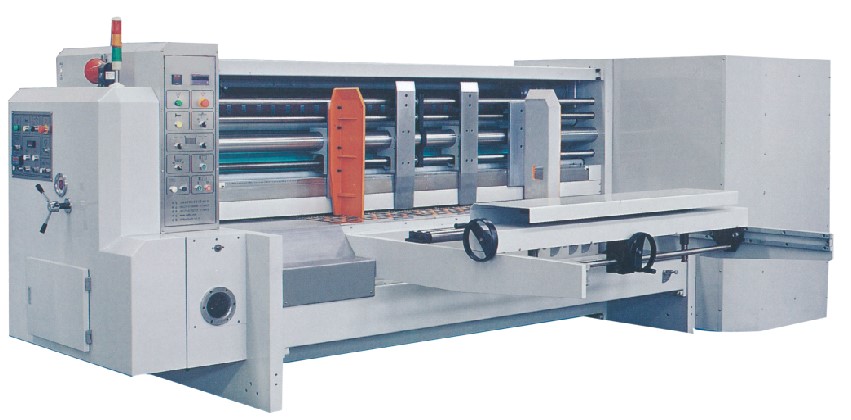

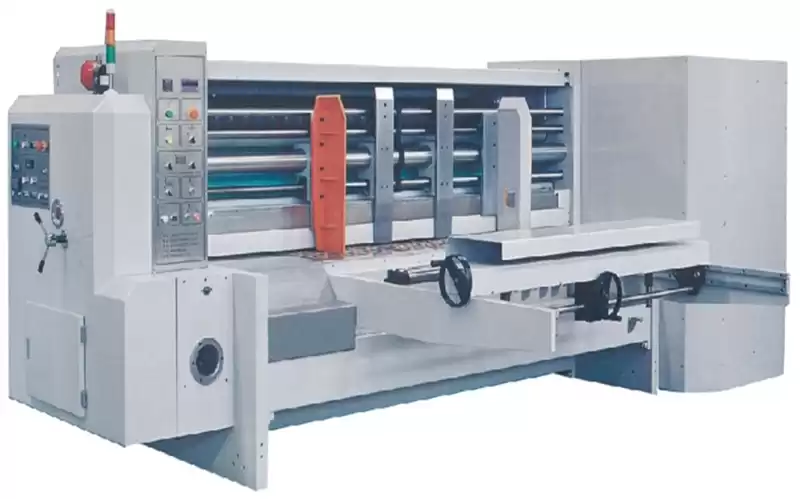

Rotary Die Cutting Machine for Carton Box Making Machine
Cardboard thickness: 3Ply 5Ply 7Ply cardboard
Width: 550*600 to 2500*2200
Speed: 30-80pcs/min
|
1
|
Die cut drum
|
Motorized lateral adjustment within 10 mm
|
Screen display
|
|
2
|
Anvil drum
|
Manual feed roll caliper control
|
Dial indicate
|
|
Mechanical lateral of anvil drum within 60 mm
|
Distribute wear of anvil cover
|
|
Durable rubber coated, easy assembly and disassembly
|
|
|
3
|
Pull roll
|
Self-lock system, easy to move
|
|
|
4
|
Register System
|
Die cutting register is digital controlled by motor and PLC
|
Through planet-gear
|
|
Easy to control by means of reset “0” system
|
Quick and correct
|
|
5
|
Automatic Zero (0)
|
Automatic zero return by sensor
|
|
|
6
|
Frame Locking Device
|
This unit is unmovable
|
|
|
7
|
Lubricating Oil Pump
|
Gear type oil pump on every machine unit
|
|
|
8
|
Emergency Stop
|
Emergency stop switch
|
|
|
9
|
Scrap conveyor
|
Install under the die cutting unit
|
|
|
10
|
Anvil Grinding System
|
Sand roller micro grinding system, prolong the anvil cover using life and increase the grinding efficiency.
|
|
Features:
Product Show
FAQs
1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer combined with WEST RIVER, KL&Japan Shinko, Nantai & Japan Asahi, Jiayi, Guanwei, Jinshun brand machines.
2Q: Where are your factory located in ?
A: Our factories located in Shanghai, Guangzhou, Foshan, Zhaoqing Cities in China
3Q: How to choose the corrugated machine ?
A: According to your market requirement for the cardboard thickness, your target requirement, raw material size, we will give you the best choice of the corrugated machine.
4Q: What can you do for me?
A: Usually the customer need to choose the corrugated machine, flexo printer, die cutter and other converter machine separately by different supplier, but we will give you the whole plan design solution from A to Z, what you need to do is just tell us your target, then you will get the most suitable proposal from us.
5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution, We have professional technicists to supervising to production, Our professional department to examine about every production process
6Q:What can you do if the machine face problem?
A: We provide the machine remote service system, and the warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we will charge for the maintanance, and we supply the technical support for the whole life of the equipment.
