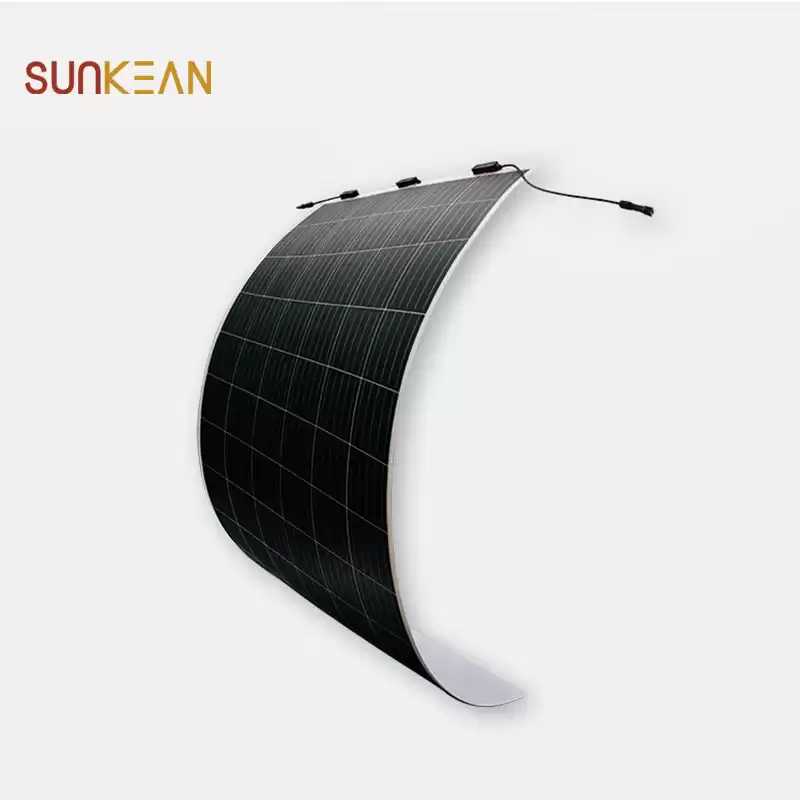

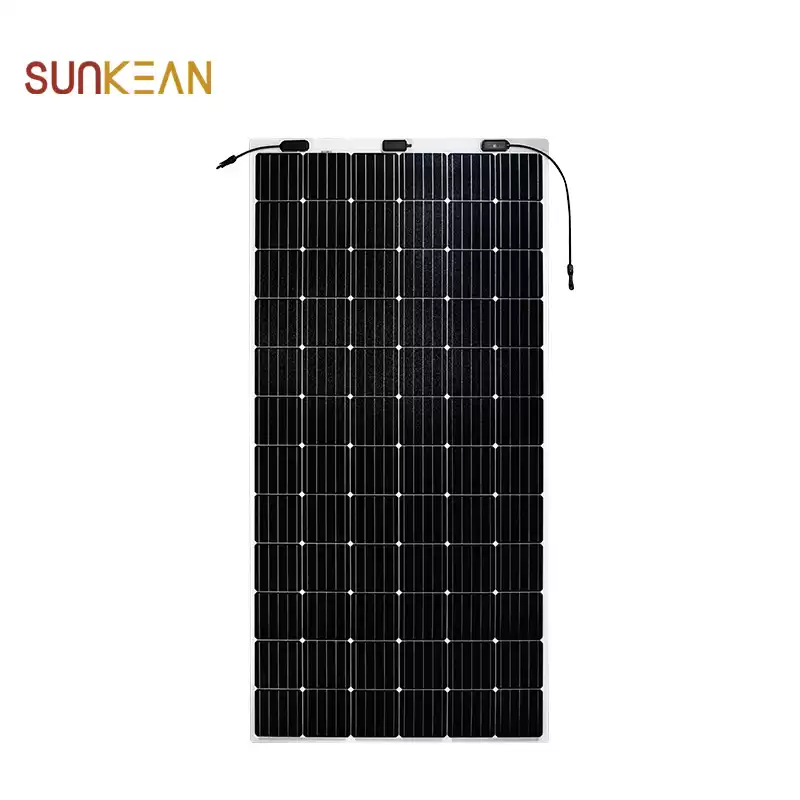

Leading technology off grid waterproof 375M light weight and flexible solar panel
375W is frameless and has the most flexibility. It is suited to many innovative cross-market applications.
Product Characteristics:
Electrical Characteristics:
Module Type
|
SMF375M-6X12UW
|
|
Testing Condition
|
STC
|
NMOT
|
Maximum Power (Pmax)
|
375
|
282
|
Maximum Power Voltage (Vmp)
|
40.2
|
37.0
|
Maximum Power Current (Imp)
|
9.33
|
7.63
|
Open Circuit Voltage(Voc)
|
48.6
|
45.3
|
Short Circuit Current(Isc)
|
9.86
|
8.07
|
|
Module Efficiency (%)
|
18.7%
|
Operating Temperature
|
-40°C to 85°C
|
Maximum System Voltage
|
1000V DC (IEC)
|
Maximum Series Fuse Rating
|
20A
|
Application Class
|
Class A
|
Power Tolerance
|
0/+5 W
|
*STC: Irradiance 1000W/m2 , Cell temperature 25℃, AM=1.5.
Tolerances of Pmax , Voc and Isc are within ±5%
*NMOT: Irradiance 800W/m2 , Ambient temperature 20℃,AM=1.5, Wind speed 1 m/s.
Mechanical Characteristics:
|
Solar Cell
|
Monocrystalline silicon (158.75mm)
|
|
No. of Cells
|
72(6x12)
|
|

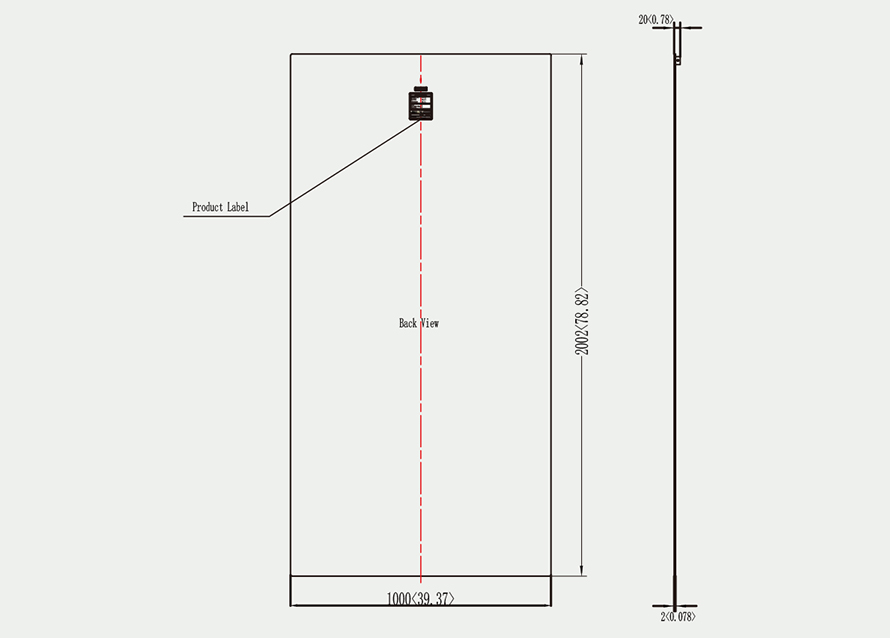

Module Dimensions
|
2002×1000×2 mm
|
Weight
|
5.8 kg
|
|
Backsheet
|
White
|
|
Frame
|
Frameless
|
|
J-box
|
IP 68 rated
|
|
Output Cables
|
Photovoltaic technology cable 4.0 mm2 , (+)150 / (-)450 mm
|
|
Connector
|
MC4 compatible
|

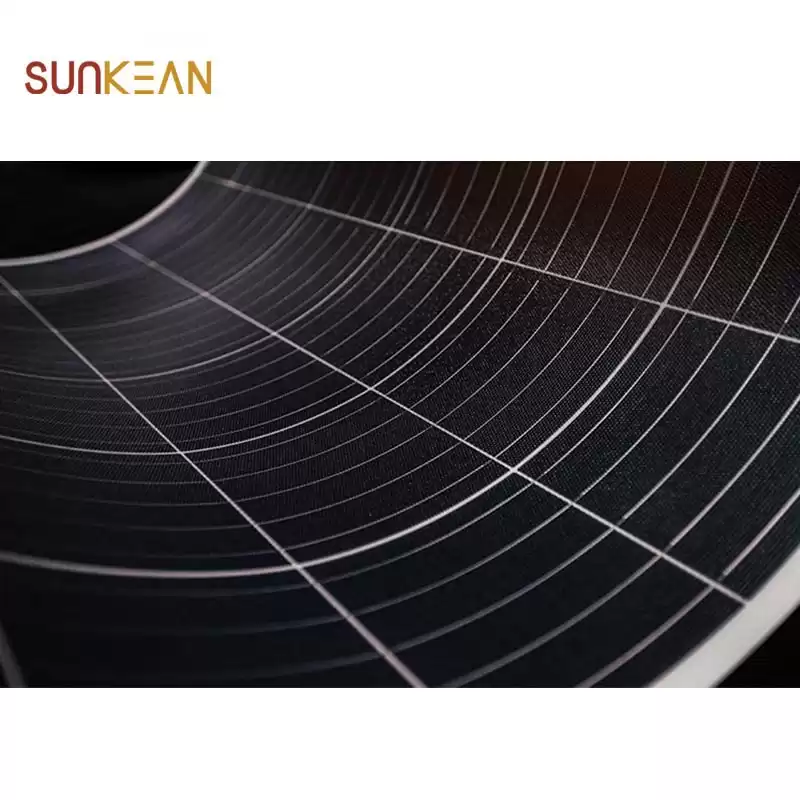

flexible solar panel Features:
-----Ultra-light: Glass free module weighs 5.8kg, 70% lighter than conventional glass modules.
-----Fast-lnstallation:Through"Quick- Bonding" installation requires no penetration, reduces time on roof by 40% and eliminates the use of mounting hardware.
-----Aesthetic:Seamless integration with underlying installation surface.
-----Durable: eArc is the first glassless module to pass the same durability tests as conventional glass modules, including IEC 61215:2016, lEC61730:2016 and UL1703 (USA). eArc has also passed PID, salt mist and ammonia corrosion tests.
