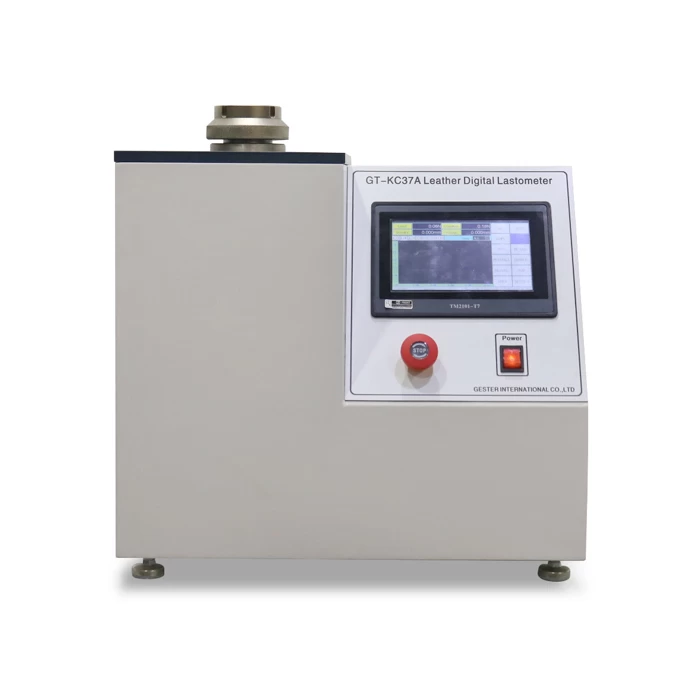

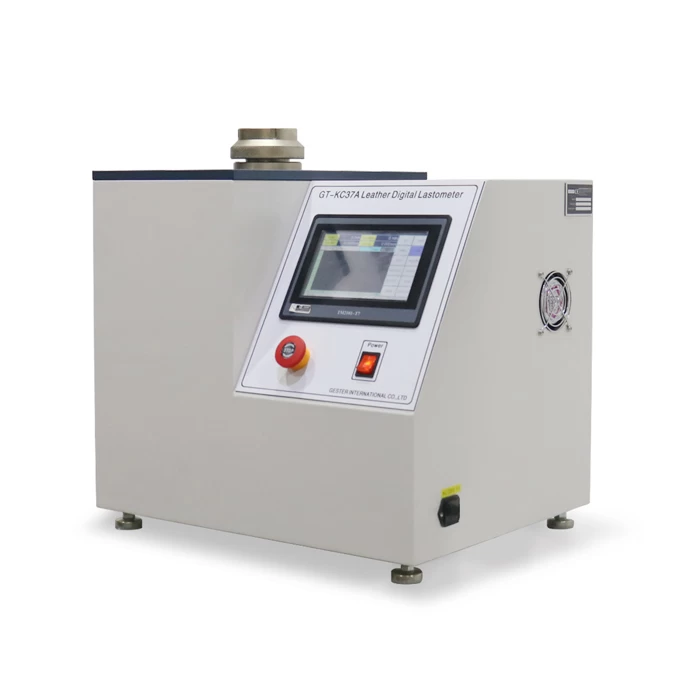

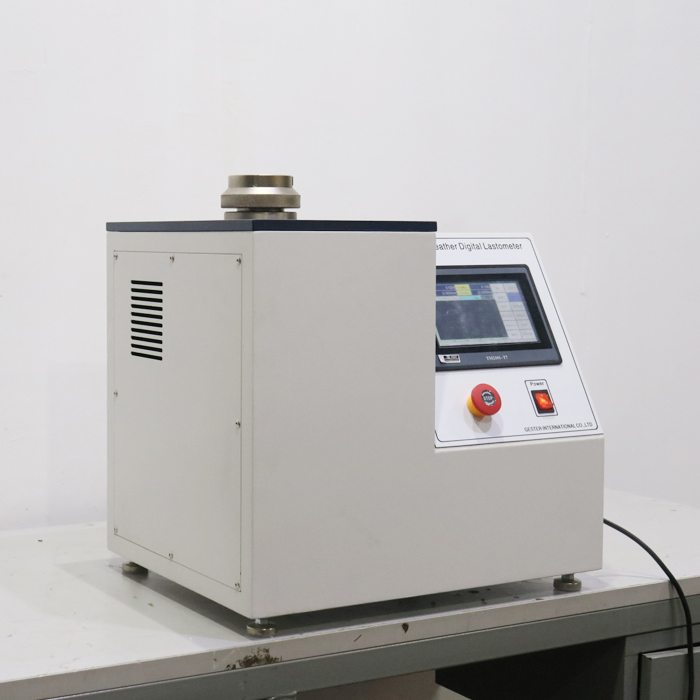

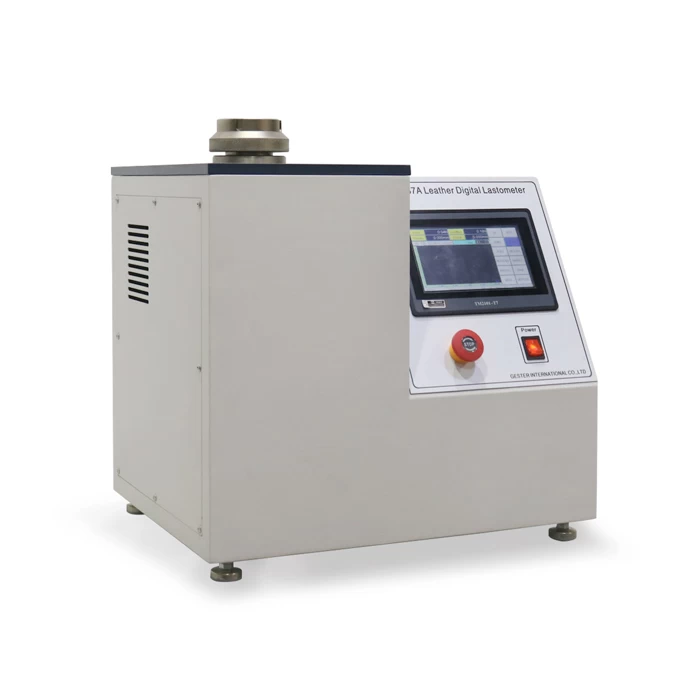

Leather Digital Lastometer GT-KC37A
Product Introduction
|
Application:
Leather Didital Lastometer is used to determine the anti-cracking index for upper, leather facing and all kinds of thin leather. Fixed the clamp frame round the sample, jacked up the ball to the inside of leather with 12mm/min. When leather is cracking, the value of increase height is the crack value.
Standards:
BS 3144 section 8, ISO 3379, ISO17693, DIN 53325,
GB/T3903.38, QB 3812.7, QB 2712, SATRA TM166
|

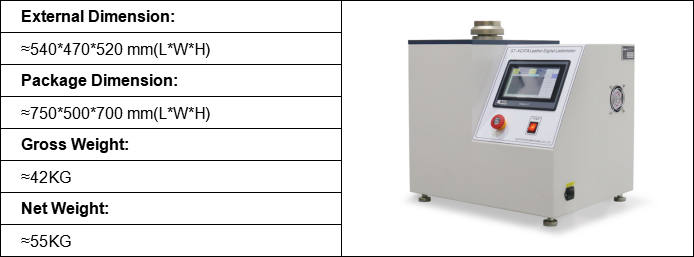

Dimensions
Key Specifications
Model
|
GT-KC37A
|
Max. Load
|
1000N
|
Control Mode
|
Touch screen controlled
|
Clamp Diameter
|
25mm
|
Bursting Ball Diameter
|
6.25mm
|
Speed
|
12mm/min
|
Sample Size
|
Diameter: 44.5mm
|
Power Supply
|
1∮AC 220V 50/60HZ
|
Dimensions
|
54x 47 x 52cm
|
Weight
|
42kg
|
Standards
|
BS 3144 section 8, ISO 3379, ISO17693, DIN 53325,
GB/T3903.38, QB 3812.7, QB 2712, SATRA TM166
|
Standards Accessories
|
Power line
|
Optional Accessories
|
GT-KD20 Hydraulic Rocker Pressure Tester
(Cutting die of diameter 44.5mm)
|
Application Industry
All kinds of leather materials below can be tested on the Leather Digital Lastometer
