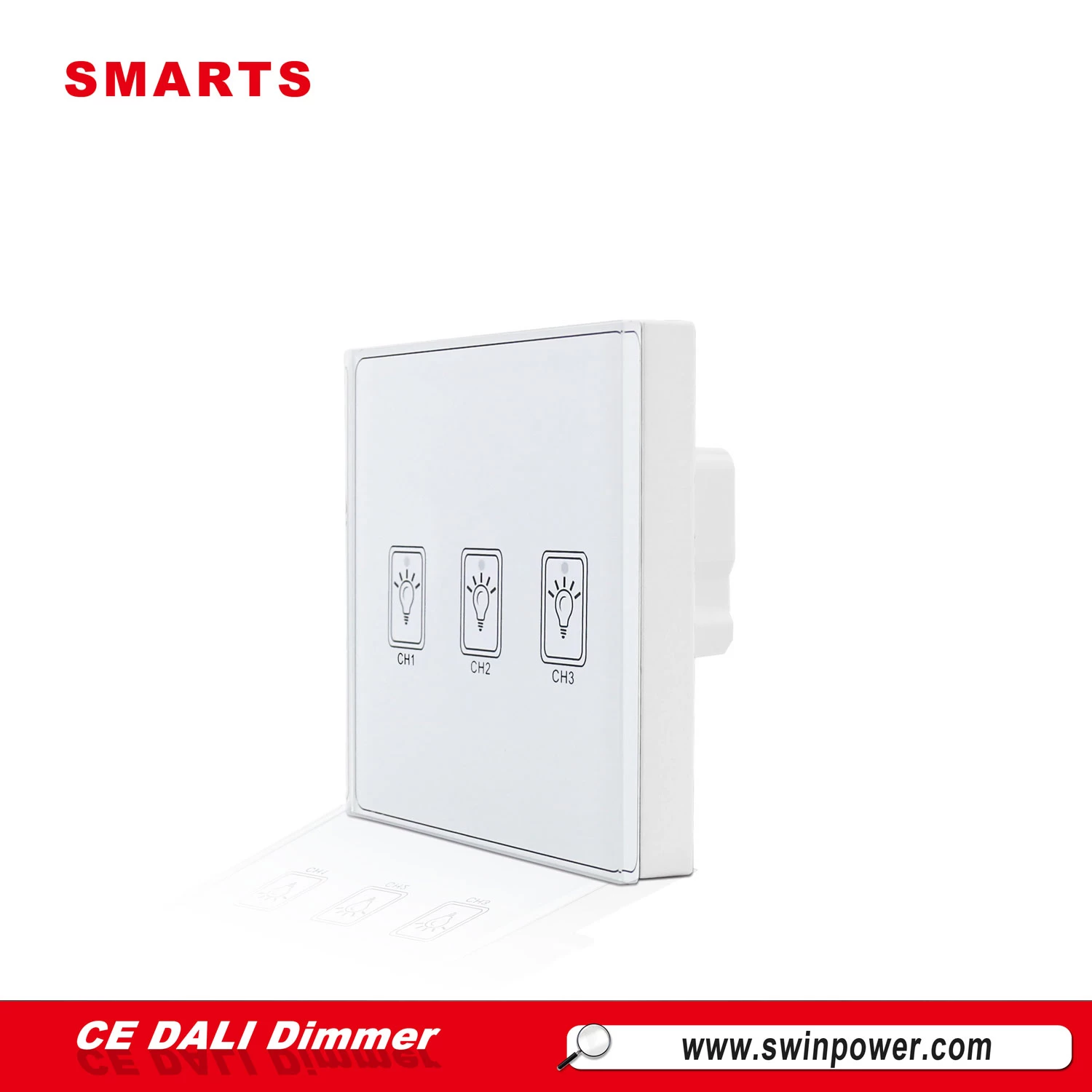

led dimmer controller dali dimmer with touch switch for led lights

<0.5W Static power, 25mA current consumption, ce rohs approved dali dimmer.






  • Certificationce rohs
  • SizeL86*W86*H38mm
  • Dimming modeDimming, 3CH
  • Output VoltageDALI

led dimmer controller dali dimmer with touch switch for led lights


3 output channel dimming mode, DALI signal output, touch type led dimmer controller, suitable for all kind of our DALI dimmable led drivers.



led dimmer controller

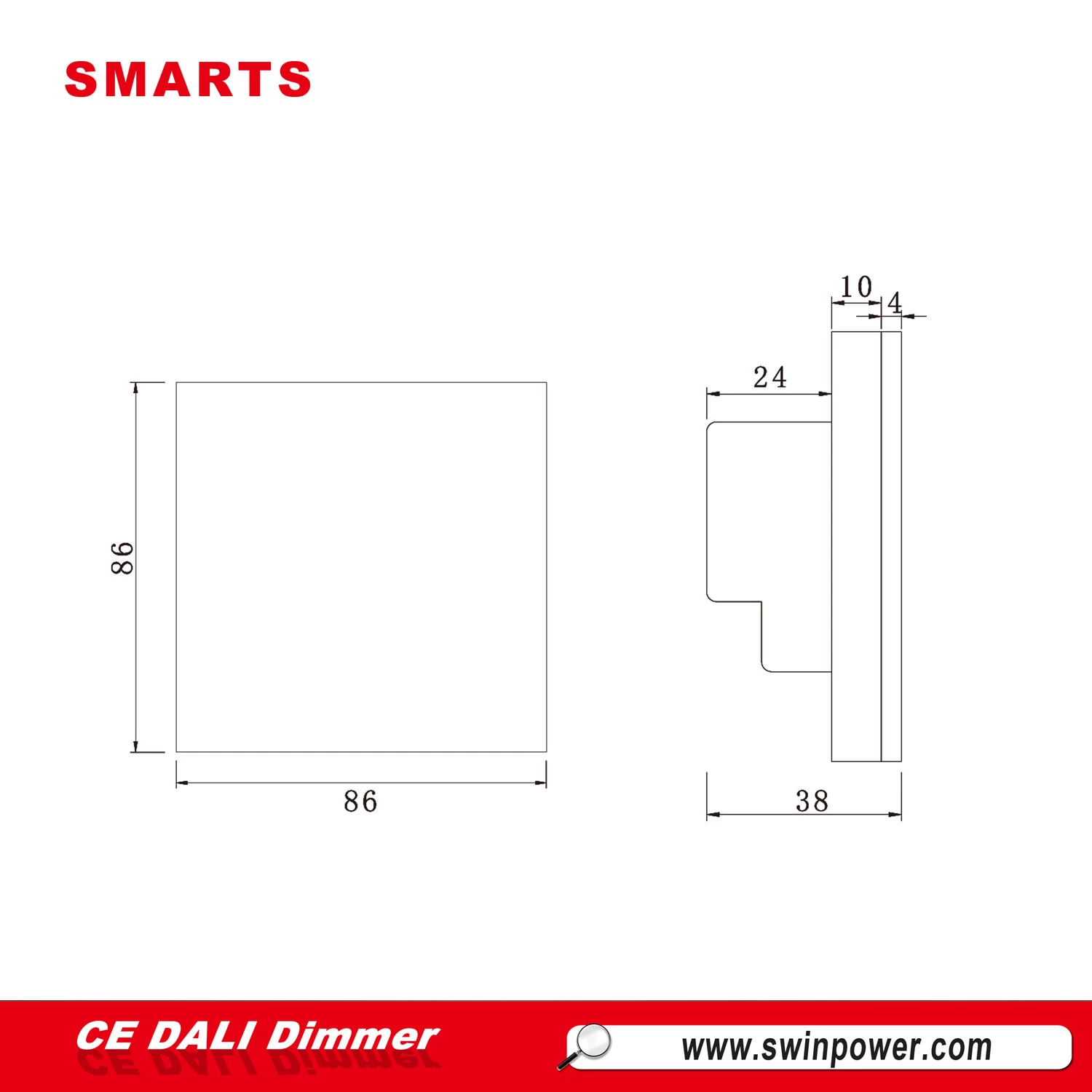

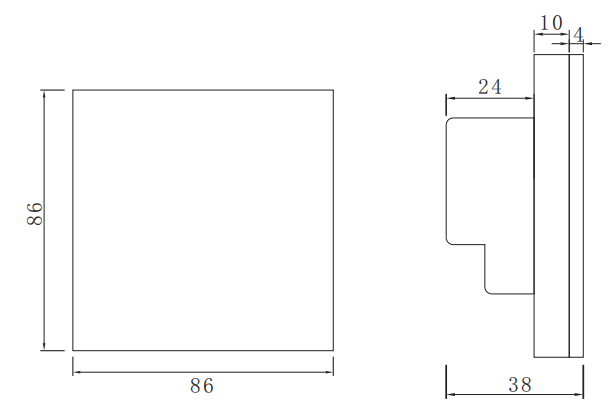

Product Size

led dimmer controller

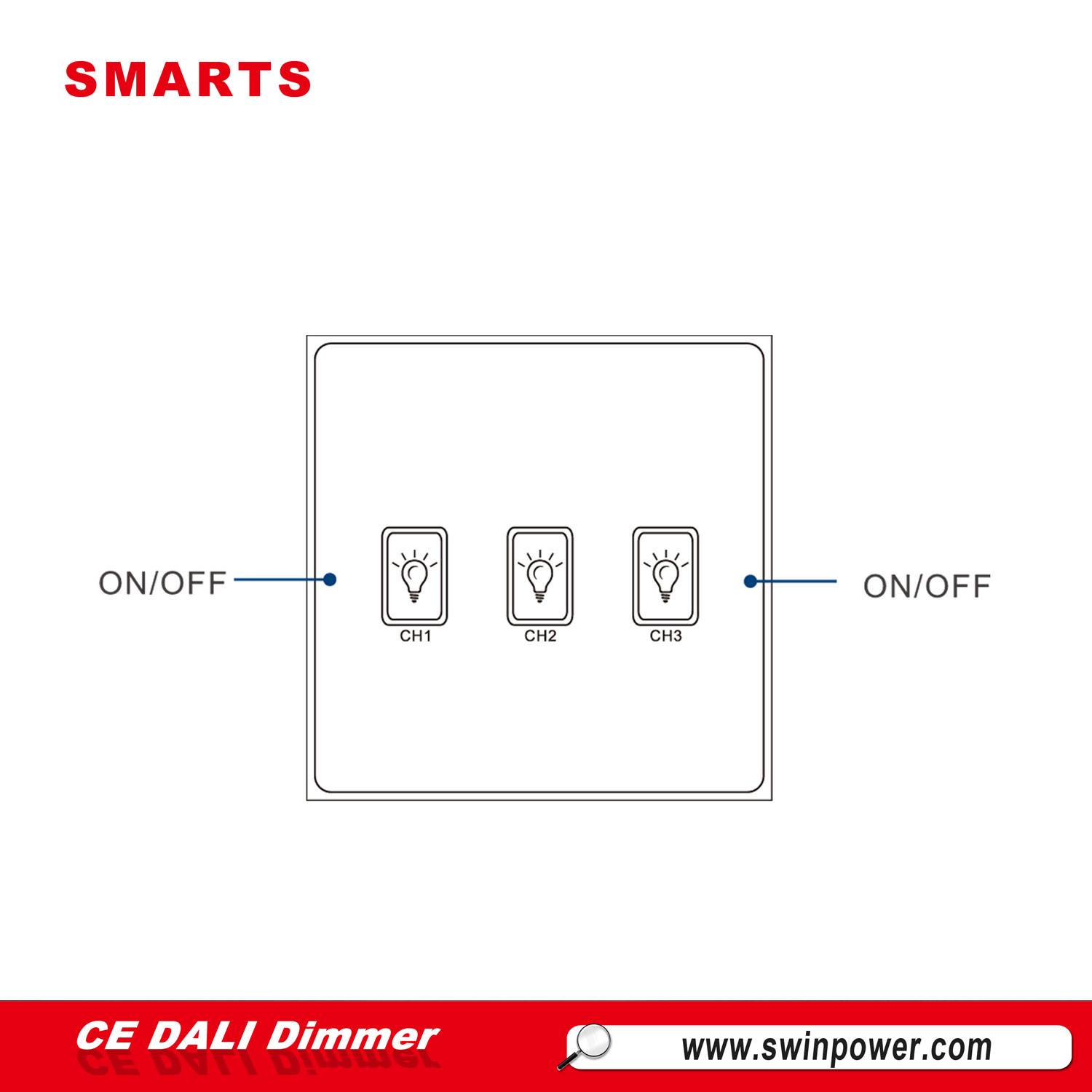

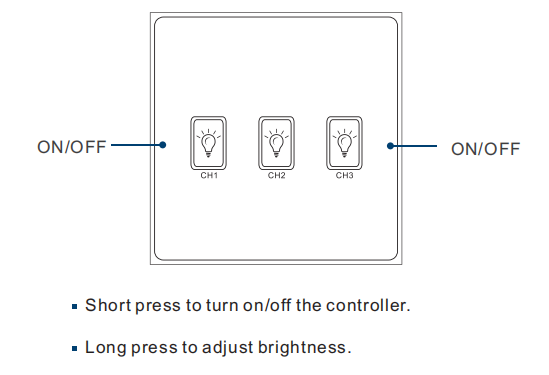

Funtion Description

dali dimmer


Function Description

dali dimmer

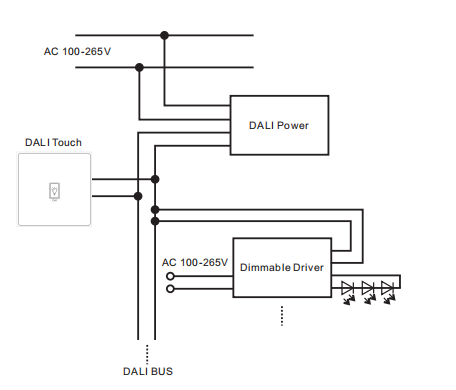

Typical Application


dali dimmer

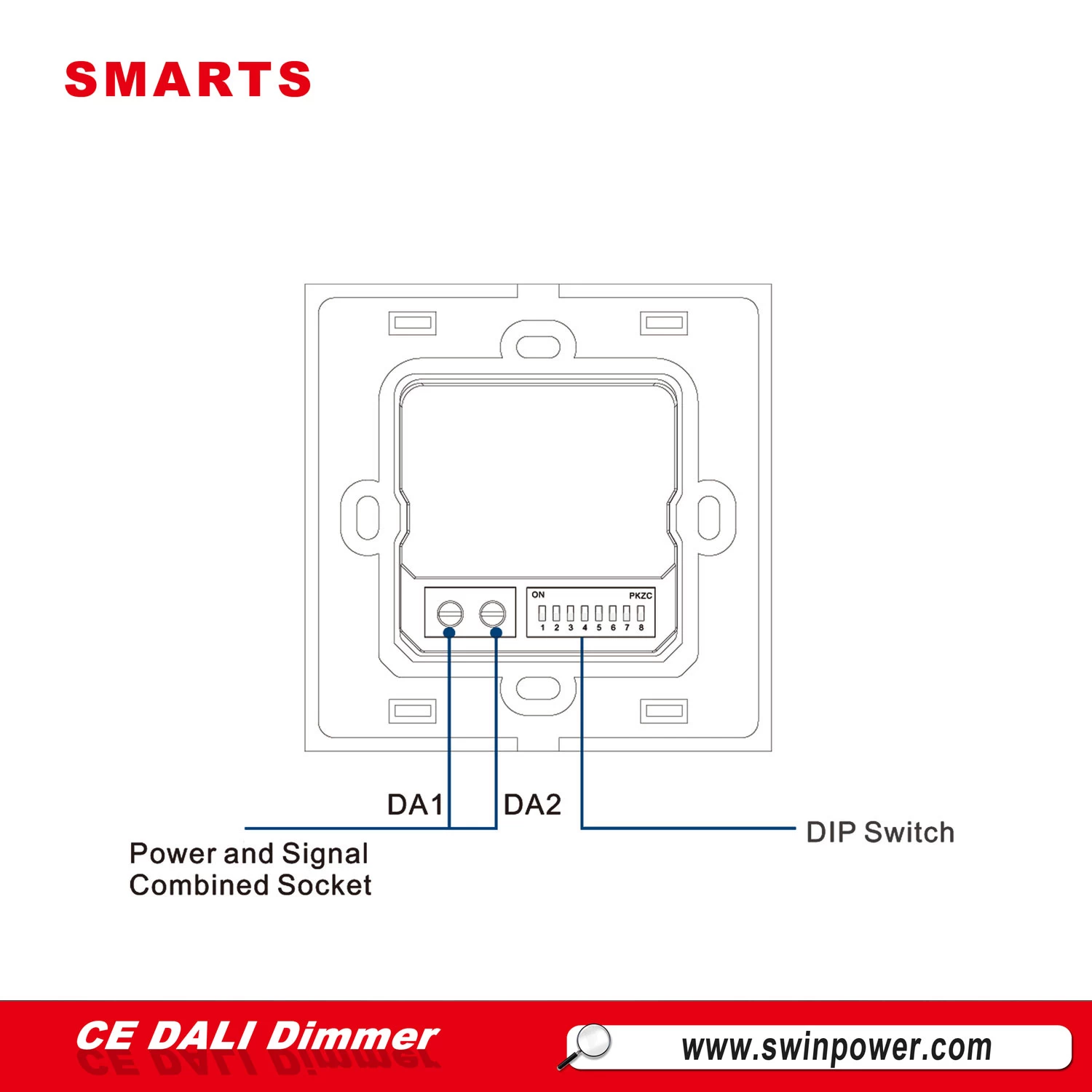

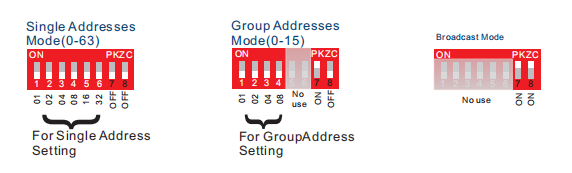

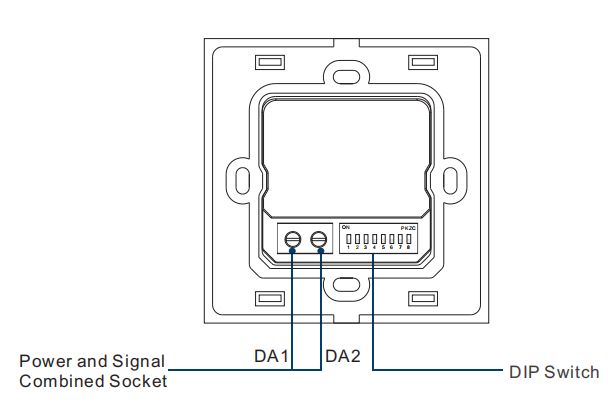

DIP Switch Operation


  1. Via dip switch,you can set 64 single addresses(0-63) 16 group addresses(0-15),and broadcast address.
  2. Total address value=the sum of the dip switch value To get the place value when in “on” position,otherwis will be 0


dali dimmer

dali dimmer
