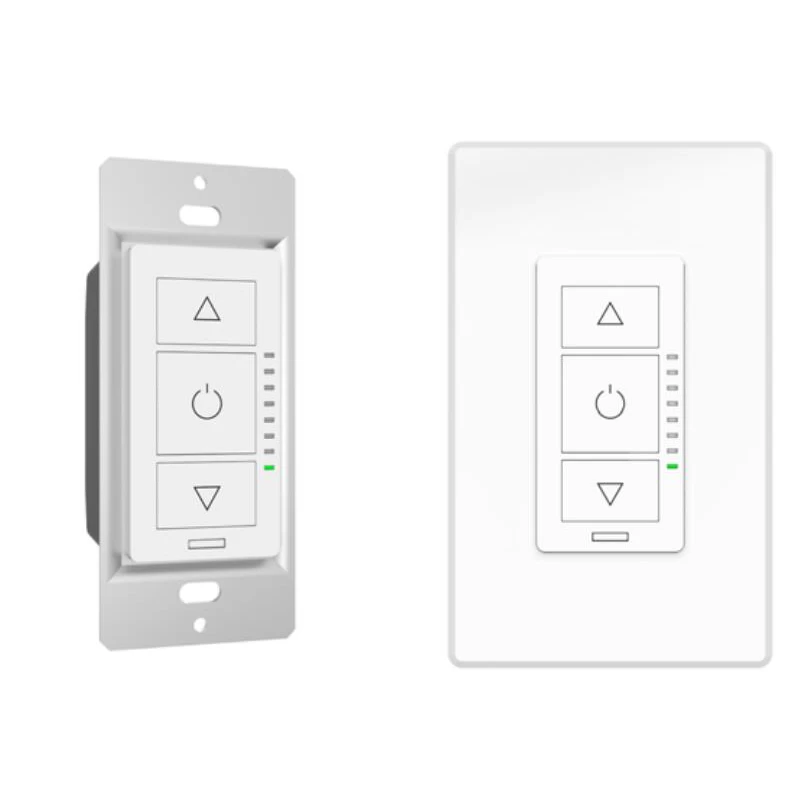

Trailing Edge Dimmer Switch Features:
1. Best compatibility, compatible with more than 95% of LED lights and 100% of incandescent & halogen.
2. Full range smooth dimming, no dead zone and flicker free.
3. Lamp start-up at the minium level.
4. Minium brightness adjustable.
5. Single-pole or 3-way connection.
6. Dimmer type: Trailing edge.
7. Dimmer control: push button.
8. On/off: push button.
9. Connection: fly wires.
10. Overheating protection, automatic overload protection and short-circuit protection.
11. Without neutral wiring, 2 wires.
12. ETL approval by Intertek.

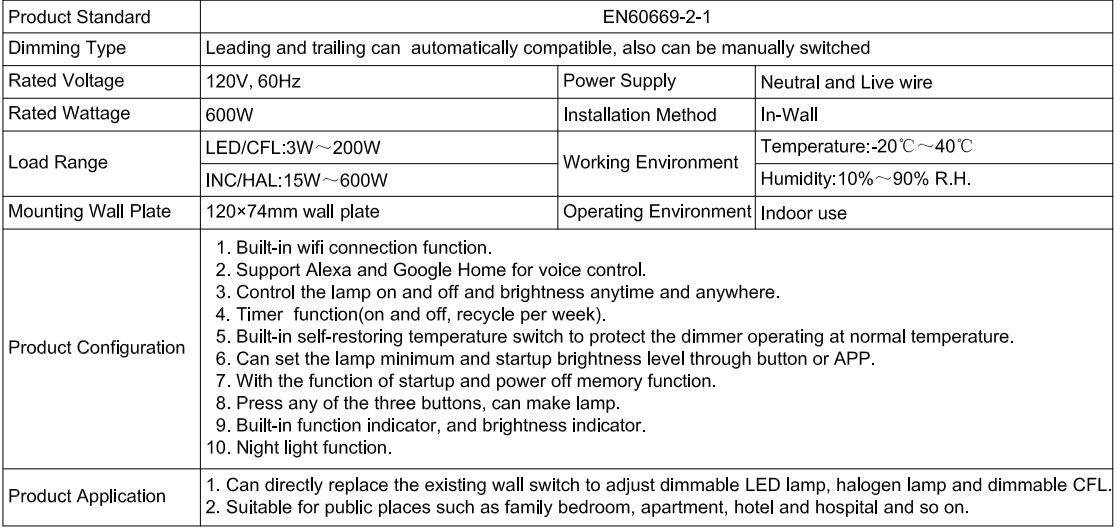

Technical Data:

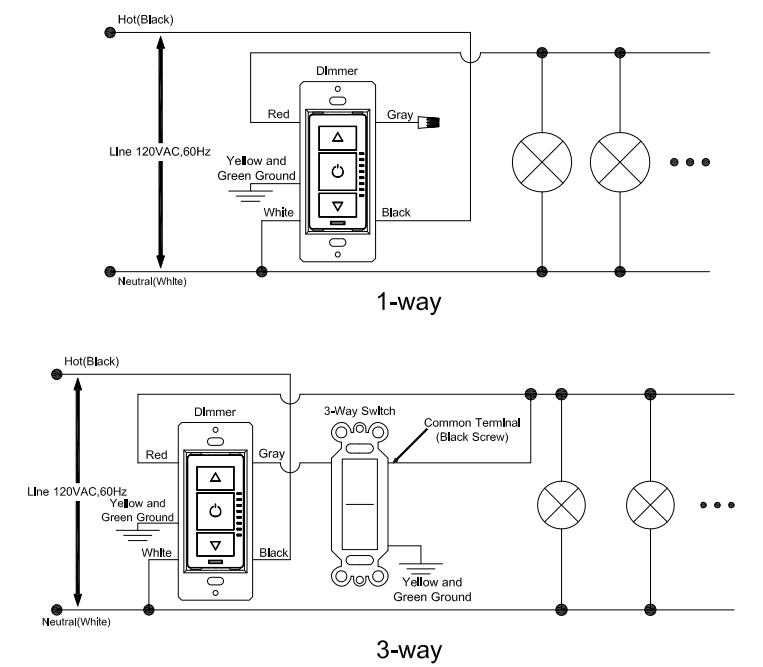

Wiring Diagram:
