led display dimming power supply selv ul listed Class p standard

Dimming range: 0~100% / load:10~100%,·led display dimming power supply selv ul listed Class p standard

Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.


  • CertificationUL/cUL,FCC,RoHS approval
  • Size330*32*20mm
  • Dimming modetriac dimmable
  • Working Modecv
  • Output Current4A
  • Output Voltage24V
  • Input Voltage100-277vac

led display dimming power supply selv ul listed Class p standard

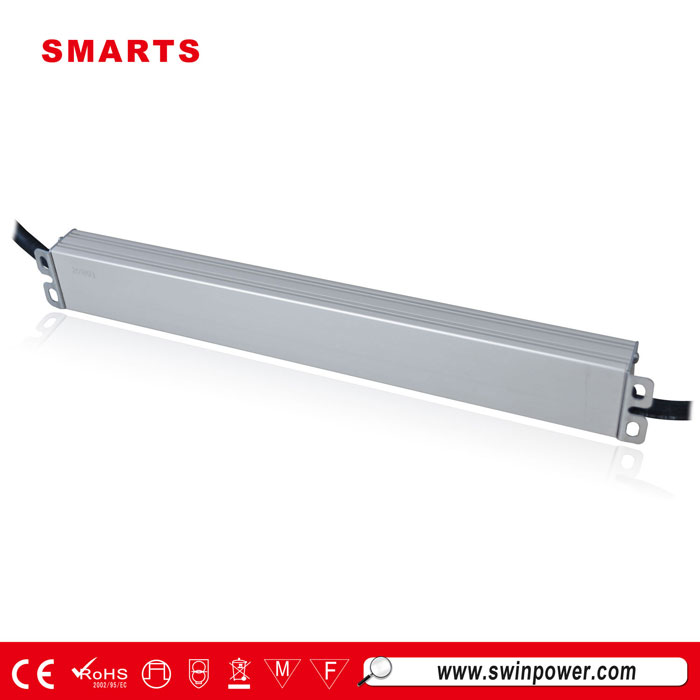

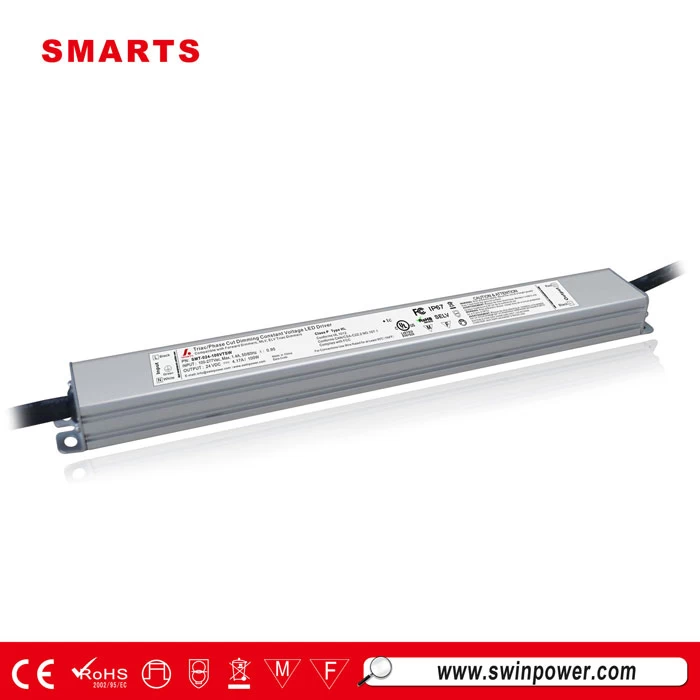

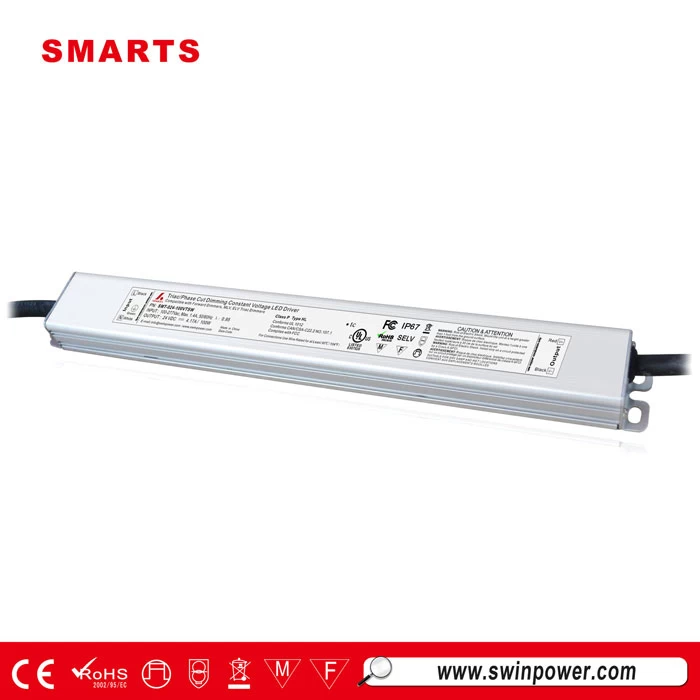

SMT-024-096VTSW /24V 96W led display power supply a universal AC input range of 100-277V,ouput voltage 12vDC and has a maximum load of 96W. This dimmable 24v led power supply has short circuit/overload/over voltage/over temp protection. Class P, Type HL standard.

  Features


·Output constant voltage

·Input voltage range 100-277VAC

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor dry or damp environment installations

·Cooling by free air convection

·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers

·PWM output, does not change the color index

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·7 years warranty


  Specification


model

SMT-012-100VTSW

SMT-024-096VTSW

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

8.33Amp

4Amp



Rated power

100W

96W (class 2)



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC



Frequency Range

4763HZ



Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V



Full Load EfficiencyTyp.

>83%

>84%



AC CurrentTyp.

1.10A/100VAC  /  0.43A/277VAC



Inrush CurrentTyp.

9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC



Leakage current

<0.50mA/110VAC; 0.13mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver



  Connecting Diagram


power supply 100w



  Simple Connection Diagram


power supply 100w




  What is the dimming Operation for SMT-024-100VTSW?


Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.

Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..

Please try to use dimmers with power at least 1.5 times as the output power of the driver.
