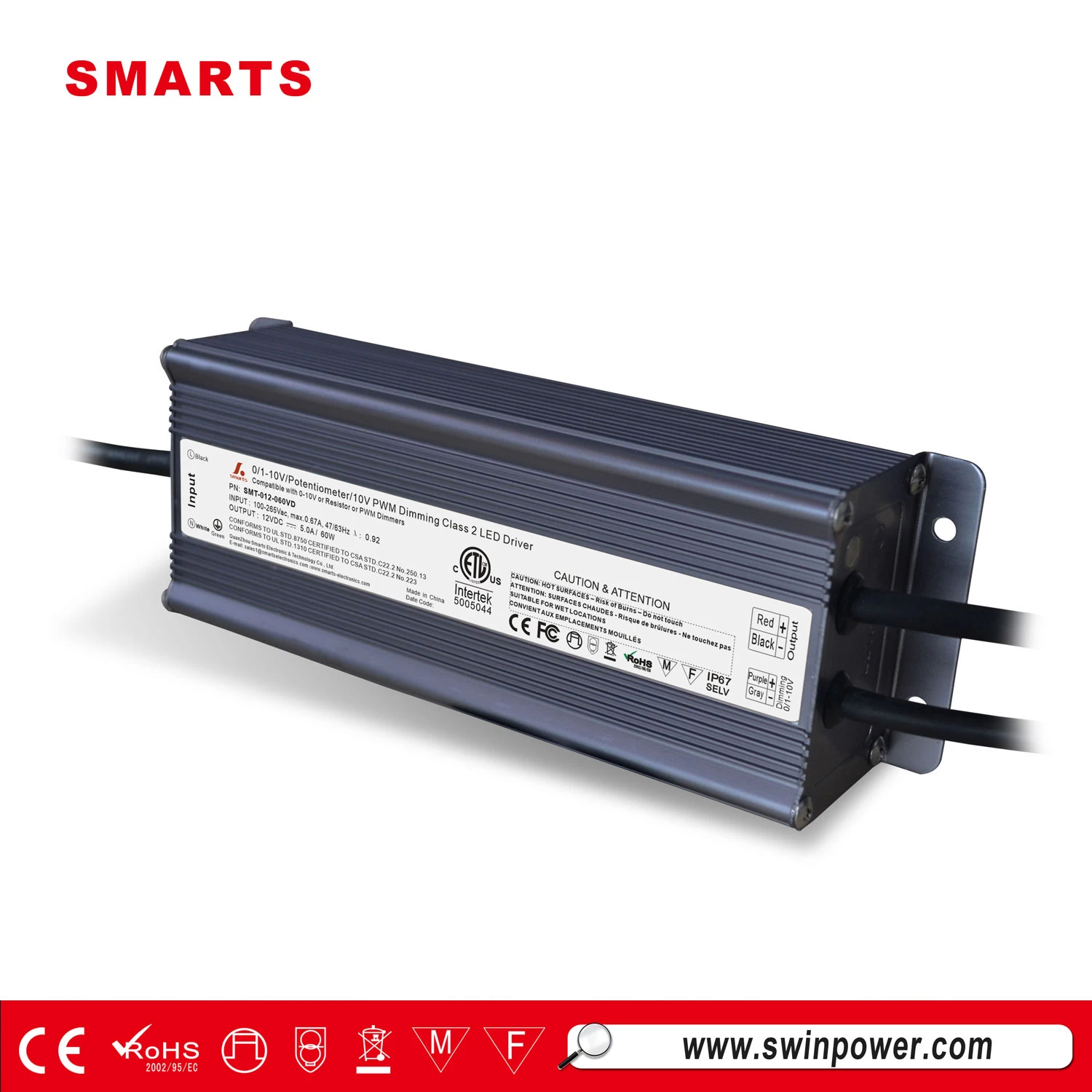

Led Driver 0-10V 12V 60W 5A Dimmable Led Power Supply Driver Transformer

SMT-012-060VD dimmable led transformer power supply provides regulated power to your LED circuit with a sophisticated dimming function. This small and compact unit ensures reliable performance from a single LED or an LED string and is suitable for applications including outdoor lighting, flood lamps, high bays and street lighting.



  • Output Current0-5000MA
  • Working ModeConstant voltage
  • Dimming mode0-10v dimmable
  • Size200mm*68mm*45mm
  • CertificationETL,CE,Rohs Certification
  • Output Voltage12VDC
  • Input Voltage100-265VAC

Led Driver 0-10V 12V 60W 5A Dimmable Led Power Supply Driver Transformer


As a fact of that,dimmable led transformer have a 0/1-10V to PWM dimming driver which has solved the compatible problem of fluorescent dimming system and LED illumination. LED lamps can be controlled by many traditional intelligent dimming systems.


 Feature

·Output constant voltage type

·Input voltage Range 100-265VAC

·Built-in PFC function, PF>0.90

·Efficiency> 88%

·Protections:short circuit/over current/over voltage/over temperature

·Cooling by free air convection

·IP67 design for indoor or outdoor installation .

·Dimming function:0-10V/ 1-10V/ 10V PWM or potentiometer.

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·Suitable for dry/damp/wet locations

·5 years warranty


 Specification

Model

SMT-012-060VD

SMT-024-060VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

05.0A

02.5A

Rated power

60W

Input

Voltage Range

AC100130V / AC170~265V

Frequency Range

4763HZ

Power Factor ( Typ.

PF0.90/110V; PF0.90/220V

Full Load EfficiencyTyp.

>88%

>88%

AC CurrentTyp.

0.689A@110VAC

0.344A@220VAC

Leakage current

0.66mA/110VAC ; 0.7mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition

 is removed

Over voltage

280VAC

Over temperature

100±10 shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+801095%RH

TEMP.coefficient

±0.03%/050

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13.

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry

level

Others

Weight

1.1Kg

Size

200*68.5*45mmL*W*H

packing

329*279*176mm/10pcs /CTN   245*80*58mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 110V/220VAC input , rated load

   and 25 of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver

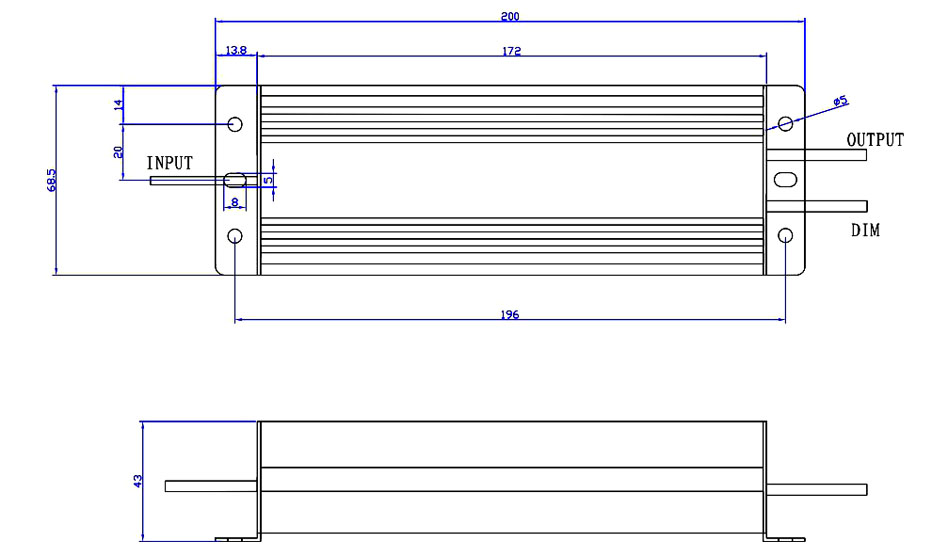

Meachanical Specification

dimmable led transformer

Input Rubber H03VV-F 3G *0.75the green/yellow cable connect with (FG)Brown with AC (L),Blue           with AC

       Signal Rubber H03VV-F 2G*0.75Blue isDIM+,White isDIM-

Output Rubber H03VV-F 2G*0.75Red is outputV+,Black is outputV-

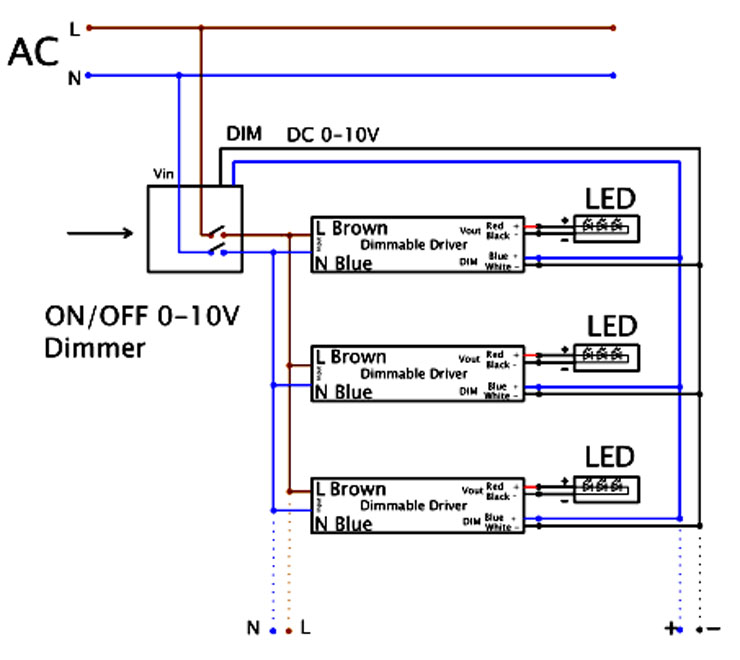

Diagram reference

dimmable led transformer

dimmable led transformer

dimmable led transformer
