led driver 500ma constant volatge saa 12w 24v dimmable led transformer

The rated current of this dimmable led driver is 500ma and there is 24v output voltage, 12w rated power. This constant voltage power led driver has saa approval with 5 years warranty.


  • Input Voltage180-265V
  • Output Voltage24V
  • Output Current0.5A
  • Working ModeConstant Voltage
  • Dimming modeTriac dimmable
  • Size140*45*28mm
  • CertificationSAA

led driver 500ma constant volatge saa 12w 24v dimmable led transformer

The rated current of this dimmable led driver is 500ma and there is 24v output voltage, 12w rated power. This constant voltage power led driver has saa approval with 5 years warranty. An isolation resistance is I/P-O/P100MΩ/500VDC/25℃/70%RH.



 Features

·Output constant voltage type

·Input range 180-265VAC

·Built-in PFC function >0.7

·Efficiency > 83%

·Protections:Short circuit/over Current

·Fully isolated plastic case IP20 / Easy Installation.

·Cooling by free air convection

·Work with leading edge and trailing edge triac dimmers

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·5 years warranty

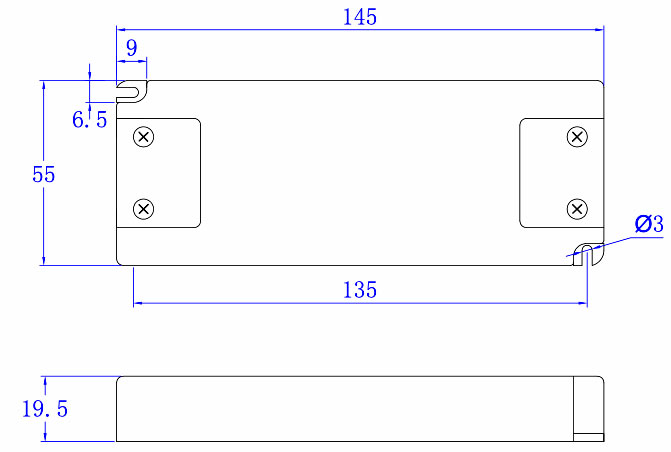

 Mechanical Specification:


12w dimmable led driver

Input AC (L),AC(N)

Output(DIM+),(DIM-)


Dimming Operation:

1. Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a  triac dimmer.

2. Compatible with Leading edge or tailing edge triac dimmers.

3. please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero.
