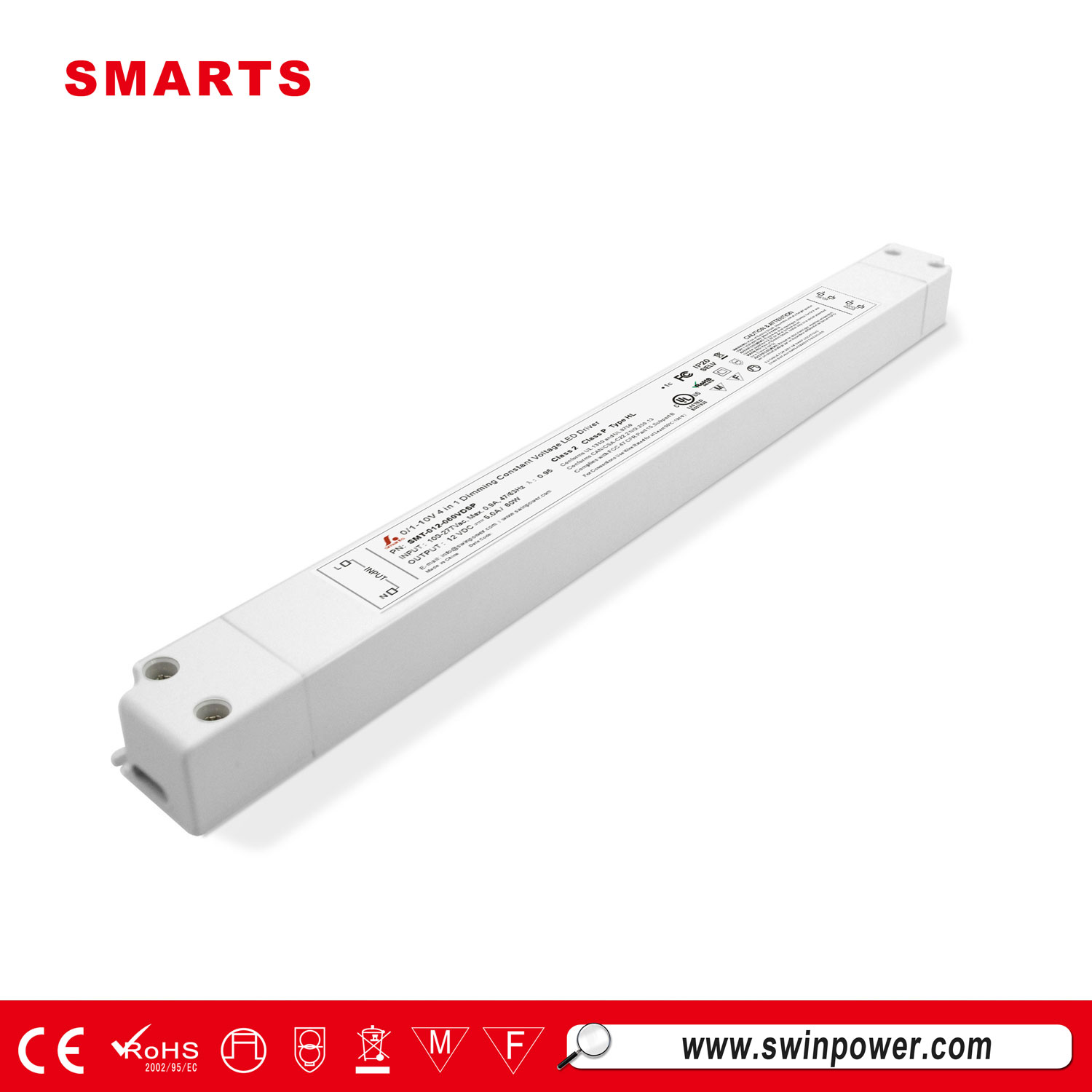

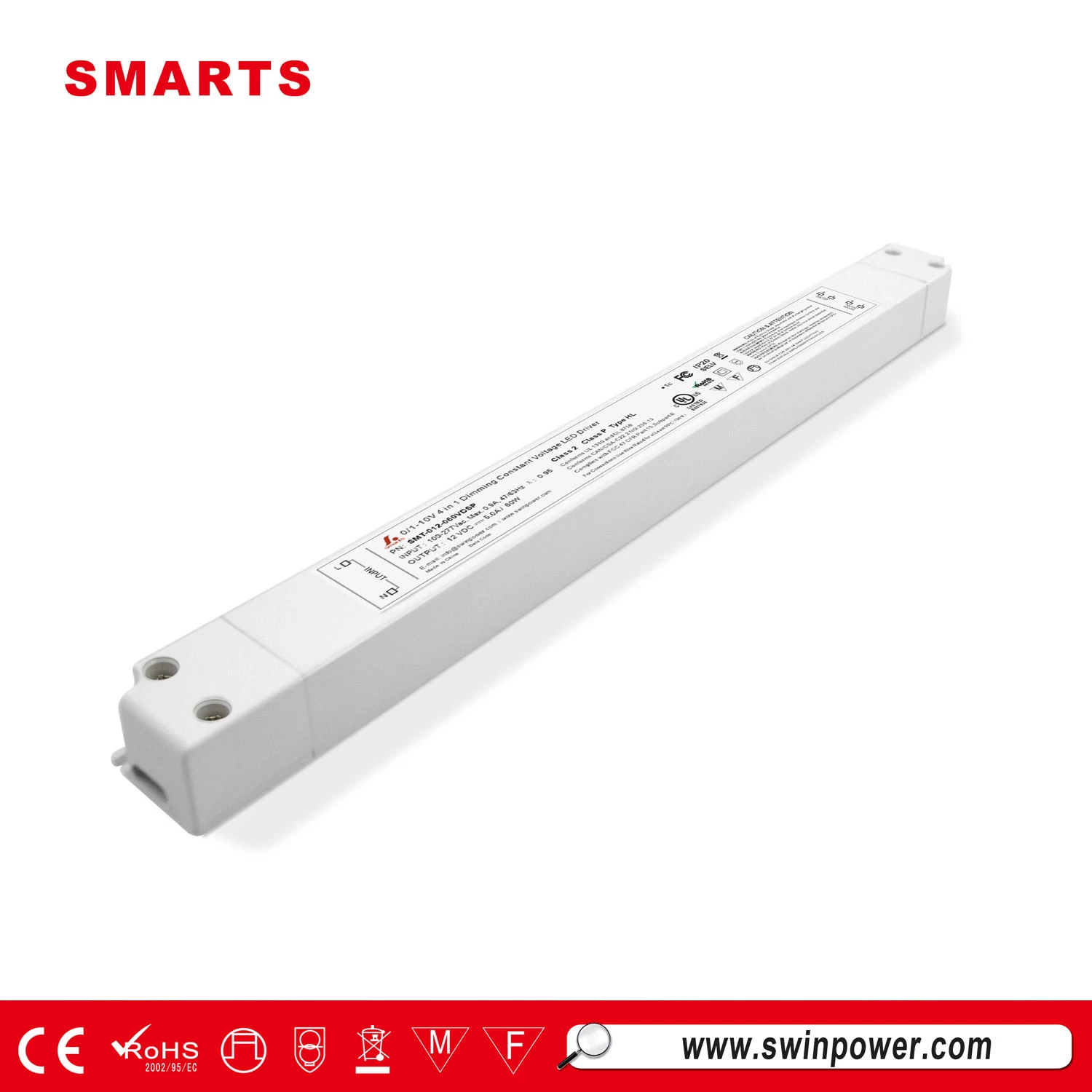

Led driver power supply 12v 24v 5a 2.5a 60w slim size indoor power supply for led driver strip

This led power supply driver transformer provides regulated power to your LED circuit with a sophisticated dimming function. This small and compact unit ensures reliable performance from a single LED or an LED string and is suitable for applications including indoor lighting, led strip, led flood light and so on.


  • CertificationClass2, UL Certificate
  • Size300mm*30mm*18.5mm(L*W*H)
  • Dimming mode0-10V dimming
  • Working ModeConstant voltage
  • Output Current5A
  • Output Voltage60W
  • Input Voltage100-277VAC

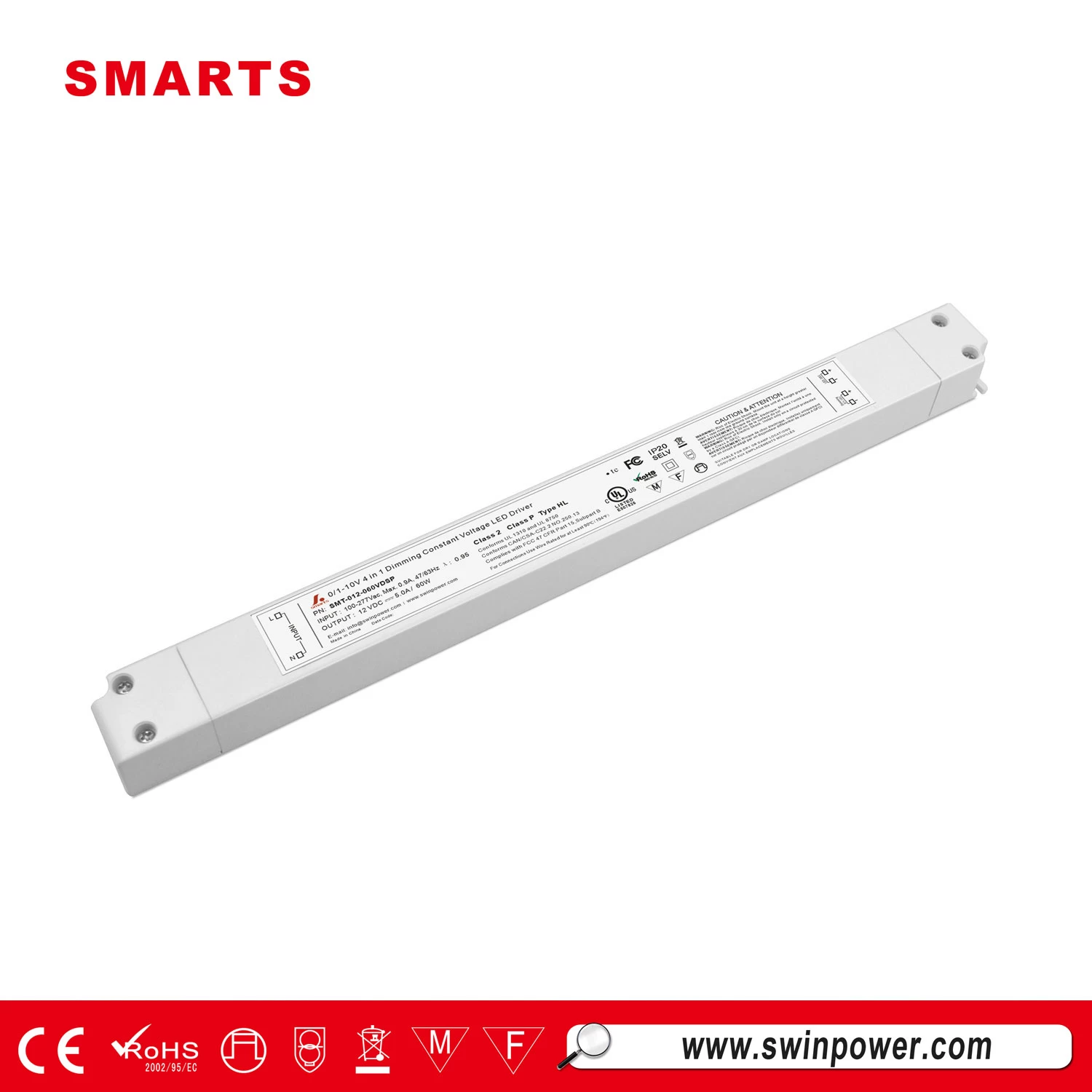

Led driver power supply 12v 24v 5a 2.5a 60w slim size indoor power supply for led driver strip


The led power supply driver transformer allows for adjustable light brightness via the combination of POT (Potentiometer) and PWM (Pulse Width Modulation) dimming. It provides a maximum power output of 230W with an output current of 6500mA. It features a durable construction that makes it suitable for use in a range of temperature condThe driver allows for adjustable light brightness via the combination of POT (Potentiometer) and PWM (Pulse Width Modulation) dimming.

 Feature

·Output constant voltage

·Input voltage range 100-277VAC

·UL, cUL listed, Class 2, Class P standard approval

·Built-in PFC function / Efficiency > 80% / PF> 0.99

·Dimming range: 0~100%

·Protections:short circuit/over voltage/over heat

·IP20 plastic case design for indoor dry, damp environment installations

·Cooling by free air convection

·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty

 Specification

model

SMT-012-060VDSP

SMT-024-060VDSP

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

5.0Amp

2.5Amp

Rated power

60W

60W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V

Full Load EfficiencyTyp.

84%@120VAC   86%@277VAC

83%@120VAC   85%@277VAC

AC CurrentTyp.

0.9A

THD(Typ. ) @ full load

<10%@120VAC  <15%@277VAC

Inrush CurrentTyp.

6.85A, 50%, 640us & 16.8A, 50%, 640us@2770VAC

Leakage current

<0.74mA/110VAC; 0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVac

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.45Kg

Size

300*32*20mm (L*W*H)

packing

50PCS/CTN    Carton size: 330*330*130mm



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

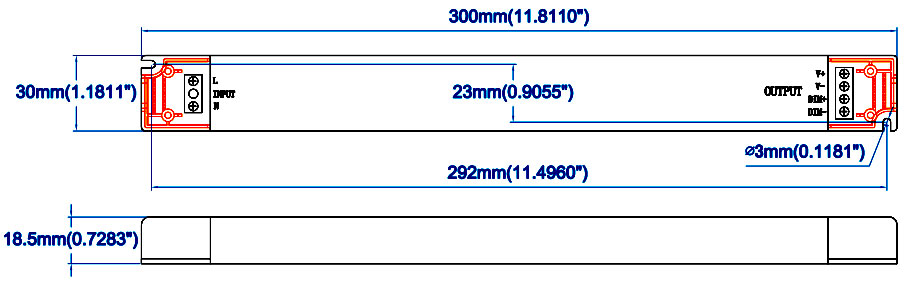

 Mechanical Specification

led power supply 12v 60w

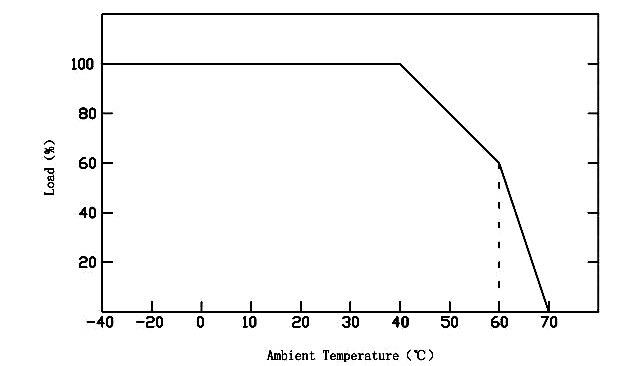

 Derating Curve

led power supply 12v 60w



 Connecting Diagram

led power supply 12v 60w

 Connecting Diagram 2

led power supply 12v 60w

led power supply 12v 60w

led power supply 12v 60w
