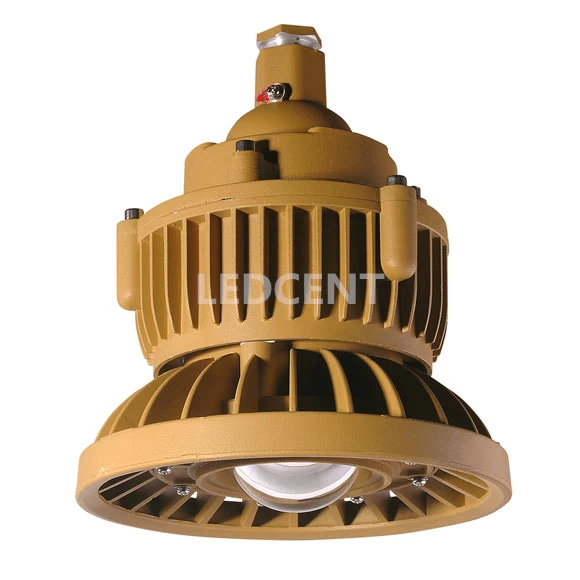

LED explosion-proof flood light

The lamp body is made of good quality aluminum alloy that is stamped forming by machine, having a stable and reliable performance.

IK rating can reach Exd II CT6

Antiseptic Rank: WF2

IP rating: IP65

Applied to the area 1 and 2 of explosion gas environment.

Applied to IIAIIBIIC explosion gas space;  Applied to T1 to T6 temperature degree;

The size of input hole is G3/4”, suiting for φ10~14mm cable;

LED防爆灯

LED防爆灯芯片

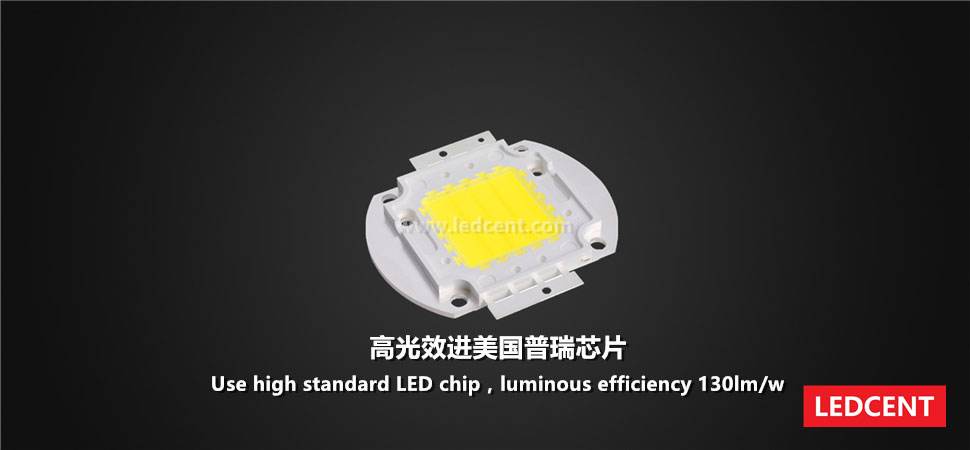

Using USA Bridgelux led chip, the luminous efficiency of whole lamp is more than 100lm/w

Using single chip protection technology, don’t make a difference in the other led chip when one chip is broken.


An excellent product always working with a high-quality drive;

We provide products with 5-year warranty assurance, the stable working life of more than 8 years;

LED防爆灯具

Installation

防爆LED投光灯

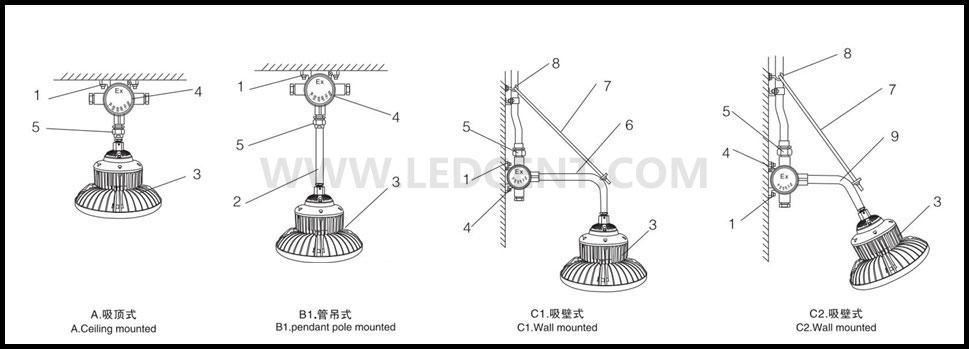

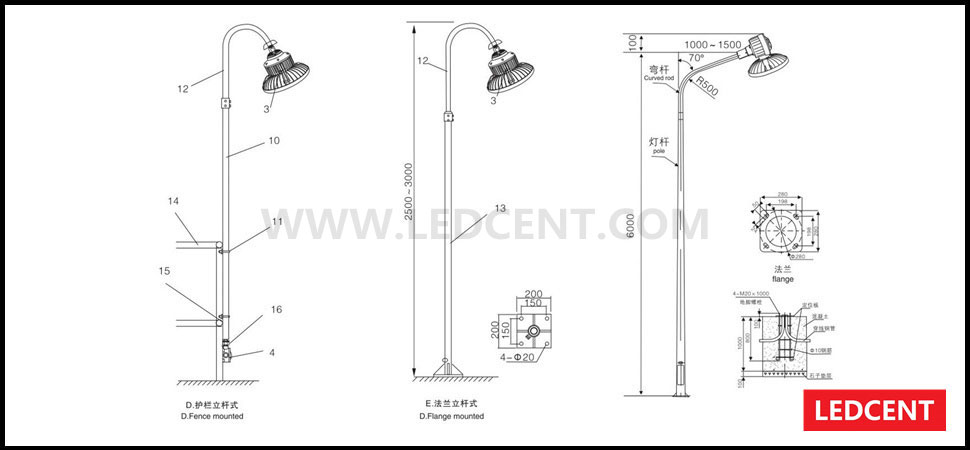

Installation modes: Ceiling mounted type, Wall-mounted type, Conduit suspension type, Vertical rod mounted type, Bracket mounted type

LED防爆投光灯
