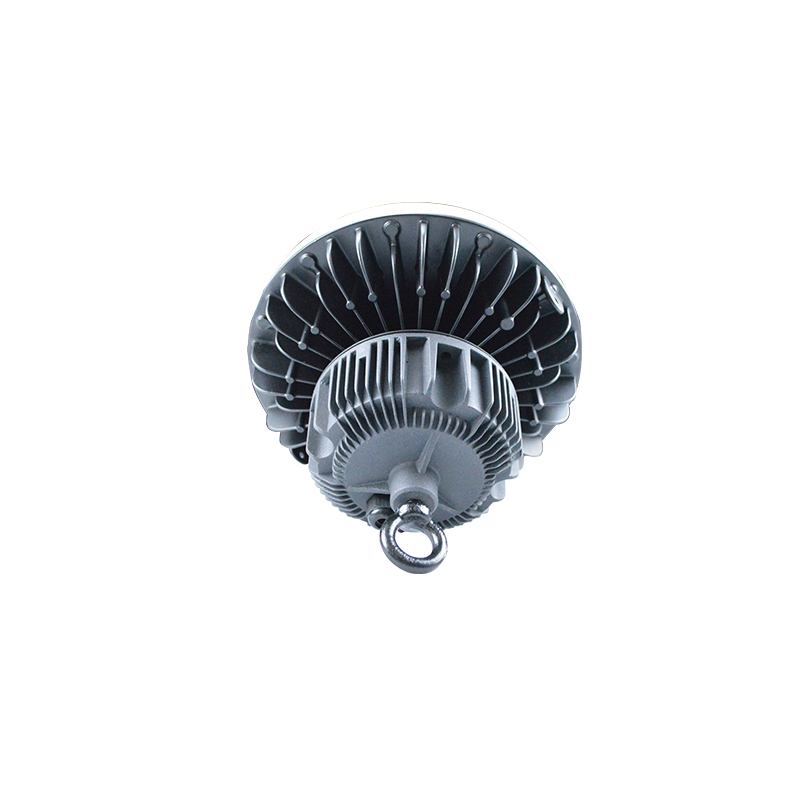

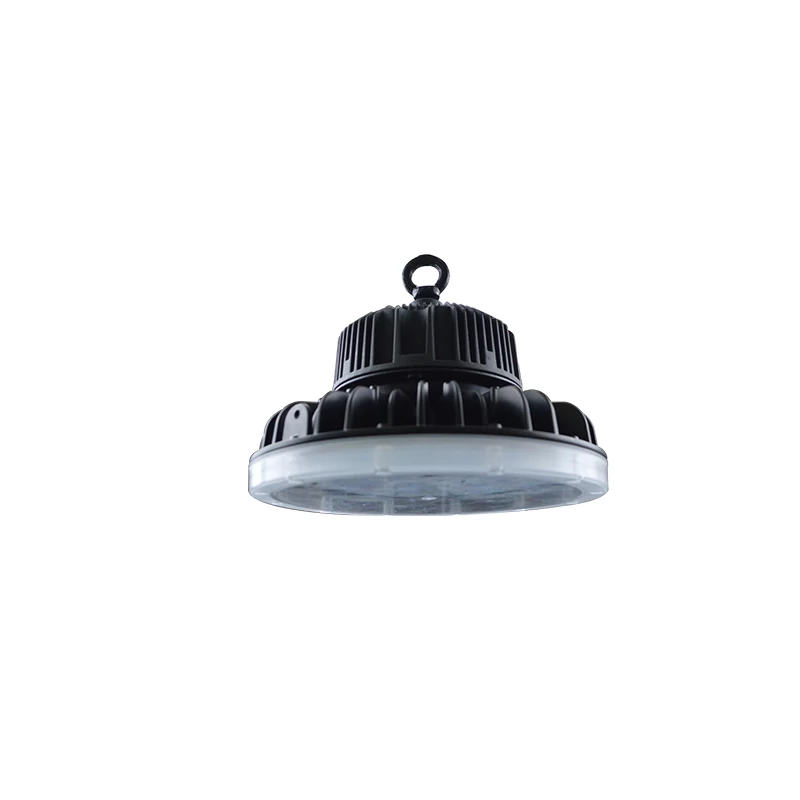

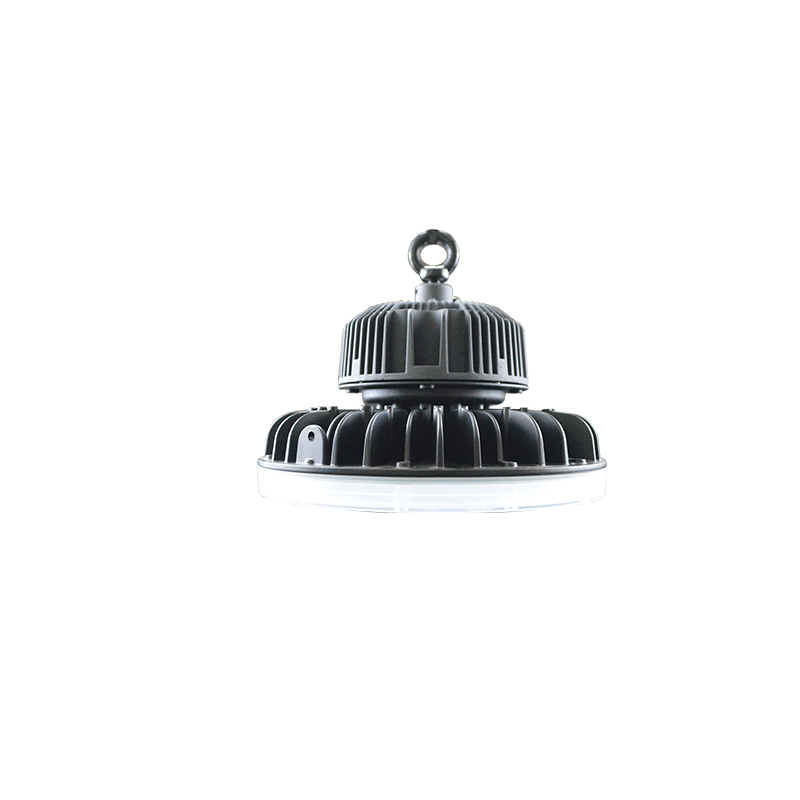

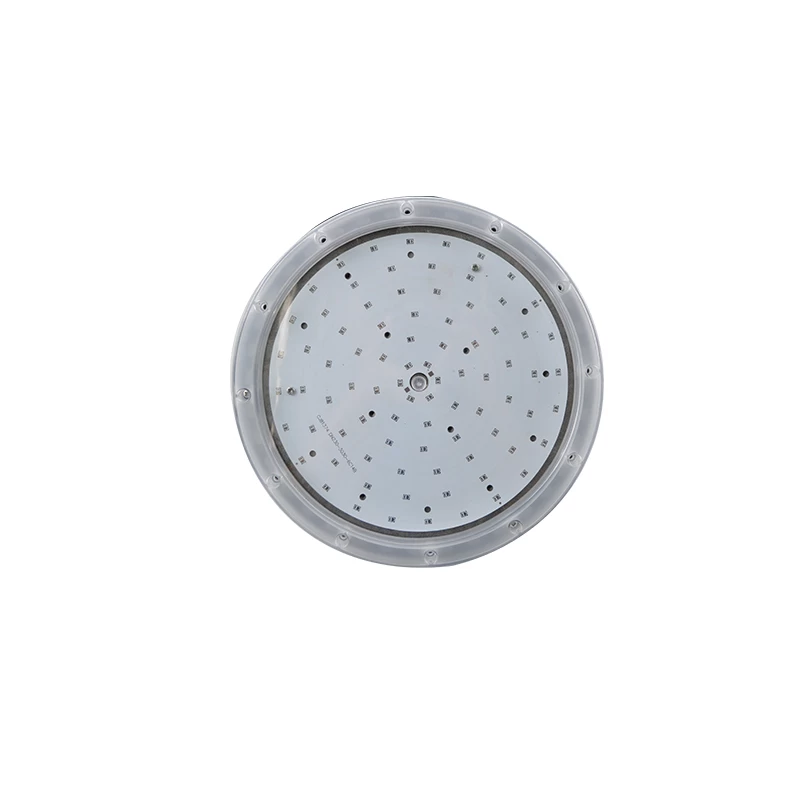

LED high bay light housing 60-100W

IP65 Aluminum led high bay light housing


Characteristic of our UFO high bay light:

1. Energy saving

2. Super brightness

3. Uniform lighting intensity

4. High lumen efficiency

5. Wide light beam angle

6. High color rendering index

7. ADC12# pure aluminum material




Product features
Our LED high bay light housing use  high quality air die casting aluminum alloy, with surface polished, nano electrostatic spraying, the unique design of heat dissipation body in harmony with the electrical box, and effectively conduct heat diffusion, thereby reducing the lamp body temperature, effectively ensure the service life of the light source and power supply, which is beautiful and delicate.


Scope of application
Our aluminum industrial light housing is suitable for workshop, warehouse, toll station, gas station, large supermarket, exhibition hall, gymnasium and other places where lighting is needed.


Detailed Data

Product name IP65 Aluminum led high bay light housing
Item No. MSL-BL06-2 Glass material None
Type High bay lighting housing

Luminousness

(Glass)

None
Brand Mansolo Lens materail PC
Lampshade material Aluminum alloy

Luminousness

(Lens)

92% above
Surface treatment Powder coating Power scope 60-100W
Standard color Black, dark grey, light grey IP rate IP65
Warranty(housing) 5 years Salt spray 300hours
Fixture Parts Power box\Round adapter plate\Heat sink body\Aluminum Plate\Waterproof power box\Optical lens Net weight 1.4KG
Production process
(housing)
Die casting \Machining \polishing \powder coating Fixture size L23*W23*H17.5
