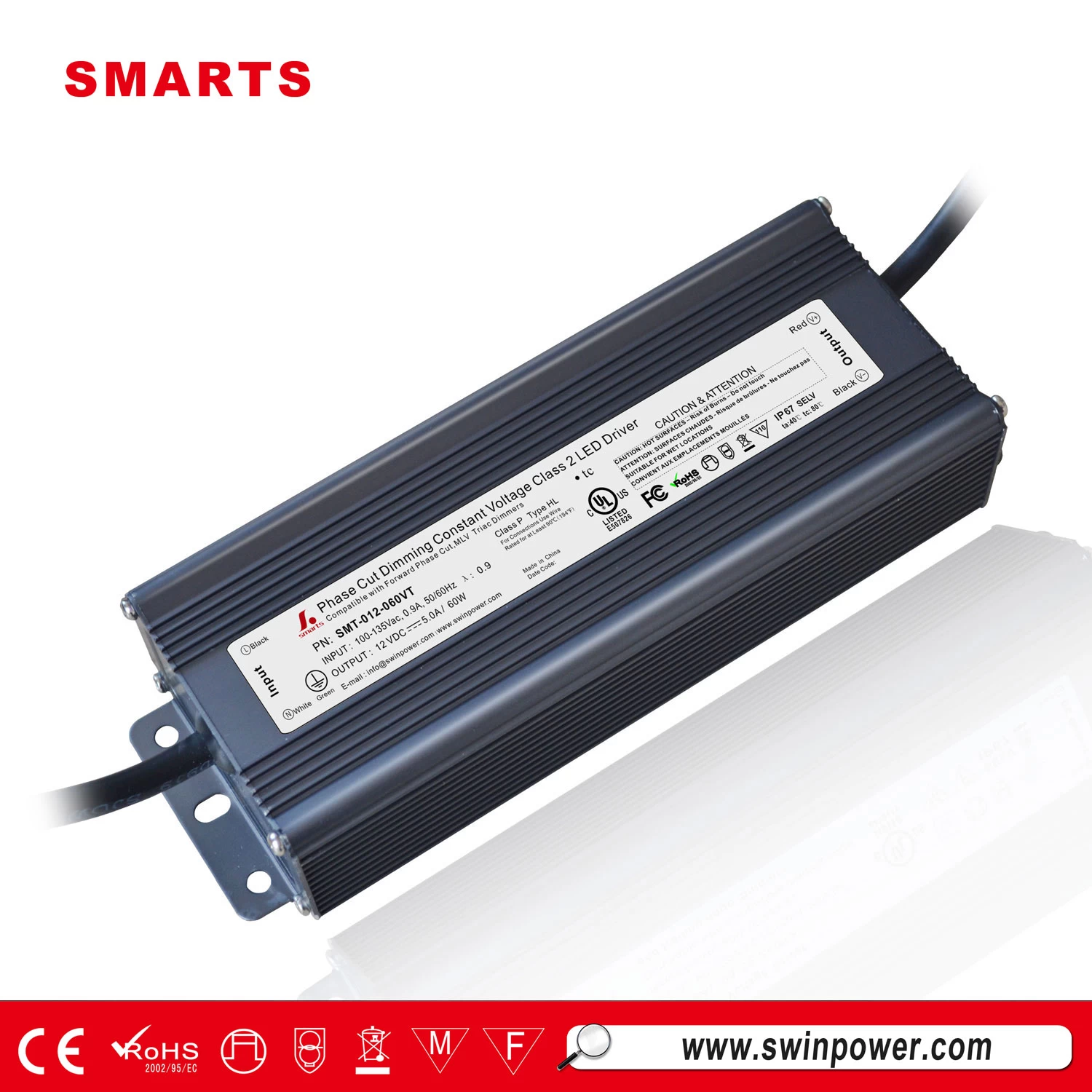

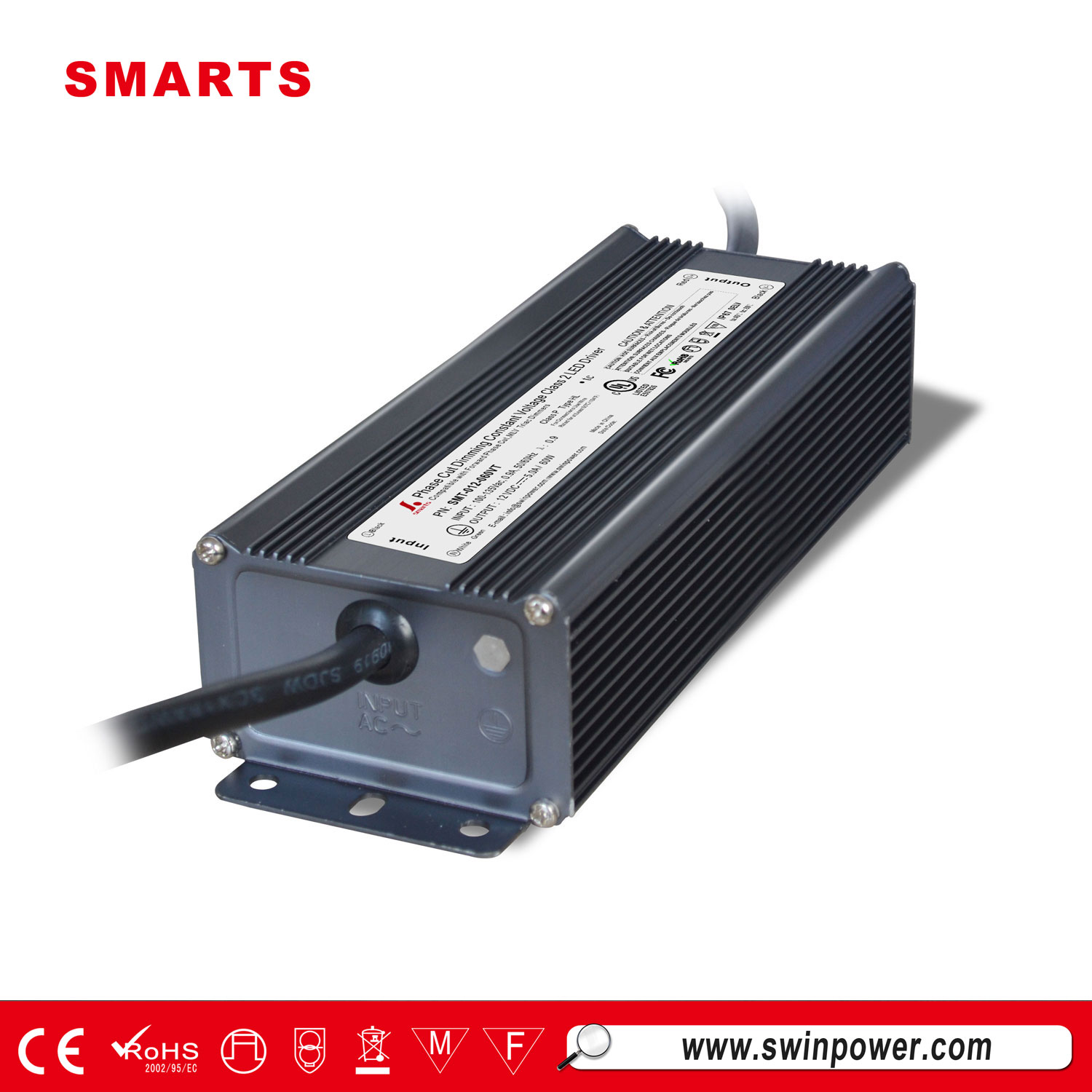

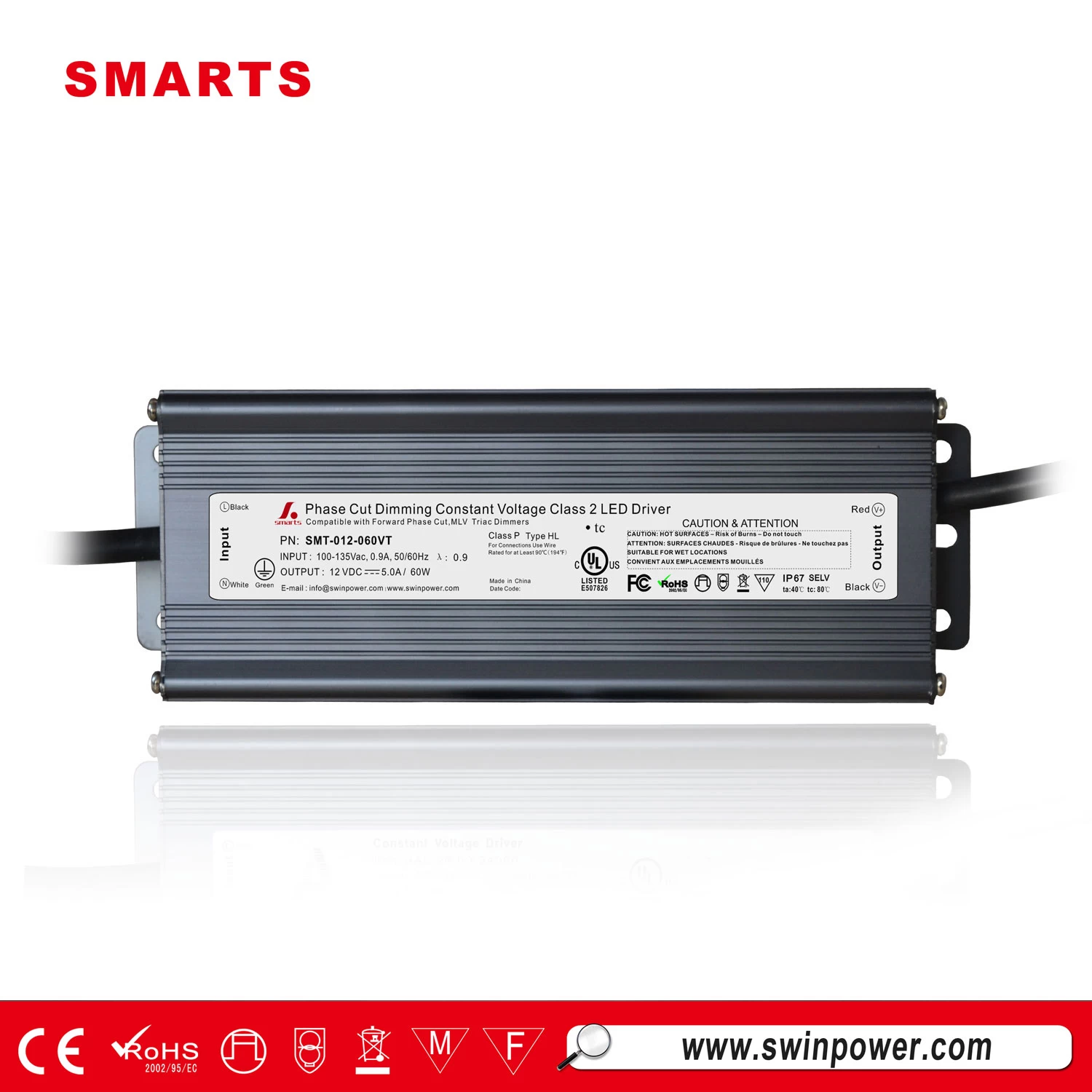

LED panel light driver 12v 60w triac dimmable constant voltage led power supply

Our SMT-012-060VT is 12v 5amp 60w triac dimmable constant voltage led driver with UL listed,class 2,ce,rohs,fcc approval,and we provide you 5 years warranty.


  • Size200*68*45mm
  • Dimming modetriac dimmable
  • Working Modeconstant voltage
  • Output Current5.0AMP
  • Output Voltage12VDC
  • Input Voltage100-130VAC
  • CertificationCE,UL,ROHS,FCC,Class 2,Class P,type HL

LED panel light driver 12v 60w triac dimmable constant voltage led power supply


phase cut dimming power supply 12v 5a 60w triac dimmable driver are UL ROHS FCC Certification,  constant voltage working mode, aluminum cover, Compatible with Forward phase, Reverse phase, Triac, ELV Dimmers。Suitable for LED lighting and moving sign applications


Specification

model

SMT-012-060VT

SMT-024-060VT

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

5.00A

2.50A

Rated power

60W

60W

Input

Voltage Range

90~135V AC/170~265V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.78/110V,PF≧0.80/170V,PF≧0.81/220V,PF≧0.82/265V

Full Load Efficiency(Typ.)

>83%

>83%

AC Current(Typ.)

0.61A/110VAC, 0.58A/170VAC, 0.46A/220VAC, 0.41A/265VAC

Leakage current

﹤0.25mA/110V/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

≦140VAC(90~135V) , ≦270VAC(170~265V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN61347-1/-2/-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level (surge4KV)

Others

Weight

About 1.0Kg

Size

210*68.5*43mm(L*W*H)

packing

324*298*176mm (L*W*H)

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .



Problem analysis

Q1.    What's the trade terms you can do??

A1:    We accept EXW,FOB..(Optional)

Q2.    What's shipping mode can we choose?
A2:    Express, Ocean and air transportation (optional).

Q3.    What's the MOQ?
A3:    Our MOQ is 10pcs. better price for large quantity;

Q4.    What can you do if the product is broken?
A4:    We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5.    Can i get products with my own logo??
A5:    Sure, you can, MOQ is 500pcs.



Q6.    Can i get a sample for testing??
A6:    Sure, but sample fees should be charged on your account.

Q7.    What's the mormal lead time??
A7:    7 working days for samples, 15 working days for mass production.

Q8.    What's the payment conditon?
A8:    All are paid before production or 30% deposit and 70% before delivery (optional)

Q9.    What's the Payment do you have?
A9:    We accept payment be sent via T/T, L/C,  Trade Assurance, WESTERN UNION, PAYPAL


Company information:

Quanzhou Smarts Electronic & Technology Co.,Ltd is UL/ETL audited power supply manufacture in China.

We are professional manufacturer specializing in waterproof & plastic cover constant voltage & current LED drivers, 0-10v /triac dimmable constant voltage & current led drivers,

enclosure power supplies, switching power adapters. We start this business since 1998 and most of our product have got CE,UL,ETL,ROHS approval.


Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd?

1).  Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.

2).  Most of our products are approved withETL, UL/CE/Rohs approval,

3).  We give 2-7 years warranty

4).  We accept trial orders begining..

5). We  have an area of 2000 square meters factory,  about 300-500 production staff. .


triac dimming driver


Our goal is to provide you the right product and make you satisfied, so  if you are interested in our product. please don’t hesitate to contact us.
