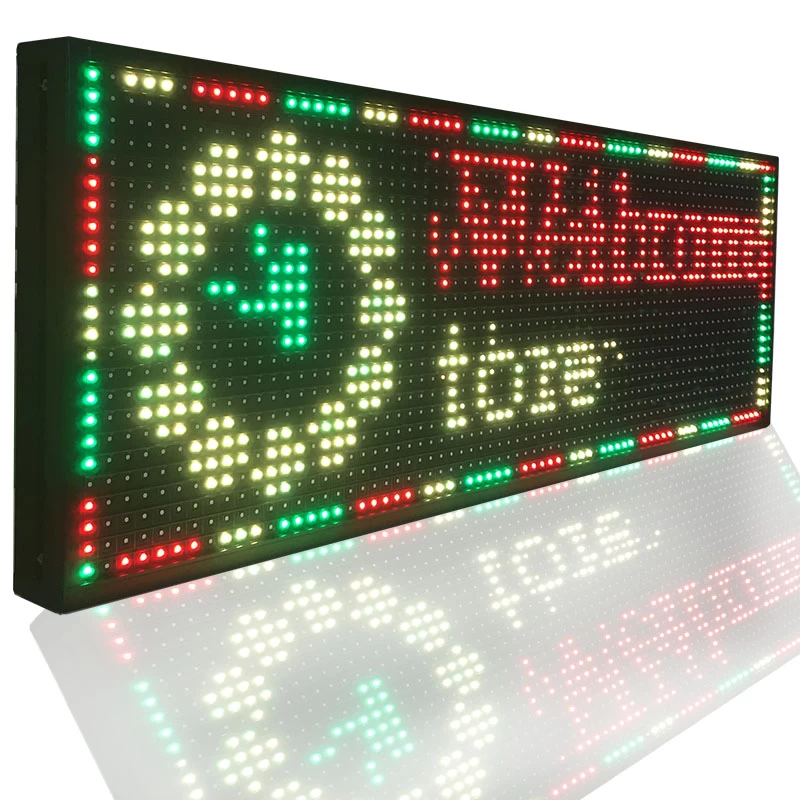

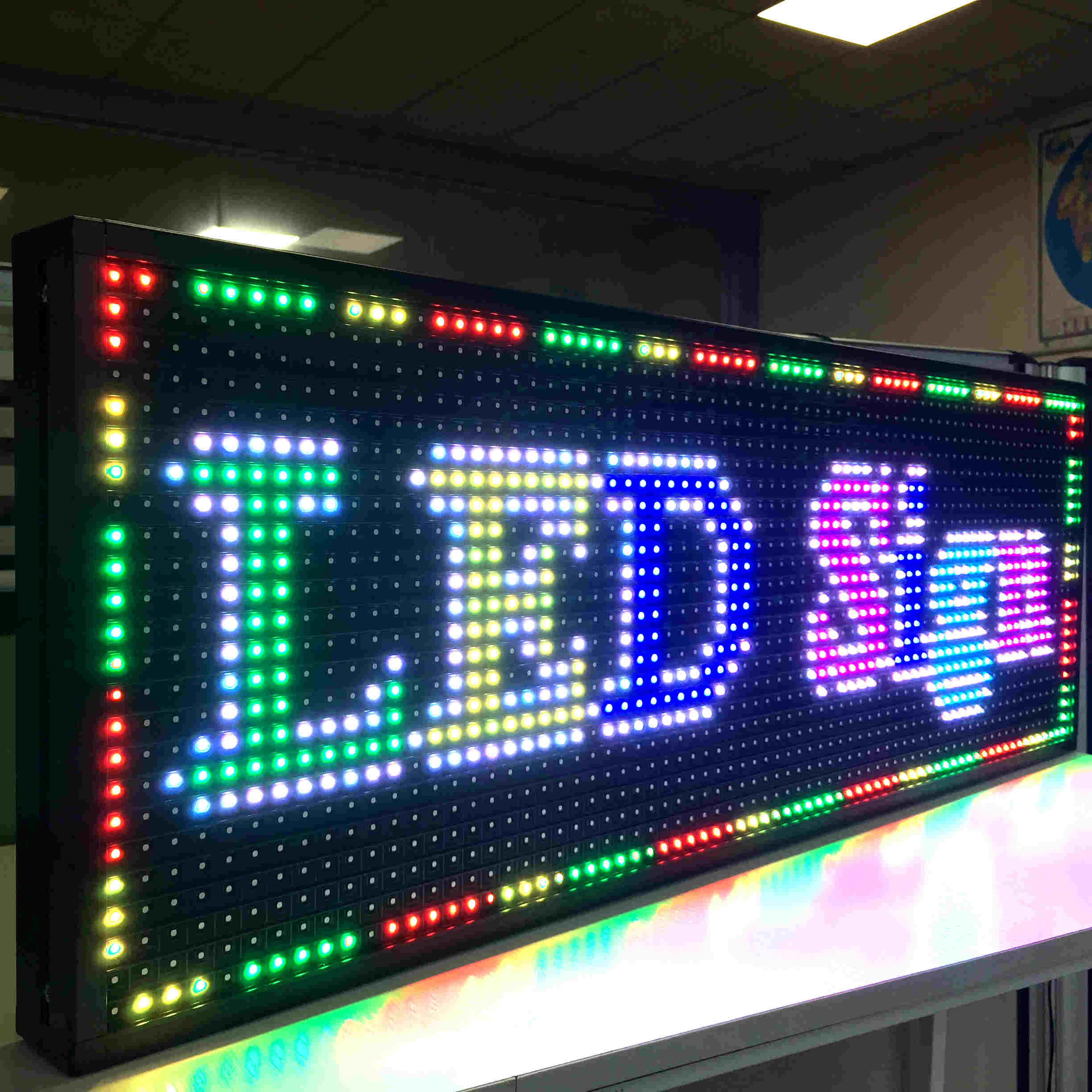

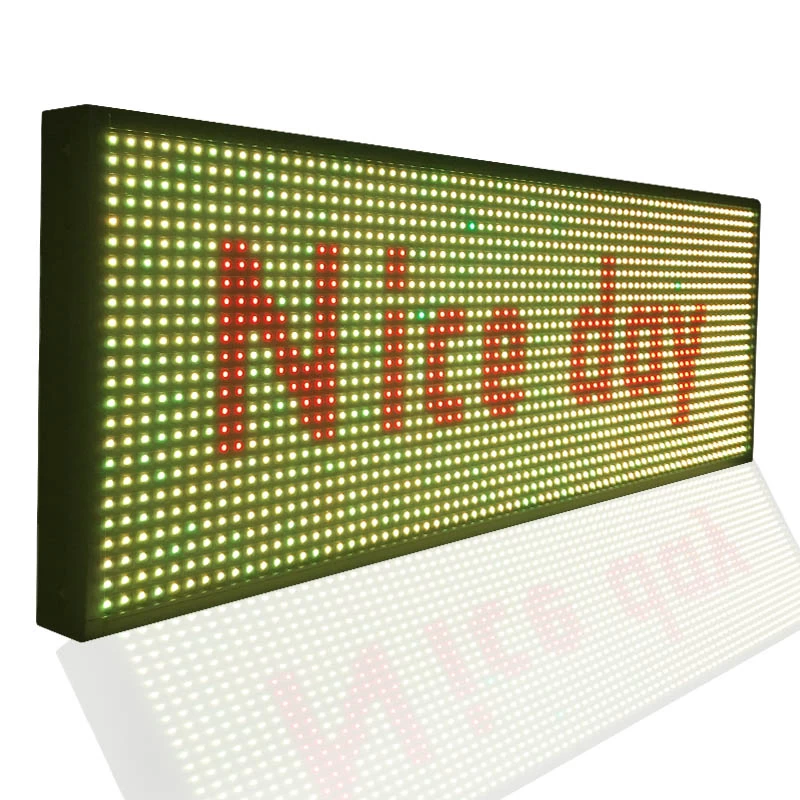

With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Weather-proof cabinet
Individual sunshades
Lighting resistant electronics
Modular design for flexibility
Maximum brightness & contrast
Versatile mounting options
Maximum vertical visibility
Lightweight and structurally sound
Low voltage certified
100,000 hours lifespan
2 year warranty
Package including
*LED sign 1 PCS (size 164x20cm /65x 20 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
|
P13 LED Module model
|
|
Color
|
RGB
|
|
LED Type
|
SMD
|
|
Module Resolution
|
W24 X H12
|
|
Module Size(MM)
|
W320 x H160
|
|
Driving Method
|
1/3 scan
|
|
Led display parameter
|
|
Voltage
|
220V or 110V ±10%
|
|
Material
|
Outdoor Aluminum Frame Waterproof (IP45)
|
|
Cabinet Size (mm)
|
W1640 x H200 MM (65x20 Inch)
|
|
Power Consumption Max (w/set)
|
200 Watt
|
|
Brightness(CD/㎡)
|
≥5500
|
|
Viewing Angle
|
120º/70º
|
|
Theoretic LED Working Life
|
More than 100000 hours
|
|
Control Method
|
USB+ WIFI+ APP control(network port,optional)
|
|
Display function
|
Date, Text
|
