LED rope light led tape enclosed LED power supply junction box 12v 150w 12a

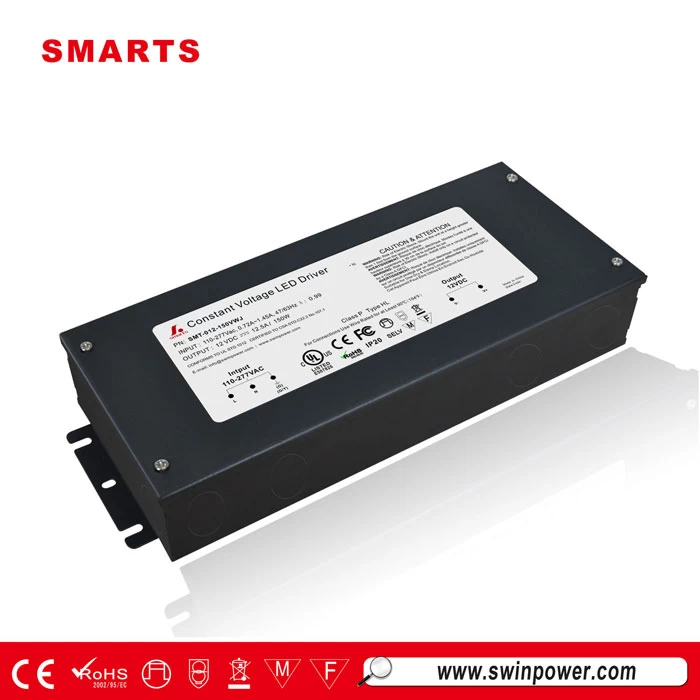

SMT-012-150VWJ is used in 110vac , 220vac, 277vac input voltage, 12vdc output voltage , 150w wattage LED applications. enclosed junction box and led driver 2 in one version, this is also a UL cUL listed non dimmable led driver with single output.
Specifications
|
Model
|
SMT-012-150VWJ
|
SMT-024-150VWJ
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
12.5A
|
6.25A
|
|
Rated power
|
150W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
0.99@120V ;0.97@230V ;0.95@277V
|
0.99@120V ; 0.97@230V ;0.95@277V
|
|
Full Load
Efficiency（Typ.）
|
>88%
|
>88%
|
|
AC Current（Typ.）
|
1.82A@110VAC
1.32A
|
|
Inrush Current （Typ.）
|
15A,50% ,1.4ms@120V;55A,50% 220us@230V;30A,50% 1.4ms@277V
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over load
|
≤120% constant current limiting, auto-recovery
|
|
TEMP .coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Over Current
|
≤1.4*I out
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z
axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:2.5KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11（Surge about 4KV）
|
|
Others
|
N.W.
|
1.8Kg/pcs
|
|
Size
|

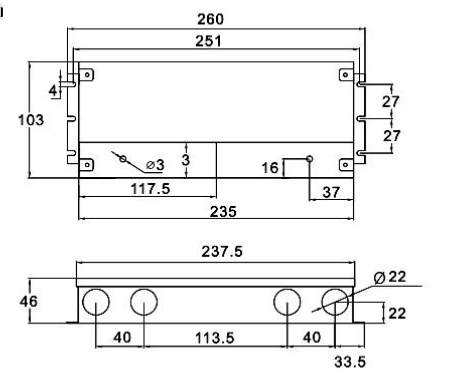

260*103*46mm (L*W*H)
|
|
packaging
|
440*295*145mm ,10PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , rated
load and 25℃of ambient temperature.
2..Tolerance:includes set us tolerance,line regulation and load regulation .
|

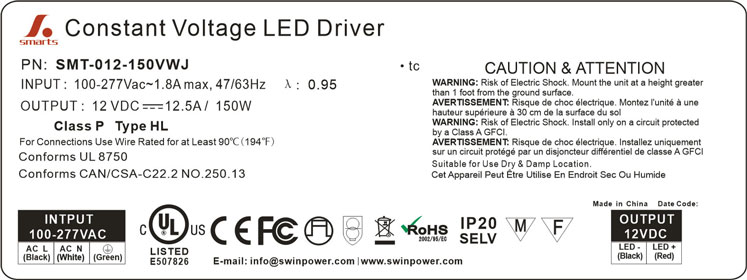

Label
|
|
Question: can a 12v 150W constant voltage led driver load a 12v 200w fixture?
Answer: A common question that customers ask is: “Can I use an LED lights that has a higher wattage equivalent than the LED drivers?” The answer is NO. in the applications, its normal to give around 90-100% load to led driver. but won't suggest to give overload. that's say, if its a 12v 150w LED driver for LED light, max.140w load is optimal. it is referring the dangers of high heat output associated with LEDs and LED drivers.
All drivers from SMARTS has protection of overload, if it comes the highest point, drivers will have overload protection automatic, and resume work as soon as the fault release.
Drawing

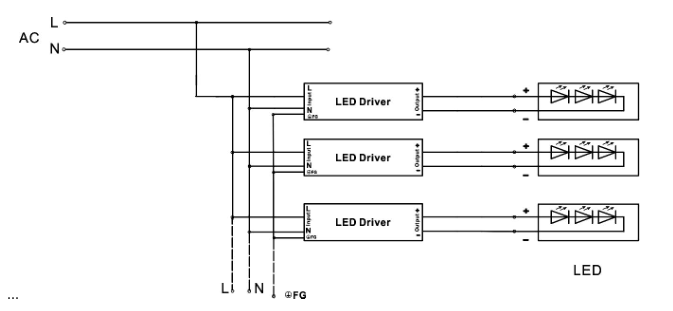

Connecting diagram
