LED Shoebox Light Efficiency 130lm/w by using SMD3030 LED
The light efficiency 130lm/W by using SMD3030 LEDswith module lens design. Besides, they have various installation way to make install more easily. Application for parking lot, street and roadway area, sidewalk, gardens, parks, stadium etc

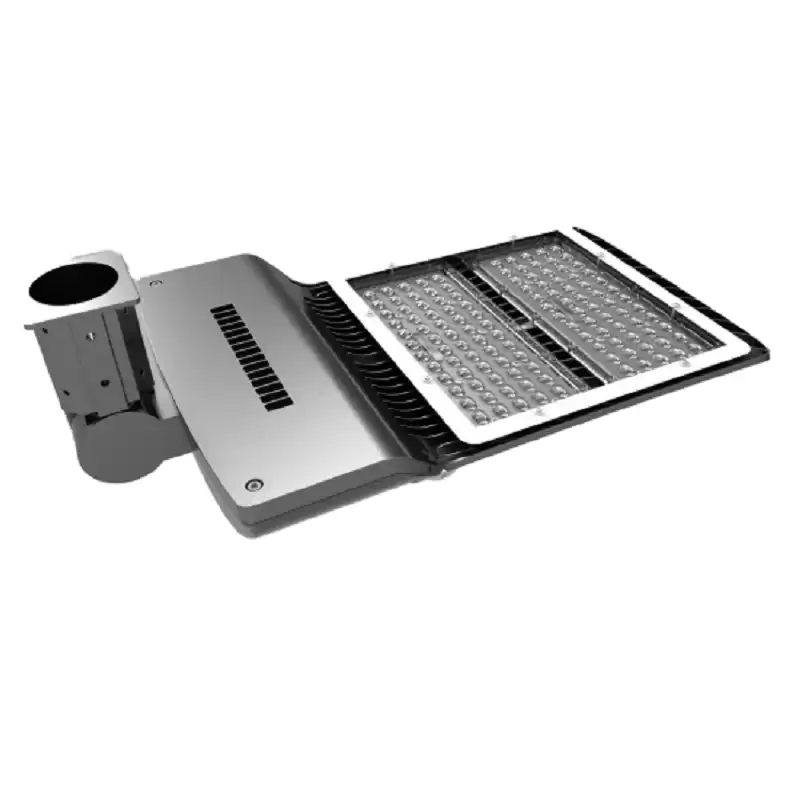

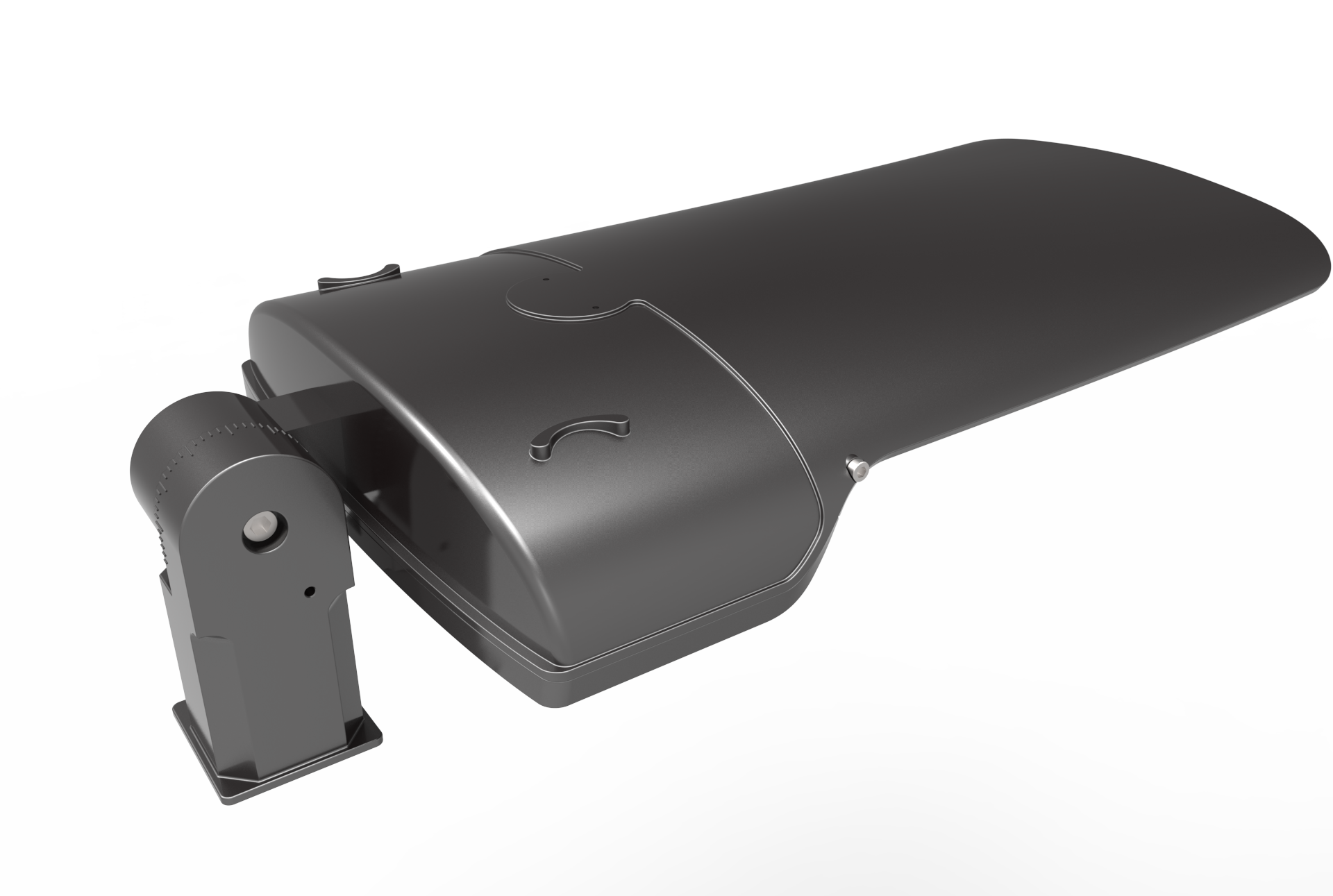

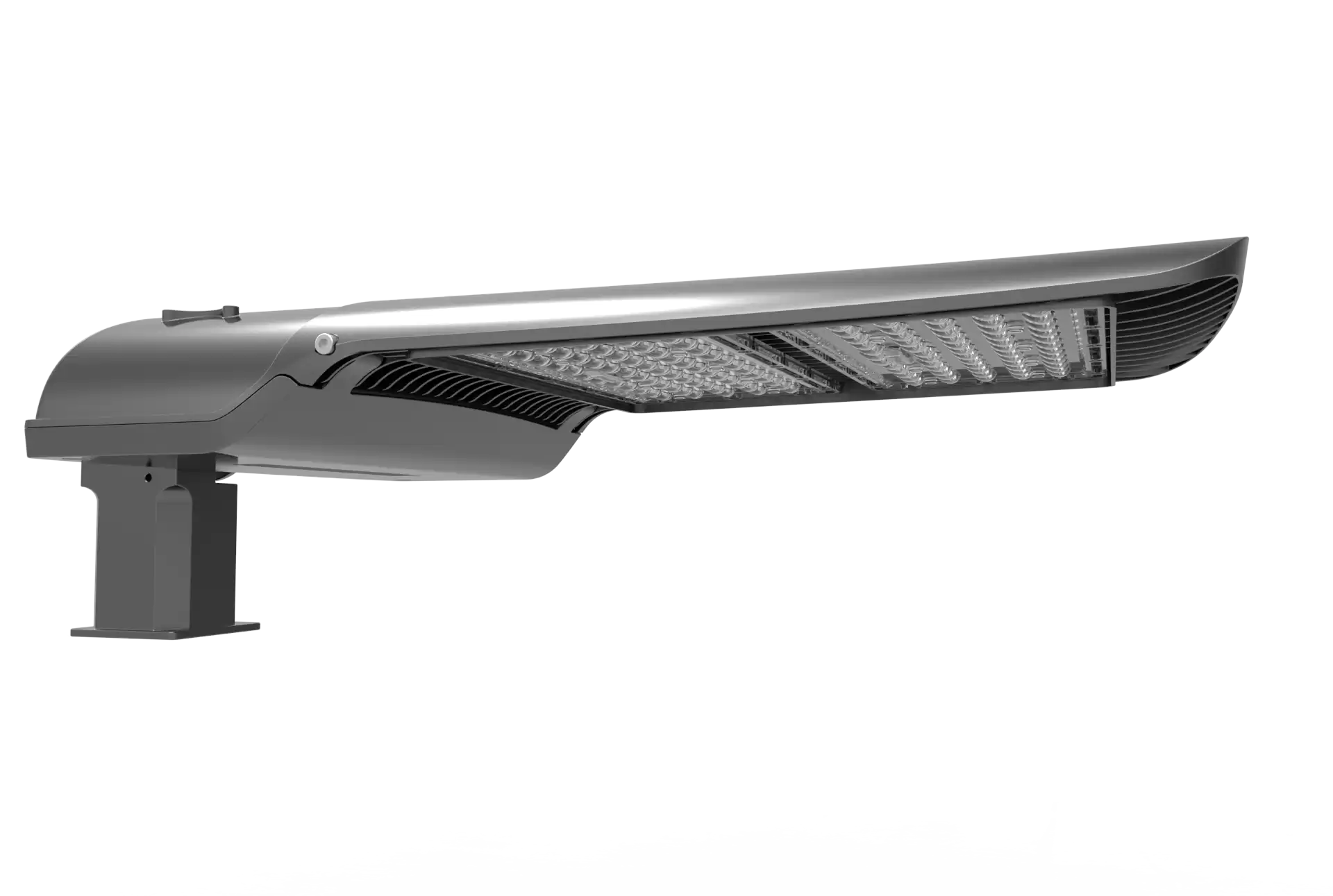

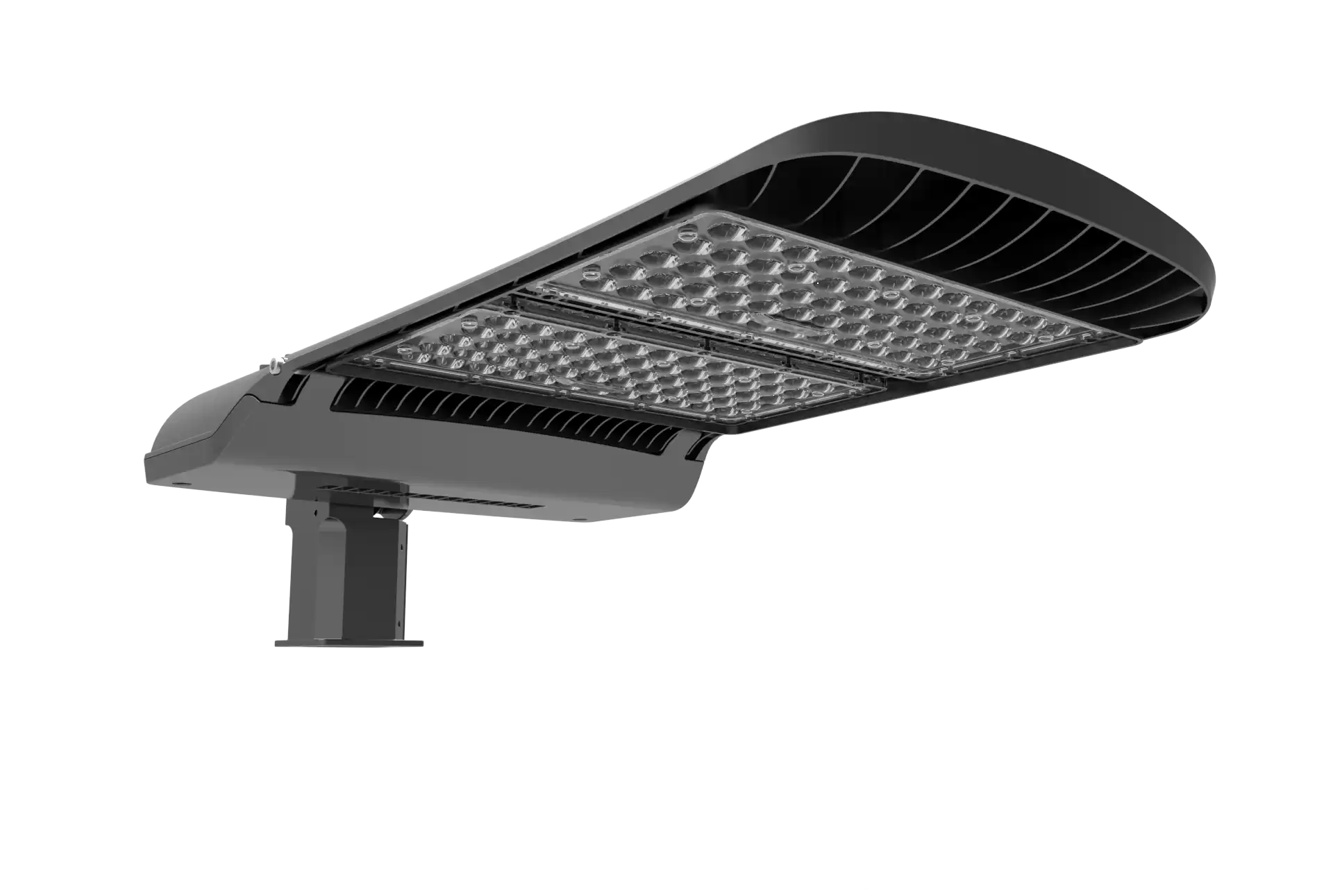

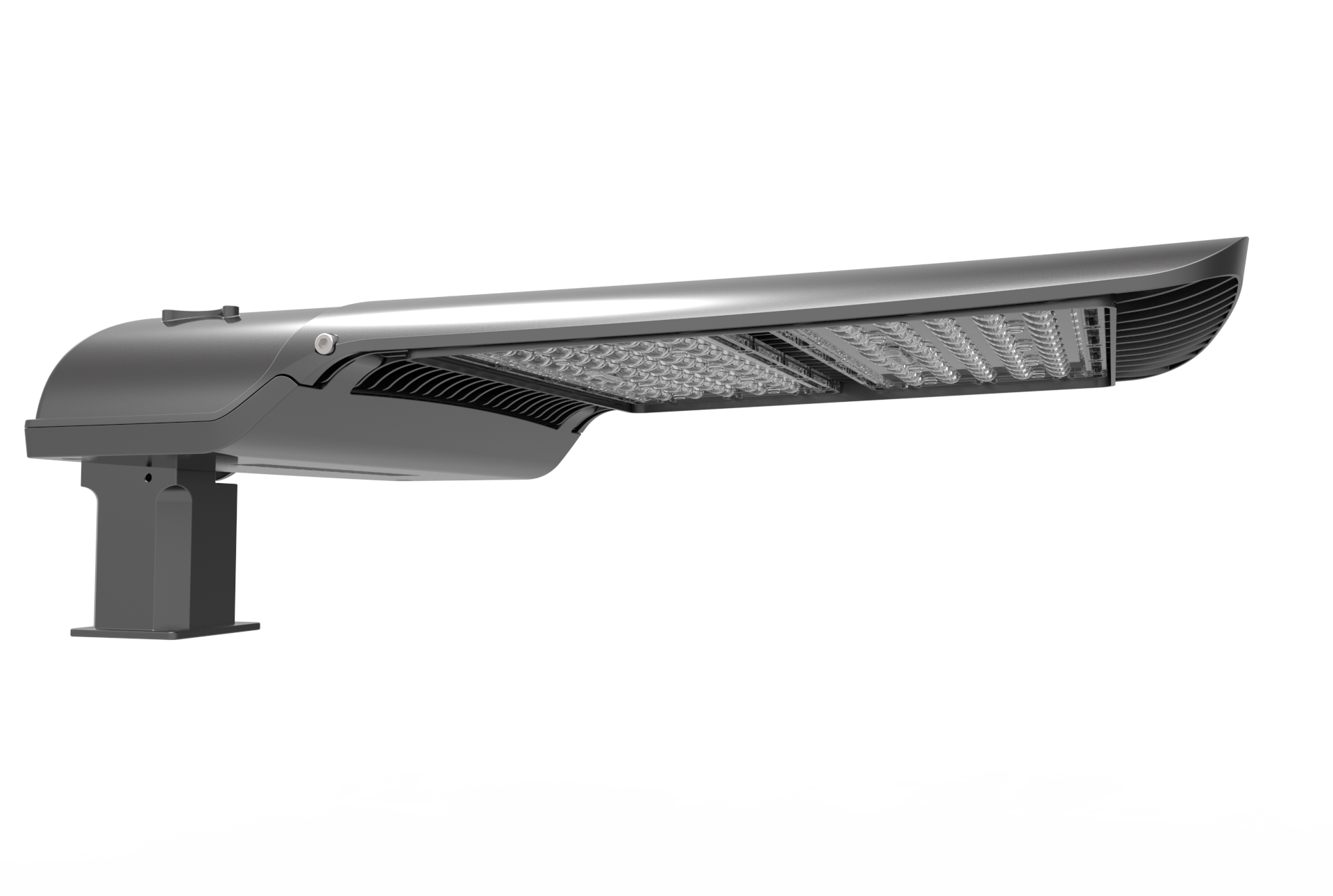

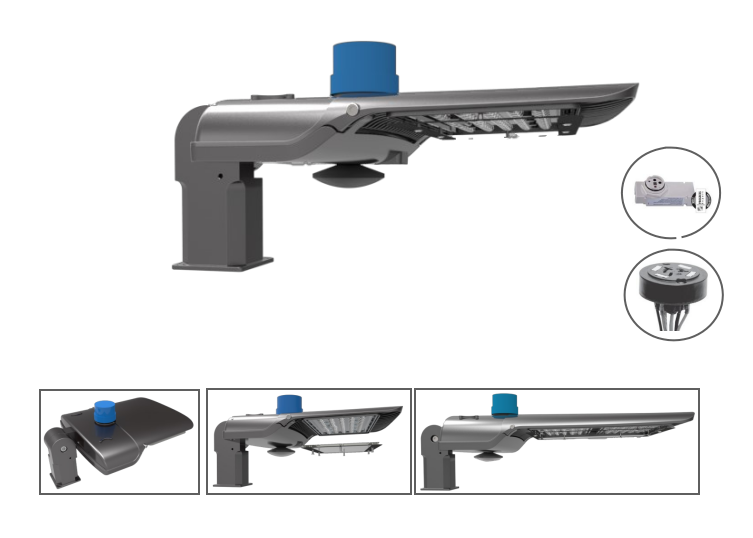

PRODUCT APPEARANCE
PRODUCT SPECIFICATION
|
Model No.
|
CRI
|
Lumens
|
Power
|
Dimension/mm
|
LED
|
Net Weight
|
|
V-AL02-30W
|
≥70
|
3900LM
|
30±5W
|
507*308*81
|
60
|
4 KG
|
V-AL03-50W
|
≥70
|
6500 LM
|
50±5W
|
507*308*81
|
120
|
4.0KG
|
|
V-AL06-80W
|
≥70
|
10400 LM
|
80±5W
|
507*308*81
|
120
|
4.2KG
|
|
V-AL01-100W
|
≥70
|
13000 LM
|
100±8W
|
565*375*82
|
240
|
5.1KG
|
|
V-AL05-150W
|
≥70
|
19500 LM
|
150±8W
|
565*375*82
|
240
|
5.3KG
|
|
V-AL06-200W
|
≥70
|
26000 LM
|
200±10W
|
785*376*101
|
240
|
7.0KG
|
|
V-AL07-300W
|
≥70
|
39000 LM
|
300±10W
|
785*376*101
|
240
|
7.2KG
|
|
3000K 4000K 5000K
|
|
AC 85V~305V PF>90%
|
|
Storage Temperature: –40 ~ 45°C
|
FEATURES:
● Driver Brand: Sosen(Meanwell driver available) LED Brand: Philips Lumileds
● Module lens design make the lamp with well suited lighting distributing for LED parking lot lighting.
● Installation angle-90~90 is adjustable ..
● Elegant appearance and Unique and excellent structure
● The light source use 140lm/W Philips Lumileds to make the luminous efficiency 120-130lm/W
● IES file and Dialux simulation can be provided if need
Photocell: USD8/set; PIR motion sensor: USD18/set, remote control: USD6/PC

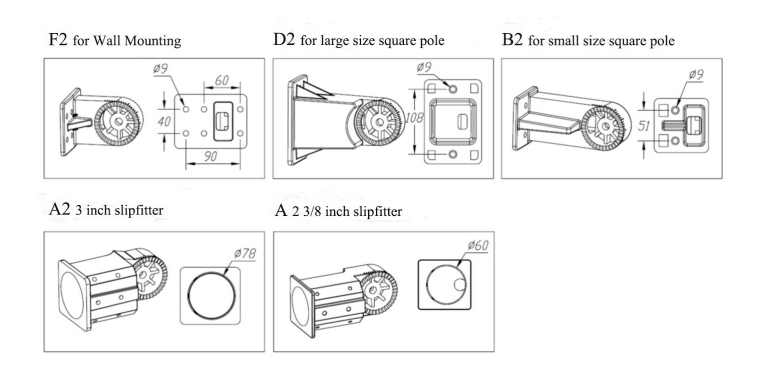

MOUNTING BRACKETS
INSTALLATION CAUTION
Please cut off the power supply before installation and make sure the mounting area can bear the weight of this lamp;
Please install correctly to prevent the lamp from falling down;
Do not install this lamp in places surrounded with corrosive gas;
No coverings on the lamp;
Make sure the lamp is ground connection for safety;
The warranty is 5 years from time of purchase;
The warranty does not cover those fault caused by disassembling, refitting or improper construction.

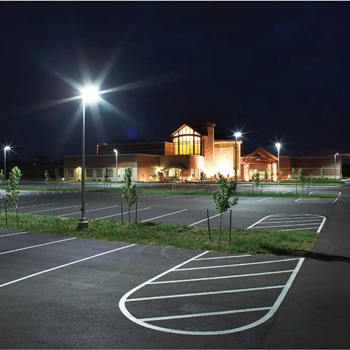

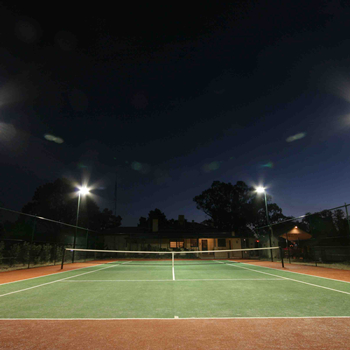

APPLICATION
