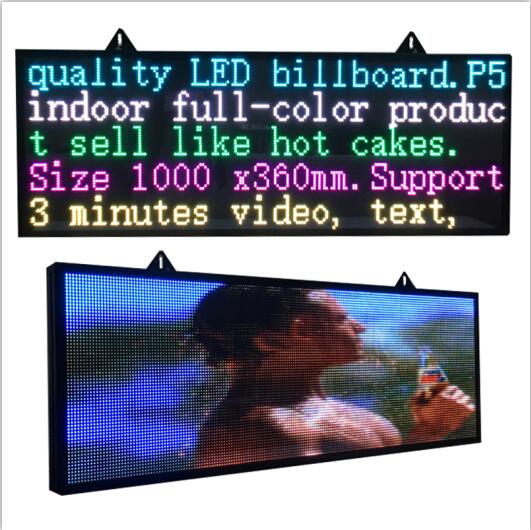

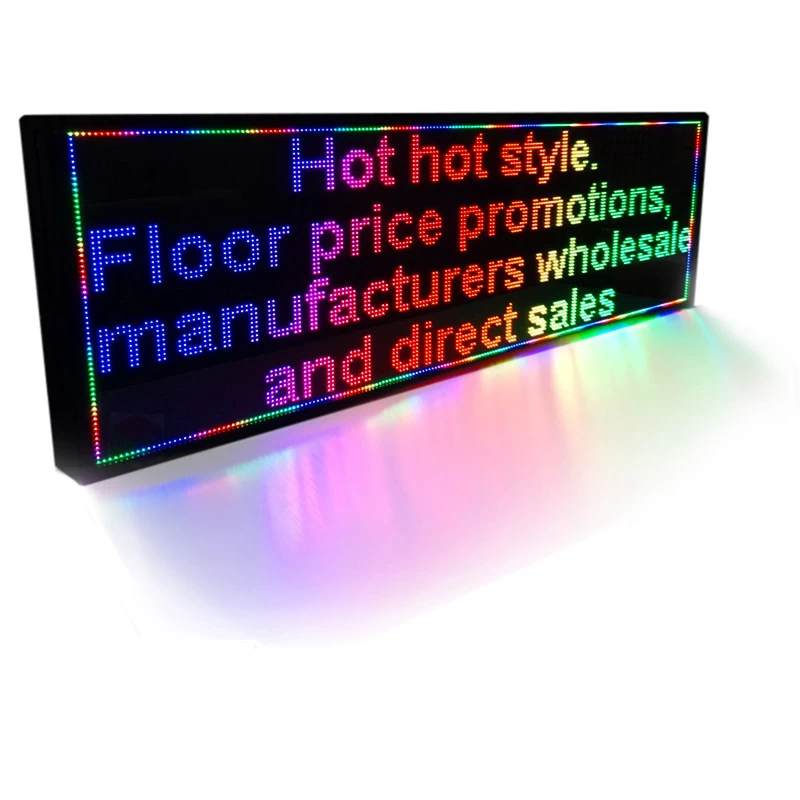

LED Sign Display Programmable Support text , image

P10 type is SMD ,Display Function:Date,Text, Temperature,Pixel:10 mm;Size is 36x196 cm.Support JPEG, GIF picture format and support GIF animation display,It is suitable for any occasion in the room.



With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.


*High brightness: >1500CD/m2

*Wide view:120º/70º

*Color:RGB

*Pixel pitch: 5mm

*Driver Mode: Constant current

*Voltage: 220V or 110V ±10%

* Life span of LEDs: 100000hours

*Warranty: 2 year

*Multi language: Any lauguage, Chinese/English/Arabic/Japanese...

*Support JPEG, GIF picture format and support GIF animation display

* Computer operation request: WINDOWS-XP or WINDOWS7




Package including


*LED sign 1 PCS (size 196x36cm / 77x 14 inch)

*Signal connection cable

* Professional installation bracket

*USB with free software and English user manual


Feature & Function

P5 LED Module model
Color RGB
LED Type SMD
Module Resolution W64 X H32
Module Size(MM) W320 x H160
Driving Method 1/16 scan
Led display parameter
Voltage 220V or 110V ±10%
Material Indoor Aluminum Frame Waterproof (IP20)
Cabinet Size (mm) W1640 x H360 MM (77x14 Inch)
Power Consumption Max (w/set) 60 Watt
Brightness(CD/㎡) ≥1500
Viewing Angle  120º/70º
Theoretic LED Working Life More than 100000 hours
Control Method USB control(network port,optional)
Display function Date, Text, Picture, Logo
