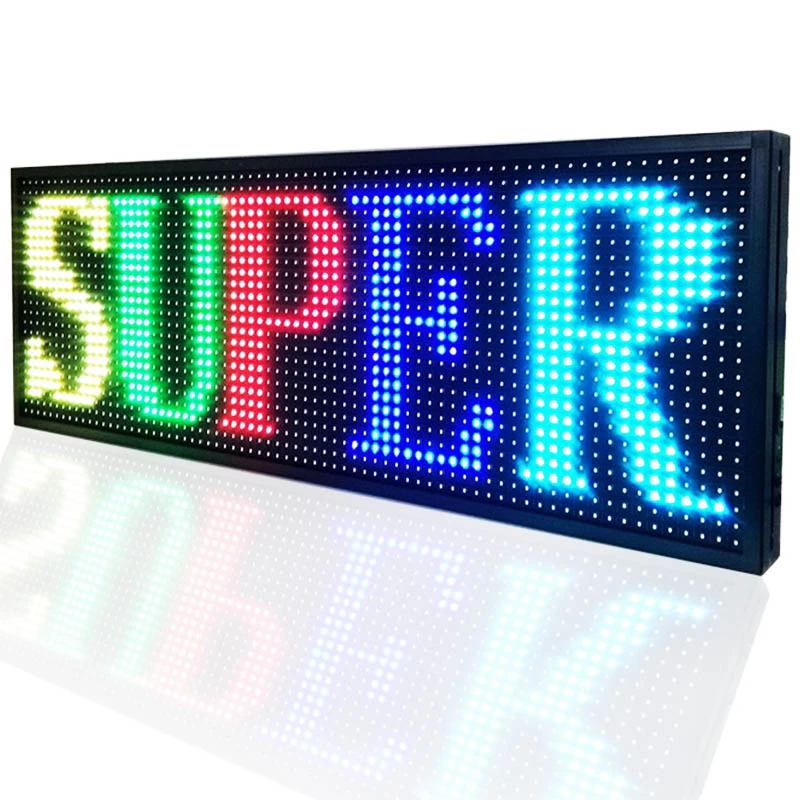

LED Sign Outdoor Full Color 7 color P13 LED display Programmable Message

P13 type is SMD, 320x160mm per LED module,Usb + Wifi +APP control ,  high refresh rate IC ;Size is 36x100 cm.Light weight with Aluminum frame



With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.



Specifications


1)super flatness& uniformity, large view angle, high brightness;
2) long visual distance, screen can be viewed in a faraway space for downtown area;
3)screen can work under very strong sunlight;
4) outdoor standard cabinet applied with strong humidity resistance ability as well as corrossion
resistance ability; cabinet still works in good condition under all kinds of bad weather; strong durability;
5)wide application usage, high IP grade,cost effective, customers can enjoy high-quality visual effect with
 favorable price, greatly lower investment cost;



Package including


*LED sign 1PCS (size 100x36cm /39 x 14inch)

*Signal connection cable

* Professional installation bracket

*USB with free software and English user manual


Feature & Function

P13 LED Module model
Color RGB
LED Type SMD
Module Resolution W24 X H12
Module Size(MM) W320 x H160
Driving Method 1/3 scan
Led display parameter
Voltage 220V or 110V ±10%
Material Outdoor Aluminum Frame Waterproof (IP45)
Cabinet Size (mm) W1000 x H390 MM (39x14 Inch)
Cabinet Resolution (pixel) W72 xH24
Power Consumption Max (w/set) 200 Watt
Brightness(CD/㎡) ≥5500
Net Weight (Kg) 9Kg
Viewing Angle  120º/70º
Theoretic LED Working Life More than 100000 hours
Control Method USB+ WIFI+ APPcontrol(network port,optional)

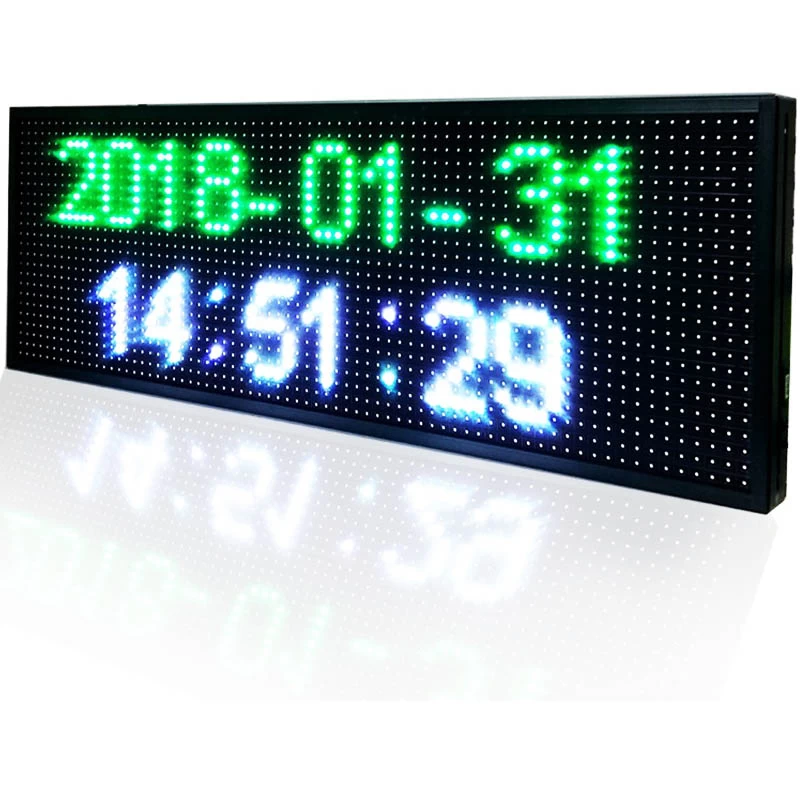

Display function Date, Text
