With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Specifications

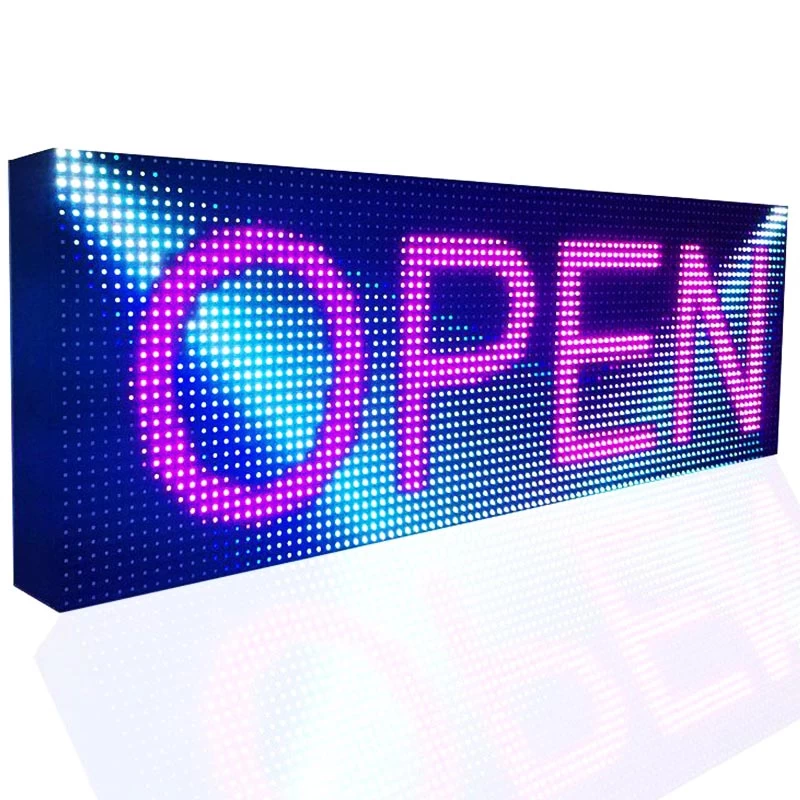

*outdoor full color LED sign with SMD technology.
*products size 39" x 12.6" strong aluminium case. Works with Windows operating system
*Dots density P 10 ( 10 mm distance between dots).
*Display support : text,time, temperature,company logo. Over 100 messages and logos are supported.
*UL power supply with USA plug 110 V, for indoor or outdoor all use .
Package including

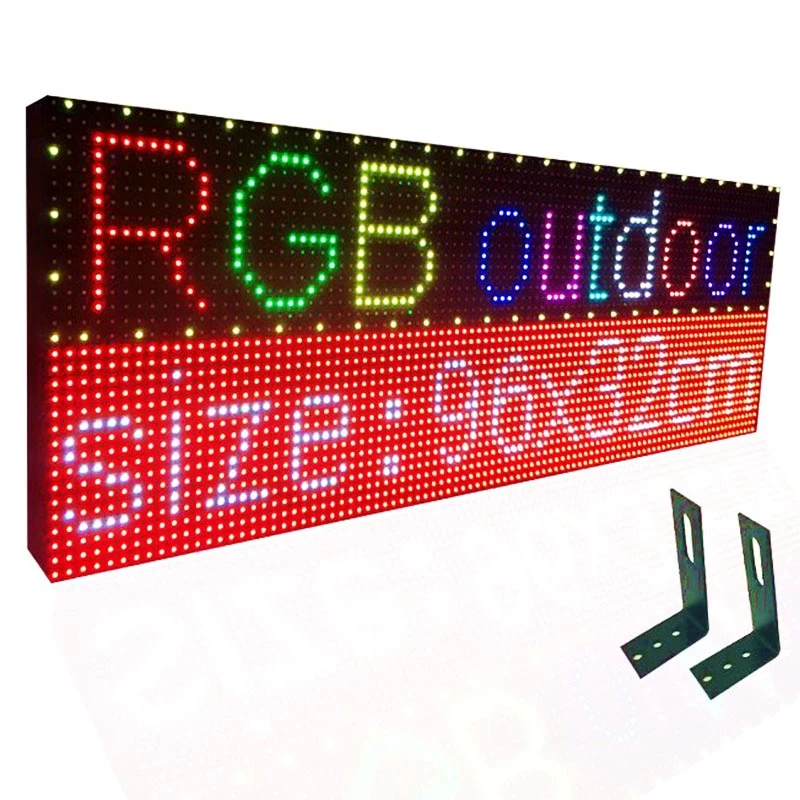

*LED sign 1 PCS (size 96x32cm / 39x 12.6 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Feature & Function
|
P10 LED Module model
|
|
Color
|
RGB
|
|
LED Type
|
SMD
|
|
Module Resolution
|
W32 X H16
|
|
Module Size(MM)
|
W320 x H160
|
|
Driving Method
|
1/4 scan
|
|
Led display parameter
|
|
Voltage
|
220V or 110V ±10%
|
|
Material
|
Outdoor Aluminum Frame Waterproof (IP45)
|
|
Cabinet Size (mm)
|
W960 x H320 MM (38x12.6 Inch)
|
|
Power Consumption Max (w/set)
|
100 Watt
|
|
Brightness(CD/㎡)
|
≥5500
|
|
Viewing Angle
|
120º/70º
|
|
Theoretic LED Working Life
|
More than 100000 hours
|
|
Control Method
|
USB control(network port,WIFI ,optional)
|
|
Display function
|
Date, Text, Logo
|
