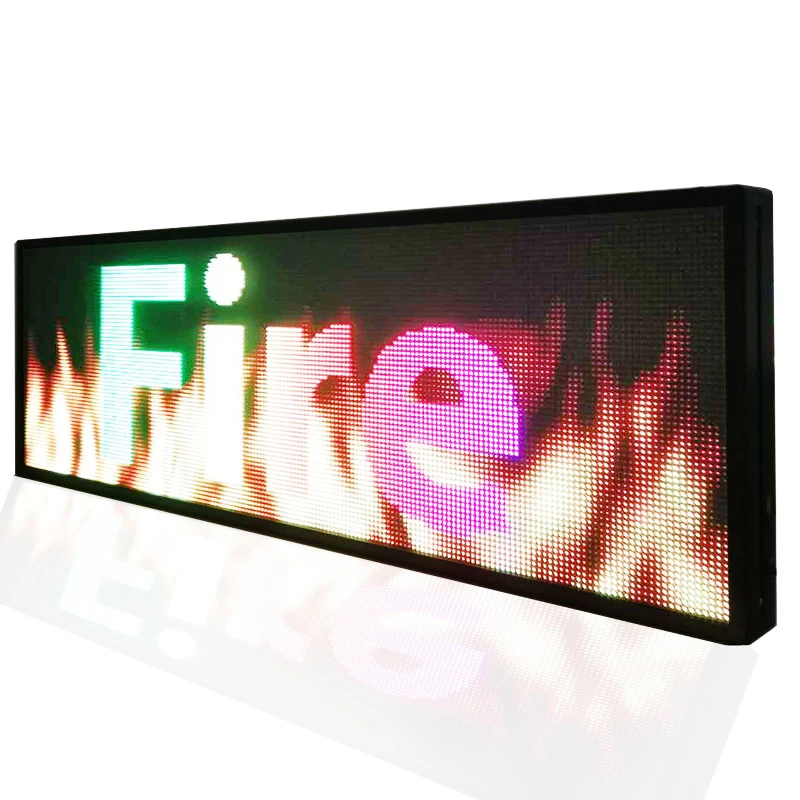

With enriched industrial experience and knowledge, we are providing an excellent range of LED Scroll Boards. Widely demanded by hotels, restaurants, banks, commercial shops and others, the offered boards are manufactured using high grade inputs and latest technology in compliance and advanced technology. In addition to this, our offered signage boards are quality checked under the supervision of quality controllers, in order to ensure their flawlessness.
Features
1. High quality LED chip and high anti-static electricity capacity.
2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.
3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.
4. Ultra high brightness,low attenuation,high reliability and weather ability.
5. High contrast ratio.Adopting black lamps can improve the contrast ratio by 50%.
6. High refresh rate,high gray scale,ghost-canceling,low power consumption,low EMI,anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
Package including
*LED sign 1 PCS (size 167x36cm / 66 x 14 inch)
*Signal connection cable
* Professional installation bracket
*USB with free software and English user manual
Function
|
P5 LED Module model
|
|
Color
|
RGB
|
|
LED Type
|
SMD
|
|
Module Resolution
|
W64 X H32
|
|
Module Size(MM)
|
W320 x H160
|
|
Driving Method
|
1/16 scan
|
|
Led display parameter
|
|
Voltage
|
220V or 110V ±10%
|
|
Material
|
Indoor Aluminum Frame Waterproof (IP20)
|
|
Cabinet Size (mm)
|
W 1670x H360 MM (66X14 Inch)
|
|
Power Consumption Max (w/set)
|
60 Watt
|
|
Brightness(CD/㎡)
|
≥1500
|
|
Viewing Angle
|
120º/70º
|
|
Theoretic LED Working Life
|
More than 100000 hours
|
|
Control Method
|
USB control(network port,optional)
|
|
Display function
|
Date, Text, Picture, Logo
|
