LED Split Solar Street Light Unique Design Ideas
They are high quality LED solar street light using brandy light source which has high brightness，small light attenuation and longer service life. In product material is high purity aluminum that stable and reliable operation to environmental protection, which easy installation.
In the lamination technology LED solar street light, the light we are care about low attenuation rate, weather resistance and high fire resistance. It is high brightness LED lamp bead light source and multi-core bright design layout.
Application: Solar street light using road, Urban roads, Residential Roads, Industrial parks and Pedestrian streets.
Morstar is a trusted,global company with a keen insight into the market. We konw lighting and provide products with excellent quality, reliability and functionality.

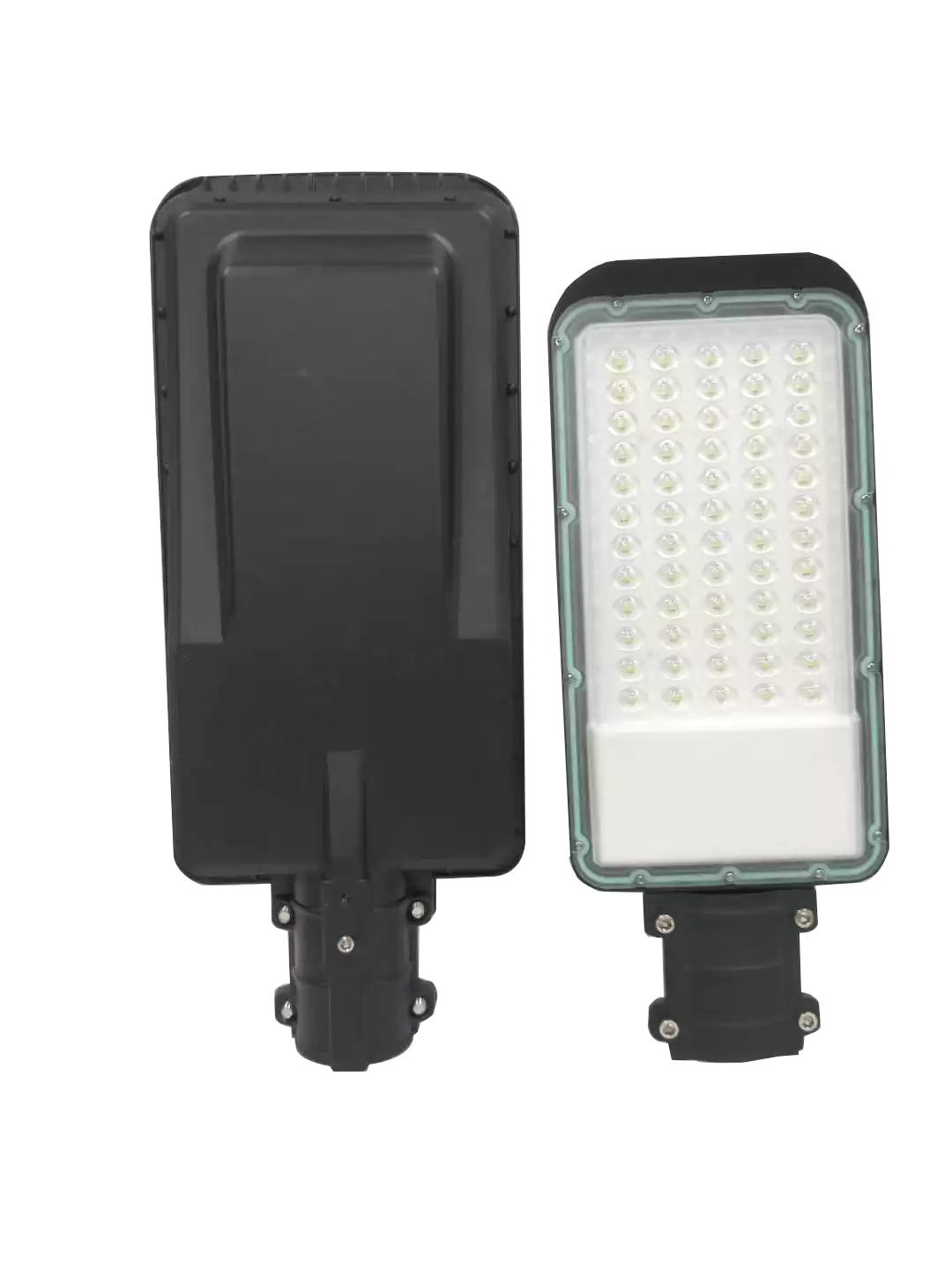

PRODUCT APPEARANCE
PRODUCT SPECIFICATION
|
Production No.
|
MS-SEST1001B-50W
|
MS-SEST1002B-100W
|
MS-SEST1003B-150W
|
MS-SEST1004B-200W
|
|
Power
|
50W
|
100W
|
150W
|
200W
|
|
Color Temperature
|
6500K-7000K
|
6500K-7000K
|
6500K-7000K
|
6500K-7000K
|
|
Color Rendering Index (CRI)
|
CRI>80 Ra
|
CRI>80 Ra
|
CRI>80 Ra
|
CRI>80 Ra
|
|
Efficacy
|
90LM/W
|
90LM/W
|
90LM/W
|
90LM/W
|
|
Color Tolerance Adjustment
|
Less Than 10SDCM
|
Less Than 10SDCM
|
Less Than 10SDCM
|
Less Than 10SDCM
|
|
Battery Capacity
|
20AH/30AH
|
20AH/30AH
|
20AH/30AH
|
20AH/30AH
|
|
Solar Panel Power
|
20W/30W
|
20W/30W
|
20W/30W
|
20W/30W
|
|
Working Temperature
|
-10°C to 40°C
|
-10°C to 40°C
|
-10°C to 40°C
|
-10°C to 40°C
|
|
IK/IP Protection level
|
IK08/ IP65
|
IK08/ IP65
|
IK08/ IP65
|
IK08/ IP65
|
|
Material
|
AL+Tempered glass
|
AL+Tempered glass
|
AL+Tempered glass
|
AL+Tempered glass
|
|
Work Time
|
12H Rain day2-3
|
12H Rain day2-3
|
12H Rain day2-3
|
12H Rain day2-3
|
|
Panel Size(mm)
|
420*370*17
|
500*350*17
|
600*350*17
|
650*350*17
|
|
Bean Angle
|
120°
|
120°
|
120°
|
120°
|
|
Service Life
|
30000H
|
30000H
|
30000H
|
30000H
|

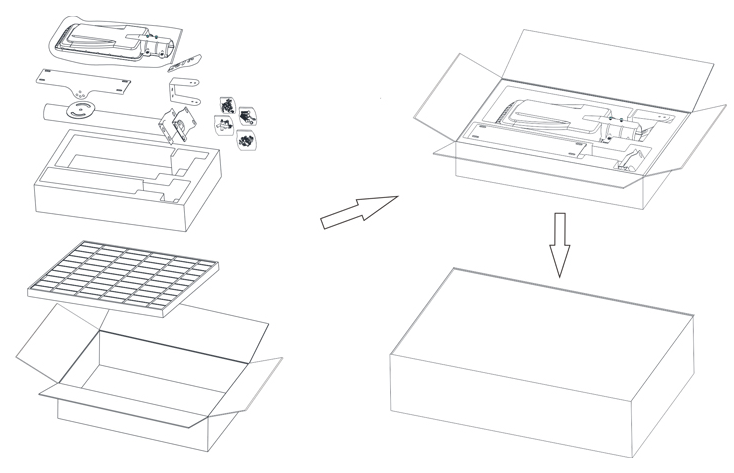

PACKING STEPS
APPLICATION
FAQ：
1. What`s the warranty of the lamp?
- For UL/DLC items we provide 5 years warrantly, others have a 2 years warrantly.
2.Can I have a sample order for led light?
-Yes, we welcome sample order for led light to test and check quality. Mixed samples are acceptable.
3. What about the lead time?
--Samples can be delivered in about 1 week, and bulk orders will take about 2 to 3 weeks.
4. What about the quality?
- Select high quality materials.
- 48 hours aging test to end defective products.
- Quality control testing before shipping.
- Good package to insure safety.
5. Where are your main markets?
- North American and Latin American.And we have LED lighting distribution warehouses in California，Texas and Michigan
6. Can you design new model?
- Yes, we can open new mould according to your drawings and produce.
7.Any suggestion? Please contact us.
