Led strips light driver 12v 30w IP67

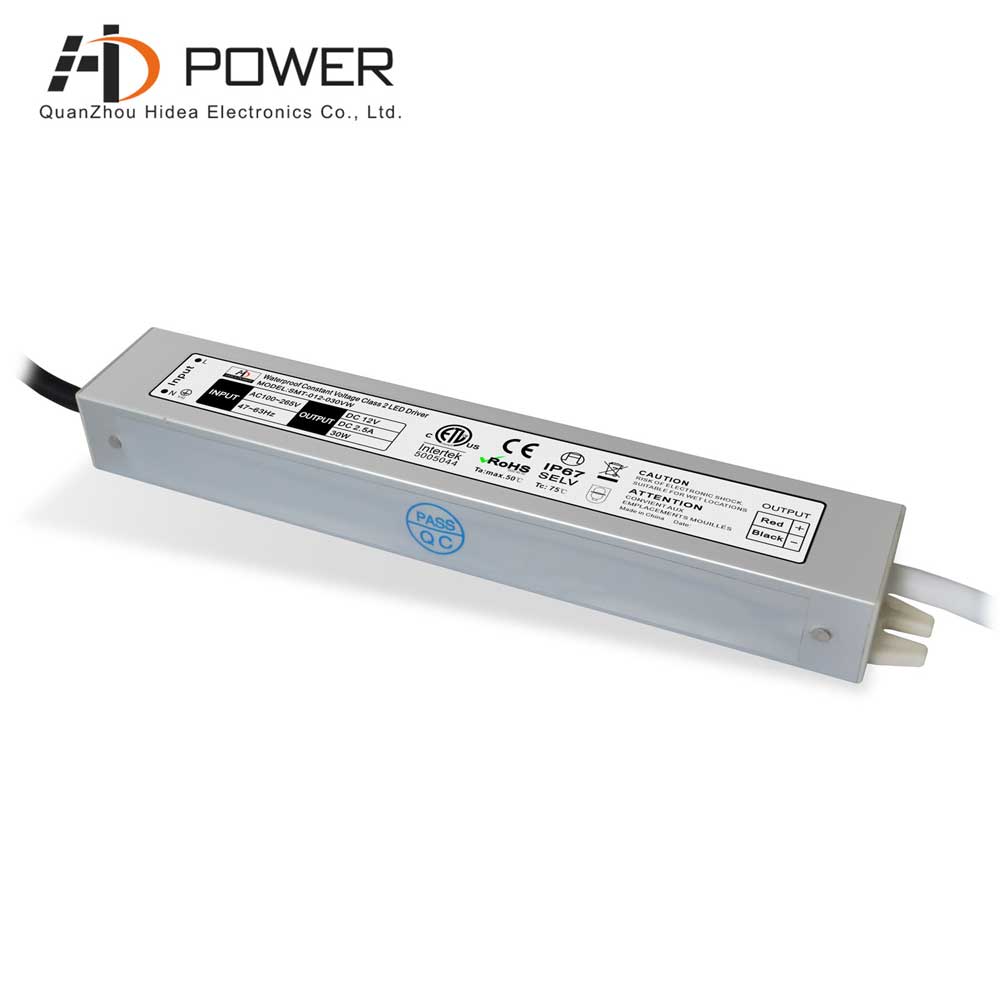

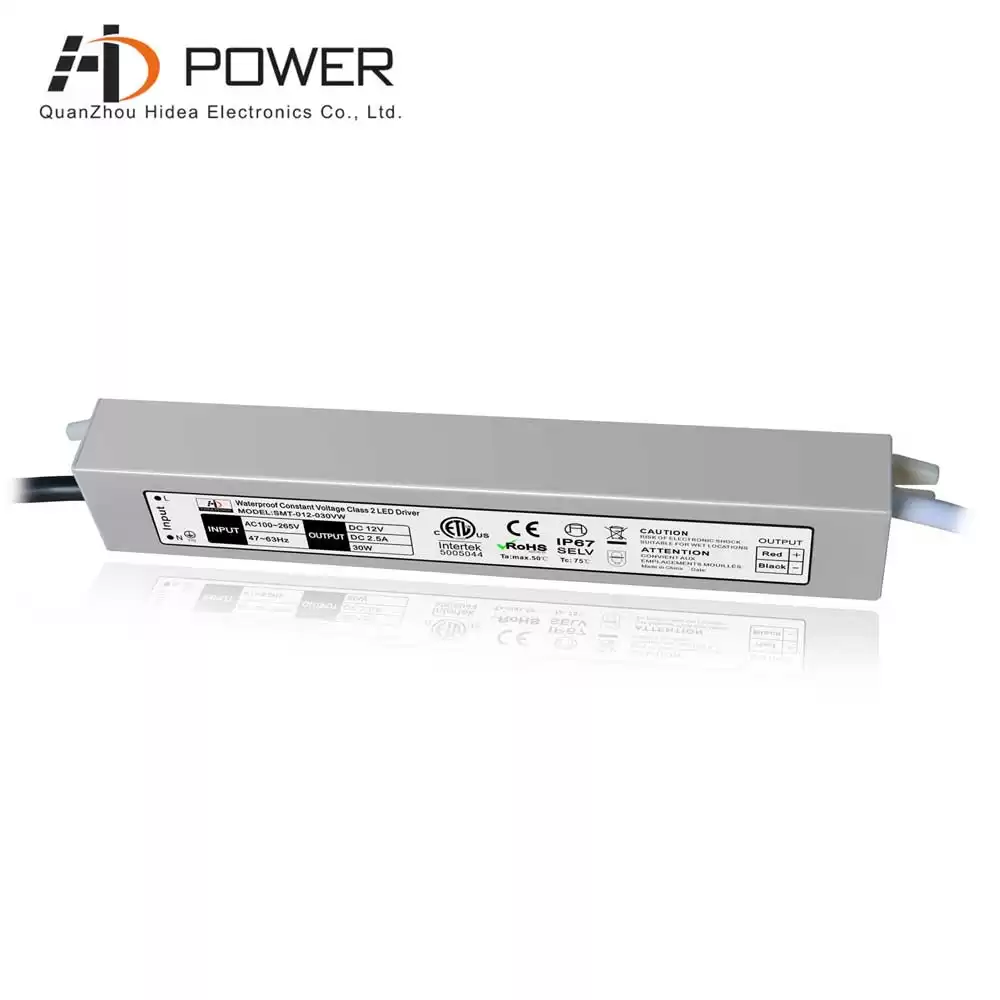

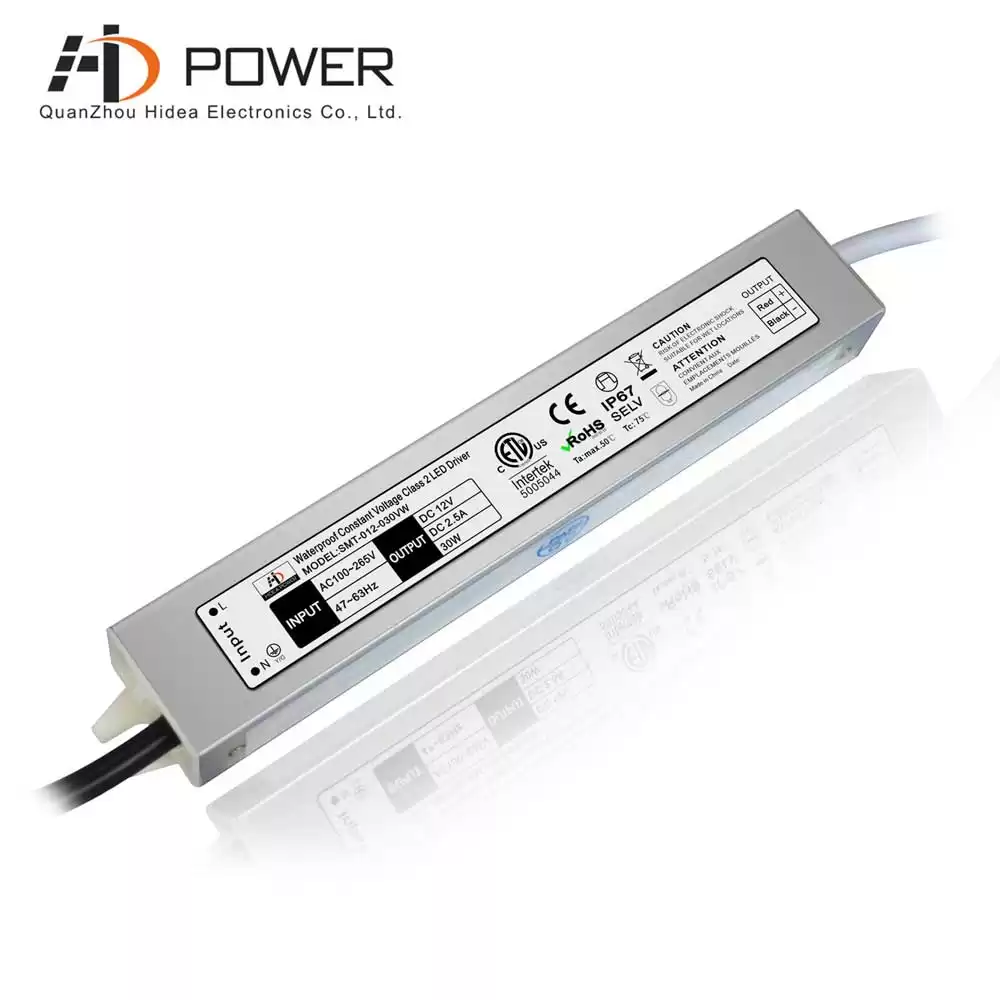

SMT-012-030VW is constant voltage led driver IP67 in 12v 30w, 2 years warranty, aluminum case for using in outdoor locations, work with SUPER BRIGHT LED led lamps 12v.
Specification
|
MODEL
|
SMT-012-030WW
|
SMT-024-030VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
2.5Amp
|
1.25Amp
|
|
CURRENT RANGE
|
0~2.5A
|
0~1.25A
|
|
RATED POWER
|
30W
|
30W
|
|
RIPPLE&NOISE(max)
|
150mV
|
150mV
|
|
CURRENT TOLERANCE
|
±0.5V
|
±0.5V
|
|
SETUP RISE TIME
|
80ms/110,220VAC
|
81ms/110,220VAC
|
|
HOLD UP TIME(Typ.)
|
60ms/110-220VAC
|
60ms/110-220VAC
|
|
INPUT
|
VOLTAGE RANGE
|
100~265VAC
|
|
FREQUENCY RANGE
|
50~60Hz
|
|
POWER FACTOR(Typ.)
|
|
|
|
EFFICIENCY(Typ.)
|
>83%
|
>83%
|
|
AC CURRENT(Typ.)
|
3.5A/110,220VAC
|
2.0A/110,220VAC
|
|
INRUSH CURRENT (Typ.)
|
COLD START 50A/110~220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
WORKING HUMIDITY
|
20~99% RH non-condensing(Waterproof)
|
|
STORAGE TEMP.,HUMIDITY
|
-40~+80℃,10~99%RH
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
ETL/ROHS/CE Mark(EMC,LVD),IP67
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC IP-GND:1.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentoned are measured at 110V,220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type
Constant voltage led driver in 100-265vac are available in wattage from 12w to max. 250w, all with ETL , CE, ROHS approved, work with US LED commercial lights 12v.
Related Products
|

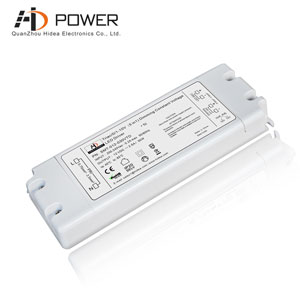

 12v 30w universal dimming led driver are triac / MLV/ELV dimming and 0-10v dimming option available.
Mode：SMT-012-030VTD
Dimming Mode : 5 in 1 Dimming
Output Power : 30W
input voltage：100~277V AC
Size：155*54*20MM （L*W*H）
|
