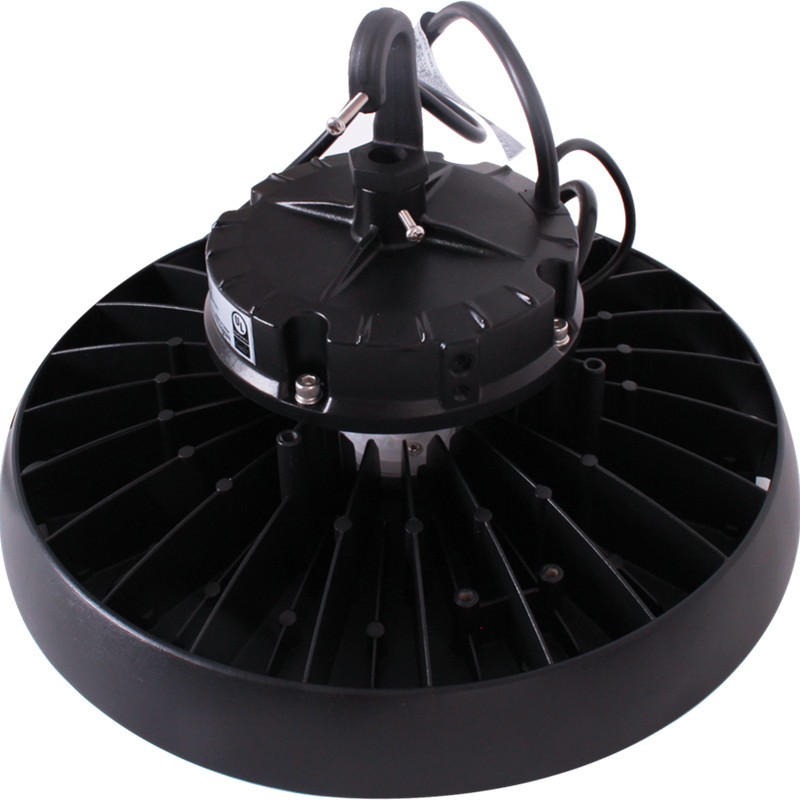

LED UFO HIGH BAY 500E SERIES

PRODUCT DESCRIPTION:

Combining long life and outstanding efficacy up to 140Lm/W, MORSTAR UFO high bay light offers a cost-effective solution to maximize energy and maintenance savings. These fixtures instantly deliver brilliant white light, easy-to-install LED UFO high bay luminaires to have a sleek, robust design that meets a variety of application needs.Bluetooth microwave motion sensors can be installed and combined with Morlink wireless lighting control system to achieve intelligent lighting control.

FEATURES:

1.Fins design,advective holes and grooves in each fin,good for heat dissipation;

2.The wide input voltage range AC100-277V(1-10V dimming);Sosen driver,

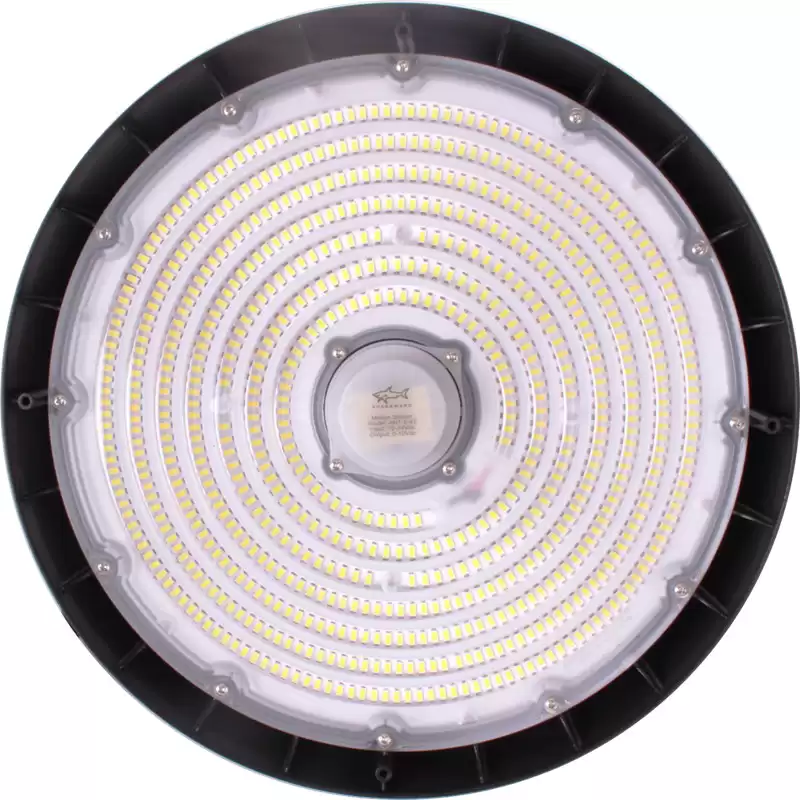

2835 LUMILEDS LED as light source;

3.Professioal light distribution technique,high light reflectivity reflectors,85°/110°beam

angle available;The lens pass rate is over 90%

4. Light weight and small size,save about half shipping costs.

CONSTRUCTION:

• The lens pass rate is over 90%

• Light weight and small size

• Radiator adopts ADC12 aluminum integrated die-casting

RECOMMENDED USE:

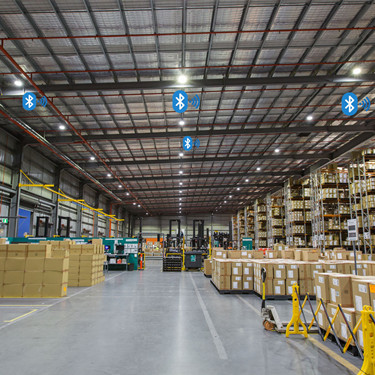

• Warehouses, Factory

• Exhibition Room, Gas Station

• Supermarket

• Working temp:-40ºF~113ºF. Storage temp.:-40ºF~158ºF

WARRANTY:

7-year standard warranty with labor allowance* (further details

available at www.morstar.com/warranties)

*Warranty Limitations: Product must be rated for the application

per the Product Data Sheet (PDS); operated <16 hrs; in ambient of

-40°F to 113°F.

Sample Order: MA-HHB501E-100W-50K

DIMENSION:

SPECIFACTION:

LUMINOUS INTENSITY DISTRIBUTION CURVE:

ACCESSORIES:

ACCESSORIES (For APP Smart Fixture):

MORLINK CONTROLS:

Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use. Some networks want simple solutions that reduce energy consumption and meet code compliance while others are more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of things solution.  The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and high-bay environments. Morlink® wireless control provides the infrastructure to make your building face the future, easily upgrade to a networked solution, and provide the ability to integrate into an IoT solution suitable for your business.

• Morlink® Lite: Local area wireless controls
• Morlink® Home: Wireless lighting controls based on smart home
• Morlink® Pro: Networked Lighting Controls for Smart Building & IoT Enablement.

Note:
For intelligent control products, Moshida provides two solutions:
1. Purchase a Morlink controller to transform your existing product
2. You can also directly purchase the whole lamp integrated with Morlink® wireless controller. Since the sensor  has been embedded in the lamp, the labor cost for installation can be greatly reduced.

Main Functions of Morlink Commercial Lighting Solution：

Energy Management • Create actions and scenes that can be automatically     executed to implement energy-saving strategies. • Link single devices or group actions with sensors,     schedules, sunrise and sunset times, weather condi    tions, etc. • View, compare and analyze the power consumption       of devices and groups by day, month or year. Device Control • View and control devices from a map of the lighting     layout. • Monitor device conditions including, status, operation     time, energy consumption and life expectancy. • Automatic alarms when devices change to “abnormal     status” and notification to maintenance team.

Human Centric Lighting
• Easily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically adjust the CCT and brightness of the fixtures throughout the day.
