PRODUCT DESCRIPTION:

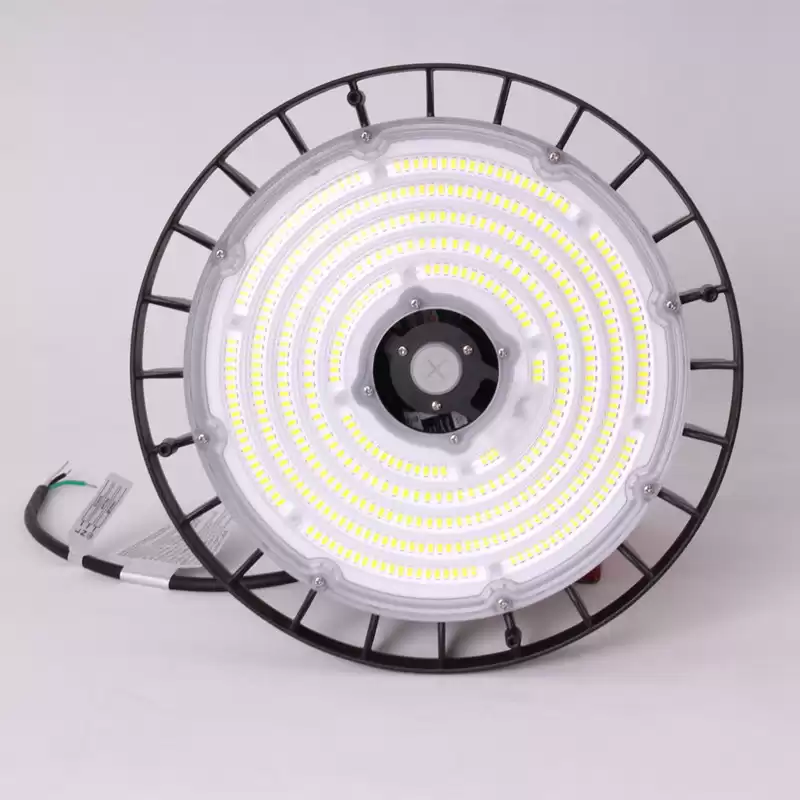

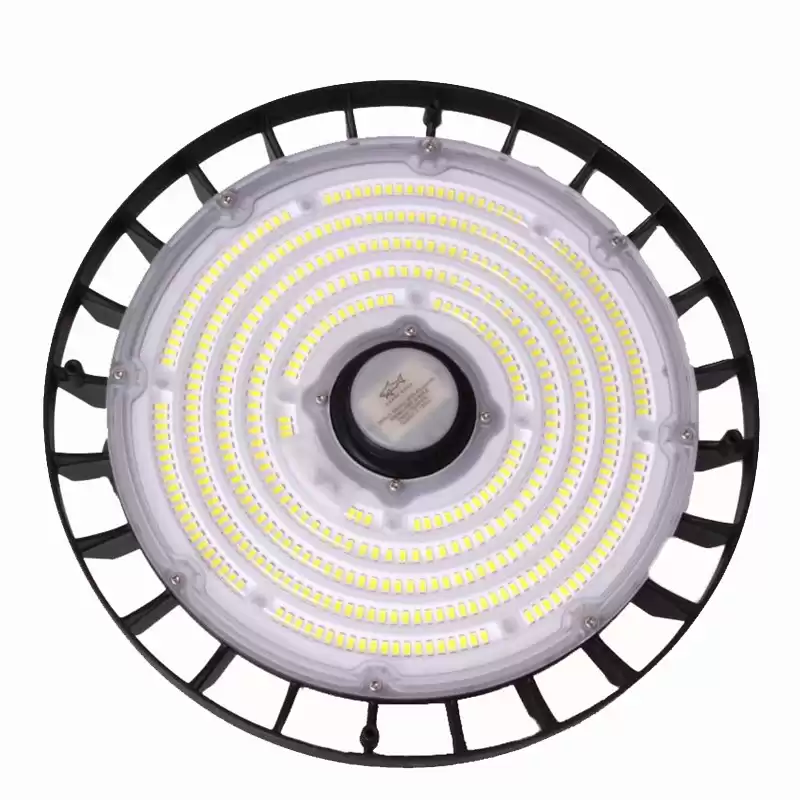

Based on TuyaAirTunes APP Controls LED UFO Highbay light high efficiency products up to 145LM/W. The product provides 4 installation options to adapt to different installation conditions. The one-piece die-cast aluminum shell is adopted to ensure the quality while also exerting good heat dissipation. Low UGR (<28) and plug-in microwave motion sensor. It can be used to control lamps and lanterns with MORSTAR Bluetooth APP high bay light.
FEATURES:
• Input voltage: 120V-277V,AC120V-347V available
• Power factor:> 0.95，THD: <20%
• 0-10V dimming standard，Flicker-free
• Lifetime: L70 > 100,000 hours,CRI>：Ra>70
• Environmental working temperature: -22°F to 104°F（-30°to +40°）
• Stronger housing with good heat dissipation
•4 kinds of mounting available：Ceiling with loop /Ceiling with hook /Wall mounting/ Pandent mounting
CONSTRUCTION:
• Fins design, advective holes and grooves in each fin, good for heat dissipation;
• Has high impact frosted white acrylic lens
• Black polyester powder coat finish
RECOMMENDED USE:
• Warehouses,Factory
• Exhibition Room,Gas Station,Supermarket
• High Bay and Low Bay applications
WARRANTY:
7-year standard warranty with labor allowance* (further details
available at www.morstar.com/warranties)
*Warranty Limitations: Product must be rated for the application
per the Product Data Sheet (PDS); operated <16 hrs; in ambient of
-22°F to 104°F.
Sample Order：MA-HHB901A-100W-85-H-50
|
FAMILY
|
SERIES CODE
|
WATTAGE
|
BEAN
|
Light EFFECT
|
CCT
|
OPTIONS
|
|
MA-HHB=LED UFO
High Bay Light
|
901A
|
100W
150W
|
85°
|
H=150LM/W
|
40K=4000K
50K=5000K
57K=5700K
|
Blank
MS=Motion Sersor
EM=Battery Backup
PS=PIR Sensor
|
DIMENSION DRAWING:
|
Model
|
A (INCH)
|
B (INCH)
|
C (INCH)
|
|
100W
|
10.09
|
4.24
|
6.76
|
|
150W
|
11.43
|
4.24
|
6.76
|
|
200W
|
13.07
|
4.68
|
7.12
|
|
240W
|
13.07
|
5.43
|
8.11
|
SPECIFICATION:
|
SPECIFACTION
|
|
MA-HHB901A-100W
|
MA-HHB902A-150W
|
MA-HHB903A-200W
|
MA-HHB904A-240W
|
|
ITEM
|
SPECIFICATION
|
Normal Type
|
|
GENERAL PERFORMANCE
|
Power Consumption
|
100W
|
150W
|
200W
|
240W
|
|
Replaces PSMH
|
250W
|
320W
|
420W
|
500W
|
|
Lumens Delivered
|
14500Lm
|
21750Lm
|
29000Lm
|
34800Lm
|
|
Efficacy
|
145LM/W（±10%）
|
|
CRI
|
Ra＞70
|
|
Color Temperature
|
2700-6500K
|
|
Beam Angle
|
85°
|
|
L80 Lumen maintenance
|
＞70000Hrs (Ta=30°C@L80)
|
|
ELECTRICAL
|
Power Factor
|
≥0.95
|
|
Input Voltage
|
100-277VAC/120-347VAC
|
|
Dimming
|
0-10v Dimming Range：0%-100%
|
|
Surge protection
|
4KV line-line, 6KV line-earth
|
|
PHYSICAL
|
Mounting
|
Ceiling with loop/ Ceiling with hook/ Wall mounting/ Pandent mounting
|
|
Operating Temperature
|
-22°F to 104°F (-30°C to + 40°C)
|
|
Humidity
|
20% to 80% RH non-condensing
|
|
QUALIFICATION
|
Qualifications
|
UL/cUL, DLC 5.1Premium
|
|
Material Usage
|
RoHS compliant; no mercury
|
|
Environment
|
Indoor / Wet, IP65
|
|
Warranty
|
5 Years
|
ACCESSORIES：
|
MODEL NUMBER
|
DESCRIP TION
|
|
|
PC Reflflector
|
90° PC Shade Reflector 10-3/4” For 100W UFO High Bay
90° PC Shade Reflector 16-1/8” For 150W UFO High Bay
90° PC Shade Reflector 18-7/8” For 200W/240W UFO High Bay
|
|
|
Aluminum Reflflector
|
60°/90° Silver/Black Aluminum Reflector For 100W UFO High Bay
60°/90° Silver/Black Aluminum Reflector For 150W UFO High Bay
60°/90° Silver/Black Aluminum Reflector For 200W/240W UFO High Bay
|
|
|
Microwave Motion Sensor
|
Plug-in Microwave Motion Sensor 12- 24VDC
|
|
|
Safe Rope
|
1.64FT/0.5M For Use With UFO High Bay
6.6FT/2.0M For Use With UFO High Bay
|
|
|
Emergency Driver
|
Emergency Led Driver Fot High Bay Ligh
|
|
SHIPPING INFOMATION:
|
Power
|
OUTER BOX
(L*W*H/mm&inch)
|
QTY/CTN
(PCS)
|
N.W./CTN
(KG)
|
G.W./CTN
(KG)
|
|
100W
|
314*314*162
（12.36*12.36*6.38）
|
1
|
2
|
2.54
|
|
150W
|
347*347*162
（13.36*13.36*6.38）
|
1
|
2.33
|
2.93
|
|
200W
|
390*390*170
（15.35*15.35*6.7）
|
1
|
3.19
|
4.07
|
|
240W
(100-277VAC）
|
390*390*170
（15.35*15.35*6.7）
|
1
|
3.19
|
4.07
|
|
240W
(120-347VAC）
|
390*390*192
（15.35*15.35*7.5）
|
1
|
3.69
|
4.57
|
MORLINK CONTROLS:
Morlink® Wireless Controls:
Although wireless control has been developed by leaps and bounds, there are still various problems in actual use.
Some networks want simple solutions that reduce energy consumption and meet code compliance while others are
more ambitious, looking to capitalize on the LED and controls savings to fund a scalable, enterprise-grade, internet of
things solution. The advantage of the Morlink® wireless platform is that it can be integrated into indoor, outdoor, and
high-bay environments. Morlink® wireless control provides the infrastructure to make your building face the future,
easily upgrade to a networked solution, and provide the ability to integrate into an IoT solution suitable for your
business.
• Morlink® Lite: Local area wireless controls
• Morlink® Home: Wireless lighting controls based on smart home
• Morlink® Pro: Networked Lighting Controls for Smart Building & IoT Enablement.
Note:
For intelligent control products, Moshida provides two solutions:
1. Purchase a Morlink controller to transform your existing product
2. You can also directly purchase the whole lamp integrated with Morlink® wireless controller. Since the sensor
Main Functions of Morlink Commercial Lighting Solution
|
Energy Management
• Create actions and scenes that can be automatically
executed to implement energy-saving strategies.
• Link single devices or group actions with sensors,
schedules, sunrise and sunset times, weather condi
tions, etc.
• View, compare and analyze the power consumption
of devices and groups by day, month or year.
Device Control
• View and control devices from a map of the lighting
layout.
• Monitor device conditions including, status, operation
time, energy consumption and life expectancy.
• Automatic alarms when devices change to “abnormal
status” and notification to maintenance team.
|
Human Centric Lighting
• Easily configure groups of light fixtures to sync with circadian rhythm protocols. The system will automatically
adjust the CCT and brightness of the fixtures throughout the day
ACCESSORIES (For APP Smart Fixture):
|
MODEL NUMBER
|
DESCRIPTION
|
|
|

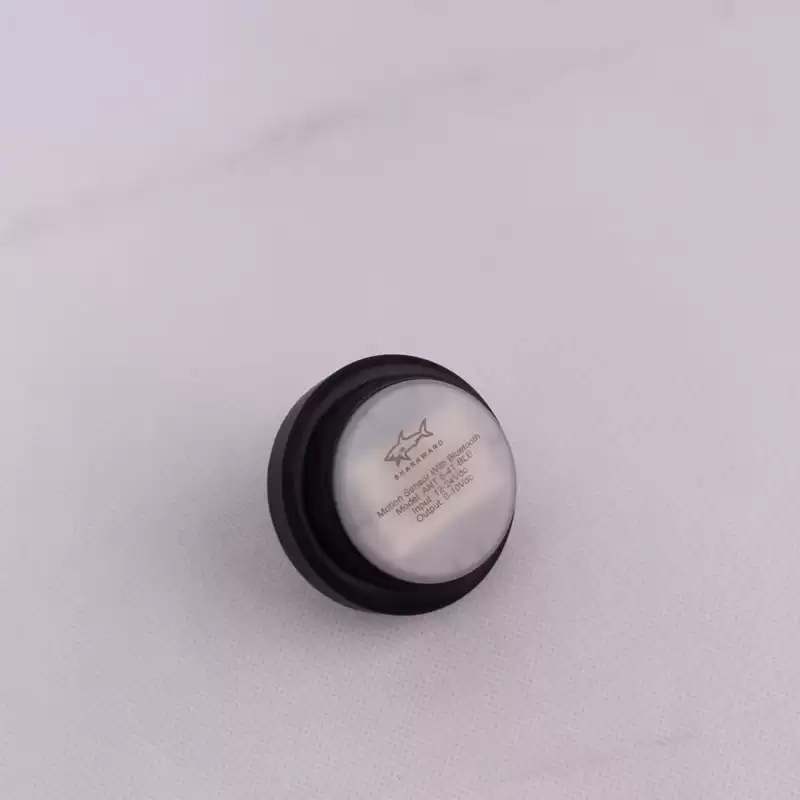

Motion sensor
|
Bluetooth Microwave motion sensor
|
|
