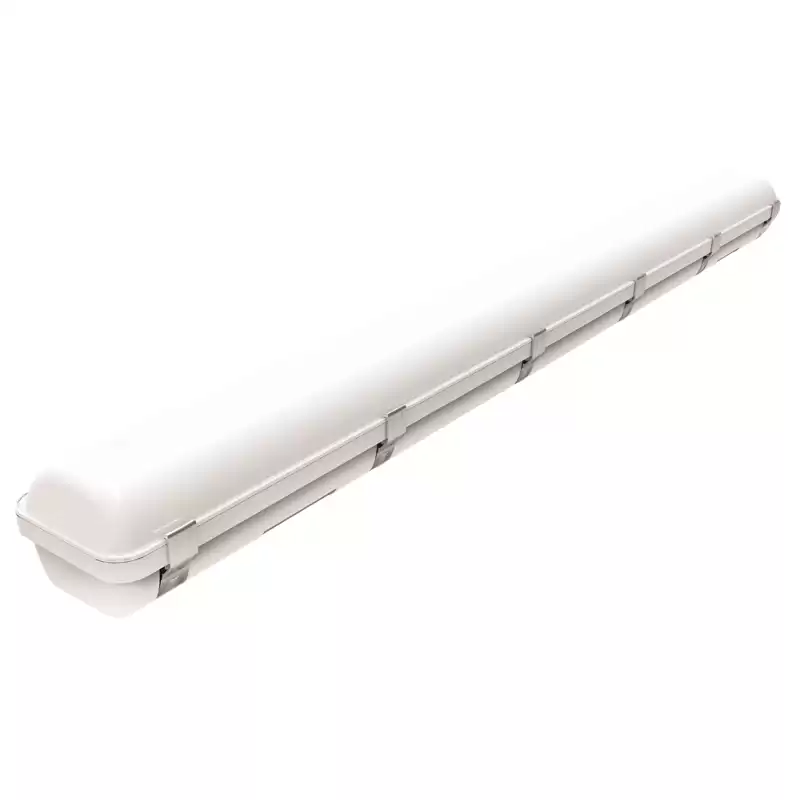

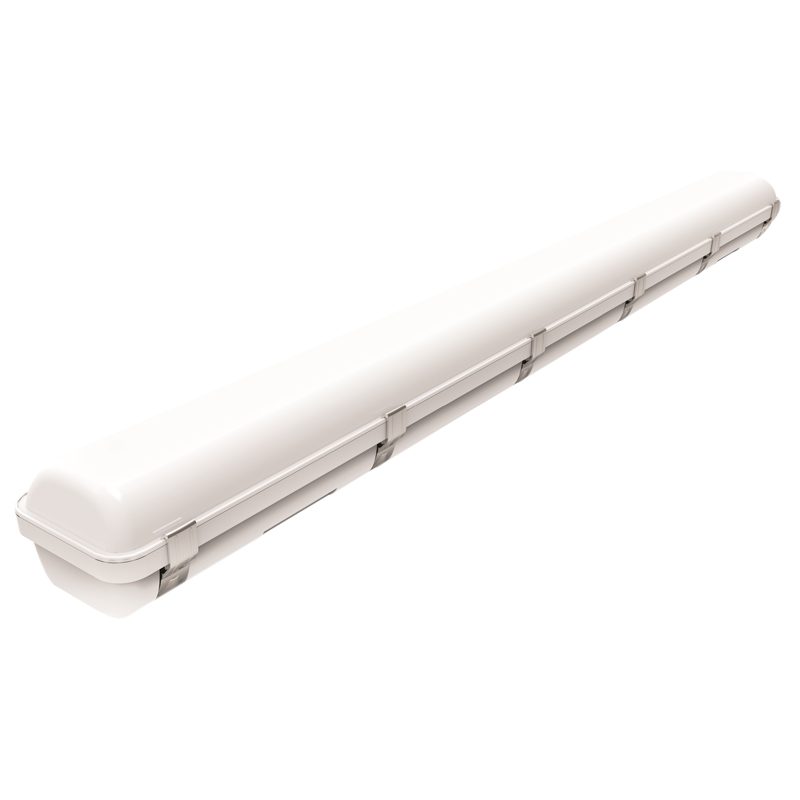

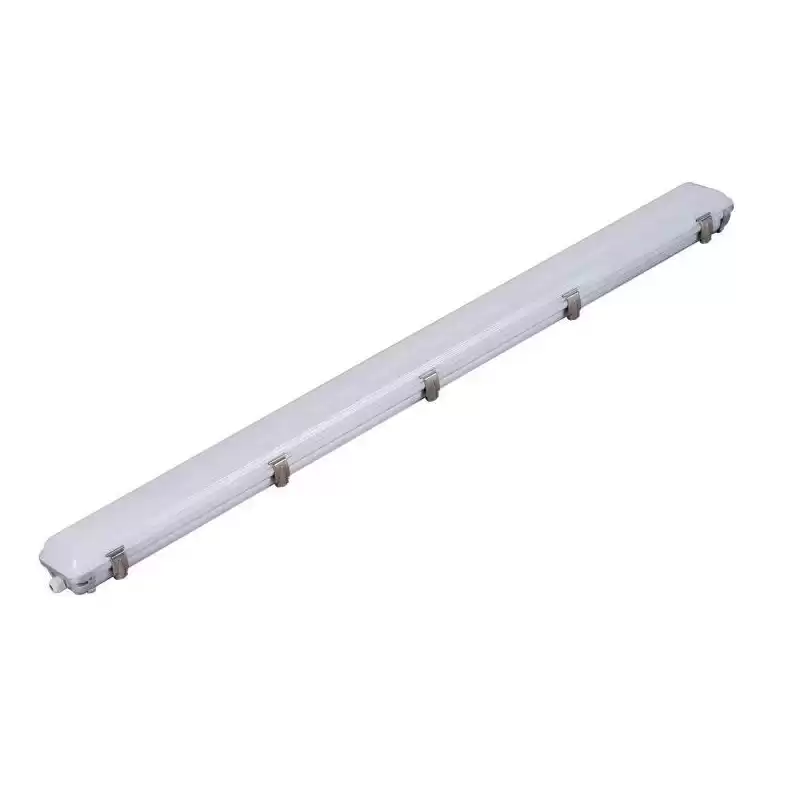

LED Vapor Tight Light Smart Series

The 480 Smart Series Vapor Tight light is a highly durable and robust Tri-Proof light series designed for production areas, parking facilities,and any other applications that must deal with harsh conditions.



PRODUCT DESCRIPTION:
The 480 Smart Series Vapor Tight light is a highly durable and robust Tri-Proof light series designed for production areas, parking facilities,and any other applications that must deal with harsh conditions.Its Ingress Protection rating of IP69K assures that it can truly be used indoor and outdoor under all conditions.
Using MorLink Bluetooth APP, through the built-in UL dual-channel smart Driver and Tuya technology Bluetooth controller, the CCT of the lamp can be seamlessly switched from 3000K to 5000K, timing,

sensing, group control, 0-10V stepless dimming, etc.


FEATURES:
• Premium High Power LED Chips and UL dual-channel Driver
• Lumen efficacy up to 135lm/w
• Weatherproof Polycarbonate Housing and Frosted Diffuser
• Optimized design of double row, high quality of LEDs improves
thermal resistance and heat dissipation
• Resistant to vibration, impact, and shock
• IP65 rated protection against the ingress of dust, other solid
particulates, and low-pressure jets of directed water.


BLUETOOTH MESH NETWORKED CONTROL:

• Apps available in IOS and Android Stores
• Easy to configure lighting fixtures
• Easy to configure lighting fixtures and Scheduling
• Zone configurations and Scene management

• High end trimming


RECOMMENDED USE:
• Industrial facilities & Food processing facilities
• Parking structures & Public areas

• Walkways & Car washes


WARRANTY:
7-year standard warranty with labor allowance* (further details available at www.morstar.com/warranties)

*Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated <16 hrs; in ambient of -40°F to 104°F.


Sample Order:MA-HVP481A-40W-F-CCT-S-B


FAMILY WATTAGE DIFFUSER TYPE CCT Control Model OPTIONS
MA-HVP481A=
LED Vapor tight Light
Smart Series
40W
F=Frosted Diffuser
C=Clear Diffuser
30K=3000K
40K=4000K
50K=5000K
CCT=CCT Adjustable
N=Normal
S=Smart
Blank
B=Battery Backup
M=Motion Sersor
PS=PIR Senso



DIMENSION DRAWING: DIMENSION CHART:


specifiction

ITEM SPECIFICATION DETAILS
GENERAL
PERFORMANCE
Power Consumption 40W 80W
Equivalent Wattage 2 x 32W T8 4 Tube Fluorescent Fixture
Lumens Delivered 5,400 lm 10,800 lm
Efficacy 135 lm/W
CRI 80+
Color Temperature 3000K / 4000K / 5000K/CCT Adjustable
L70 Lumen maintenance 70,000 hours
ELECTRICAL Power Factor >0.9
Input Voltage 120-277V
Dimming
0-10v Dimming / motion & daylight sensor options.
 Bluetooth Wireless compliant options.
Surge Protection Surge protection: 4KV line-line, 6KV line-earth
PHYSICAL Mounting
Chain and “S” hook(Standard),Surface Mount,
Rod Mount Kit,Cable Mount Kit (optional)
Operating Temperature -30°F to 130°F
Humidity 10% to 90%
QUALIFICATION Qualifications ETL / DLC® Premium V5.1
Material Usage RoHS compliant; no mercury
Environment Suitable for use in indoor, outdoor, wet, and cold locations
Warranty 7 Years warranty


LUMINOUS INTENSITY DISTRIBUTION CURVE:
1.MA-HVP481A-40W
2.MA-HVP482A-80W



ACCESSORIES:
MODEL NUMBER DESCRIPTION IMAGE
External Bluetooth
 PIR sensor
Daylight Harvesting + PIR (Low Bay)
External Bluetooth
 PIR sensor
Daylight Harvesting + PIR (High Bay)
External Bluetooth
 PIR sensor
External Bluetooth PIR ON / OFF sensor
Built in Bluetoorh
 Motion sensor
External PIR BI-LEVEL sensor Built in Bluetoorh
Wall Switch Wireless Wall Switch



WHAT VALUE DOES MORLINK LIGHTING CONTROL CREATE?

Lighting control has been shown to reduce energy consumption by an average 47 percent, in contrast with
traditional LED lighting. Whether it is in new or retrofitted buildings, it can prove its value through various benefits
and energy savings. Despite its value, it becomes more challenging due to the size and cost of the usually
commensurate LED load being controlled, unless rebates are available.

SO, HOW DO WE USE lighting control in buildings? HOW TO BENEFIT the vested interests that use it?


--Let's see what lighting controls can do for PARKING LOTS

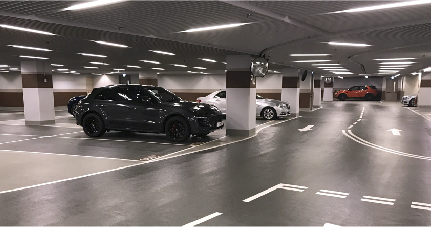

LED vapor tight underground garage lighting
“I wanted to transform the garage
-- a space where lighting could be
monitored and managed, there by
reducing energy consumption.”
Bob| Owners of Parking Facilities
