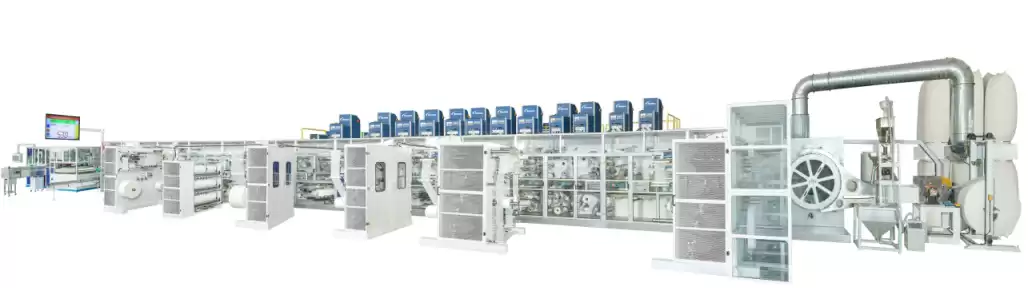

Main Parameter
1、Overall size：39.2m×10.5mx4.5m（for reference only）
2、Machine size：28.3m×2.2m ×3.5m（based on the product provided by client）
3、Design speed：700 pcs per minute
4、Work speed：450-600 pcs per minute
5、Rejection rate:≤2%（excluding scrap caused by hot melt，materials splicing or joint）
6、Power source：380V，50/60HZ（3phase，4lines+ground wire)
7、Machine capacity：380kW approximately
8、Air pressure：0.6-0.8Mpa
9、Machine weight：86.5 Tons approximately
Configuration
1、Product structure:Upper&lower tissue（or airlaid）.Cotton core（mix with SAP）.Topsheet hydrophilic nonwoven，ADL nonwoven，Leak cuff hydrophobic nonwoven，3D core coating.
Back sheet，Waist nonwoven，Printed cartoon tissue，Waist elastic，S elastic，Easy tape.
2、Product size：4 sizes（M，L，XL，XXL），to be customized.
3、Program system:Servo driven，intelligent HMI touch screen man-machine interface.
4、Tension system:Tension control with buffer system，automatic web guiding system，to ensure materials stable working at ZERO speed splice.
5、Driven system:Servo drive，digital size change，ensure run synchronously at full process.
6、Safety system:Safety guard for operating side，emergency stop switch，security identifier.
safety pull wire at driven side.
7、Packaging system:Auto stacker（dual push dual exit)and auto bagger to be defined by customer need
8、Web guiding system:Germany BST/USA FIFE.Customized function available

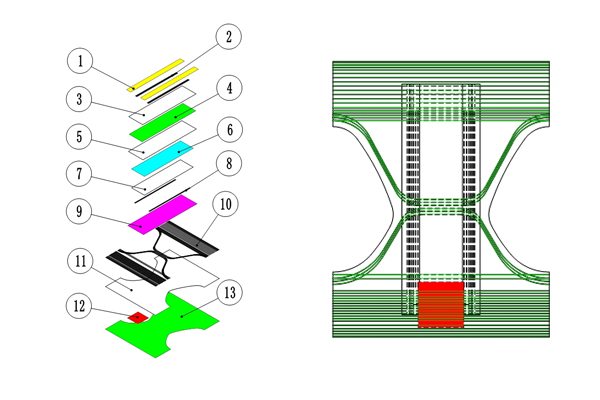

Product structure
|
1.Hydrophobic non woven
|
8.Leg elastic
|
|
2.Leak elastic
|
9.PE film
|
|
3.Top sheet non woven
|
10.Waistband elastic
|
|
4.ADL
|
11.Waist inner non woven
|
|
5.Upper tissue
|
12.Color tape
|
|
6.Cotton core(absorbent paper)
|
13. Waistband outer non woven
|
|
7.Lower tissue
|
|
