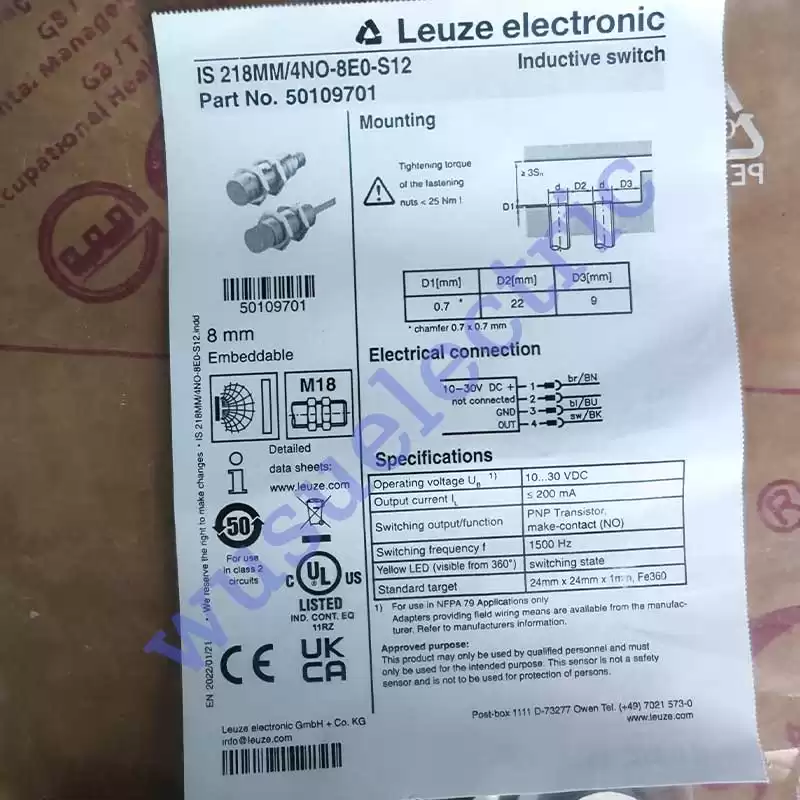

Inductive Switch, Cylindrical, operating range Sa: 0-6.4 mm, 63.5 m length, m12 connector, 1 output with normally open PNP switching, supply voltage: 10-30 V DC, embedded installation, IP 67 protection
● Series: 218
● Typ. operating range limit Sn: 8 mm
● Operating range Sa: 0 - 6.4 mm
● Switching frequency: 1500 Hz
● Supply voltage: 10 - 30 V, DC
● Number of digital switching outputs: 1
● Switching element: Transistor, PNP
● Switching principle: NO (normally open)
● Type of connection: Connector
● Thread size: M12
● Design: Cylindrical
● Dimension: 18 mm x 63.5 mm
● Type of installation: Embedded
● Housing material: Metal, Chromium-plated brass
● Degree of protection: IP 67
● Certifications: c UL US
In spite of the compact design in an M18 housing, these sensors don't skimp on power and can be quickly and easily integrated in the machine.
Wide spectrum of available scanning ranges enables application in limited spaces
The sensor can be mounted at a greater distance from moving parts
The high sensitivity of the sensors makes them the inexpensive solution for special applications, e.g. for close-range detection of small parts
Sturdy all-metal housing for permanent operation
