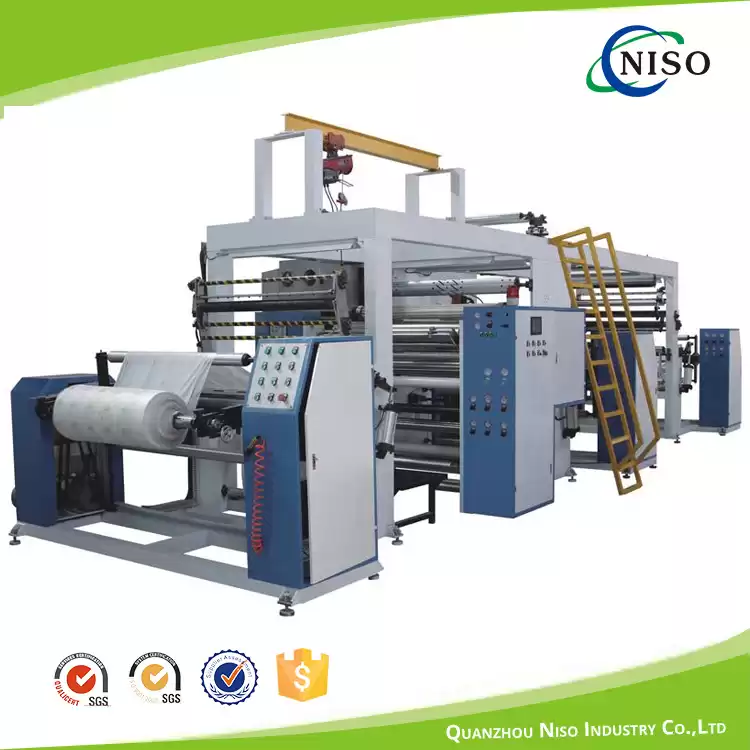

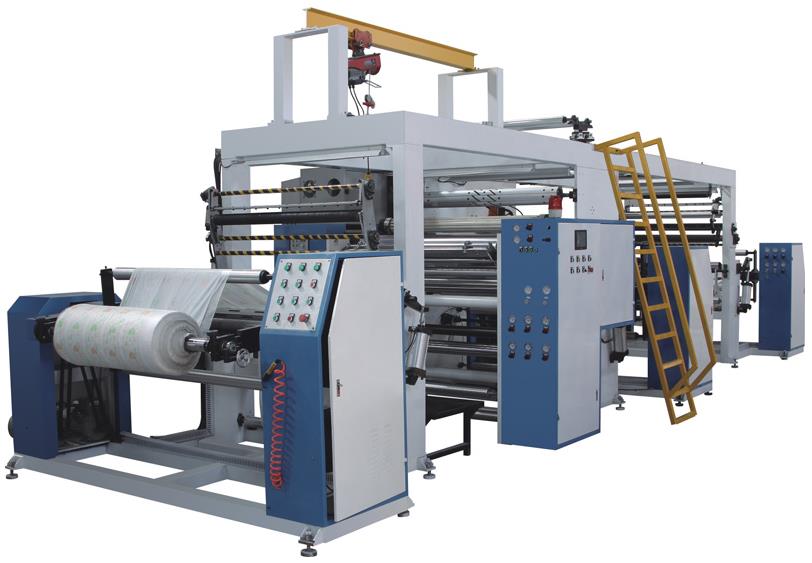

LF-130-PC Diaper Frontal Tape Coating Machine
processing method
Unwinding film- coating with NW by PUR adhesive—winding
application
Front tape， mattress，，medical pad, substrate for the protective gown
Main features
1、duplex winding and unwinding system
2、non-stop relay of the raw material
auto tension control for the winding and unwinding system
Apply the hot melt adhesive by roller and glue gun
tension could be control independently for different working sections
independent cooling device and electric motor for different working sections，all bearings of the guide roll were imported
web-guider for different working sections before the compounding
proximity winding
3、Man-machine interface control system.
4、programmable control system (Japan's Mitsubishi)
Main parameters
|
Type
|
HPUR-1300
|
|
machine speed [m/min]
|
10-120
|
|
structural type
|
double plate
|
|
core diameter [mm]
|
76/3＇
|
|
winding method
|
duplex
|
|
tension control
|
frequency motor
|
|
web guider
|
Edge leading formal
|
|
Max winding OD [mm]
|
800
|
|
KW Rated Power
|
45
|
|
W*H*L mm
|
1800*2300*9300
|
|
KG total weight
|
12000
|
