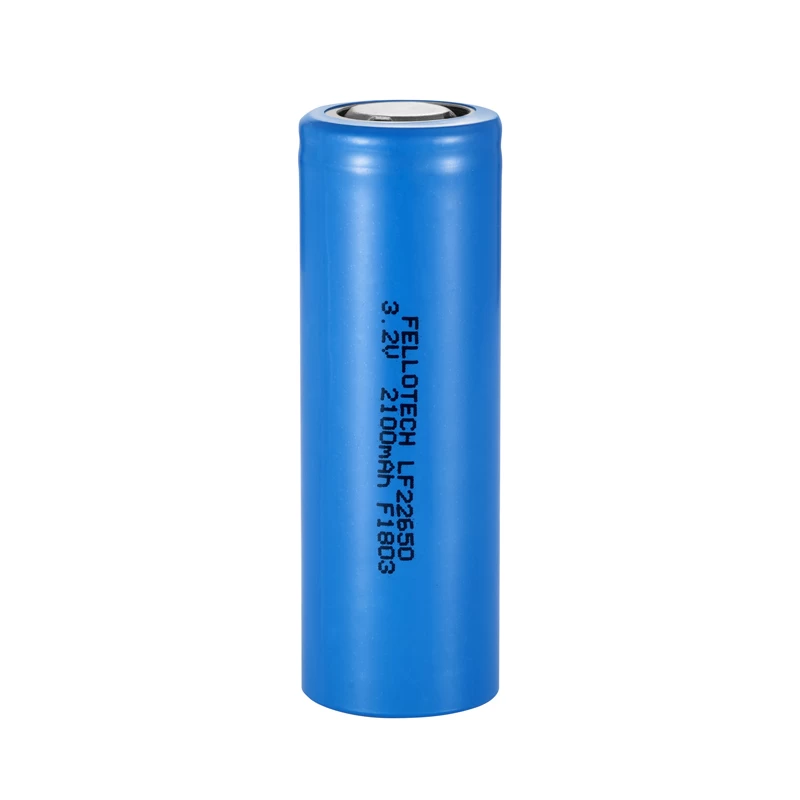

LF22650 3.2V 2100mAh LiFePO4 cell used for solar street light, solar power bank etc
|
S/N
|
Details
|
Parameters
|
Remarks
|
|
1
|
Nominal
voltage
|
3.2V
|
Mean Operation Voltage
|
|
2
|
Rated capacity
|
Typical
|
2100mAh
|
Standard discharge（0.2C）
after standard charge
|
|
Minimum
|
2100mAh
|
|
3
|
Charge
|
Charge
voltage
|
3.65±0.2V
|
|
Charge
Moe
|
0.2C to
3.65V, then 3.65V to 0.02C (CC/CV)
|
|
Standard Charge
current
|
420mA
|
|
Max charge current
|
1050mA
|
|
Charge cut-off voltage
|
3.65±0.2V
|
|
Recommended float charge voltage ( for standby use)
|
3.45±0.1V
|
|
4
|
Discharge
|
Standard discharge current
|
420mA
|
|
Max continuous discharge current
|
2100mA
|
|
Max. Pulse current
|
6300mA
(＜30min)
|
|
Discharge Cut-off voltage
|
2V
|
|
5
|
Cycle life
|
≥ 2000
cycles
|
0.2C 100% DOD
|
|
6
|
Operation Temperature
Range
|
Charge：0~45℃
|
60±25%R.H. Bare Cell
|
|
Discharge：-20~60℃
|
|
7
|
Storage Temperature
Range
|
0~35℃
|
60±25%R.H. at the shipment state
|
|
8
|
Weight
|
Approx: 58g
|
|
|
9
|
Size
|
Φ22.5 X 66.5mm
|
|
