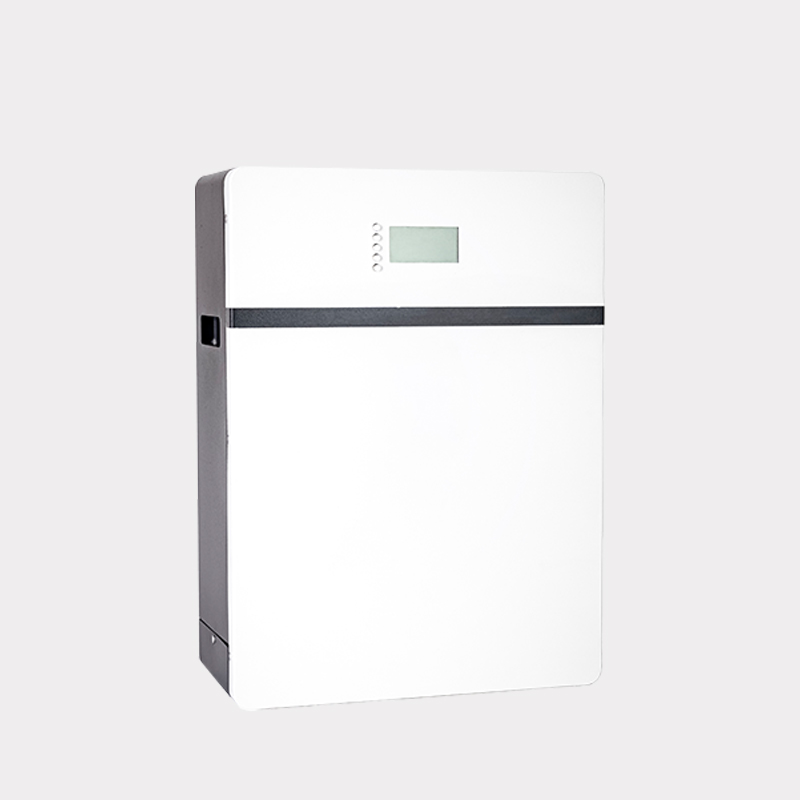

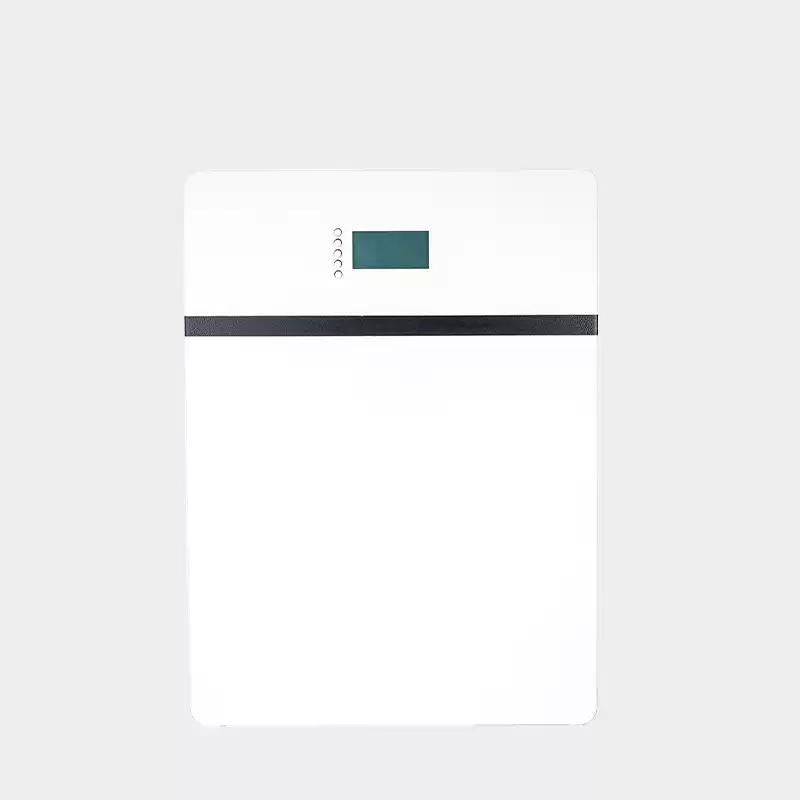

LFP Battery Solar Lithium Battery 48V 51.2V100ah 200ah Wall Mounted for Home Battery

The product is an smart storage battery with LiFeCoPO4 lithium-ion batteries for

communication station or solar energy storage.


Main Features：

*High energy density.

*Integrated design with inverter, convenient for user operation.


*Excellent performance in charging and discharging at large current.
*Long working life，reducing maintenance cost.
*Multiple protection functions. Charging high voltage protection, discharge low voltage protection, charging and discharging, over current protection, high temperature protection, short protection. reverse connection protection, ESD protection.
*Data transmission and parallel networking With RS485 and RS232 port.
*Accurate calculation of SOC and SOH.



  • CertificateCE FCC ROHS ISO9001 UN38.3
  • Warranty5 years
Facebook Twitter Pinterest LinkedIn 分享

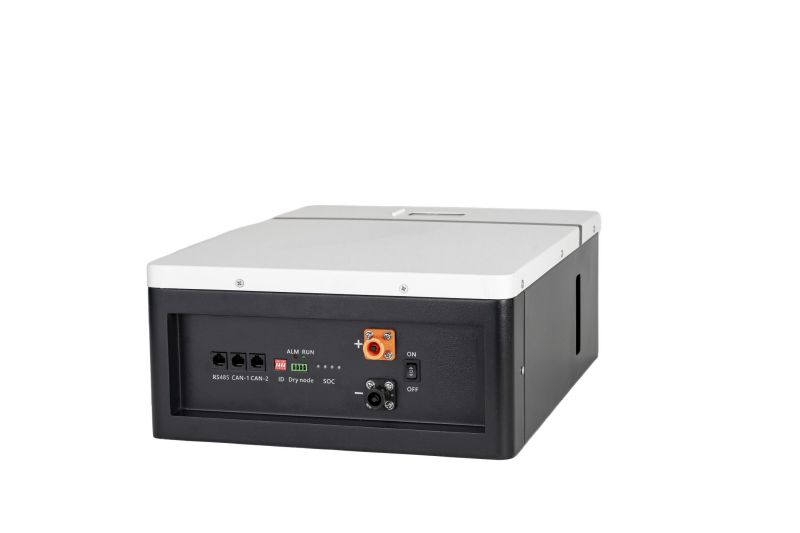

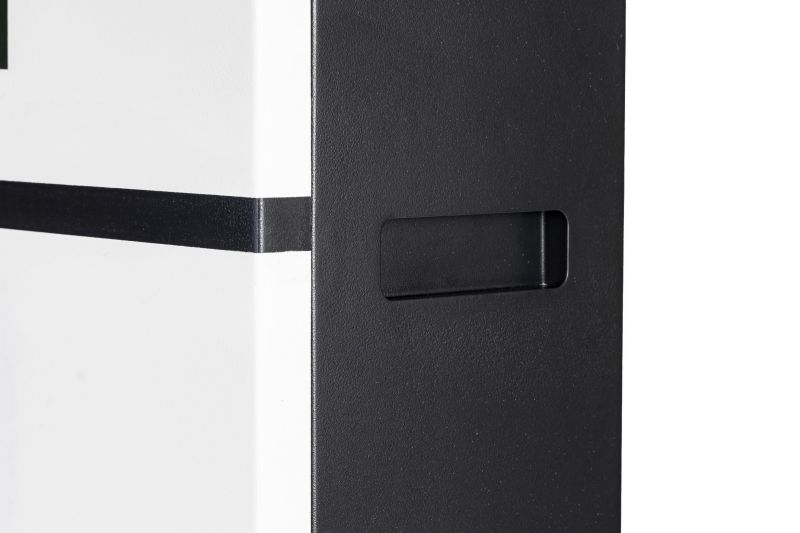

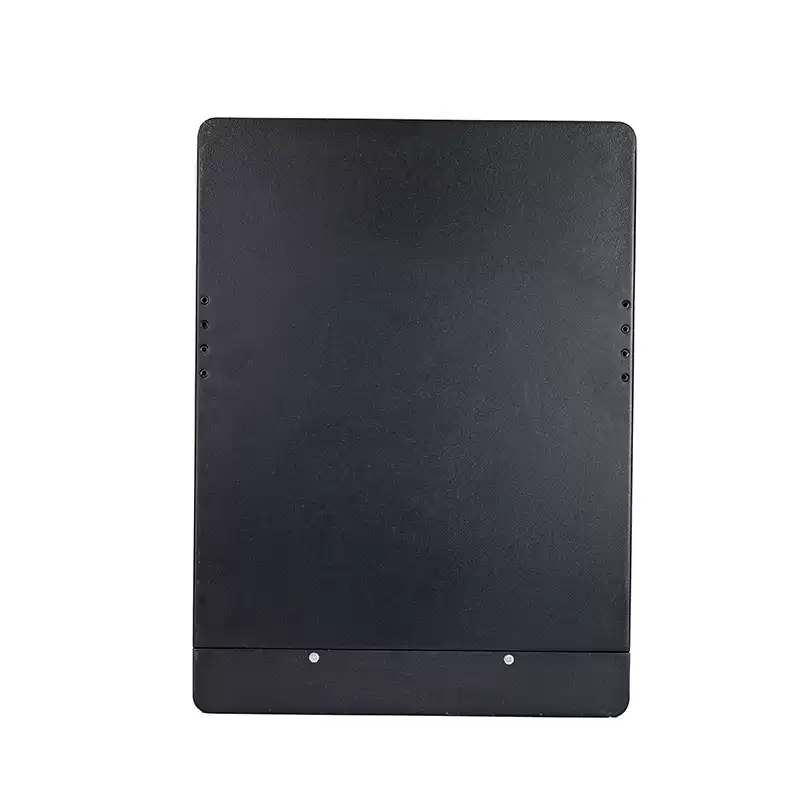

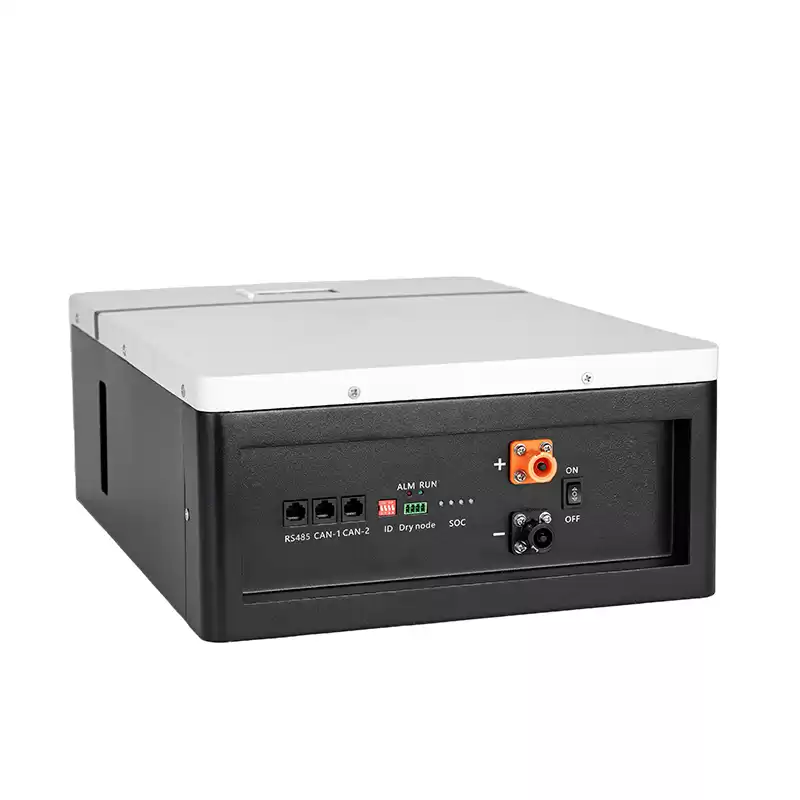

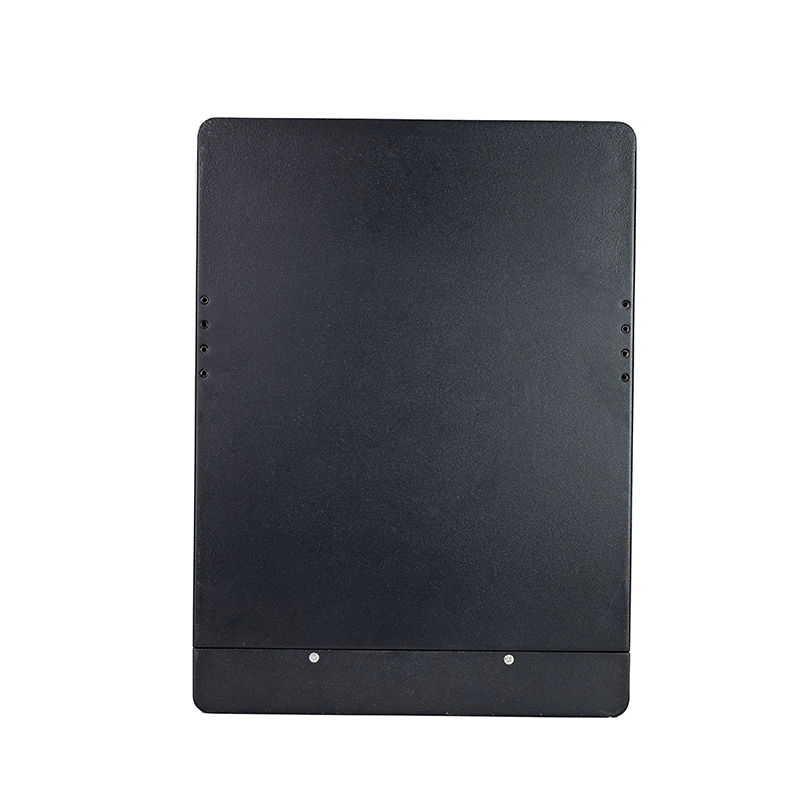

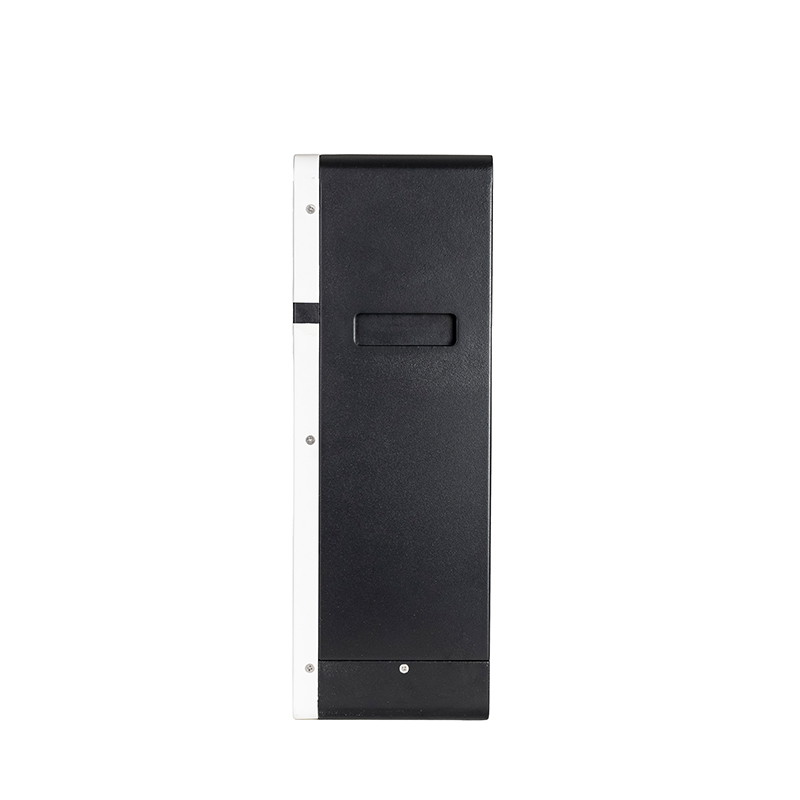

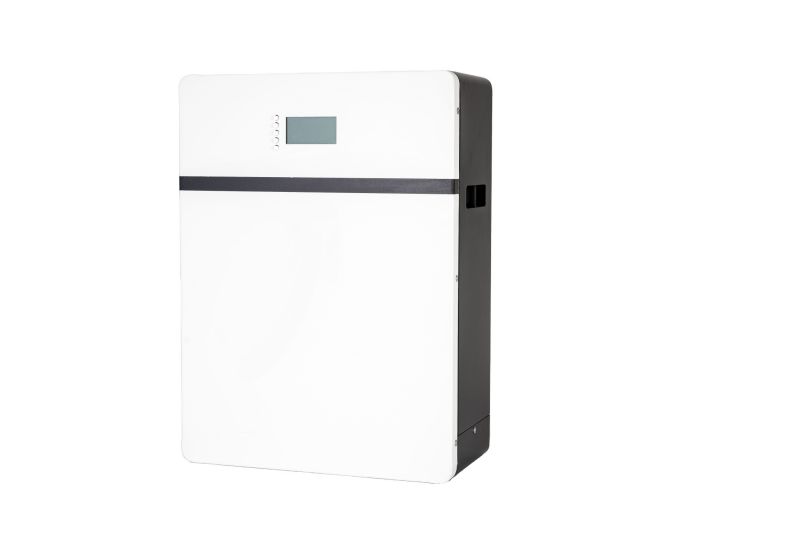

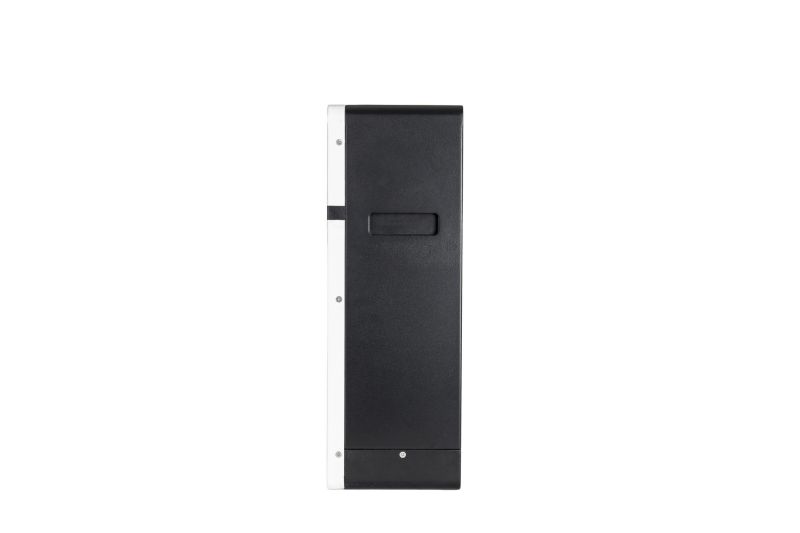

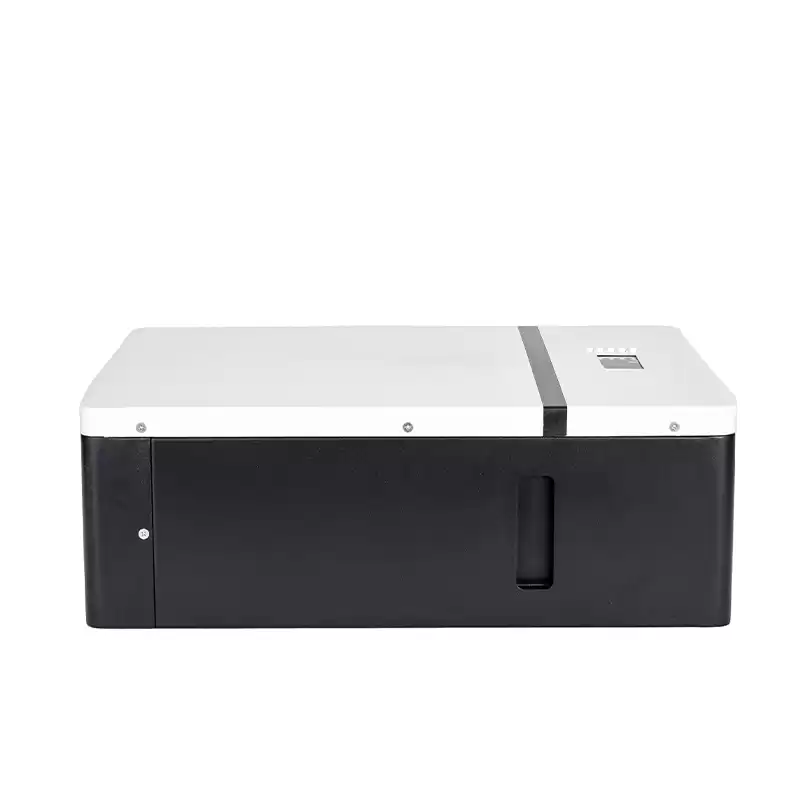

Details Images
Product Paramenters




Basic parameters

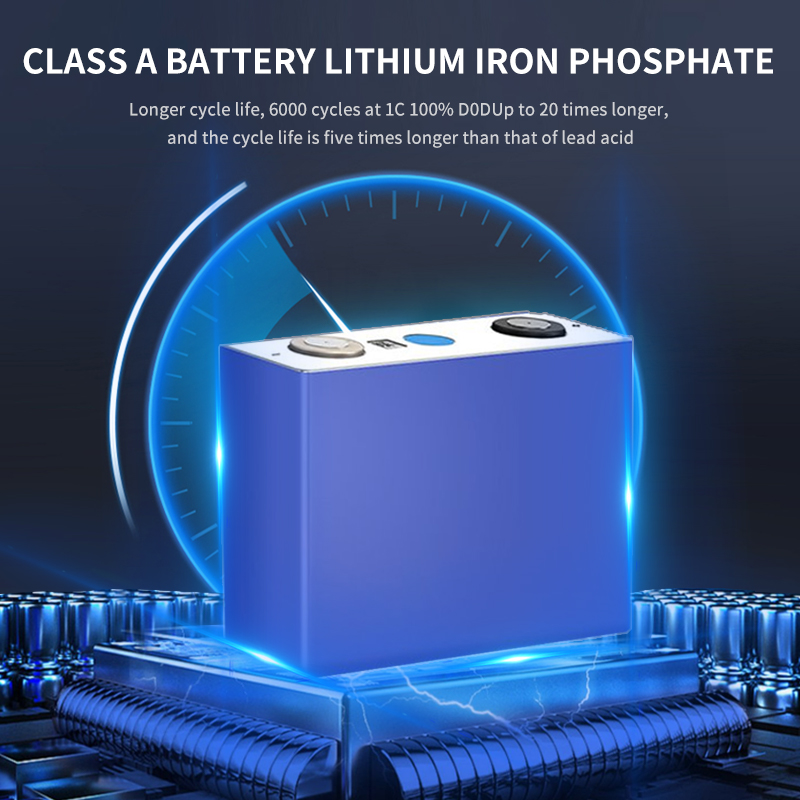

Type of electric core
Yiwei LFP square electric core
Core specification
3.2V100Ah
Number of battery modules
1-8 in parallel
Rated capacity
100Ah
200Ah
Rated total energy
5.12kWh (single box)
10.24kWh (single box)
Rated voltage
51.2V



Electrical parameters
Voltage range
43.2-58.4V
Standard charging current
0.5C @ continuous
Maximum charging current
1C @ pulse
Standard discharge current
0.5C @ continuous
Maximum discharge current
1C @ pulse







Structural parameters
Weight
40Kg (single box)
75Kg (single box)
Size(H*W*D)
490x360x170mm(single box)
720x450x170mm(single box）
Protection grade
IP54
Cooling mode
natural cooling

Ambient temperature
Charging
0℃~55℃
Discharge
-20℃~60℃
Storage
- 10℃-45℃
Operating humidity
5-95%, relative humidity

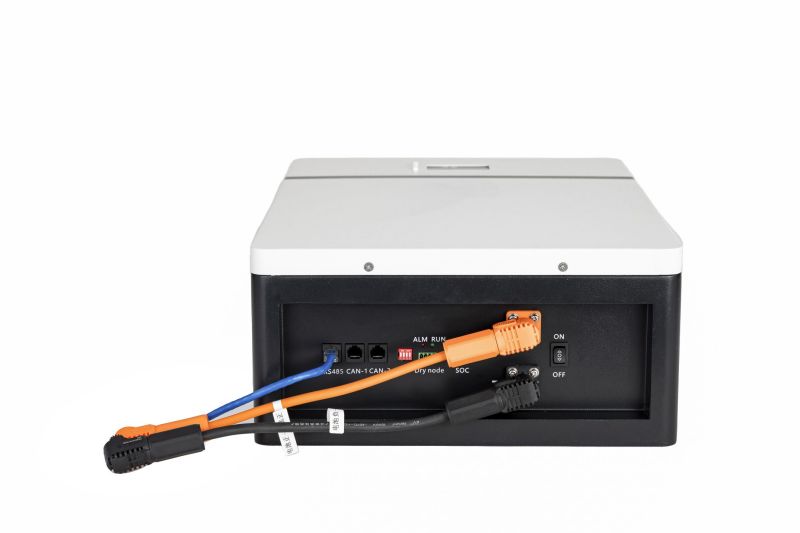

Communication mode
CAN,RS485,RS232
Alarm and protection
with

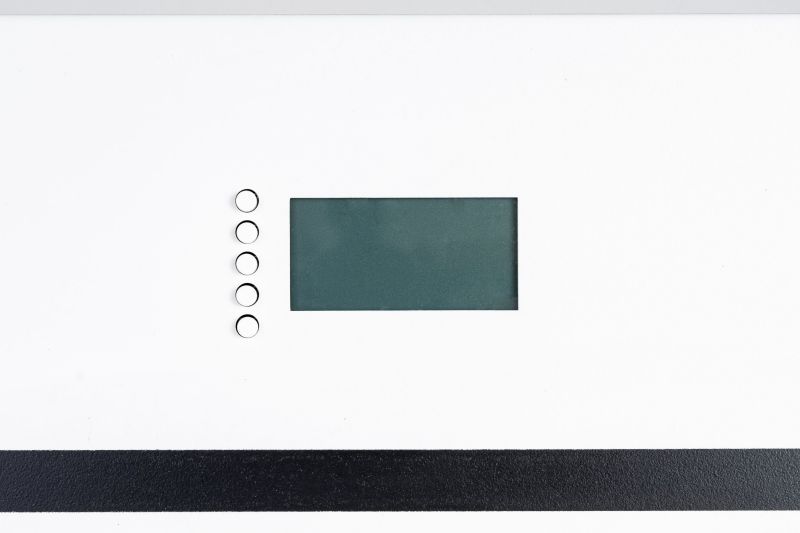

Indicator status
alarm/operation/SOC
Installation mode
wall mounted
Products Description



Product packaging
FAQ
Q1: How to choose a right system and products?
A1: Tell us your requirements, then our seller will recommend a suitable product and system to you.

Q2: The advantages of home photovoltaic system
A2: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small
investment, big income;zero pollution;Low maintenance costs;
Q3: Why choose us?
A3: FOTOVO have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for PV power plants.
Q4: What is the warranty of solar system?
A4: 5 years for whole system,10 years for inverter,modules,frame.And we can make sure our products will through very strictly testing,and then send to you.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.And we have offices in many
countries,if you have problems,we can arrange people to help you solve problem.
Q6: What about the package?
A6: Strict double-layer packaging design,Rigorous vibration testing.Ensure that the product is not damaged during transportation.
