Product Name

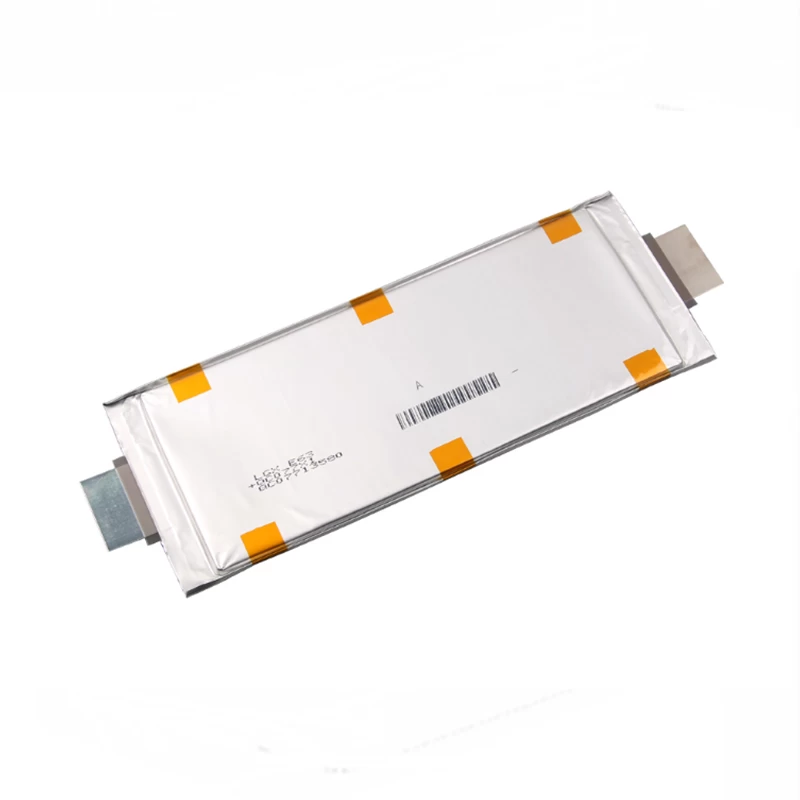

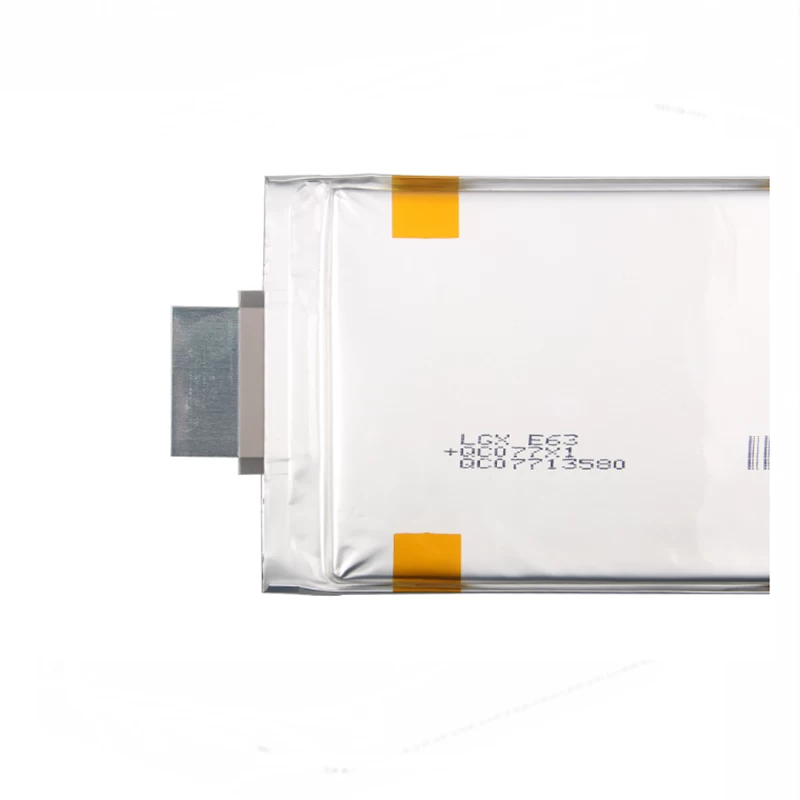

LG Chem E63 3.6V63Ah NCM Pouch Battery Cell
Highlights
-
High energy density
-
Fast charging and long life span
-
Possible to form modules that are suitable for various pack structures
-
NCM battery can work in wide temperature from -20 to +75°C
-
High safety:Nano-ceramic coating reinforces the durability and heat resistance of the batteries
Technical Parameters
|
No.
|
Items
|
Specifications
|
|
1
|
Nominal Voltage
|
3.6V
|
|
2
|
Nominal Capacity
|
63Ah
|
|
3
|
Standard Charge Current
|
0.2C-0.5C
|
|
4
|
Max. Charge Current
|
1C
|
|
5
|
Continuous Discharge current
|
2C
|
|
6
|
Peak Discharge Current
|
3C
|
|
7
|
Charge Cut-off Voltage
|
4.2V
|
|
8
|
Discharge Cut-off Voltage
|
2.5V
|
|
9
|
Inner Resistance
(Impedance)
|
≤2mΩ
|
|
10
|
Weight
|
965g
|
|
11
|
Dimensions
|
Length:325 mm
Width:125 mm
Thickness: 11.5 mm
|
|
12
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C
(The cell surface temperature cannot exceed 70°C)
|
|
13
|
Storage Temperature/Humidity
|
Temperature: -10°C ~ +35°C
Humidity:65%±20%RH
(optimal store temperature of 23 ± 5°C for long term storage)
|
|
14
|
Cycle Life
|
≥1000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
|
We offer a series LG CHEM Pouch cells .
Come us at service@osnpower.com to get catalog and quotations.
