LH800-63 Large Capacity Luffing Zoomlion tower crane China tower crane
1. luffing jib tower crane/hydraulic lifting tower crane/construction tower crane
2. Large Capacity 63t max load.
3. China-made high quality tower crane, China good tower crane manufacturers with best price.
4. high efficiency, CE, ISO, GOST certificates, oversea service available

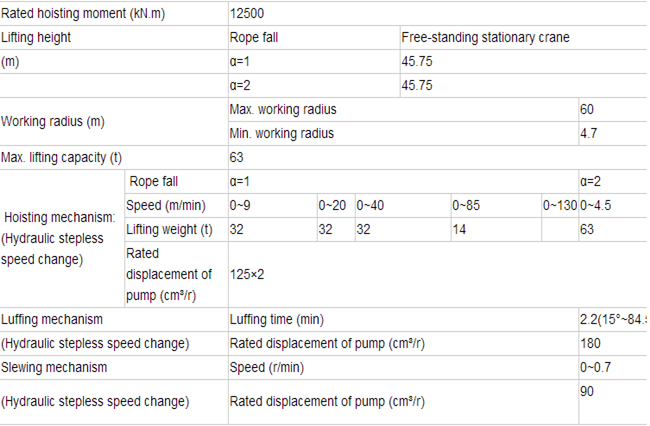

Technical for LH800-63 luffing jib tower crane
1. Performance parameters of LH800-63: performance parameters and technical indexes reach both domestic and international advanced level.
• Max. jib length: 60m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 35 meters.
• Maximum lifting capacity 63t;
• Max. hoisting capacity at jib tip: 28.89t;
• Maximum lifting moment 12500 t.m;
• Max. free-standing height: 45.75m; Max. working height of anchored crane: 216.75m;
• Hoisting mechanism: hydraulic speed regulation, rope capacity: 780 m;
• Slewing mechanism: hydraulic speed regulation
• Trolleying mechanism: hydraulic speed regulation
2. Electrical control system
With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.
3. Technical features
• The crane boasts of multiple operation modes and wide application;
• The complete machine adopts internationally well-received beautiful shape;
• The crane features high working speed and excellent speed regulation performance. The world's advanced hydraulic speed regulation solution is adopted for the luffing mechanism and slewing mechanism, thus ensuring more stable and reliable operation.
• The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
• A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
