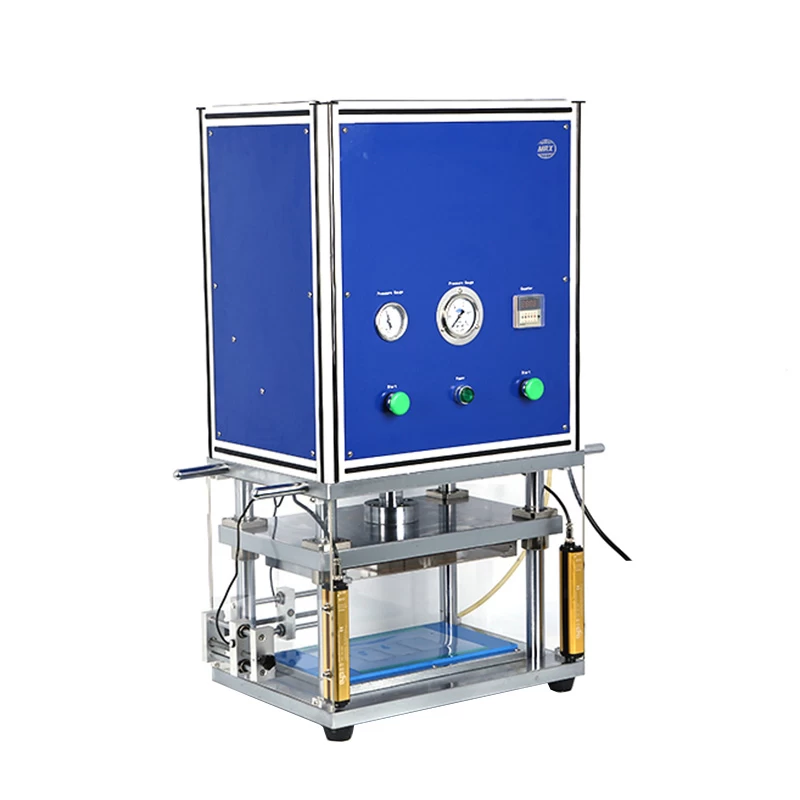

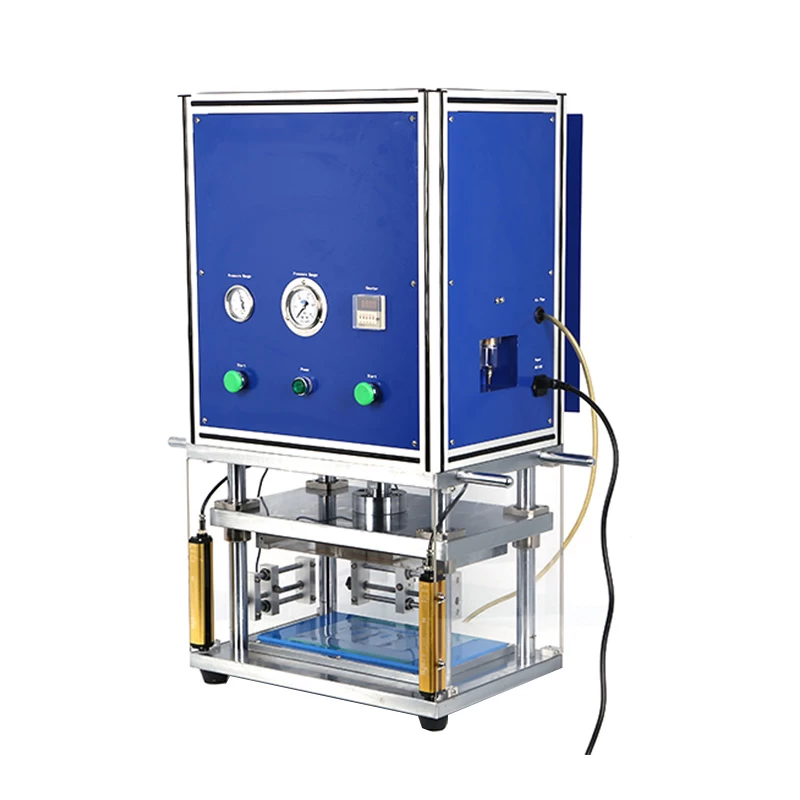

Li-ion Battery Die Cutting Machine for Pouch Cell Electrode Punching
Introduction:
This Semi-automatic electrode die cutter machine is mainly used for pouch cell electrode sheet cut for stacking pouch cell battery. It is a necessary tool in the production line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.

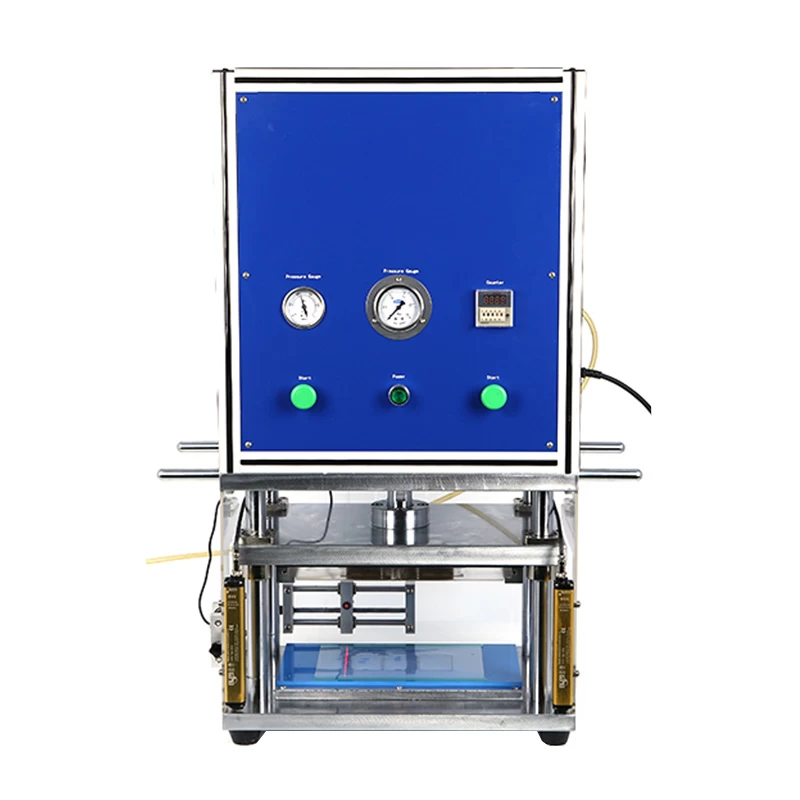

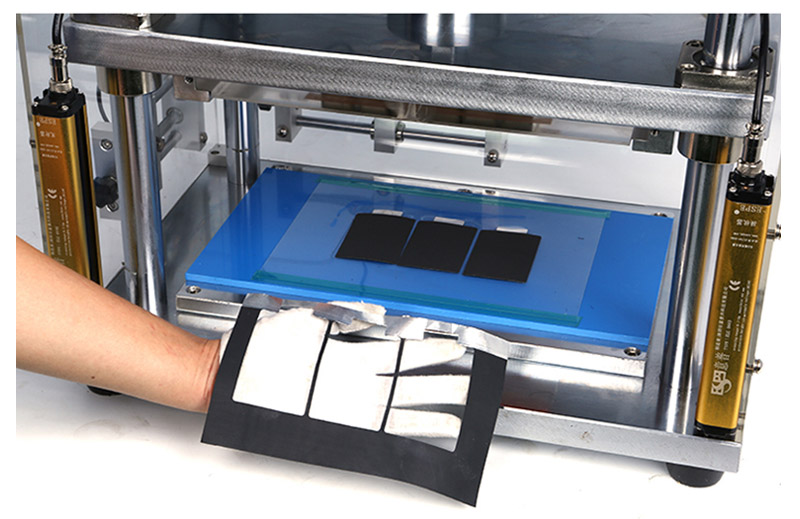

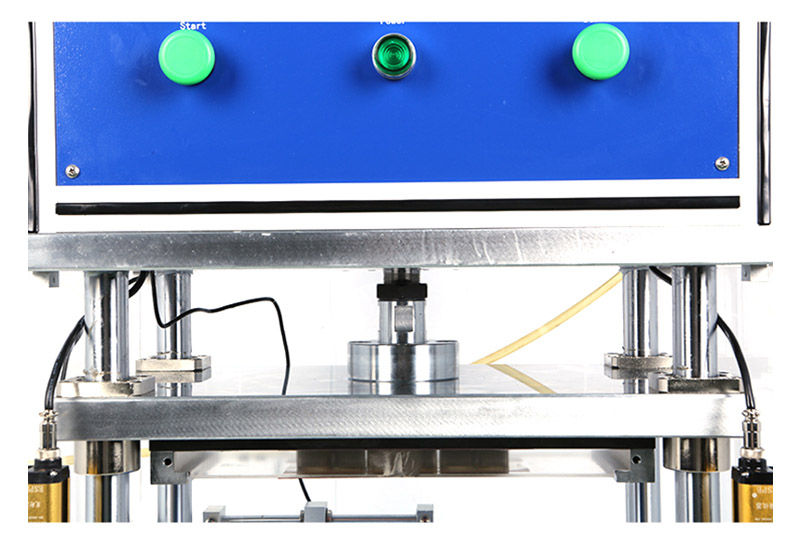

It adopts Safety curtain built in the front of the machine and double start button ensures operation safety when electrode sheets are fed from the front. High speed, high accuracy, long lifetime to make ready electrode without burr, to get a good consistency.
Features:
1. Replacement of die cutter is convenient, quick, consumable (die cutter is life about 30000 times).
2. Manual and continuous feeding, automatic discharging, and can automatically separate waste;
3. No quality defects such as burrs, off powder, indentation;
4. Between manual and automatic, high efficiency, 800-2000 / per hour.
5. Simple operation, safe and reliable, beautiful appearance, small size.
Specifications:
|
Model
|
Battery Electrode Die Cutter Machine AOT-DC-300
|
|
Work voltage
|
AC110V/220V, 50/60HZ
|
|
Power
|
100W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Max cutter die size
|
300mm(L) * 200mm(W)
|
|
Die Set Dimensions
|
One set of standard electrode die is included.within the dimensions:
200mm(L) *300mm(W) Customized size die is available upon request
|
|
Safety Protection
|
Built in Safety Curtain to protect against hand injures during electrode feeding
Double start press button
|
|
Cutting Accuracy
|
±0.1mm
|
|
Air Cylinder
|
3 tons Max. pressure
|
|
Tensile Cylinder
|
0.15 tons pressure
|
|
Cutting stroke
|
250mm
|
|
Feeding
|
Manually
|
|
Production Yield
|
800 - 2000 pieces of electrodes per hour
|
|
Air Pressure
|
0.5-0.8Mpa
|
|
Dimension
(L*W*H)
|
650*550* 900mm
|
|
Net Weight
|
160kg
|
