Li-ion Battery Tester and Test Equipment For Li-ion Cylindrical Cell Battery
Product Description
Function characteristics:
1. High efficiency and energy saving power supply system
2. Convenient maintenance for modular design
3. Low error rate of gold-plated contacts
4. High utilization of compact space
5. Support for offline working mode

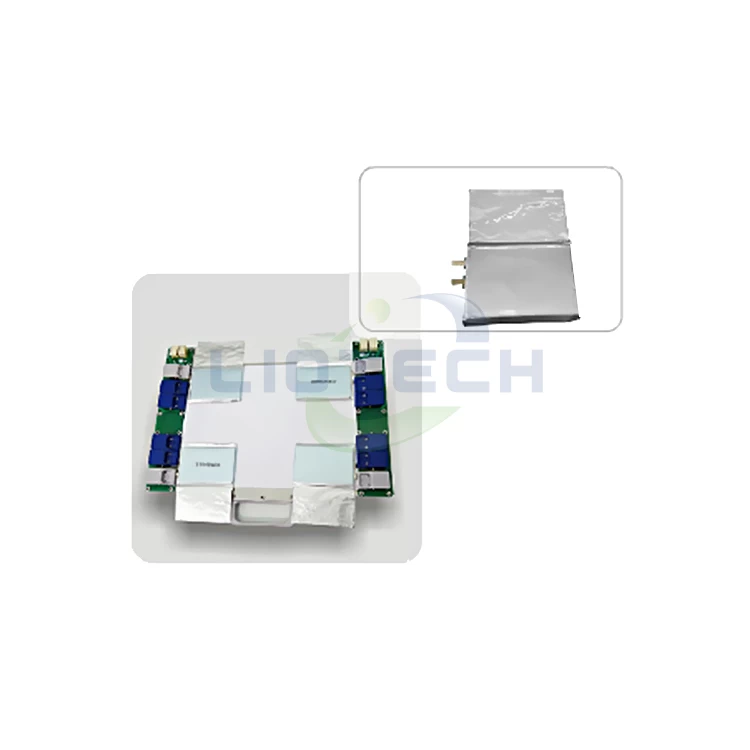

6. Design of battery tray module
Technical Specifications
|
Model
|
LIO-TJF-5V5A-256
|
|
Voltage measurement range
|
0-5V ,resolution ratio :1mV
|
|
Battery voltage range
|
Charge 0-4.5v discharge 4.5-2v
|
|
Constant voltage range
|
2-4.5V
|
|
voltage accuracy
|
±(0.1%RD+0.1%FS)
|
|
current range
|
Charge0.01-3/5A discharge0.01-3/5A
|
|
Current accuracy
|
±(0.1%RD+0.1%FS)
|
|
Time frame
|
Set in 0-60000 minutes
|
|
Time accuracy
|
≤±0.1%
|
|
communication mode
|
RS485 Baud rate:57.6KBit
|
|
maximum power
|
10kw
|
|
Maximum cell size
|
130mm*90mm*12mm
|
|
outline dimension
|
1600mm*1160mm*1830
|

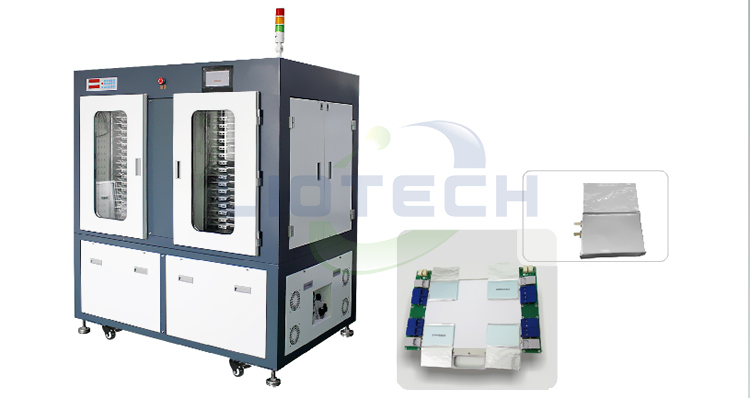

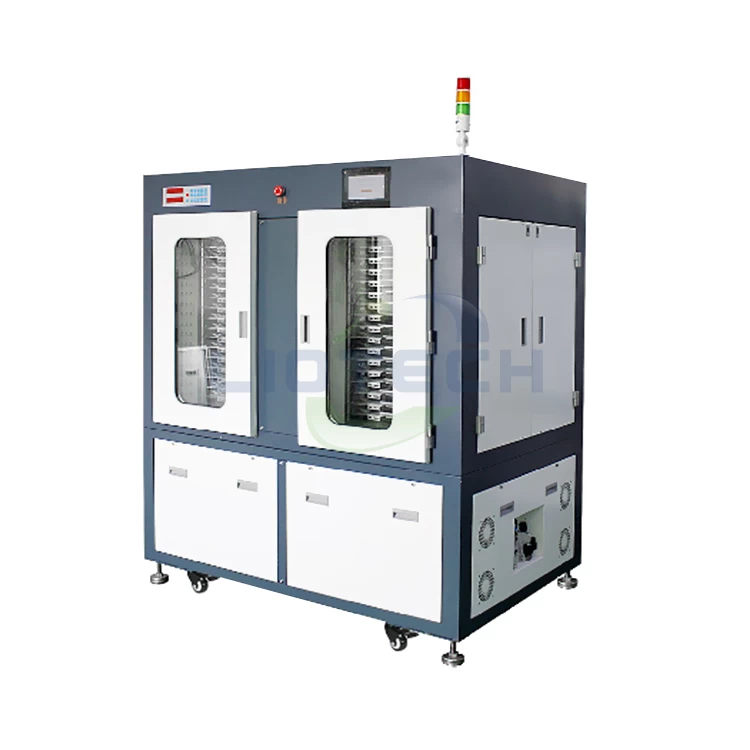

Product Image
Product Packing
