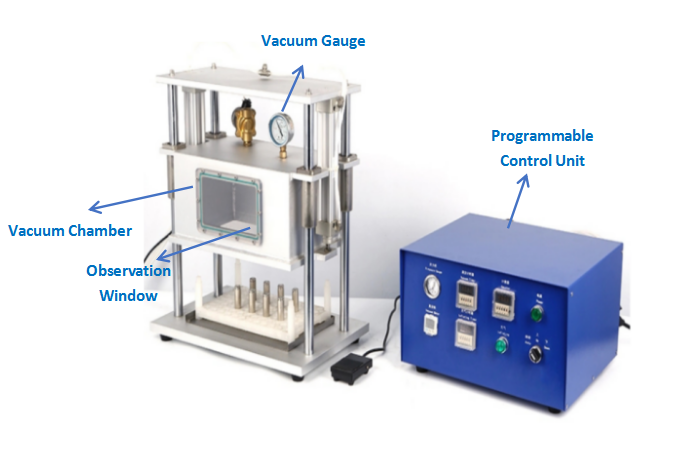

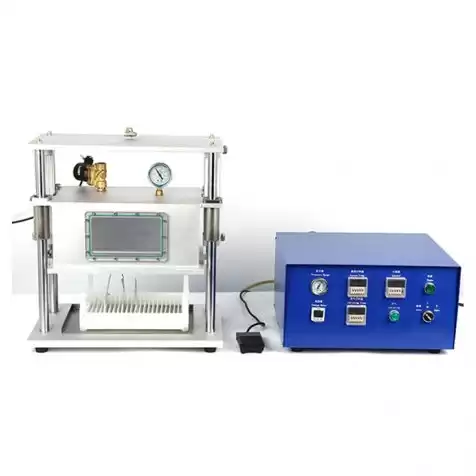

Li Ion Battery Vacuum Diffusion Chamber and Electrolyte Filling All-In-One Machine
Product introduction
Applicable to the injection and diffusion process of battery capacitors, after vacuuming and then filling and make diffusion. The electrolyte is more precision, absorption consistency, high reliability.
Main characteristics
* One machine includes injection and diffusion functions;
* High measurement accuracy and repeatability;
*Injecting liquid after vacuuming, high efficiency, accurate accuracy, convenient and reliable operation;
*Injection accuracy±0.5%, injection volume 0.2 ml ~ 200 ml;
*The entrance and exit are connected by chemical resistant hoses;
*Can be operated in a glove box or dry room;
*The appearance is exquisite and beautiful, and the performance is stable;
*PLC, touch screen operation, flexible parameters, high automation program;
Technical specifications
|
Model
|
TMAX-ZY65, suitable for lithium battery products, cylindrical or pouch cell
|
|
Function
|
Injection and Diffusion
|
|
Cylindrical range
|

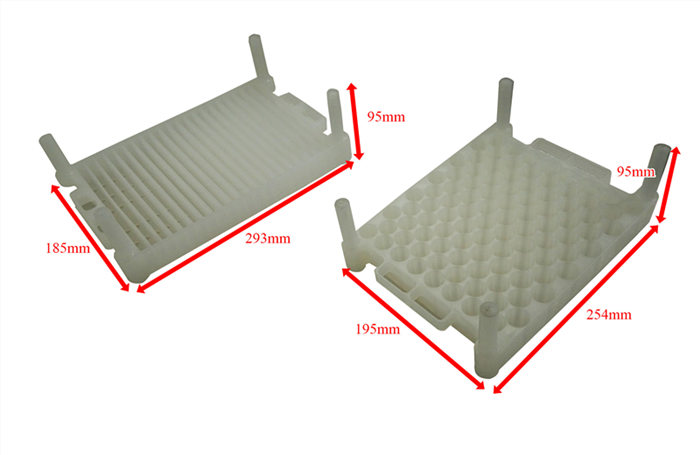

Φ60, H100mm or less, according to the 18650 calculation standard with 4 stations, 4 notes at a time
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Range of capacity
|
0.2ml~200ml
|
|
Core liquid injection
|
0.2g~200g
|
|
Injection accuracy
|
±0.5%
|
|
Exhalation velocity
|
6ml/s adjustable
|
|
In and out pipe
|
The liquid inlet pipe 6
|
|
Adjustable stroke
|
Maximum X-axis stroke 0~80mm (center)
|
|
Material
|
Manufacture of stainless Steel 304 and 316 corrosion-resistant material in key parts
|
|
External dimension
|
L400mm×W260mm×H500mm
|
|
Power supply
|
AC220V/50Hz/0.5KW
|
|
Weight
|
70kg
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
