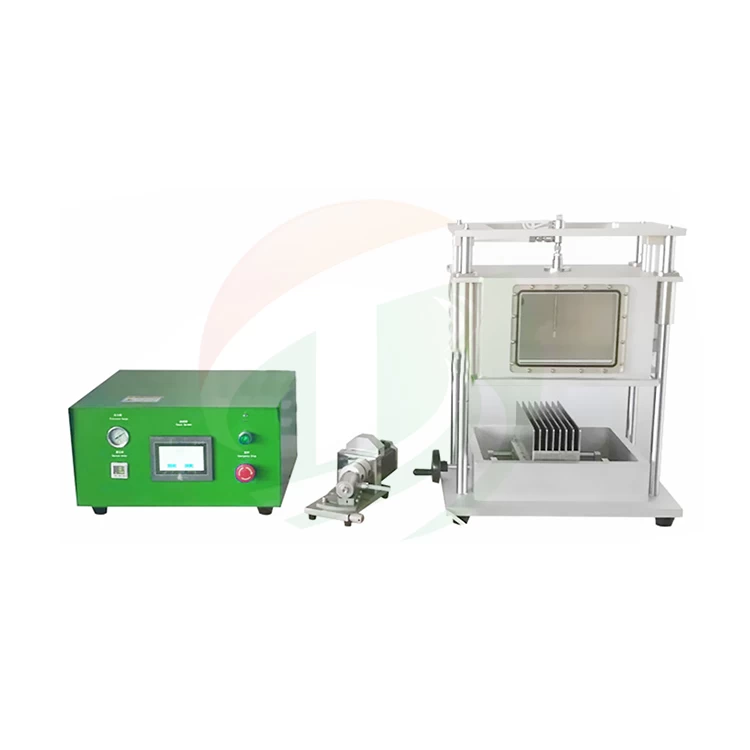

Li Ion Battery Vacuum Diffusion Chamber And Electrolyte Filling All-in-one Machine
SPECIFICATION
Product introduction
Applicable to the injection and diffusion process
of battery capacitors, after vacuuming and then filling and make diffusion. The
electrolyte is more precision, absorption consistency, high reliability.
Main
characteristics
* One machine includes injection and diffusion
functions;
* High measurement accuracy and
repeatability;
*Injecting liquid after vacuuming, high
efficiency, accurate accuracy, convenient and reliable operation;
*Injection accuracy±0.5%, injection volume 0.2 ml ~ 200
ml;
*The entrance and exit are connected by
chemical resistant hoses;
*Can be operated in a glove box or dry
room;
*The appearance is exquisite and
beautiful, and the performance is stable;
*PLC, touch screen operation, flexible
parameters, high automation program;
Technical specifications
|
Model
|
TOB-ZY65,
suitable for lithium battery products, cylindrical or pouch cell
|
|
Function
|
Injection
and Diffusion
|
|
Cylindrical
range
|
Φ60,
H100mm or less, according to the 18650 calculation standard with 4 stations,
4 notes at a time
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Range
of capacity
|
0.2ml~200ml
|
|
Core
liquid injection
|
0.2g~200g
|
|
Injection
accuracy
|
±0.5%
|
|
Exhalation
velocity
|
6ml/s
adjustable
|
|
In
and out pipe
|
The
liquid inlet pipe 6
|
|
Adjustable
stroke
|
Maximum
X-axis stroke 0~80mm (center)
|
|
Material
|
Manufacture
of stainless Steel 304 and 316 corrosion-resistant material in key parts
|
|
External
dimension
|
L400mm×W260mm×H500mm
|
|
Power
supply
|
AC220V/50Hz/0.5KW
|
|
Weight
|
70kg
|
Product Display
