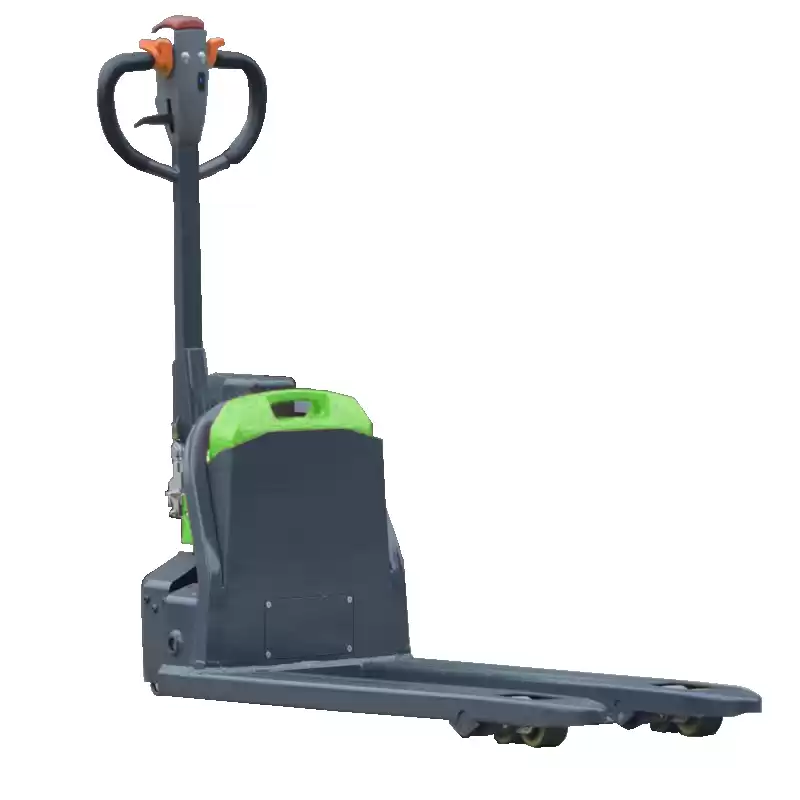

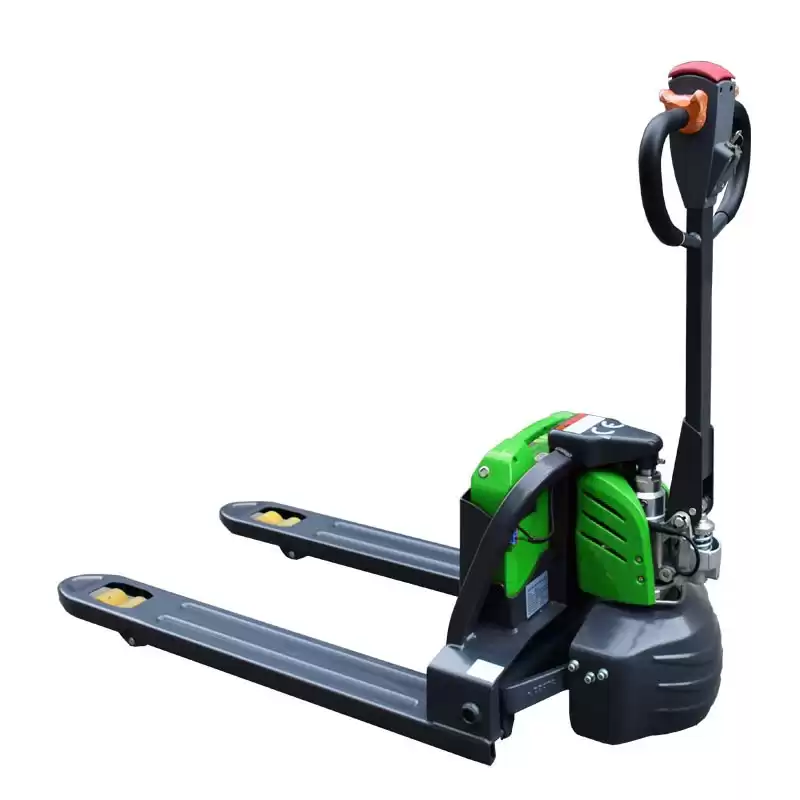

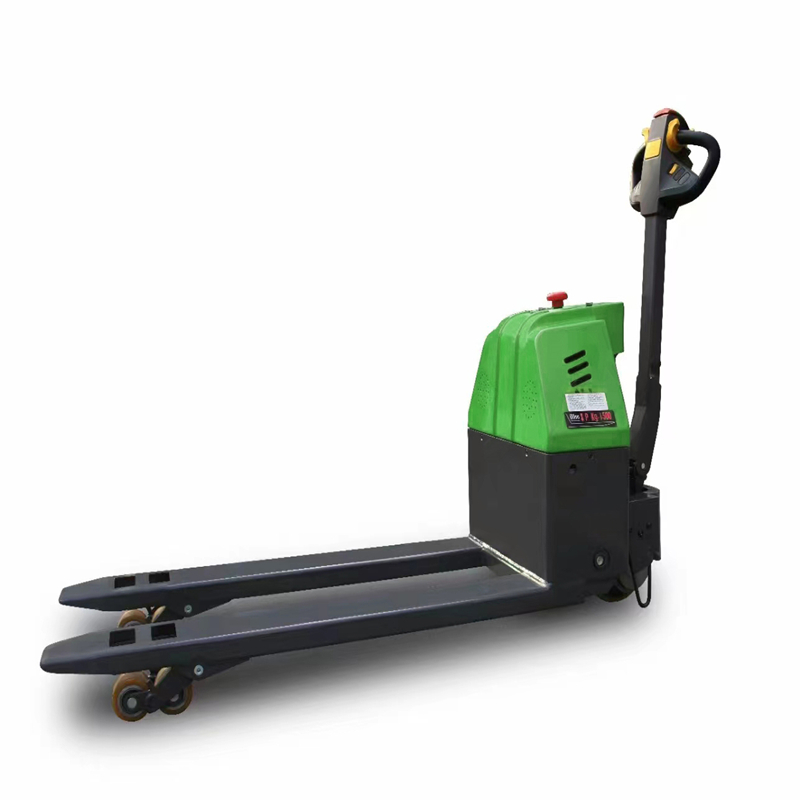

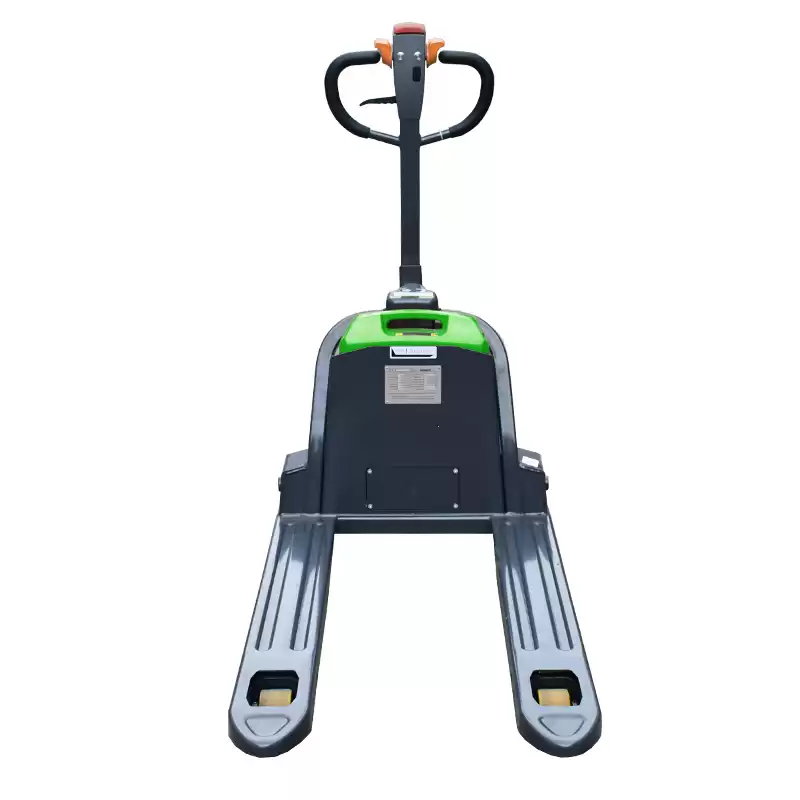

Li-ION Battery Walkie Type Electric Pallet Truck
Li-ION powered walkie electric pallet truck,loading capacity 1.5-3.0T,strong battery life and strong power.Short-distance handling of light and medium loads.Small in size, light in weight, flexible in walking, and equipped with a lithium battery with strong battery life. Suitable for medium and large shopping malls, supermarkets, freight yards, workshops and other occasions.
Features:
1. The unique design of the in and out tray changes from the traditional method of wiping in and out of the tray to a rolling type in and out of the tray.
2. Reasonable structural design makes the whole machine light in weight and firm in skeleton structure. Completely open design, convenient for users to maintain and maintain.

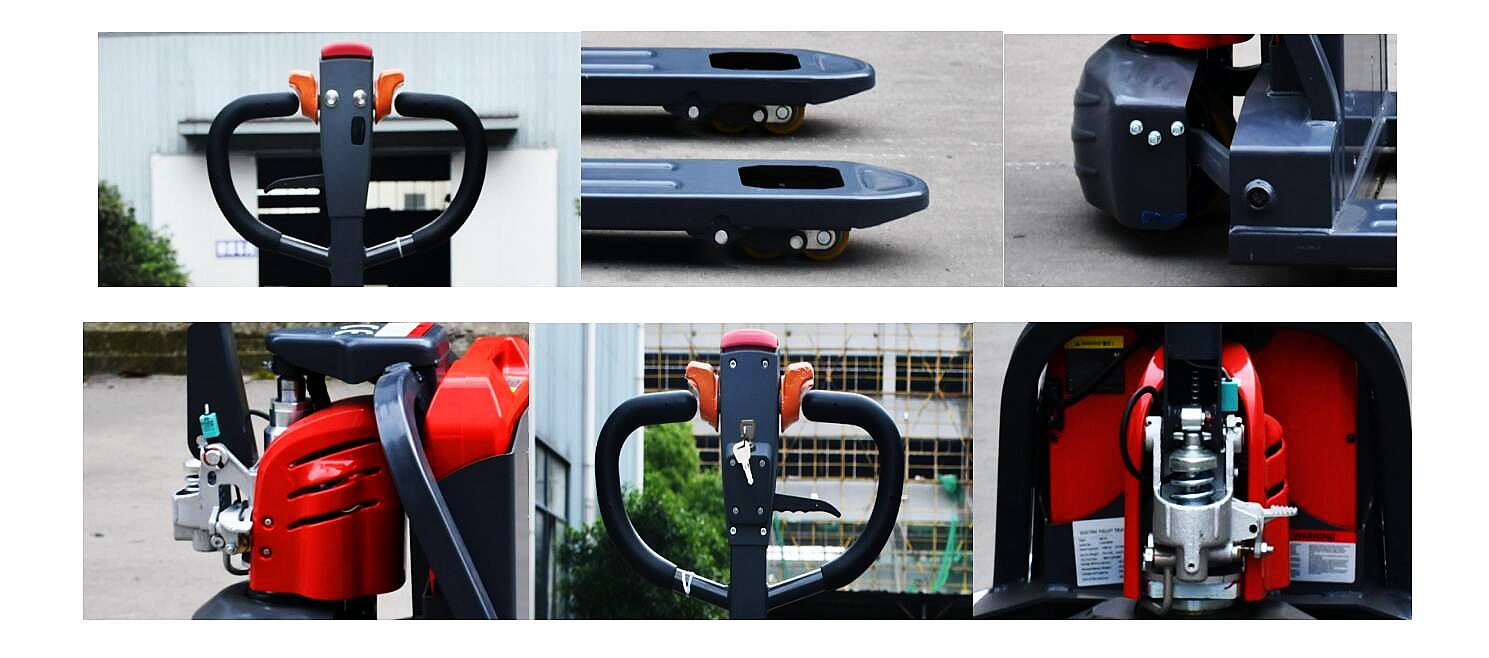

3. The multi-function handle head design integrates the button, the navel switch and the operation button, and the operation is more concise and convenient.
4. The drive wheel protection design effectively protects the operator from the operation of the presser foot, which is safer.
5. The whole machine adopts an open design, and it is simple and convenient to disassemble and replace the battery. When the battery is exhausted, another set of batteries (optional) can be quickly replaced, effectively extending the working time.
6. The sturdy metal cover protects the motor and wheels, and also reliably protects the operator's feet and improves safety.
Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NTL15 |
NTL20 |
| Drive type |
|
Electric |
Electric |
| Load Capacity |
kg |
1500 |
2000 |
| Service Weight（without battery） |
kg |
142 |
146 |
| Lifting Height |
mm |
200 |
200 |
| Fork Size |
mm |
50/150/1150 |
50/150/1150 |
| Fork Width |
mm |
550/685 |
550/685 |
| Brake Type |
|
Electromagnetic brake |
Electromagnetic brake |
| Drive Motor |
(kW) |
0.75 |
0.75 |
| Battery voltage/rate capacity |
(V/Ah) |
24/30 |
24/40 |
24/60 |
48/20 |
48/30 |
| Battery Weight（±5%） |
(kg) |
7.8 |
10.2 |
13.2 |
10.2 |
13.2 |
| Type of drive control |
|
DC |
DC |
| Steering type |
|
Manual steering system |
Manual steering system |
| |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
