Libya custom made 12Cubic FVR Japanese Isuzu Rubbish compactor vehicles

EUR IV Garbage Compactor Truck with ISUZU chassis,The Faw Garbage Truck 10 Cbm CompactorGarbage Truck,JAPANESE ISUZU 6X4 Garbage Compactor Truck,Isuzu Mini 4*2 Garbage Compactor Truck,China Factory 4000L-6000L Capacity CompactorGarbage Truck,4X2 8cbm ISUZU Compressed Garbage TruckGarbage Compactor Truck,Competitive JAC Garbage Transportation Truck/Mini Sanitation Truck/Garbage Compactor Truck,12m3 Garbage Compactor Truck / Refuse Collection Vehicles / Compressed Garbage Truck,Isuzu 3t Compactor Garbage Truck,ISUZU Refuse Compactor / Garbage Truck





Waste Compactor Truck Isuzu 12 CBM

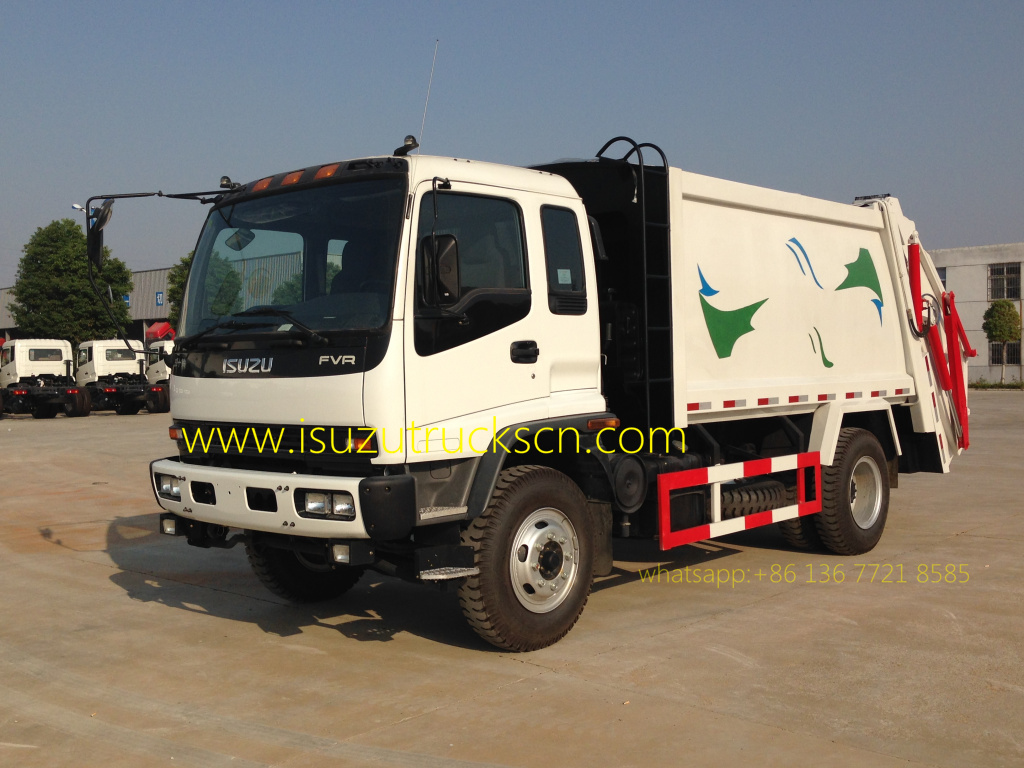

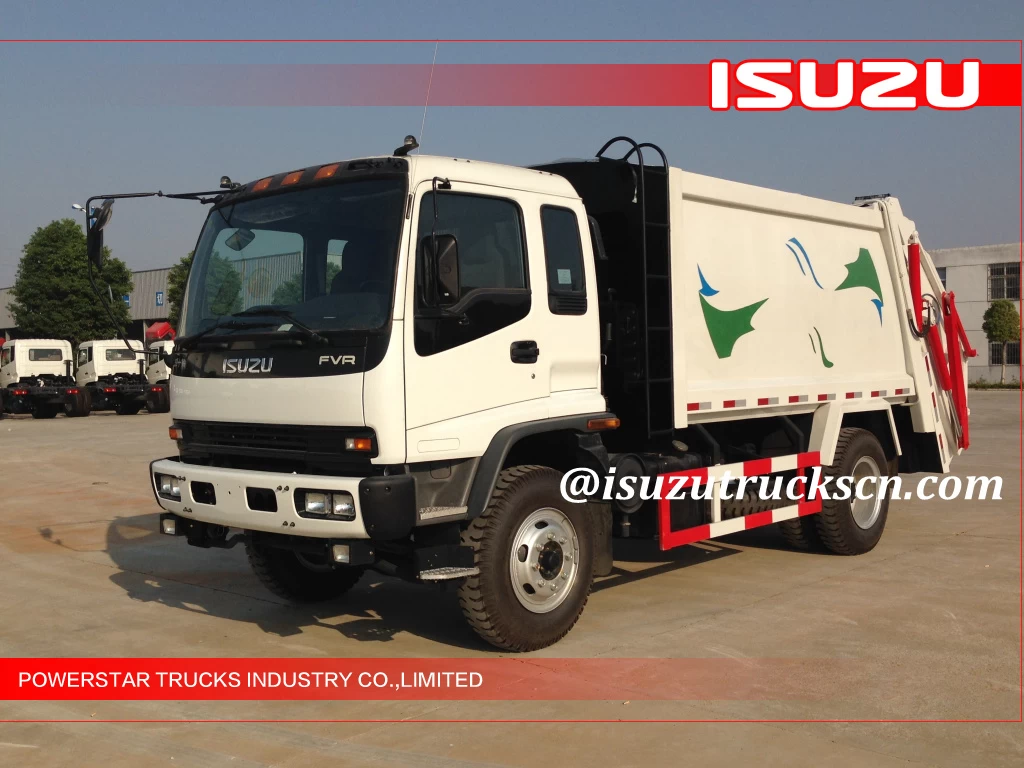

  12Cubic Japanese Isuzu Rubbish compactor vehicles


 overview of Waste Compactor Truck Isuzu 12 CBM    overview of Waste Compactor Truck Isuzu 12 CBM

 overview of Waste Compactor Truck Isuzu 12 CBM    overview of Waste Compactor Truck Isuzu 12 CBM



Function:

Waste compactor truck Isuzu 12 CBM (also called as new garbage truck, waste compactor vehicle, Hydraulic garbage compactor truck, rear loader garbage truck, garbage compacting truck, refuse compactor trucks)  is widely used in daily rubbish transport in such living areas as all kinds of cities, large station, port and whart, airpot and densely-populated areas like industrical and mineral enterprises and military units.


All our compressed garbage truck optional hanging bucket or barrel tilting mechanism, automatic operating, simple and efficient garbage collection. It can be converted into various special garbage truck according to clients' special requirement.


Features:

---- ISUZU chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance

Specifications:



Waste Compactor Truck Isuzu (12 CBM)

General

Vehicle Brand

POWERSTAR

Chassis Brand

ISUZU

Overall Dimension

8930 * 2500 * 2760 mm

GVW / Kerb Weight

16,000kg / 6,890kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

240 HP (178 KW)

Displacement

5199ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

3900 mm / 2

Tire Specification

10.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body Capacity

12 CBM

Fill Hopper Capacity

1.4 m3

Sewager Tank volume

200 L

Body Material

Weather resisting steel

Filling work cycle time

20~25 s

Filling lift time

6~9 s

Filling lift capacity

8 Tons

Discharge time

18~22 s

Max compression force

12 Tons

Discharge model

Horizontal Ejection

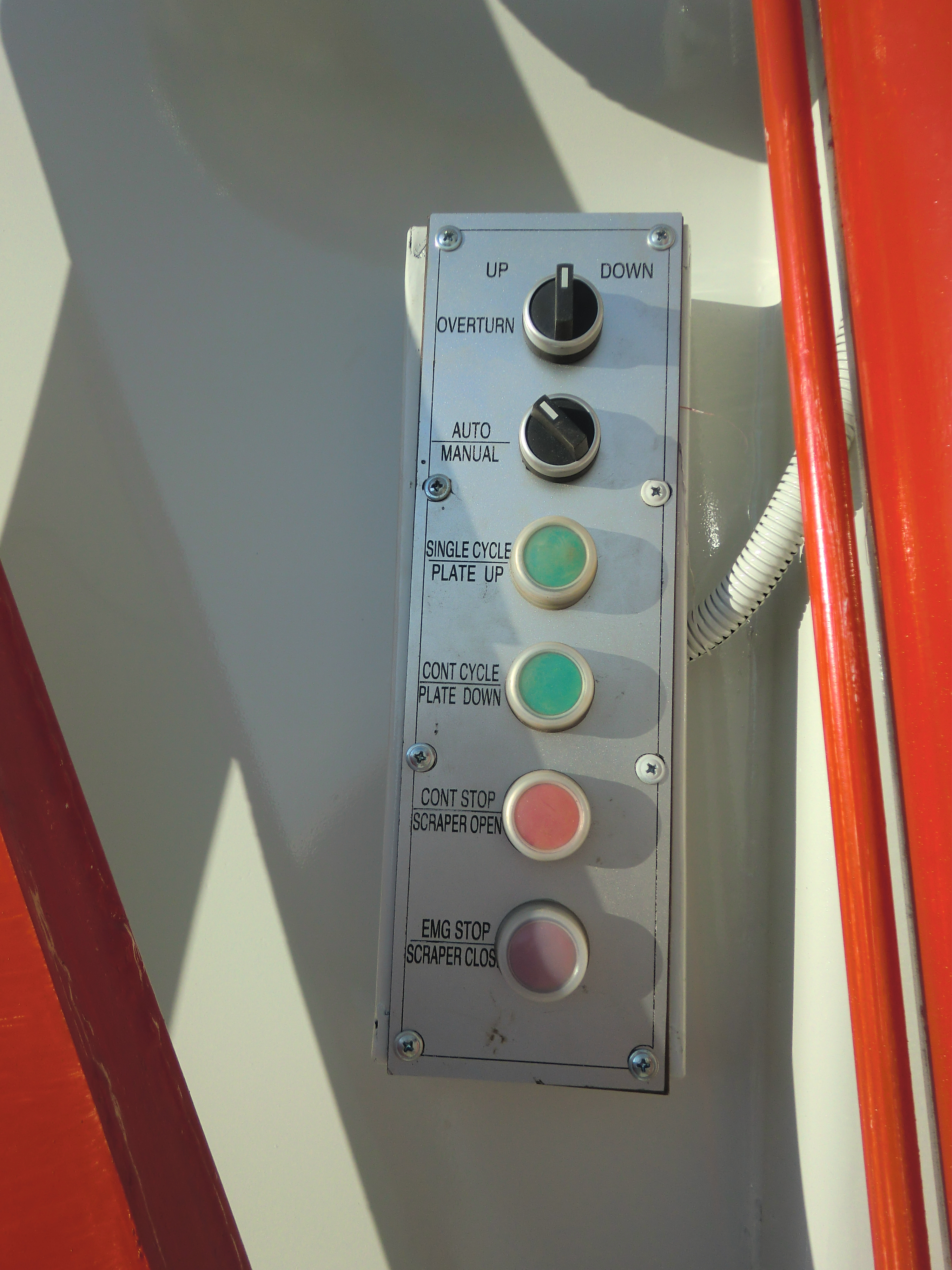

Control

Electrically Hydraulic control

Manual Hydraulic control

Emergency Stop Button

Hopper Both Sides

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.



  technical drawing for 3 Ton Isuzu Garbage Truck With Compactor


Working Principles of Garbage Compactor

Technical drawing for Isuzu NPR Refuse compactor (Garbage compactor truck)

Different bin optional:


 bin hopper for garbage compactor truck

  bin hopper for garbage compactor truck

 bin hopper for garbage compactor truck    bin hopper for garbage compactor truck


Detail pictures:

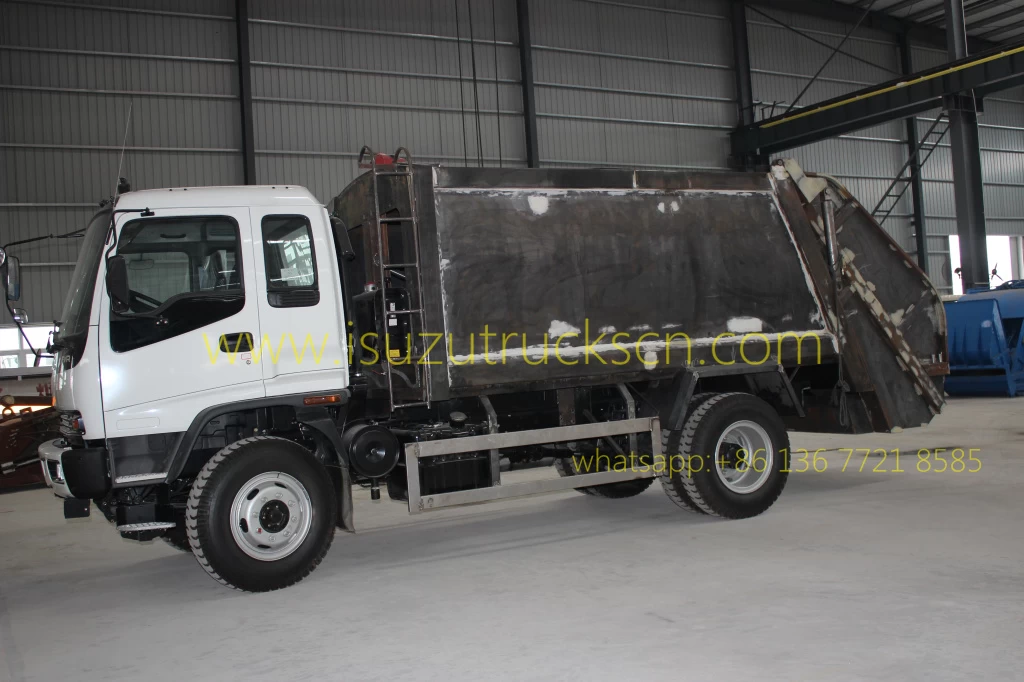

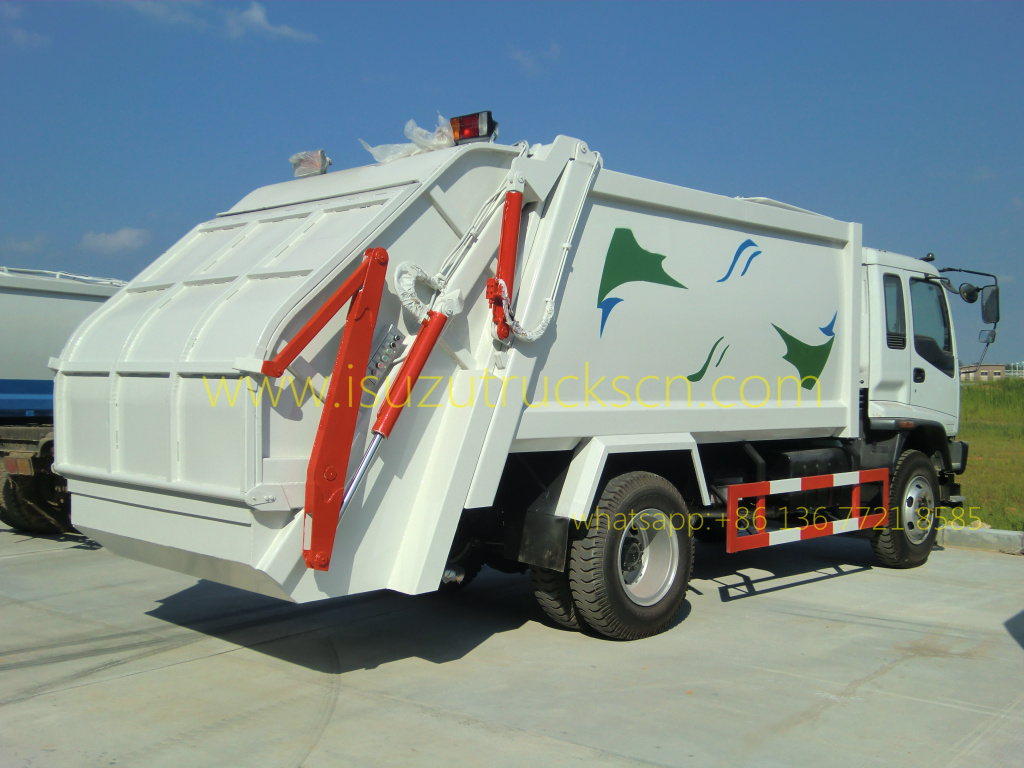

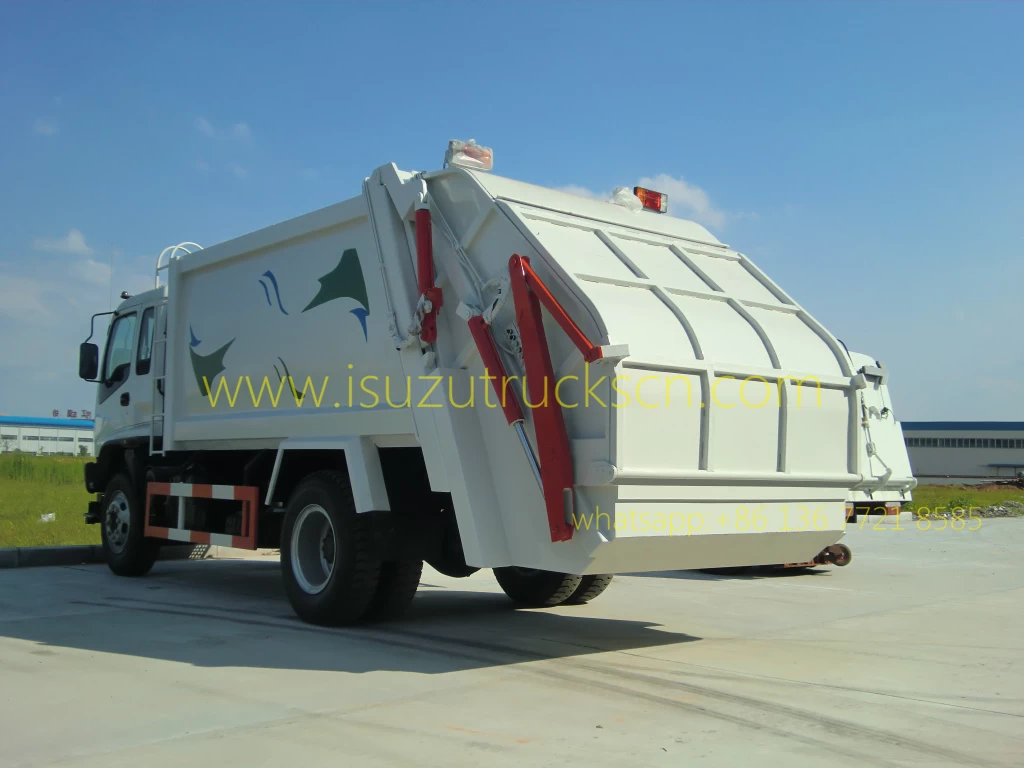

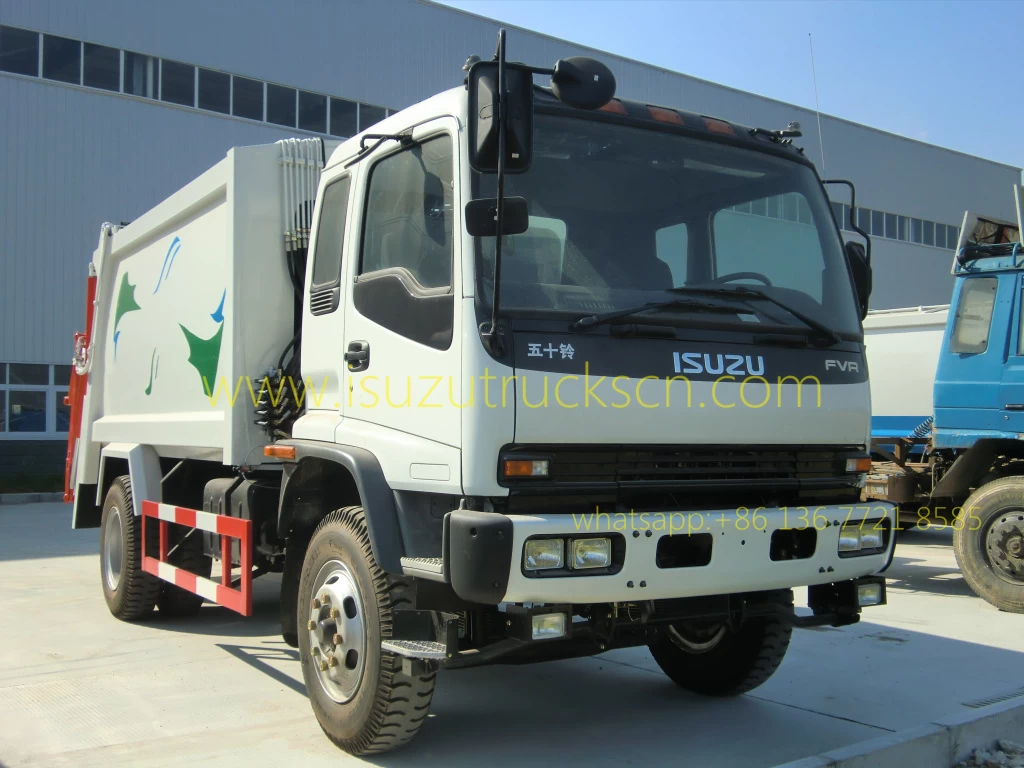

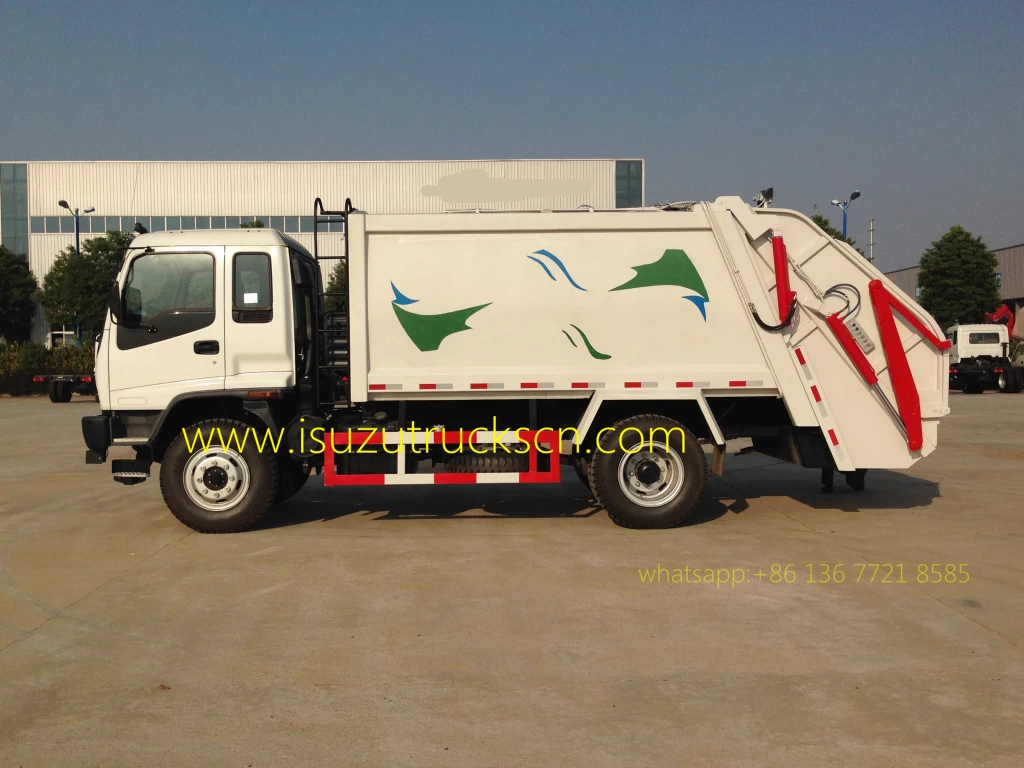

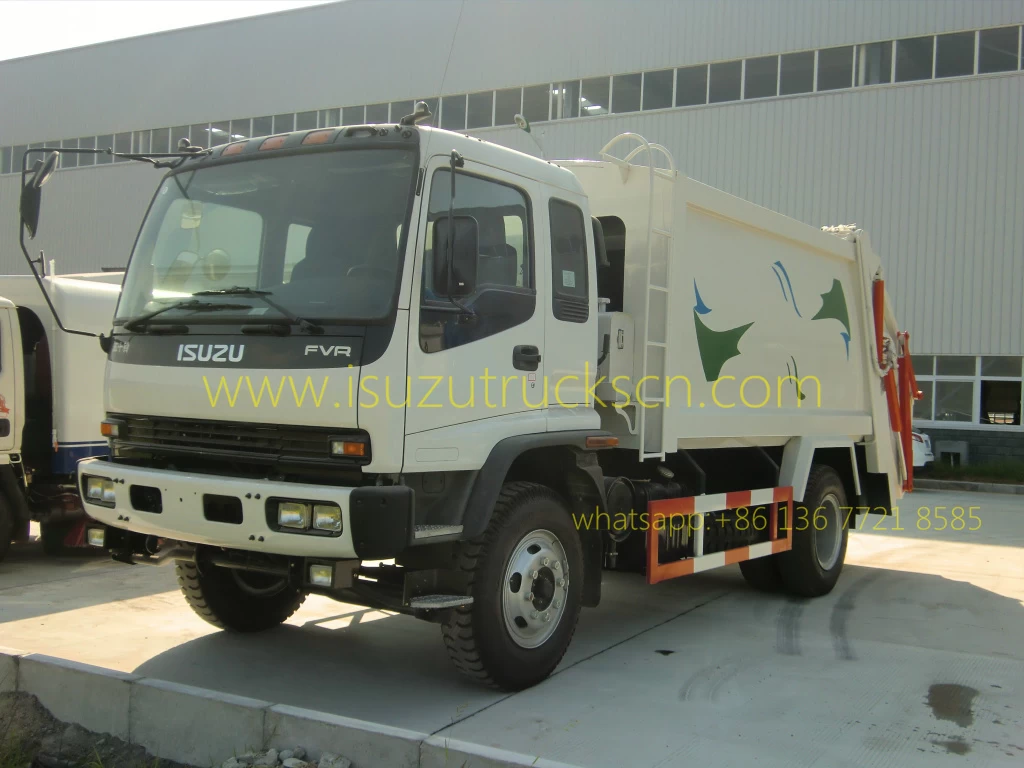

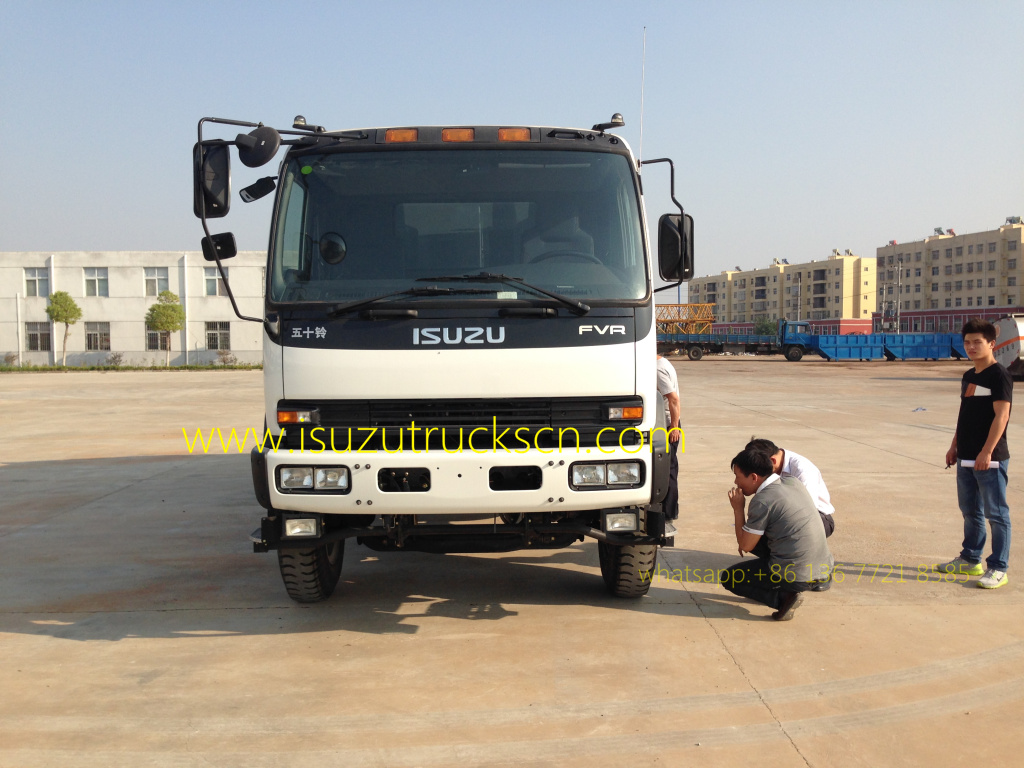

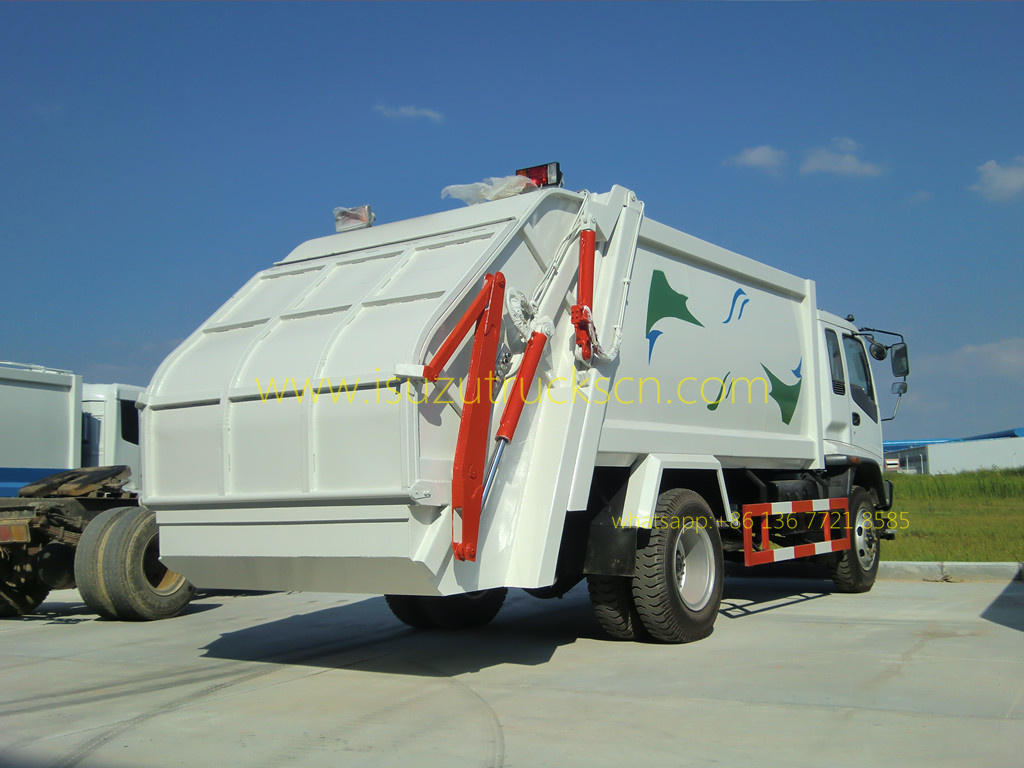

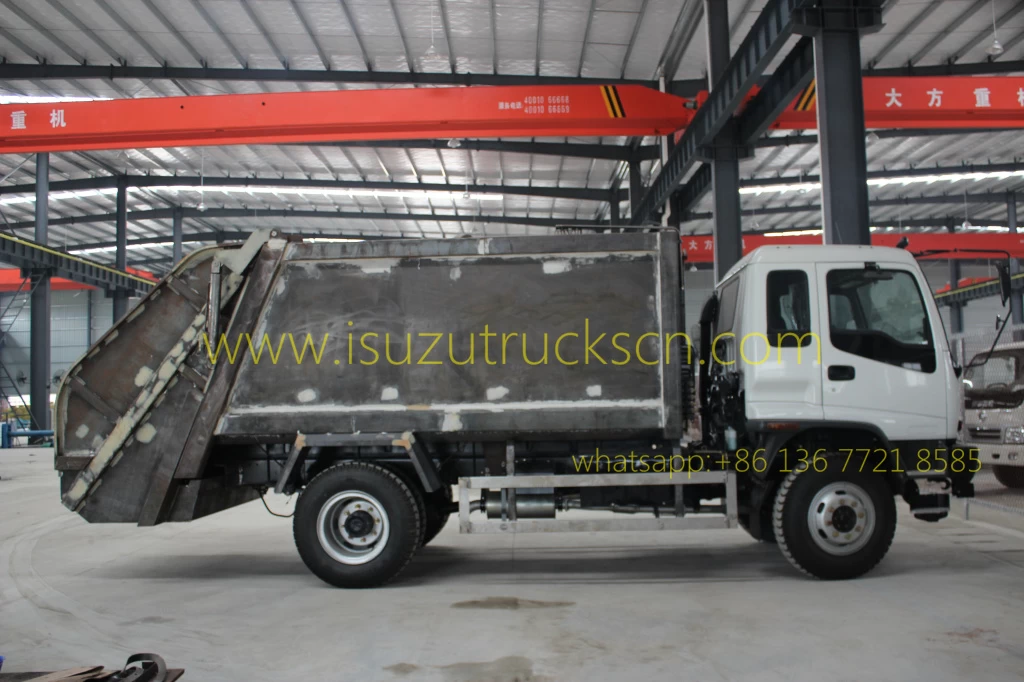

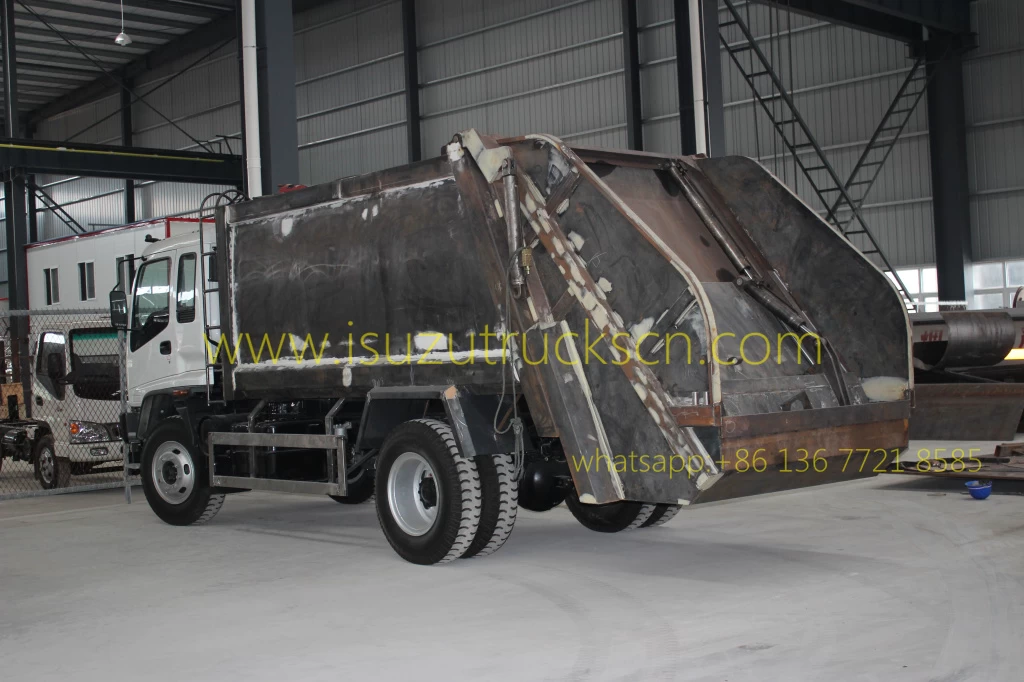

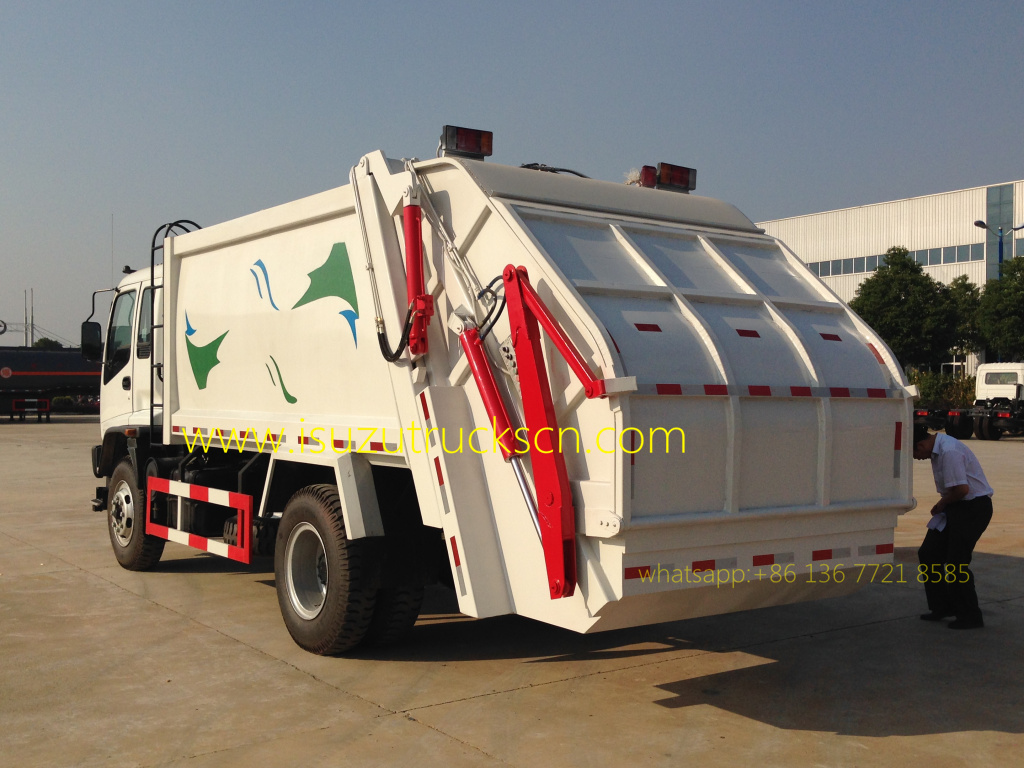

Customer made 12CBM 10cbm waste compactor truck Isuzu


Customer made 12CBM 10cbm waste compactor truck Isuzu


Customer made 12CBM 10cbm waste compactor truck Isuzu


Customer made 12CBM 10cbm waste compactor truck Isuzu


Customer made 12CBM 10cbm waste compactor truck Isuzu


Customer made 12CBM 10cbm waste compactor truck Isuzu


Customer made 12CBM 10cbm waste compactor truck Isuzu








 how to operation garbage compactor truck?    how to operation garbage compactor truck?

 how to operation garbage compactor truck?    how to operation garbage compactor truck?

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

Details pictures of 4cbm Compression Garbage Truck Isuzu

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

Details pictures of 4cbm Compression Garbage Truck Isuzu

 Garbage Compacting Truck Isuzu 4 CBM detail specification and pictures

Operation manual of 4cbm Compression Garbage Truck Isuzu

Operation manual for Isuzu refuse compactor garbage trucks
