Product Description

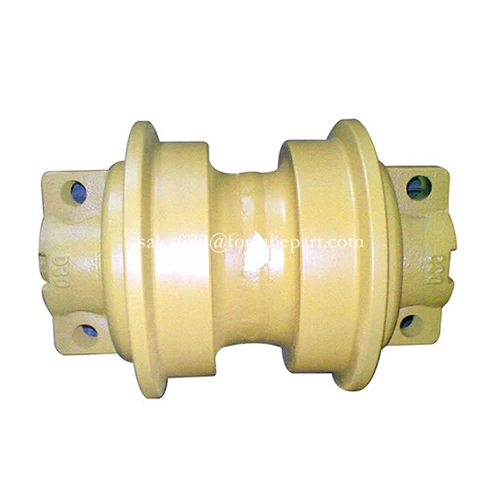

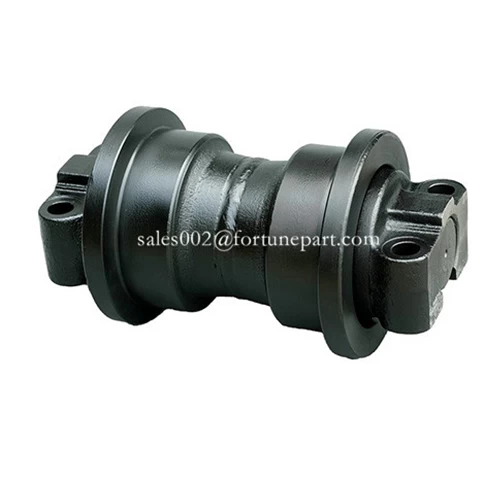

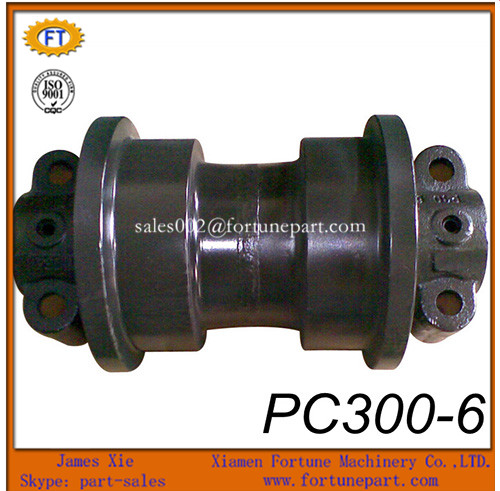

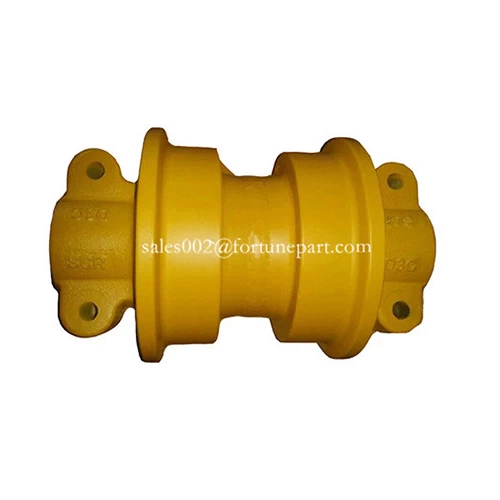

Liebherr Crawler excavator undercarriage parts parts track roller
It has different names bottom roller and lower roller, it can be used for crawler equipment excavator and dozer, such as Caterpillar,Komatsu, Hitachi,Doosan, Volvo,Kobelco,Daewoo,JCB, John Deere,Kubota,Hyundai,Sumitomo,Kato,Fiat-Hitachi,Samsung,Liebherr, and so on.
Track roller is very important for construction machinery, they are responsible to support the weight of machinery, so high quality track roller is very important in construction working.
|
Xiamen Fortune Industrial Co., Limited
|
|
Product Name
|
Liebherr excavator and dozer undercarriage spare parts track roller/lower
roller/bottom roller
|
|
Production Standard
|
ITM
production standard & OEM installment size
|
|
Material
|
50Mn/40MnB/42MnB
|
|
Finish
|
Smooth
|
|
Painting Color
|
Black
or yellow
|
|

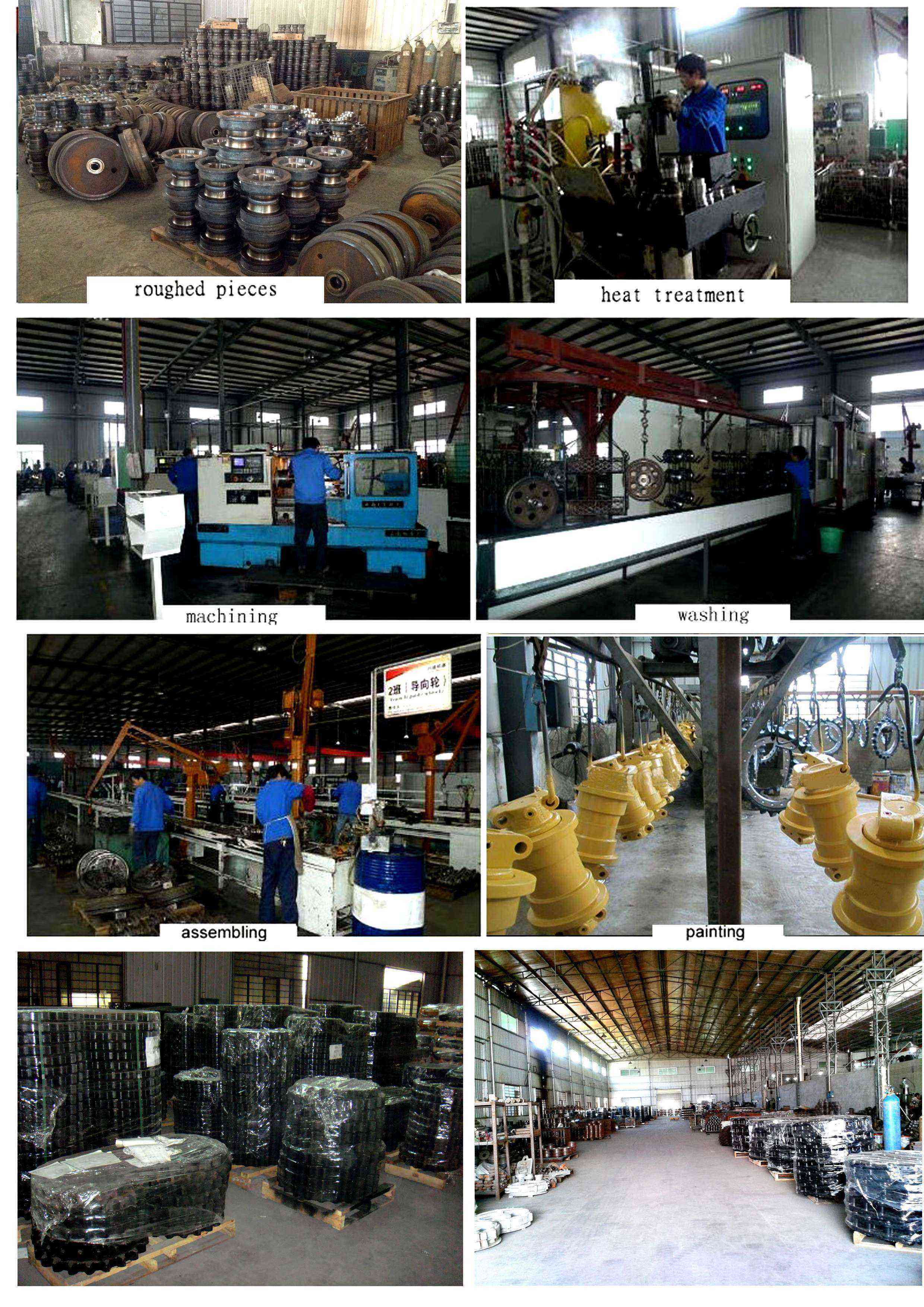

Process
|
Forging
& casting
|
|
Surface Hardness
|
HRC48-54,
Depth:4mm-10mm
|
|
Quality Guarantee
|
One
Year
|
|
Certification
|
ISO9001-9002
|
|
Delivery Time
|
Within
10--20 days after advance payment receive
|
|

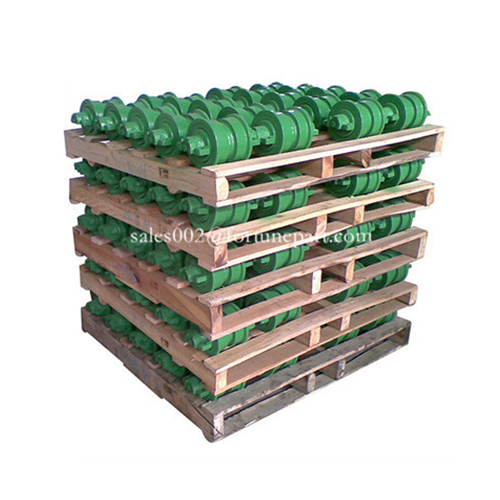

Package
|
Fumigate
seaworthy packing and Export Standard Package
|
|
Payment Term
|
TT,
L/C, Paypal, Western union,D/P
|
|
Business Scope
|
excavator
and dozer undercarriage parts, G.E.T, Hydraulic spare parts,underground
engage tools, etc
|
Track Roller Main Features:
1.Forged from deep hardening steel and heart treated for internal strength to resist bell mounting and to increase rebuilding ability.
two pieces roller shell rim. Heat treated shells for body strength and longer wear life.
Heat treated for a deep uniform hardened depth that provides wear life equal to link wear life.
2.Roller shaft
shaft and bearing designed to carry and turn with heavy track weight forged and heat treated for strength.
Bearing surfaces are hardened and polished to reduce friction and wear
Center flange absorbs side thrust from roller shell.
3.Cast Iron bushing
Supports the bronze sleeve bearing.
Cast from iron to absorb loads without permanent deformation.
Large lubricant reservoir to reduce heat build up
4.Bronzed sleeve bearing
Sleeve design provides a large surface area for better load distribution.
Inner diameter surface is polished to a smooth finish.
Soft bronze coating in the bearing absorbs any small foreign particles before they can damage the shaft and seals.
|
Our
Track Roller advantage(Why Choose ours)
|
|
1.Good lubricated oil recycle system
|
|
2. High hardness :HRC52-58,deepth:8mm-12mm
|
|
3. Deep hardened wear surface
|
|
4. Good bronze bushings
|
|
5.Strict Quality Control
|
|
6.OEM mounting dimension
|
|
7.Certificated by ISO9001:2008
|
|
8.Produce as per client's samples,designs and drawings
|
Track Roller Functions:
1.Support the track as its most between the sprocket and idler.
2.Guide the track between the sprocket and idler
3.Strength to resist failure before tread wear life is utilized.
4.Treads wear life matched to track links.
5.Treads and flanges rebuild able on forged shells.
6.Thru-hardened flanges to resist bending and improve rebuild ability.
Undercarriage Parts Model List
|
MAKES
|
APPLICABLE
MACHINES
|
|
CATERPILLAR
|
E70B E110B
E120B E307 E308
E311B E180 E240
E200B E300 E320 E322
E330 E340 E345
E350 E450
CAT215 CAT225 CAT235
D3B D3C D4C
D4D D4E D5 D5H D6C
D6D D6H D6R
D6T D7G D7H
D7R D8N D8R
D8T D8L D9N
D9R D10N D10T D11N
|
|
KOMATSU
|
PC20 PC25
PC30 PC40 PC60
PC100 PC120 PC200
PC220 PC240 PC300
PC350 PC360 PC400
PC450 PC650 PC750
PC1000
D20 D21 D30 D31
D40 D41 D50
D53 D55 D60
D65 D85 D155
D275 D355 D375
|
|
HITACHI
|
EX30 EX40
EX45 EX50 EX75
EX100 EX120 EX200 EX220
EX285 EX300 EX330 EX400 EX450
EX550 EX650
EX700 EX750 EX1100 EX1200
ZX50 ZX75 ZX200
ZX230 ZX240 ZX270
ZX300 ZX330
ZX450
|
|
JCB
|
JS120 JS130
JS200 JS205 JS220
JS330 JS360LC JS460
|
|
KOBELCO
|
SK60 SK100
SK120 SK210 SK220
SK230 SK250 SK270
SK300 SK310 SK320
SK330 SK400 K904
K907 SK07 SK04N2
SK07N2 SK09N2
|
|
VOLVO
|
EC140 EC210
EC240 EC290 EC360
EC460
|
|
HYUNDAI
|
R60 R130
R200 R210 R220
R290 R320 R330
R450
|
|
DAEWOO
|
DH55 DH130
DH180 DH200 DH220
DH280 DH300
|
|
DOOSAN
|
DX140 DX180
DX220 DX225 DX235
DX255 DX300 DX340
DX380 DX420 DX480
DX520
|
|
KATO
|
HD250 HD400
HD450 HD700 HD770
HD820 HD1250
|
|
SUMITOMO
|
SH100 SH120
SH200 SH220 SH250
SH260 SH280 SH300
SH340 SH430 SH580
LS1200 LS1600 LS2035
LS2050
LS2650 LS2800 LS3400
LS4300 LS5800
|
|
SAMSUNG
|
SE130 SE210
SE280 SE350
|
|
FIAT-HITACHI
|
FH120 FH200
FH220 FH300 FH330
|
|
LIEBHERR
|
PR724 PR734
R901 R902 R934
R941 R942 R944
R945
R952 R954 R971
R974 R981 R982
R984
|
|
CASE
|
CX120 CX130
CX210 CX240 CX330
CX360
|
|
NEW HOLLAND
|
E135 E145B
E165 E175 E215LC
E235 E245B E265 E305LC E385LC E485
|
|
BOBCAT
|
BOBCAT 325 BOBCAT 418
E26 E32 E35
E42
|
FAQ
1.What Xiamen Fortune Industrial Co.,Limited supply?
We mainly supply crawler excavator and dozer undercarriage parts, such as Track roller, Carrier roller, Sprocket, Idler,Recoil spring assy, Track chain, Track shoe, Track bolt&nut,Track chain guard, Excavator bucket,Bucket teeth&adaptor, Bucket Link,Cutting Edge and End Bits, Hydraulic Cylinder, Bucket pin&bush,Slewing Bearing, Long reach boom and arm, etc.
2.How to confirm the spare parts will fit our crawler excavator and dozer?
Please send us your excavator and dozer model name, part number, Berco number, or technical drawings and dimensions
3.How about the construction machinery excavator and dozer undercarriage parts Quality Control?
We have an excellent QC system, will inspect every production process,quality and specification, to be sure best quality and correct size, untill packages finished and loaded into container.
4.What is payment term?
TT, L/C, Paypal, Western Union, other payment term also can be negotiated.
Choose genuine quality track roller for construction machinery parts,
Fortunepart will be your best undercarriage parts supplier in China.
