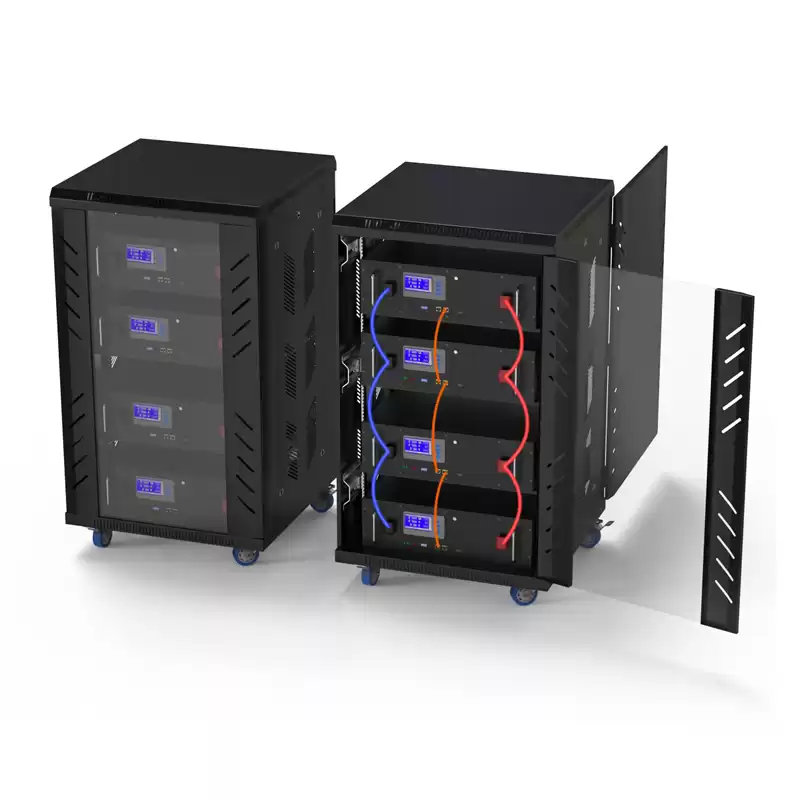

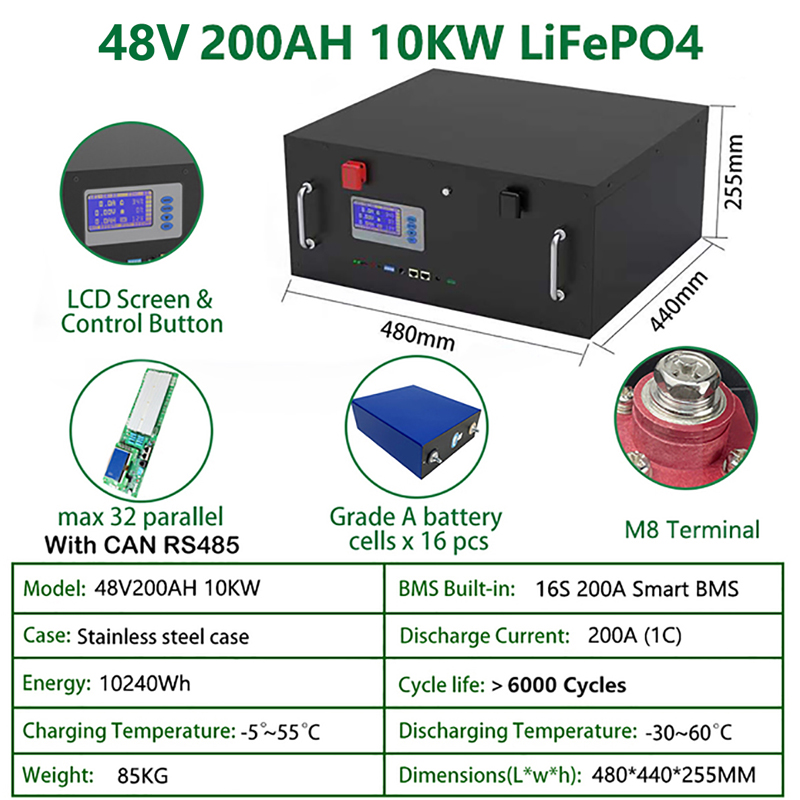

LiFePO4 10KW 48V 200Ah Lithium Ion Battery For Large Scale Energy Storage
Battery Specifications:
Nominal Voltage: 48V /51.2V
Nominal Capacity: 200Ah/10kw

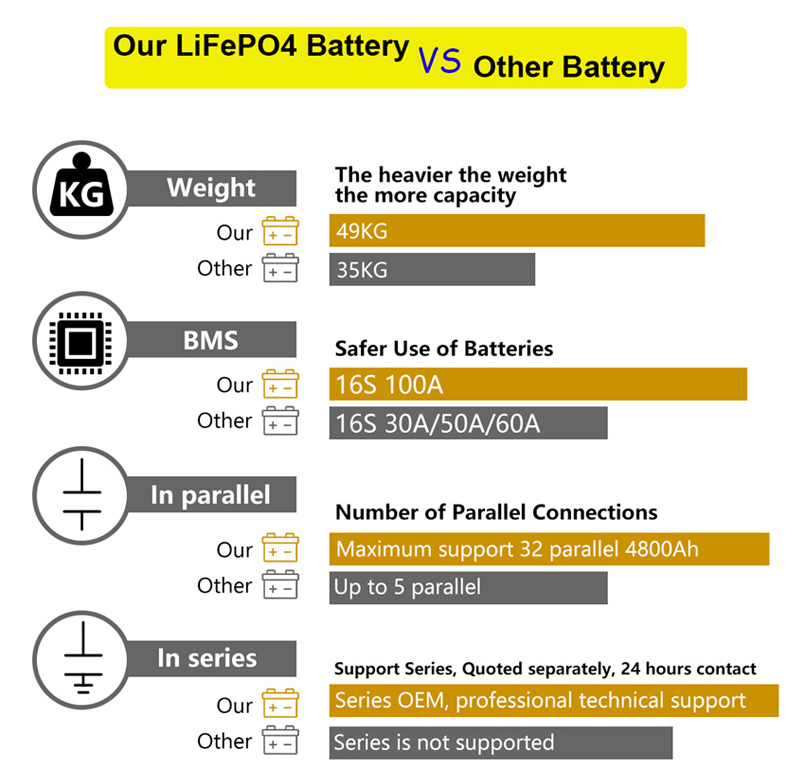

BMS: 16S 200A（Support Max 32pcs in parallel）
Communication Interface: CAN BUS RS485 UPS
Energy: 10240Wh
Cycle Life: ＞6000 Cycles
Self Discharge：≤3.5% per month at 25℃
Max.Charging Voltage：58.4±0.2V
Max.Charging Current：200A
Discharging Current：200A
Discharging Cut-off Voltage：40V
Water Dust Resistance：IPX56
Battery Size: (L*W*H)480*440*255mm
Weight: 85Kg

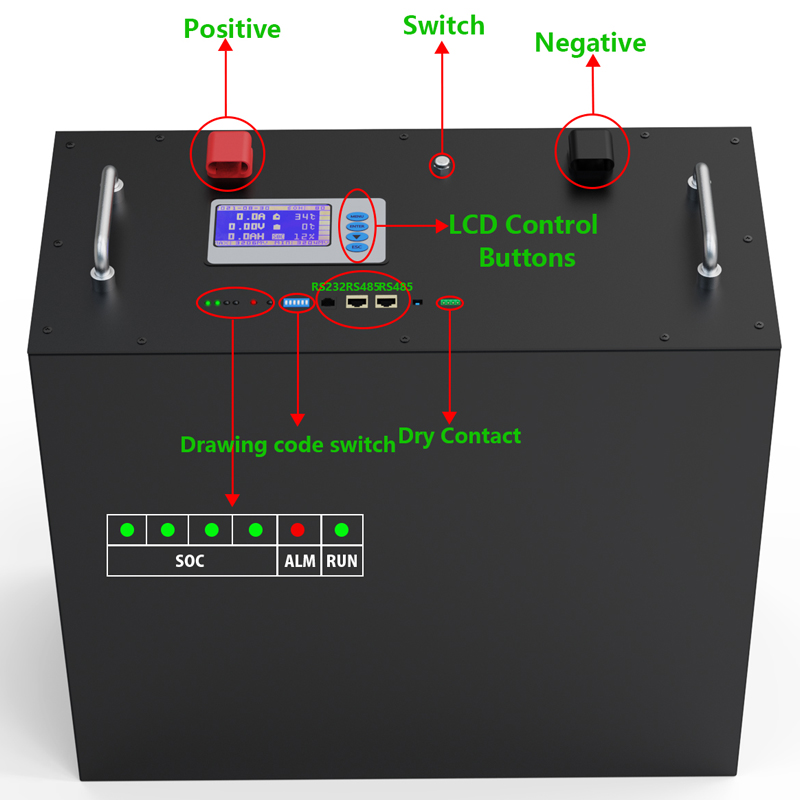

Display:LCD Screen

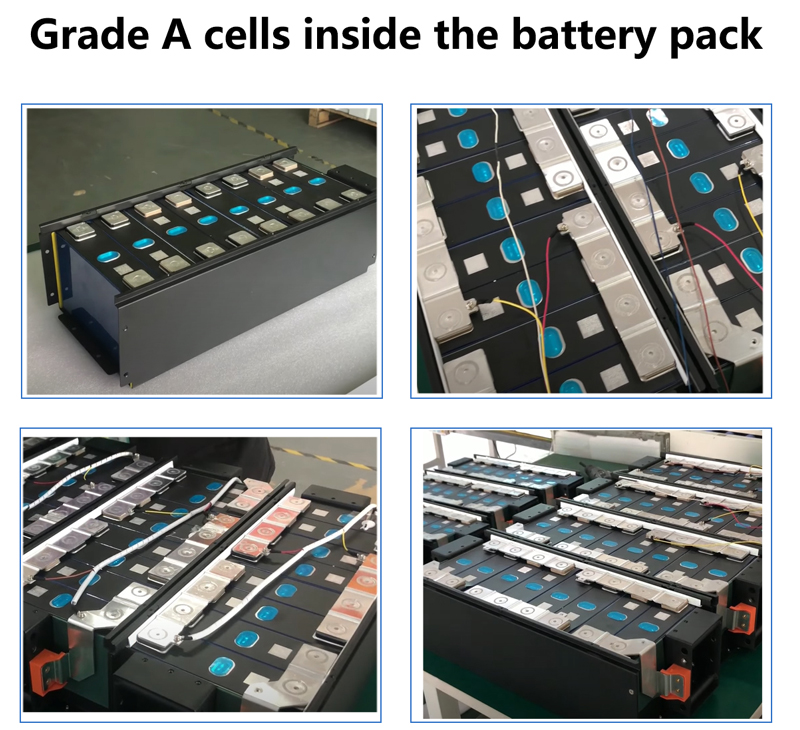

Our lithium iron phosphate battery is a new class a battery, with a cycle life of more than 6000 times, high durability, BMS intelligent management system, multiple balance protection function and high safety performance. For our battery pack, we only use the battery connection with an internal resistance of less than 0.05 Ω and a voltage difference of no more than 0.005v

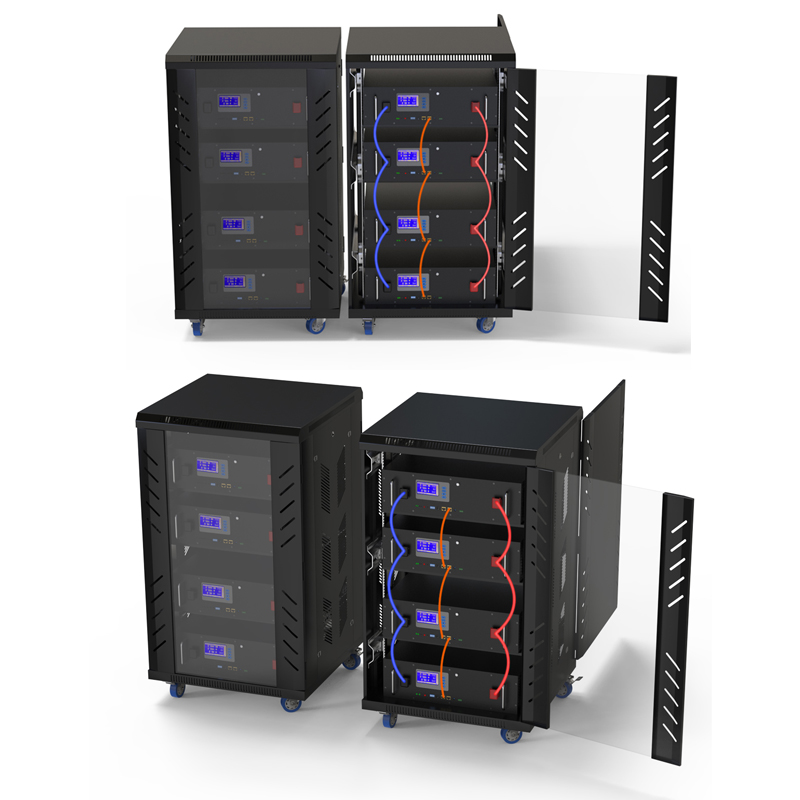

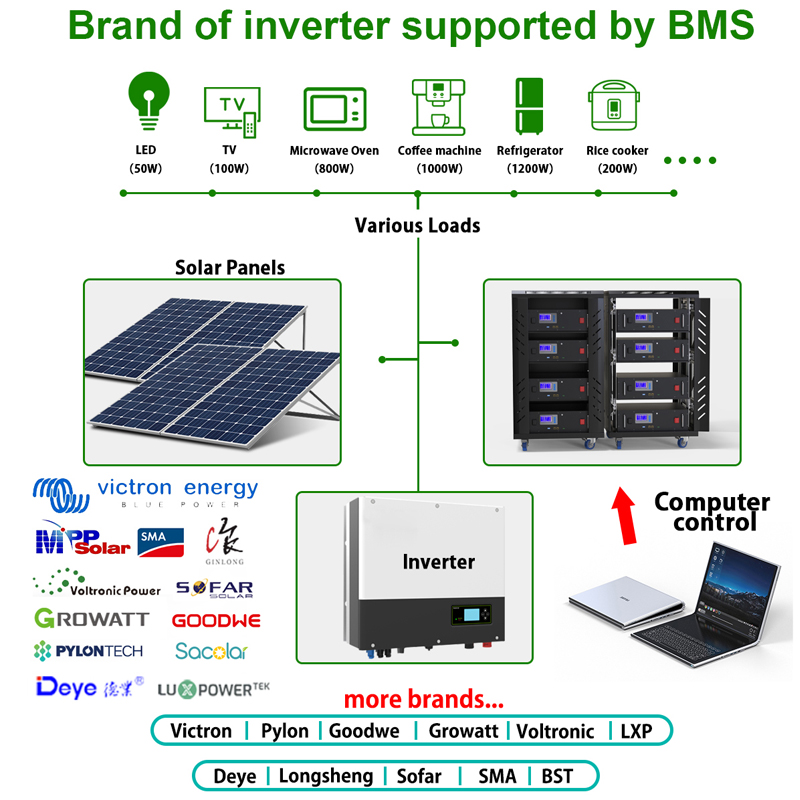

Our Cabinet type energy storage battery has built-in inverter communication protocol, which is compatible with most inverter brands such as victron, pylontech, goodwill, growatt, voltanic, Deye, LXP, sofar, Jinlong, SMA, easun, and tuobao

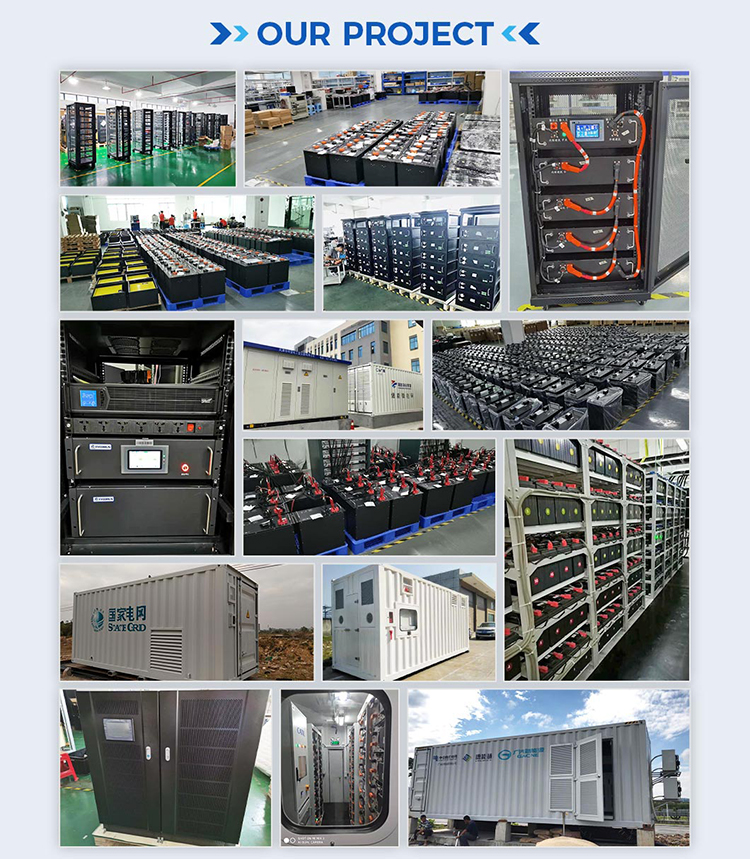

The battery pack 48v lifepo4 is suitable for Mountain communication base station；Solar energy storage；Reserve energy；Communication base station energy storage；Micro station/macro station；Home energy storage

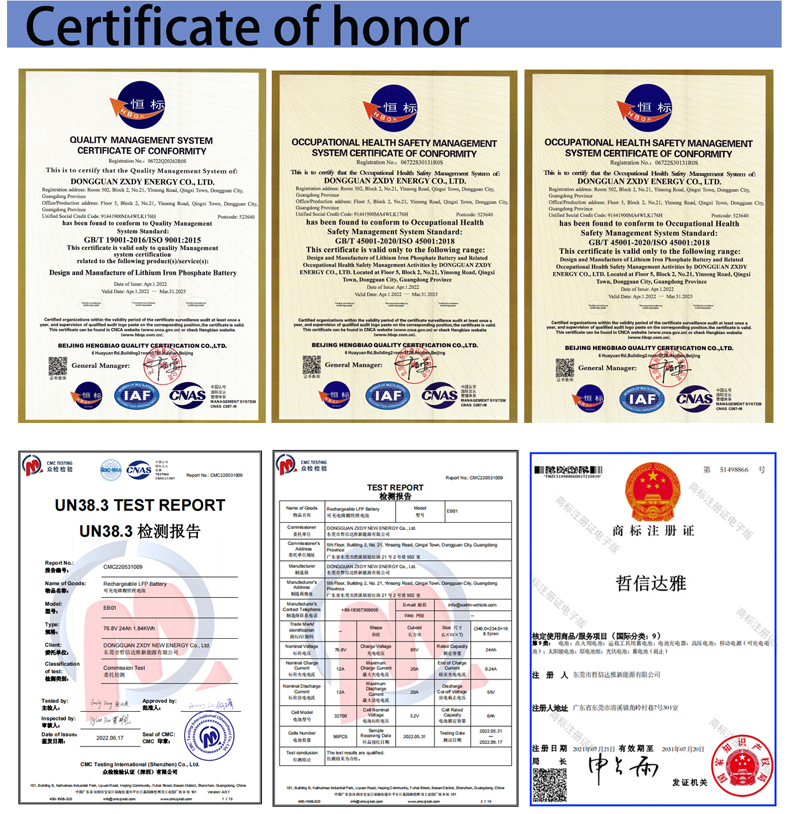

In order to provide more efficient and cost-effective energy storage battery products to meet customers' growing power demand and high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery seksz202206265622wx83001.
