Lifepo4 agv battery 24v 100ah lithium ion battery pack
Battery Type：LiFePO4
Usable Capacity：2560 Wh @C2, 25°C
Nominal Voltage：25.6 VDC
Operating Voltage Range：17.6VDC – 29.2 V DC
Operating Temperature Range：-20°C – 60°C
Cycle Life @ 100% DoD：> 3500 cycles (2560Wh @C2, 25°C)
Cycle Life @ 80% DoD：> 5000 cycles (2048 Wh @C2, 25°C)
Dimensions (mm)：524mm x 240mm x 220mm (W x D x H)
Weight (kg)：Appro 25 kg
Charge Current (max.)：100A continuous(25°C)
Discharge Current (max.)：100A continuous(25°C)
Over-charge protection：3.75V
Over-charge release：3.55V
Under-discharge protection：2.20V
Under-discharge release：2.70V
Over-current protection：140A
Over-current delay：30S
Short circuit protection：Have
Short circuit protection delay：500 uS
Charging over-temperature protection：55℃
Charging under-temperature protection：-5℃
Discharge overtemperature protection：70℃
Balance current：≤100mA
Balance Condition：≥3.6V
Self-discharge Rate：< 3% per month
IP-protection：IP65

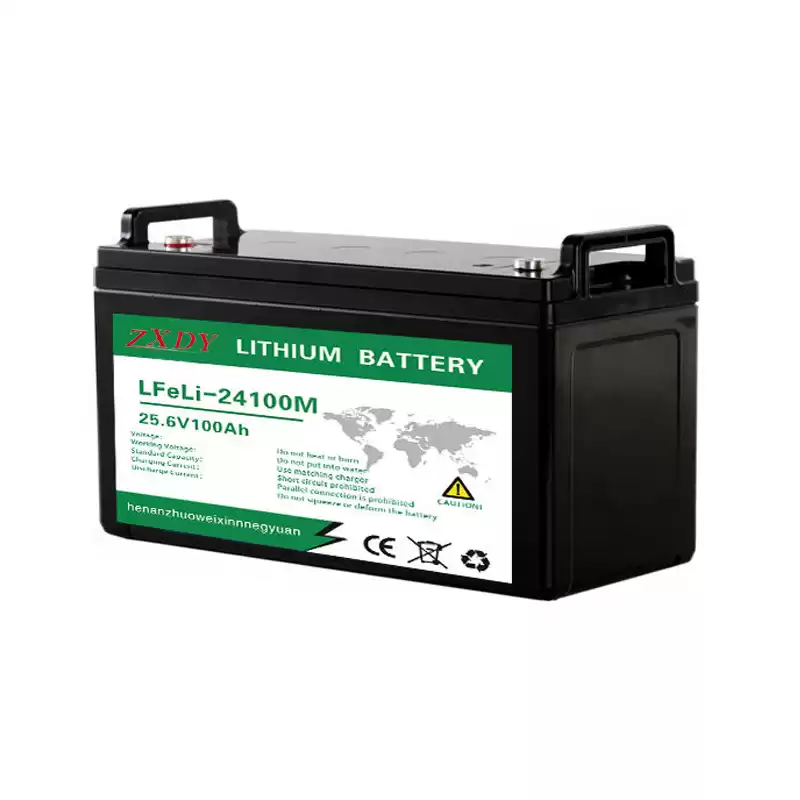

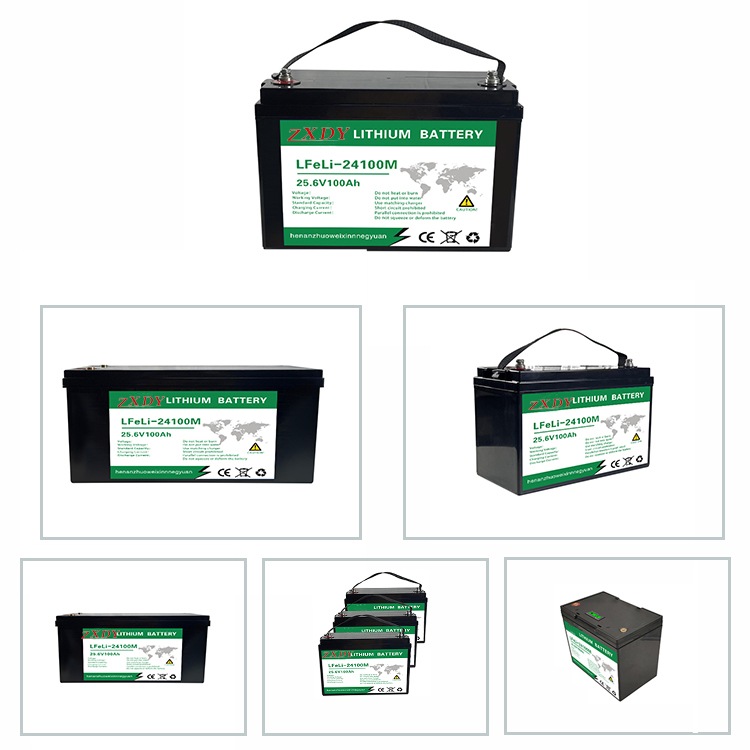

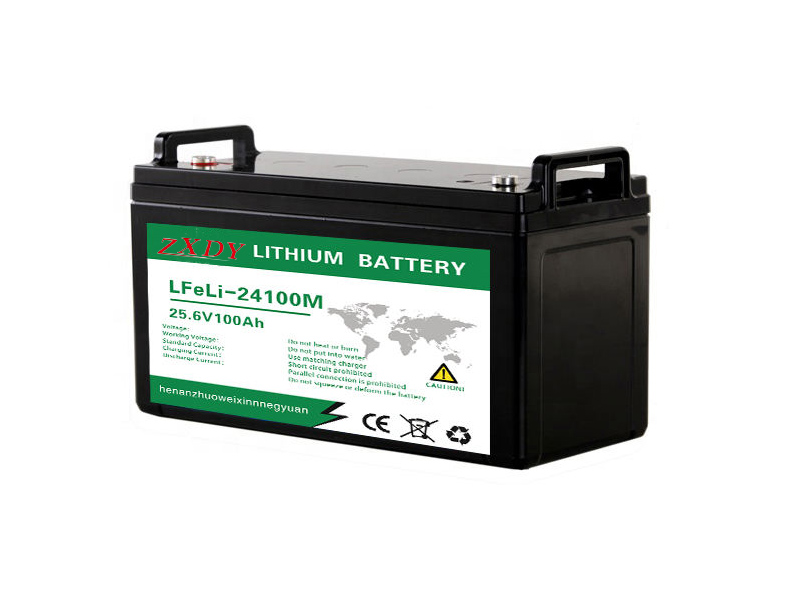

Picture display of 24V 100Ah
lithium ion battery pack
24V 100Ah AGV battery pack selected from Dongguan zhexin Daya
