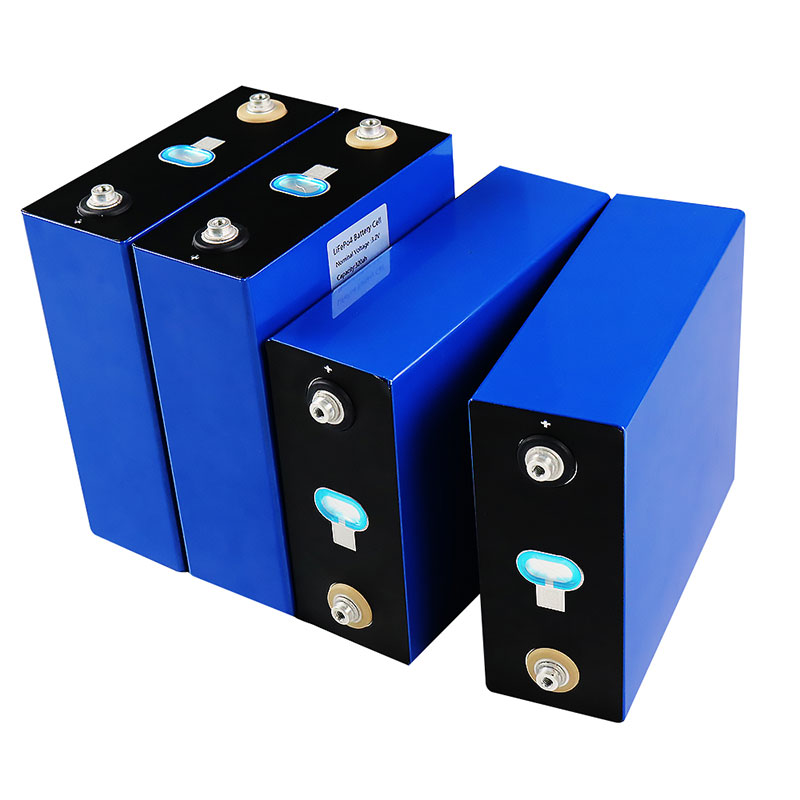

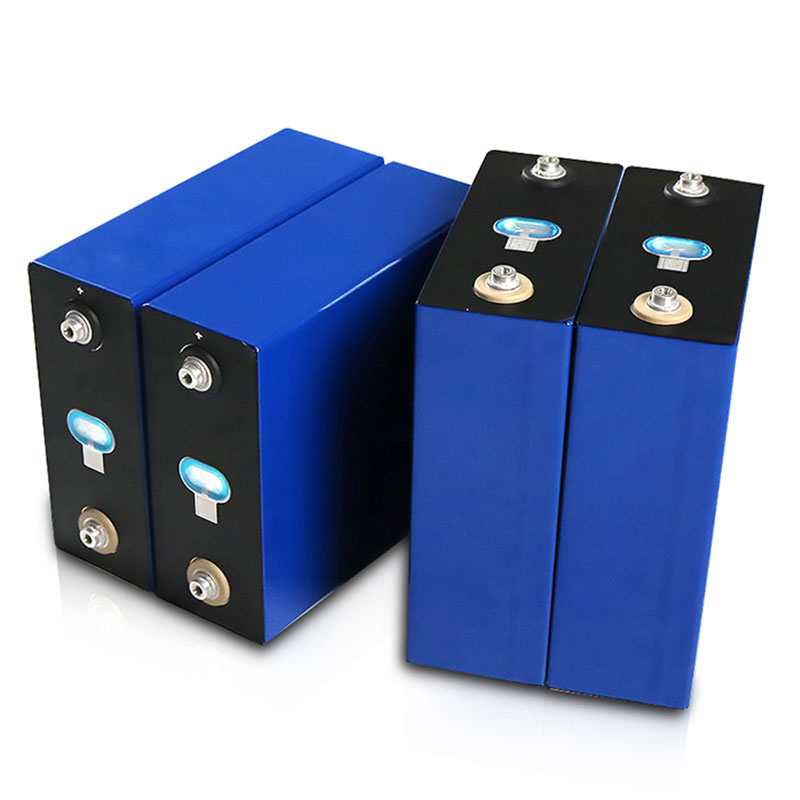

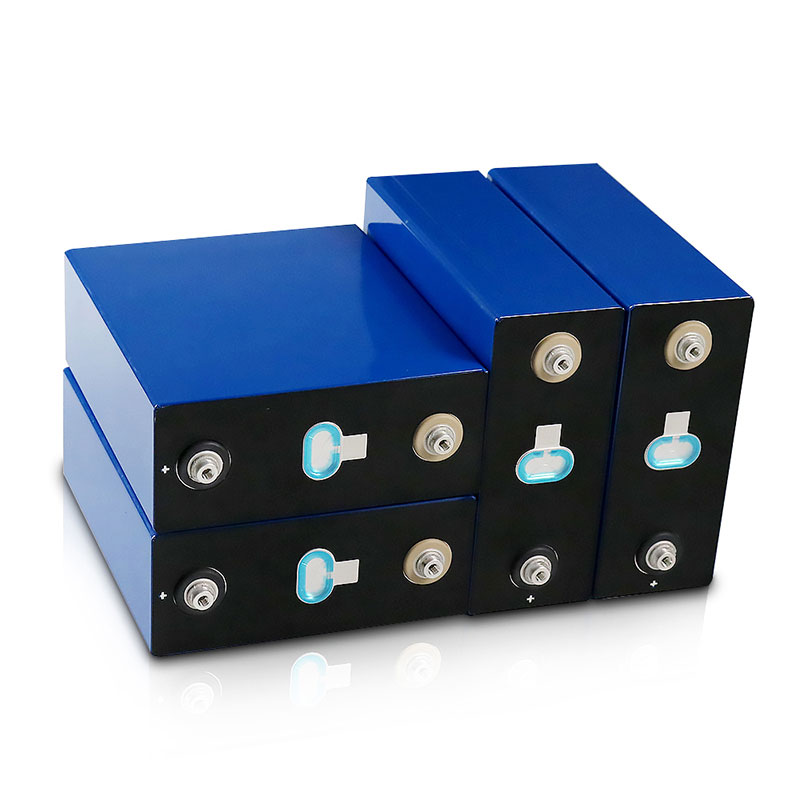

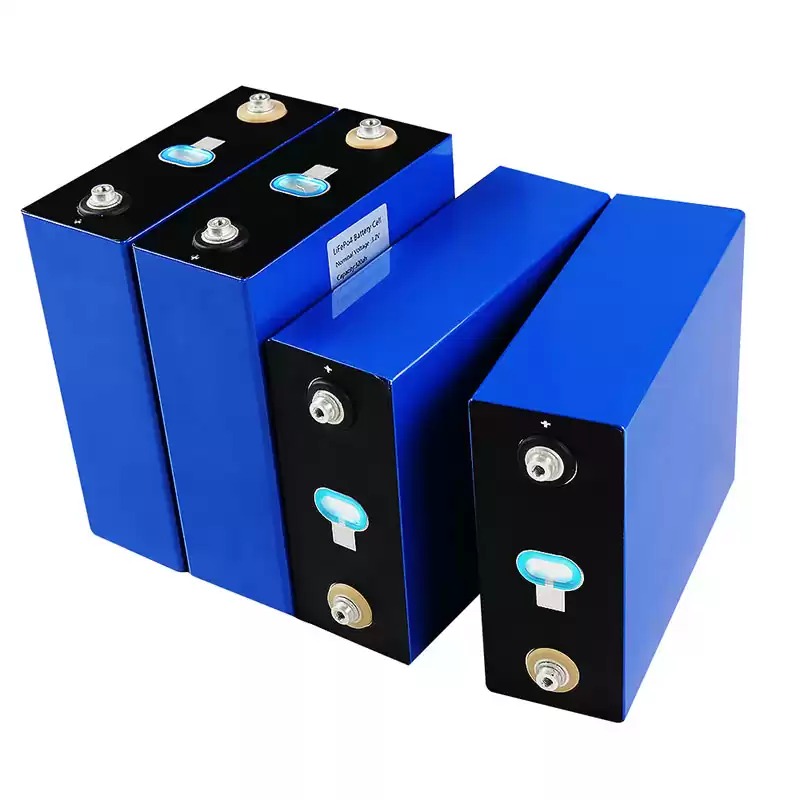

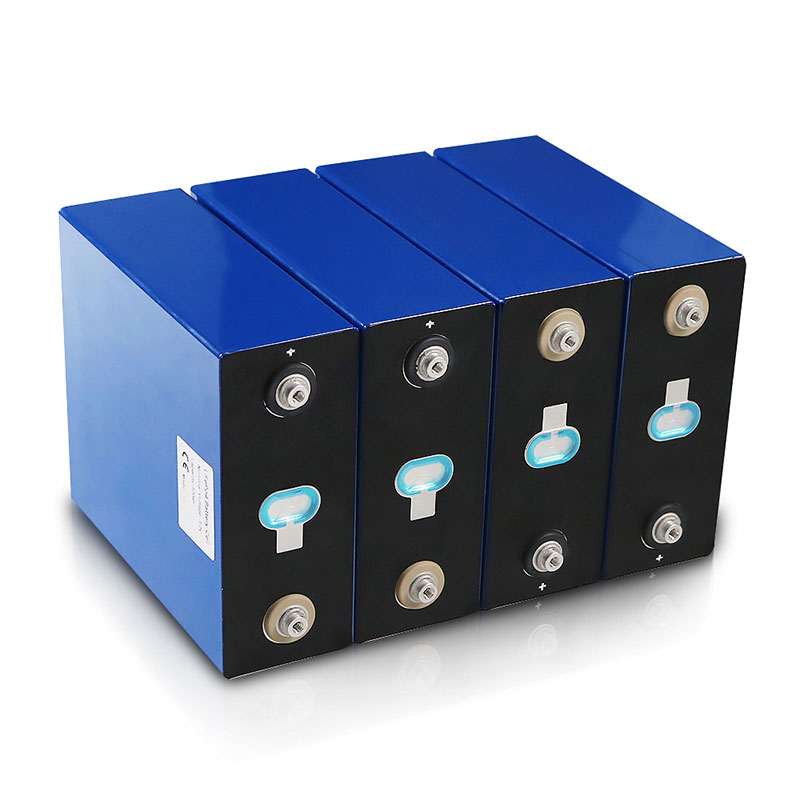

Lifepo4 Battery 320Ah 32PCS 3.2V Grade A 12V 310AH Lithium Iron Phosphate Battery Pack DIY RV Cell Solar Energy Storage System
Model: 3.2v 320Ah
Battery Type:Lithium iron phosphate
Rechargeable:Yes
Grade:Grade A
Brand New:Yes
Shell Material:Aluminium
Nomincal Capacity:320AH
Minimum capacity: 310-320Ah
Nominal Voltage:3.2V
Cut off Charge Voltage:3.65V
Cut off Discharge Voltage:2.5V
Internal impedance:≤0.5mΩ
Recommend Constant Charge Current:0.5C
Max Charge Current :1C
Recommend Constant Discharge Current:0.5C
Max Discharge Current:3C

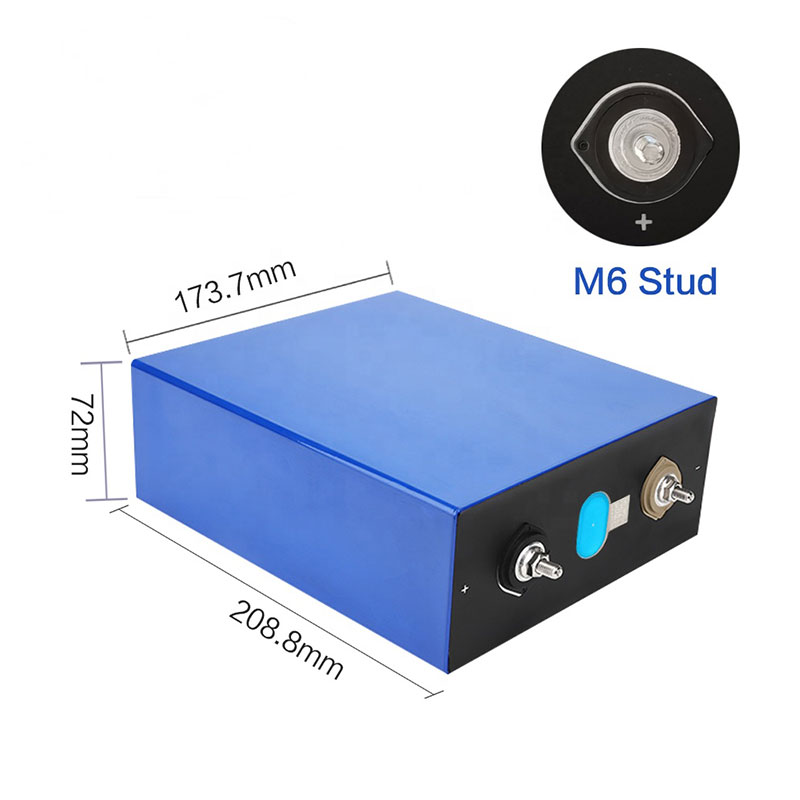

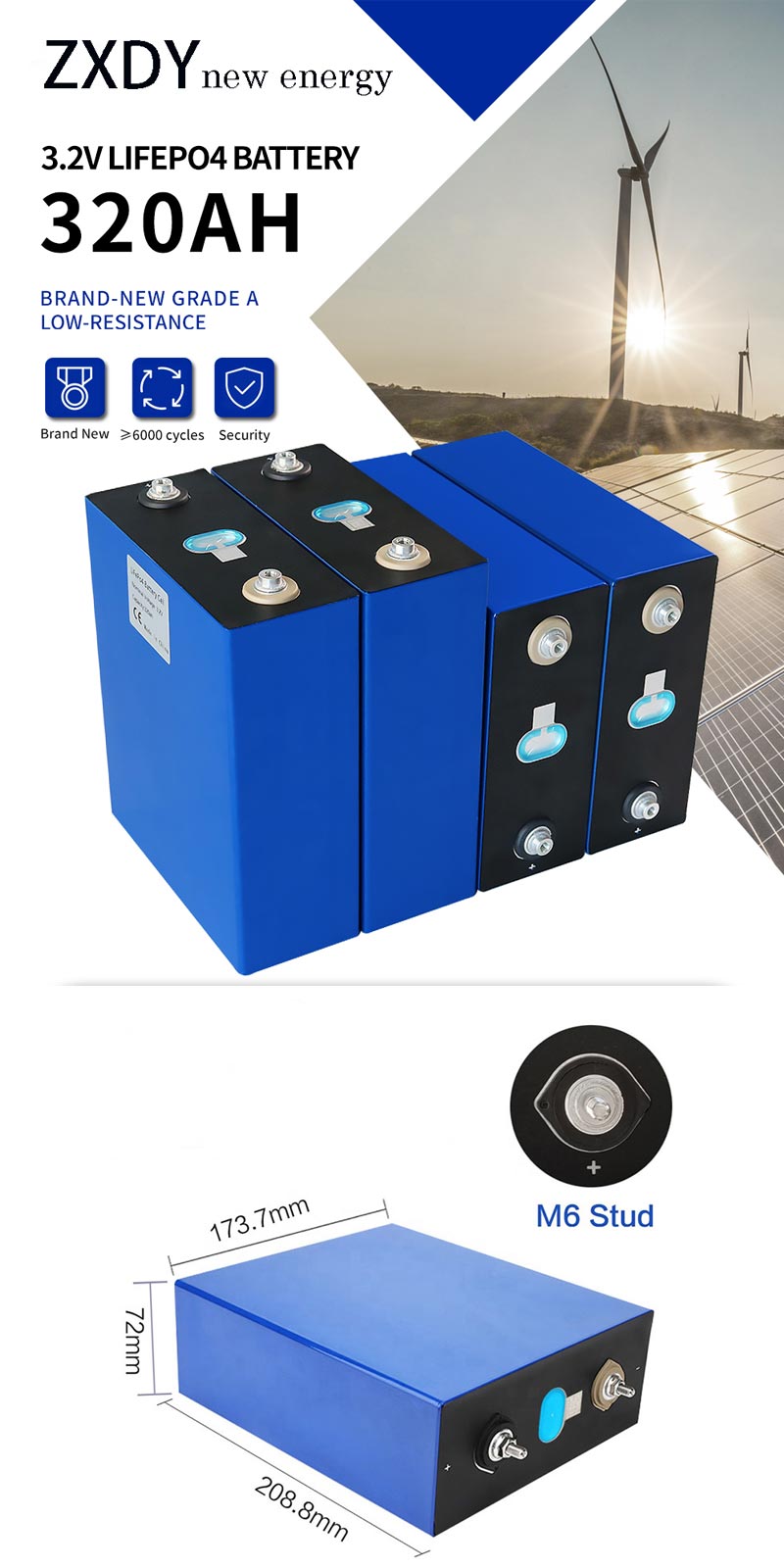

Dimensions(L*W*H):173.9*71.7*207.2mm
Weight:5.51Kg
Cycle life(80% DOD):6000 times
Charging Temperature:0~65℃
Discharging Temperature:-35~65°C

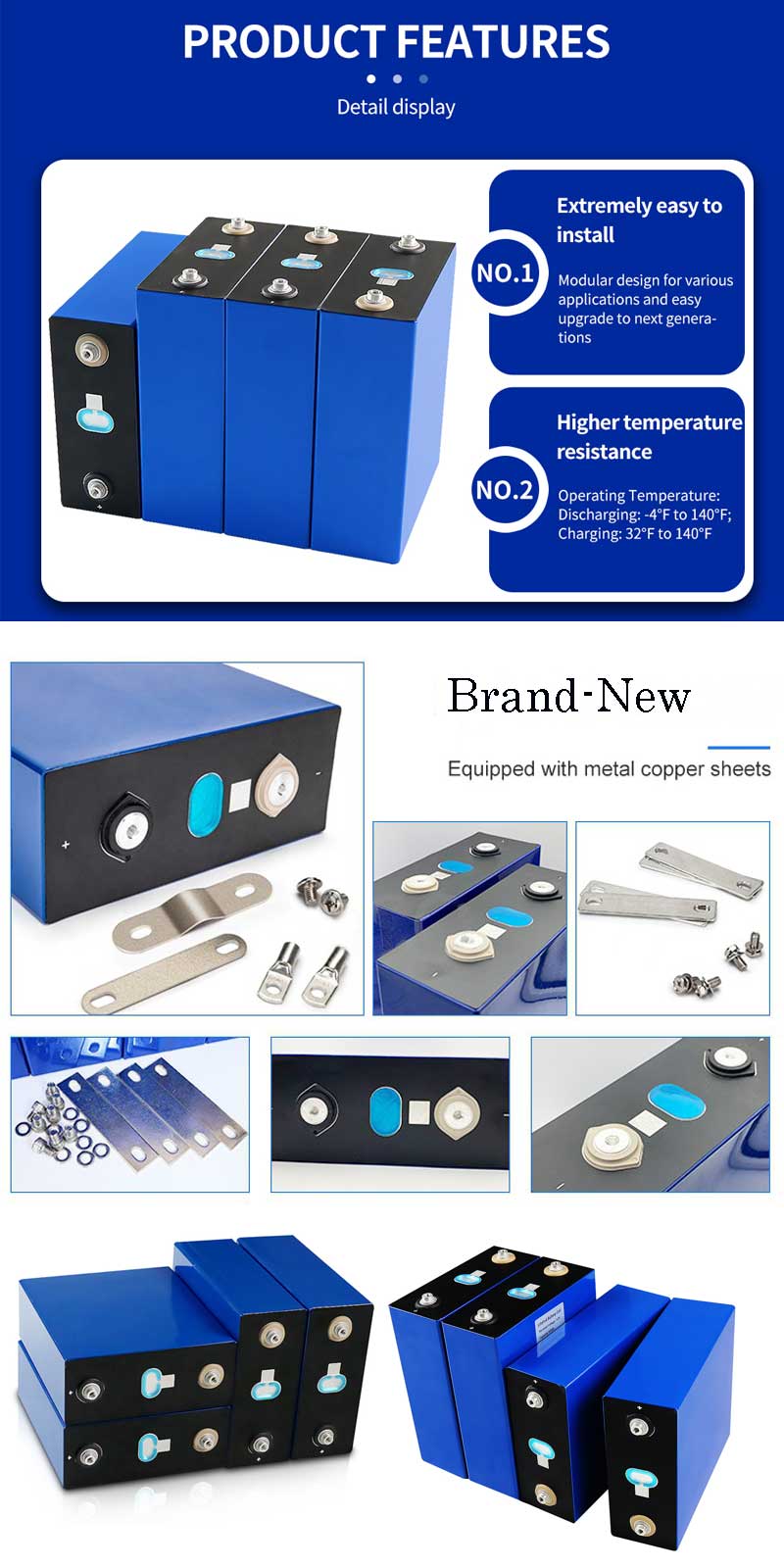

Screw Size:M6
Suit for System:12V 24V 48V 72V 96V 108V Solar Energy Storage System
Applicantion:RV Vans Campers EV Boats Yacht Golf Carts Forklift Solar Battery
Reminder
DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to assembled or unbalanced assembly is not accepted refund. please consider before taking orders, place order means you have agreed. thank you for your cooperation!
These situations not provide return nor refund
1: after the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
FAQ
Q:Does the sending battery include BusBar connector and screws?
Yes ,we ship the battery with the BusBar connector and screws
Q:What is the life expectancy of a Lithium battery?
A: The typical estimated life of the Lithium Iron Phosphate LiFePO4 battery is 5-15 years, or 2000 to 8000 charge cycles. One charge cycle is a period
Q:If I want to solar charge LiFePO4 Lithium Ion battery, which already has PCB, would a normal controller work fine?
A: For LiFePO4 / Lithium Ion battery, we always recommend to use LiFePO4/Lithium Ion solar controller. Especially if you are using the battery as UPS (back up power supply). The Lead Acid solar controller will constantly provide pulse current to the battery, in the long run, it might damage the PCB. So the PCB won't be able to protect the battery when it should be..
Q:Is the cells I bought balanced?
A: we know the importance of maintaining the consistency of each cell in the LiFePO4 battery pack, so we will match and balance all cells to ensure that the internal resistance, voltage and capacity of cells are completely matched and balanced before delivery. This process is very necessary.
